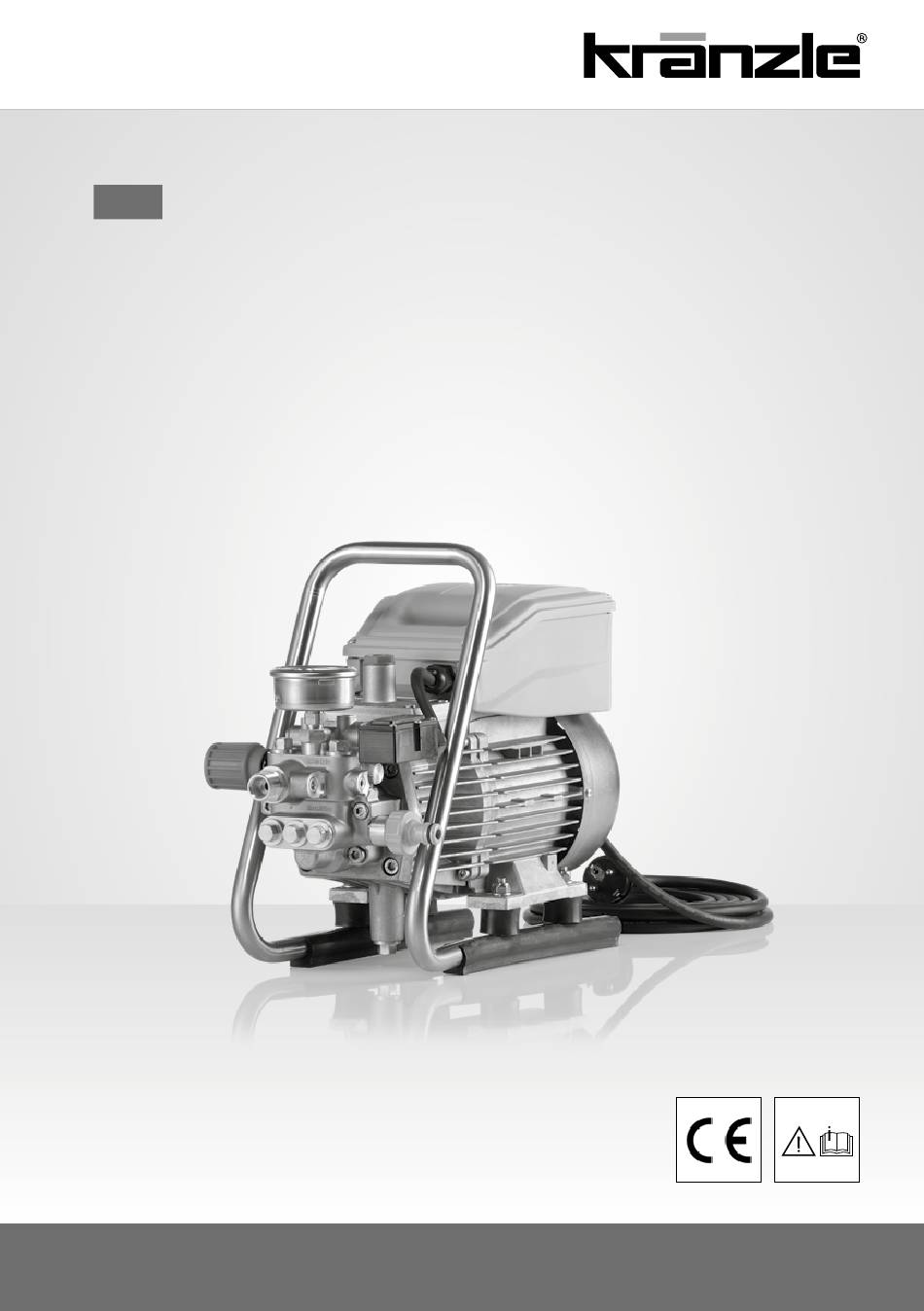

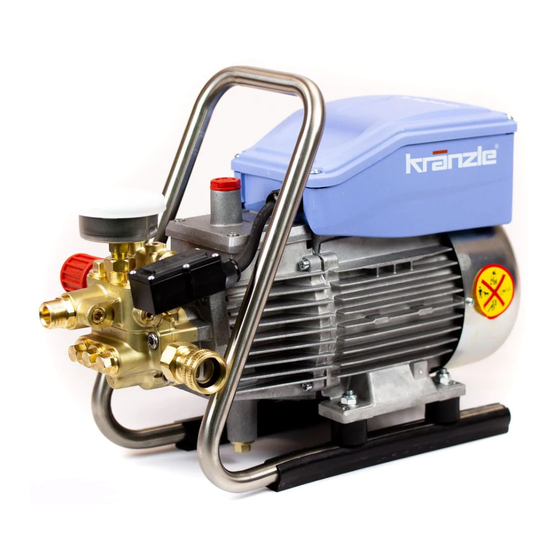

- Page 1 Operating manual - USA - with spare parts list High-pressure cleaner K 1622 TS www.kraenzle.com...
- Page 2 Operating manual High-pressure cleaner K 1622 TS Operating manual! This manual is a translation of the original manual. Read and conform safety instructions before use! Technical data will be found in the Spare parts list. Please be aware that the spare part list is part of the operating manual.
-
Page 3: Table Of Contents
Kränzle high-pressure cleaners are characterized by their convenient breakdown of the K 1622 TS. and compact design as well as their high suitability for everyday use. Highest precision and dimensional accuracy in addition to a technology... -
Page 4: Safety Notes
Safety notes Safety notes - This is prohibited! User operating the high-pressure cleaner should wear the necessary protective Replacement of the power supply cables is only permitted by use of an original clothing, i.e. waterproof clothing, rubber boots, safety goggles, ear protection power supply cable of the manufacturer and must be performed by a qualified headwear etc. - Page 5 Safety notes - This is prohibited! Safety notes - This is prohibited! Never direct the high-pressure jet at the high- Never direct the high-pressure jet at people or pressure cleaner itself! The high-pressure cleaner animals! Never direct the high-pressure jet at may not be placed within reach of the high- yourself or other persons, not even to clean pressure jet spray mist!
-
Page 6: Description Of High-Pressure Cleaner
Description of high-pressure cleaner Description of high-pressure cleaner Design: This is what you have purchased: The K 1622 TS ia portable type high-pressure cleaners. Please see construction scheme for more details. 1. Kränzle high-pressure cleaner K 1622 TS 2. Safety trigger gun with screwing 3. -
Page 7: General Rules
General rules General rules Intended use Oil change This high-pressure cleaner is to be used solely for high-pressure water jet cleaning applications without detergents or low-pressure cleaning work with detergents The first oil change should be carried out (e.g. with a foam injector or washing brush). after approximately 50 operating hours, then every year or after 250 operating Environmental, refuse disposal and water protection regulations... -
Page 8: Functional Details
Functional details Functional details Please note: Lack of water Insufficient quantity of electricity Lack of water occurs more often than you If there are too many collectors in your probably believe. The more powerful a high- proximity connected to the network at the pressure cleaner is the greater is the danger same time, the available voltage and the that a lack of water occurs. - Page 9 Totalstop-System spraying from the safety jet pipe with the selected operating pressure. The K 1622 TS features a totalstop system. If the main switch is switched on, The safety trigger gun is a safety device. Repairs should only be the motor is started via a pressure switch when opening the safety trigger gun.
-
Page 10: Putting Into Operation
It is imperative that safety instructions be observed during use of the high-pressure cleaner. Neither set up or operate the K 1622 TS in rooms where there is a risk of fire or explosion nor put it into puddles. Do not use the high-pressure cleaner under water. - Page 11 (1-10 bar pre-pressure) with either cold or hot water (up to 60 °C). The K 1622 TS provides the opportunity of sucking in water out of a container (see direct suction). 13. Adjust operating pressureinfinitely using the rotary handle.
-
Page 12: Taking Out Of Operation
Direct suction Taking out of operation Switch off the high-pressure cleaner Direct water extraction Due to the suction capacity of its high-pressure pump (up to 1 m suction height, 2. Cut off the water supply max. hose length 3 m) this high-pressure cleaner can suck in water for cleaning Open the safety trigger gun catch briefly until the pressure is released purposes from separate containers or ponds. -
Page 13: Small Repairs - Do It Yourself
Small repairs - do it yourself Small repairs - do it yourself Problem Problem No water from nozzle although the high-pressure cleaner is running. Irregular jet from nozzle. The stainless steel pressure gauge shows full pressure. The stainless steel pressure gauge shows low pressure. Cause Cause Most likely the nozzle is blocked. - Page 14 Small repairs - do it yourself Small repairs - do it yourself Problem Problem After closing the safety trigger gun the high-pressure cleaner keeps switching on After closing the safety trigger gun the high-pressure cleaner keeps switching on and off. The stainless steel pressure gauge continuously displays full pressure. and off.
-
Page 15: Kränzle Accessories
Kränzle accessories Kränzle accessories Rotating washing brush 400 mm Stainless steel extension Dirtkiller lance Brush head ∅ 180 mm Stainless steel pipe 500 mm Nozzle size 3.2 mm Item no.: 41570-028 Item no.: 410501 Splash guard Foam injector L: 280 mm x W: 190 mm 1 litre, with container For all washing lances Dosage in 5 levels... -
Page 16: Eu Declaration Of Conformity
The warranty obligation of Josef Kränzle GmbH & Co. KG towards the dealer the high-pressure cleaners: K 1622 TS from whom you have purchased this Kränzle high-pressure cleaner (= product) applies to material faults only such as material and manufacturing defects. -
Page 17: Technical Data
Notes Technical data Technical data K1622 TS Operating press. fully adjustable 10-110 bar / 150-1600 psi Nozzle size Permissible overpressure 120 bar / 1800 psi Water output at 1.700 rpm 1,7 GPM Water inlet temperature max. 140 °F Suction height Steel braided high-pressure hose 10 m Connected load... -
Page 18: Wiring Diagram
Schaltplan Ersatzteilliste Komplettaggregat Wiring diagram Spare parts list complete assembly Wiring diagram K1622 TS 115 V, 60 HZ Schurter-switch with 14,5A excess current release blue brown brown blue green/yellow * 80 µF terminal strip ** white green/ black yellow motor Position Bezeichnung Stck. - Page 19 Ersatzteilliste Motor Ersatzteilliste Motor Spare parts list motor Spare parts list motor Position Bezeichnung Stck. Bestell-Nr. Description Qty. Item no. Ölgehäuse mit Dichtung, Deckel Öldichtung, Schulterlager 44501 Stator 230022 Motorwelle mit Rotor 43104 Passfeder 6 x 6 x 20 414831 Motor-Lager B-Seite Z-Lager 43025 Motor-Lager A-Seite Schulterl.
- Page 20 Getriebeteil Getriebeteil Transmission Transmission Position Bezeichnung Stck. Bestell-Nr. Description Qty. Item no. Gehäuseplatte 43003 Öldichtung 14 x 24 x 7 41631 O-Ring 83 x 2 43039 Plungerfeder 43040 Federdruckscheibe 14 mm 43041 Plunger 14 mm AZ-L 49021 Sprengring 14 mm 41635 Taumelscheibe 9,75°...
- Page 21 Ersatzteilliste Ventilgehäuse Ersatzteilliste Ventilgehäuse Spare parts list valve housing Spare parts list valve housing Position Bezeichnung Stck. Bestell-Nr. Description Qty. Item no. O-Ring 12 x 2 150051 O-Ring 11 x 1,5 12256 Edelstahlsitz 14118 Sicherungsring 13147 Anlaufentlastungsventil 490411 Edelstahlfeder 49042 Verschlussschraube 49043 Steuerkolben 6 mm für AZ mit Dichtungen...
- Page 22 Ersatzteilliste Ventilgehäuse Ersatzteilliste Ventilgehäuse Spare parts list valve housing Spare parts list valve housing Position Bezeichnung Stck. Bestell-Nr. Description Qty. Item no. Ventilgehäuse 490262 Ventilstopfen 41011 Ventilstopfen mit R1/4“ IG 410111 Ventile (grün) 416121 Dichtstopfen M 8 x 1 13158 Dichtstopfen M 10 x 1 43043 28.1...
- Page 23 Ersatzteilliste Pistole mit Lanze Ersatzteilliste Schmutzkiller Spare parts list pistol with lance Spare parts list dirt killer lance Position Bezeichnung Stck. Bestell-Nr. Position Bezeichnung Stck. Bestell-Nr. Description Qty. Item no. Description Qty. Item no. Sprühkörper 41520 Pistolenschale re+li 12.450 O-Ring 6,88 x 1,68 41521 Schraube 3,5 x 14 44.525...
-
Page 24: Inspection Reports
Inspection reports Inspection reports High-pressure cleaners for industrial use have to be checked by an expert every High-pressure cleaners for industrial use have to be checked by an expert every 12 months! Inspection report on annually carried out Labour Safety Inspection (UVV) 12 months! Inspection report on annually carried out Labour Safety Inspection (UVV) according to the Guidelines for Liquid Spray Equipment. - Page 25 Josef Kränzle GmbH & Co. KG Rudolf-Diesel-Straße 20 89257 Illertissen (Germany) sales @ kraenzle.com Made Germany www.kraenzle.com...
