Printed Matter No. 9836 9646 01
Publication Date 2023-01-20
Valid from Serial No. B1820001
Valid to Serial No. B5369999
LSV18 S200-2
(20000 r/min)
(20000 rpm)
Lubrication free
Read all safety warnings and instructions
Failure to follow the safety warnings and instructions may result in
electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference
LSV18 S200-2/B
8423070314
WARNING

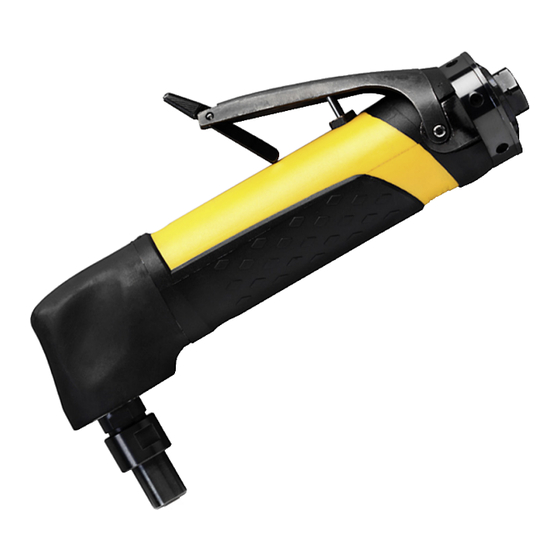

Die grinder NPT
Product Instructions
Advertisement
Table of Contents
Related Manuals for Atlas Copco LSV18 S200-2/B
Summary of Contents for Atlas Copco LSV18 S200-2/B
- Page 1 LSV18 S200-2/B Printed Matter No. 9836 9646 01 Die grinder NPT Publication Date 2023-01-20 Valid from Serial No. B1820001 Product Instructions Valid to Serial No. B5369999 LSV18 S200-2 8423070314 (20000 r/min) (20000 rpm) Lubrication free WARNING Read all safety warnings and instructions Failure to follow the safety warnings and instructions may result in electric shock, fire and/or serious injury.
-
Page 2: Table Of Contents
Service ........................ 13 Maintenance instructions ................ 13 Service recommendations .............. 13 Maintenance and service instructions .......... 13 Replacement of vanes................. 13 Overhaul .................... 13 Lubrication instructions ................... 14 Rust protection and cleaning ............... 14 Lubricating guide ................. 14 Lubrication ................... 14 © Atlas Copco Industrial Technique AB - 9836 9646 01... - Page 3 Dismantling/Assembling instructions .............. 15 Instructions for vane motor .............. 15 Operating Instructions.................. 17 Free speed...................... 17 Recycling ....................... 18 Recycling instruction.................. 18 © Atlas Copco Industrial Technique AB - 9836 9646 01...
-
Page 4: Product Information
■ Damage to parts that occurs as a result of inadequate maintenance or performed by parties other than Atlas Copco or their Certified Service Partners during the warranty period is not covered by the warranty. ■ To avoid damage or destruction of tool parts, service the tool according to the recommended mainte- nance schedules and follow the correct instructions. -
Page 5: Website
Choose Products - Safety Data Sheets, and follow the instructions on the page. Product safety video for grinders Learn more about safety features on Atlas Copco grinders and what measures the operator has to take for a safe operation. Click the link or scan the QR code below to view the video: http://www.atlascopco.com/videogallery/#detail/8a6f13ed-e055-4f78-904f-b118dec8d32a... -
Page 6: Technical Data
Replace the vanes in the motor when a power drop of the tool is experienced. If the vanes are not re- placed in time other motor parts may be damaged. For increased life length of the vanes use an oil lubri- cator to dose oil into the air inlet. © Atlas Copco Industrial Technique AB - 9836 9646 01... -
Page 7: Installation
Air quality ■ For optimum performance and maximum product life we recommend the use of compressed air with a maximum dew point of +10°C (50°F). We also recommend to install an Atlas Copco refrigeration type air dryer. ■ Use a separate air filter which removes solid particles larger than 30 microns and more than 90% of liquid water. -
Page 8: Visual Inspection - Air Installation
Installation of vibrating tools It is recommended that a minimum length of 300 mm (12") of flexible hose for compressed air is inserted between a vibrating tool and the quick-action coupling. © Atlas Copco Industrial Technique AB - 9836 9646 01... -
Page 9: Operation
Always wear protective gloves when changing accessories or when making repairs. ► The lever can be turned from the top side to the underside of the tool. Remove the handle using a slotted screwdriver. Attach the tool in a vice. © Atlas Copco Industrial Technique AB - 9836 9646 01... - Page 10 Tighten the adapter using a 15 mm socket and torque wrench. Tighten the trigger pin bushing using a 9 mm socket and torque wrench. Attach the lever in the opposite position. © Atlas Copco Industrial Technique AB - 9836 9646 01...
-
Page 11: Operating Instructions
WARNING Risk of Serious Injury or Death Overspeed can cause serious injury or death! Do not manipulate the speed of the tool. ► Do not override the maximum speed marked on the tool. ► © Atlas Copco Industrial Technique AB - 9836 9646 01... -
Page 12: Mounted Wheel And Carbide Burr
Do a test run of every new mounted wheel in a safe position for 30 seconds. Use a barrier such as under a heavy work table to stop any possible broken wheel parts. Stop immediately if the vibration is excessive. © Atlas Copco Industrial Technique AB - 9836 9646 01... -
Page 13: Service
Assemble the motor and do a check of that it is running free. Add two drops of oil through the air inlet and run the motor at idling speed for 5-10 seconds. © Atlas Copco Industrial Technique AB - 9836 9646 01... -
Page 14: Lubrication Instructions
For accurate lubricating properties – use RHENUS LKR03 fluid type grease. For the requisite amount of grease, see table below. Do not use ball bearing grease or chassis grease. Amount of grease Tool speed 5 cm³ 8000 / 12000 3 cm³ 17000 / 20000 © Atlas Copco Industrial Technique AB - 9836 9646 01... -
Page 15: Dismantling/Assembling Instructions
4080 0182 08 15.5 4080 0182 09 17.5 4080 0182 10 20.5 4080 0182 11 25.5 4080 0182 12 30.5 4080 0182 13 35.5 4080 0182 14 40.5 Dismantling tool Mandrel A © Atlas Copco Industrial Technique AB - 9836 9646 01... - Page 16 4080 0567 03 21.5 4080 0567 07 25.5 10.5 4080 0567 08 27.5 12.5 4080 0567 09 31.5 15.5 4080 0567 10 34.5 18.5 Dismantling tool Mandrel B E: Ball bearing © Atlas Copco Industrial Technique AB - 9836 9646 01...
-
Page 17: Operating Instructions
LSV18 S200-2/B Service Operating Instructions Free speed Model Max r/min LSV18 S200-2 20000 © Atlas Copco Industrial Technique AB - 9836 9646 01... -
Page 18: Recycling
When a product has served its purpose it has to be recycled properly. Dismantle the product and recycle the components in accordance with local legislation. Batteries shall be taken care of by your national battery recovery organization. © Atlas Copco Industrial Technique AB - 9836 9646 01... - Page 20 Original instructions © Copyright 2023, Atlas Copco Industrial Technique AB. All rights reserved. Any unauthorized use or copying of the contents or part thereof is prohibited. Atlas Copco Industrial This applies in particular to trademarks, model denominations, part numbers Technique AB and drawings.
