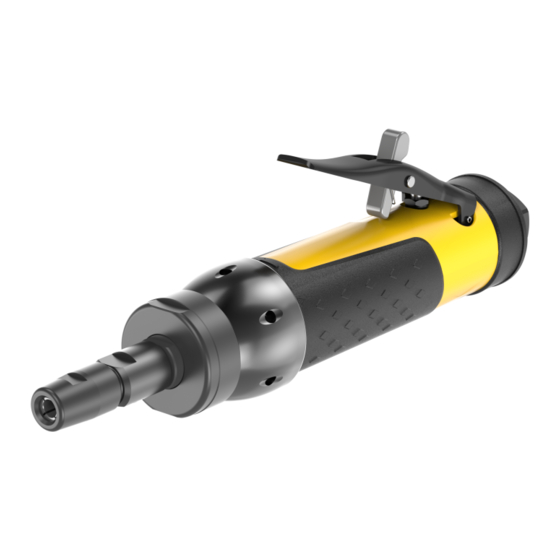

Atlas Copco LSF29 S030 Product Instructions

Atlas Copco LSF29 S030 Product Instructions

Die grinder

Advertisement

Quick Links

Printed Matter No. 9839 1598 01
Publication Date 2019-08-01
Valid from Serial No. A0800001
LSF29 S030
(3000 r/min)
(3000 rpm)
Read all safety warnings and instructions
Failure to follow the safety warnings and instructions may result in
electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference
8423012718
WARNING
LSF29 S030
Product Instructions
Die grinder

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LSF29 S030 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Atlas Copco LSF29 S030

  • Page 1 LSF29 S030 Printed Matter No. 9839 1598 01 Die grinder Publication Date 2019-08-01 Valid from Serial No. A0800001 Product Instructions LSF29 S030 8423012718 (3000 r/min) (3000 rpm) WARNING Read all safety warnings and instructions Failure to follow the safety warnings and instructions may result in electric shock, fire and/or serious injury.
  • Page 2: Table Of Contents

    Service ........................ 12 Maintenance Instructions................ 12 Maintenance and service instructions .......... 12 Service recommendations .............. 12 Overhaul .................... 12 Replacement of vanes................. 12 Lubrication Instructions................... 12 Rust protection and cleaning ............... 12 Lubricating guide ................. 13 Dismantling/Assembling Instructions .............. 13 © Atlas Copco Industrial Technique AB - 9839 1598 01...
  • Page 3 Instructions for vane motor .............. 13 Instructions for vane motor .............. 15 Recycling ....................... 18 Environmental Regulations................ 18 Recycling information .................. 18 © Atlas Copco Industrial Technique AB - 9839 1598 01...
  • Page 4: Product Information

    ■ Damage to parts that occurs as a result of inadequate maintenance or performed by parties other than Atlas Copco or their Certified Service Partners during the warranty period is not covered by the warranty. ■ To avoid damage or destruction of tool parts, service the tool according to the recommended mainte- nance schedules and follow the correct instructions.
  • Page 5: Servaid

    Never attach circular saw blades or other cutters than the abrasive wheels or brushes specified for the tool. Technical Product Data Technical Product Data can be found on either ServAid, or the Atlas Copco website. Please visit: https://servaid.atlascopco.com or www.atlascopco.com.
  • Page 6: Maintenance And Service Instructions

    The strainer at the air inlet should be cleaned frequently to prevent clogging and decreased capacity. Always check the free speed of the tool after service. © Atlas Copco Industrial Technique AB - 9839 1598 01...
  • Page 7: Installation

    Air quality ■ For optimum performance and maximum product life we recommend the use of compressed air with a maximum dew point of +10°C (50°F). We also recommend to install an Atlas Copco refrigeration type air dryer. ■ Use a separate air filter which removes solid particles larger than 30 microns and more than 90% of liquid water.
  • Page 8: Installation Of Vibrating Tools

    LSF extended tool, see the Adapter for internally threaded wheels under Acces- sories in ServAid - https://servaid.atlascopco.com. Make sure the internally threaded wheels (cone wheels/cylindrical plugs) is attached correctly to ► the LSF extended tool, according to the manufacturer’s recommendations. © Atlas Copco Industrial Technique AB - 9839 1598 01...
  • Page 9: Operation

    Adapt the torque setting to the operator's strength and posture and use a torque arm or reaction bar if the torque is too high. ■ Use dust extraction system or mouth protection mask in dusty environments. © Atlas Copco Industrial Technique AB - 9839 1598 01...
  • Page 10: Operating Instructions

    Do a free speed check of the tool every day and whenever the tool has been serviced. Do the free speed check with the grinding equipment removed. ■ Use a pressure regulator to prevent a too high air pressure which can cause overspeed. © Atlas Copco Industrial Technique AB - 9839 1598 01...
  • Page 11: Operating Instructions

    Do a test run of every newly attached wheel in a safe position for 30 seconds. Use a barrier (such as under a heavy work table) to stop any possible broken wheel parts. Stop immediately if the vibration is too high. © Atlas Copco Industrial Technique AB - 9839 1598 01...
  • Page 12: Service

    NOTICE Do not try to clear the air path using sharp tools. The air inlet is equipped with a strainer. If this is punctured, foreign objects may harm the valves, resulting in overspeed. © Atlas Copco Industrial Technique AB - 9839 1598 01...
  • Page 13: Lubricating Guide

    Wash your hands before starting any other activity ► Dismantling Service tools are also included in the Basic Service Tools set. For further information see ordering No. 9835 5485 00 © Atlas Copco Industrial Technique AB - 9839 1598 01...
  • Page 14 20.5 4080 0182 11 25.5 4080 0182 12 30.5 4080 0182 13 35.5 4080 0182 14 40.5 Inspection of motor parts Assembling - According to Bäckströms method E: Ball bearing © Atlas Copco Industrial Technique AB - 9839 1598 01...
  • Page 15 Wash your hands before starting any other activity ► Dismantling Service tools are also included in the Basic Service Tools set. For further information see ordering No. 9835 5485 00 © Atlas Copco Industrial Technique AB - 9839 1598 01...
  • Page 16 20.5 4080 0182 11 25.5 4080 0182 12 30.5 4080 0182 13 35.5 4080 0182 14 40.5 Inspection of motor parts Assembling - According to Bäckströms method E: Ball bearing © Atlas Copco Industrial Technique AB - 9839 1598 01...
  • Page 17 4080 0567 02 18.5 4080 0567 06 21.5 4080 0567 03 21.5 4080 0567 07 25.5 10.5 4080 0567 08 27.5 12.5 4080 0567 09 31.5 15.5 4080 0567 10 34.5 18.5 © Atlas Copco Industrial Technique AB - 9839 1598 01...
  • Page 18: Environmental Regulations

    Metal, steel Ring Metal, steel Planetary gear Metal, steel Vane motor* Metal, steel Casing Metal, aluminum Motor casing Metal, aluminum Valve complete Metal, steel Lever Metal, steel Bushing Metal, steel © Atlas Copco Industrial Technique AB - 9839 1598 01...
  • Page 19 Plastic, other, POM Spring Metal, steel Adapter Metal, steel * The rotor vanes in the tool contains PTFE. Follow and observe the normal health and safety recom- mendations concerning PTFE. © Atlas Copco Industrial Technique AB - 9839 1598 01...
  • Page 20 Original instructions Atlas Copco Industrial © Copyright 2019, Atlas Copco Industrial Technique AB. All rights reserved. Any Technique AB unauthorized use or copying of the contents or part thereof is prohibited. This SE-10523 STOCKHOLM applies in particular to trademarks, model denominations, part numbers and drawings.
