Printed Matter No. 9836 6365 01
Publication Date 2022-10-06
Valid from Serial No. A4700001
Valid to Serial No. A4739999

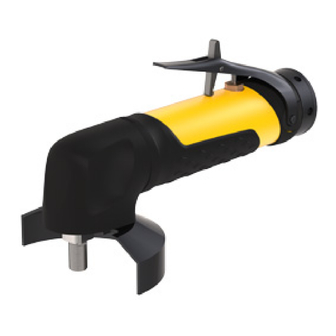

LSV19 S170-327
(17000 r/min)
(17000 rpm)
Lubrication free
Read all safety warnings and instructions
Failure to follow the safety warnings and instructions may result in
electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference
LSV19 S170-327
8423070580
WARNING
Product Instructions
Grinder NPT
Advertisement
Table of Contents
Related Manuals for Atlas Copco LSV19 S170-327
Summary of Contents for Atlas Copco LSV19 S170-327
- Page 1 LSV19 S170-327 Printed Matter No. 9836 6365 01 Grinder NPT Publication Date 2022-10-06 Valid from Serial No. A4700001 Product Instructions Valid to Serial No. A4739999 LSV19 S170-327 8423070580 (17000 r/min) (17000 rpm) Lubrication free WARNING Read all safety warnings and instructions Failure to follow the safety warnings and instructions may result in electric shock, fire and/or serious injury.
-
Page 2: Table Of Contents
Mounted abrasive equipment .............. 13 Service ........................ 15 Maintenance instructions ................ 15 Service recommendations .............. 15 Maintenance and service instructions .......... 15 Overhaul .................... 15 Replacement of vanes................. 15 Lubrication instructions ................... 16 Rust protection and cleaning ............... 16 © Atlas Copco Industrial Technique AB - 9836 6365 01... - Page 3 Lubrication guide ................. 16 Lubrication ................... 16 Dismantling/Assembling instructions .............. 17 Instructions for vane motor .............. 17 Operating Instructions.................. 19 Free speed...................... 19 Recycling ....................... 20 Recycling instruction.................. 20 Recycling information .................. 20 © Atlas Copco Industrial Technique AB - 9836 6365 01...
-
Page 4: Product Information
■ Damage to parts that occurs as a result of inadequate maintenance or performed by parties other than Atlas Copco or their Certified Service Partners during the warranty period is not covered by the warranty. ■ To avoid damage or destruction of tool parts, service the tool according to the recommended mainte- nance schedules and follow the correct instructions. -
Page 5: Website
Choose Products - Safety Data Sheets, and follow the instructions on the page. Product safety video for grinders Learn more about safety features on Atlas Copco grinders and what measures the operator has to take for a safe operation. Click the link or scan the QR code below to view the video: http://www.atlascopco.com/videogallery/#detail/8a6f13ed-e055-4f78-904f-b118dec8d32a... -
Page 6: Service Overview
Always do a free speed check of the tool after service. ► Change the grease in the angle gear after approximately 1000 hours of operation. See the directions un- der Lubrication. © Atlas Copco Industrial Technique AB - 9836 6365 01... -
Page 7: Replacement Of Vanes
Replace the vanes in the motor when a power drop of the tool is experienced. If the vanes are not re- placed in time other motor parts may be damaged. For increased life length of the vanes use an oil lubri- cator to dose oil into the air inlet. © Atlas Copco Industrial Technique AB - 9836 6365 01... -
Page 8: Installation
Air quality ■ For optimum performance and maximum product life we recommend the use of compressed air with a maximum dew point of +10°C (50°F). We also recommend to install an Atlas Copco refrigeration type air dryer. ■ Use a separate air filter which removes solid particles larger than 30 microns and more than 90% of liquid water. -
Page 9: Visual Inspection - Air Installation
Look for any damage that can compromise the safety of the tool. Installation of vibrating tools We recommend using a minimum length of 300 mm (12") of flexible hose for compressed air between a vi- brating tool and the quick-action coupling. © Atlas Copco Industrial Technique AB - 9836 6365 01... -
Page 10: Operation
Always wear protective gloves when changing accessories or when making repairs. ► The lever can be turned from the top side to the underside of the tool. Remove the handle using a slotted screwdriver. Attach the tool in a vice. © Atlas Copco Industrial Technique AB - 9836 6365 01... - Page 11 Tighten the adapter using a 15 mm socket and torque wrench. Tighten the trigger pin bushing using a 9 mm socket and torque wrench. Attach the lever in the opposite position. © Atlas Copco Industrial Technique AB - 9836 6365 01...
-
Page 12: Adjusting The Wheel Guard
There is a risk of injury if the tool is used without the wheel guard. Always use the tool with the recommended wheel guard. ► Make sure that the wheel guard is positioned correctly and not damaged. ► © Atlas Copco Industrial Technique AB - 9836 6365 01... -
Page 13: Operating Instructions
Use an abrasive wheel with a permitted speed higher than or equal to the air grinder speed. ► Do not use any other abrasive wheels than specified by the manufacturer. See Section Design ► and function. © Atlas Copco Industrial Technique AB - 9836 6365 01... - Page 14 Do a test run of every new mounted wheel in a safe position for 30 seconds. Use a barrier such as under a heavy work table to stop any possible broken wheel parts. Stop immediately if vibration is ex- cessive © Atlas Copco Industrial Technique AB - 9836 6365 01...
-
Page 15: Service
Replace the vanes in the motor when a power drop of the tool is experienced. If the vanes are not re- placed in time other motor parts may be damaged. For increased life length of the vanes use an oil lubri- cator to dose oil into the air inlet. © Atlas Copco Industrial Technique AB - 9836 6365 01... -
Page 16: Lubrication Instructions
For accurate lubricating properties – use RHENUS LKR03 fluid type grease. For the requisite amount of grease, see table below. Do not use ball bearing grease or chassis grease. Amount of grease Tool speed 5 cm³ 8000 / 12000 3 cm³ 17000 / 20000 © Atlas Copco Industrial Technique AB - 9836 6365 01... -
Page 17: Dismantling/Assembling Instructions
4080 0182 08 15.5 4080 0182 09 17.5 4080 0182 10 20.5 4080 0182 11 25.5 4080 0182 12 30.5 4080 0182 13 35.5 4080 0182 14 40.5 Dismantling tool Mandrel A © Atlas Copco Industrial Technique AB - 9836 6365 01... - Page 18 4080 0567 03 21.5 4080 0567 07 25.5 10.5 4080 0567 08 27.5 12.5 4080 0567 09 31.5 15.5 4080 0567 10 34.5 18.5 Dismantling tool Mandrel B E: Ball bearing © Atlas Copco Industrial Technique AB - 9836 6365 01...
-
Page 19: Operating Instructions
LSV19 S170-327 Service Operating Instructions Free speed Model Max r/min LSV19 S170-327 17000 © Atlas Copco Industrial Technique AB - 9836 6365 01... -
Page 20: Recycling
Lock ring Metal, Steel Bushing Metal, Steel Wheel guard Metal, Steel Screws Metal, Steel Lever Metal, Steel Ring Metal, Steel Valve complete (except valve) Metal, Steel Valve Plastics, Other, POM © Atlas Copco Industrial Technique AB - 9836 6365 01... - Page 21 Position Part Recycle as Adapter Metal, Steel Adapter Metal, Steel *The rotor blades (vanes) in the product contains PTFE, the normal health and safety recommendations concerning PTFE must be observed. © Atlas Copco Industrial Technique AB - 9836 6365 01...
- Page 24 Original instructions © Copyright 2022, Atlas Copco Industrial Technique AB. All rights reserved. Any unauthorized use or copying of the contents or part thereof is prohibited. Atlas Copco Industrial This applies in particular to trademarks, model denominations, part numbers Technique AB and drawings.
