Printed Matter No. 9836 9691 01
Publication Date 2019-07-15
Valid from Serial No. A6740001
Valid to Serial No. A1629999

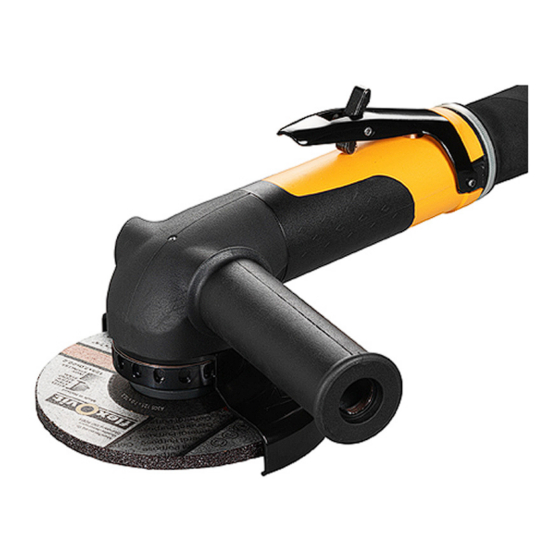

LSV38 SA12-125
(12000 r/min)
(12000 rpm)
Read all safety warnings and instructions
Failure to follow the safety warnings and instructions may result in
electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference
LSV38 SA12-125
8423013113
WARNING
Product Instructions
Grinder

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LSV38 SA12-125 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Atlas Copco LSV38 SA12-125

  • Page 1 LSV38 SA12-125 Printed Matter No. 9836 9691 01 Grinder Publication Date 2019-07-15 Valid from Serial No. A6740001 Product Instructions Valid to Serial No. A1629999 LSV38 SA12-125 8423013113 (12000 r/min) (12000 rpm) WARNING Read all safety warnings and instructions Failure to follow the safety warnings and instructions may result in electric shock, fire and/or serious injury.
  • Page 2: Table Of Contents

    Operating the tool ................ 13 Service ........................ 15 Maintenance instructions ................ 15 Service recommendations .............. 15 Maintenance and service instructions .......... 15 Replacement of vanes................. 15 Lubrication instructions ................... 15 Rust protection and cleaning ............... 15 Lubricating guide ................. 15 © Atlas Copco Industrial Technique AB - 9836 9691 01...
  • Page 3 Lubrication ................... 16 Lubrication angle gears ............... 16 Recycling ....................... 17 Recycling instruction.................. 17 Recycling information .................. 17 © Atlas Copco Industrial Technique AB - 9836 9691 01...
  • Page 4: Product Information

    ■ Damage to parts that occurs as a result of inadequate maintenance or performed by parties other than Atlas Copco or their Certified Service Partners during the warranty period is not covered by the warranty. ■ To avoid damage or destruction of tool parts, service the tool according to the recommended mainte- nance schedules and follow the correct instructions.
  • Page 5: Website

    You can find information concerning our products, accessories, spare parts and published matters on our website. Safety Data Sheets MSDS/SDS The safety data sheets describes chemical products sold by Atlas Copco. For more information, consult the website: www.atlascopco.com Choose Products - Safety Data Sheets, and follow the instructions on the page.
  • Page 6: Service Overview

    Replace the vanes in the motor when a power drop of the tool is experienced. If the vanes are not re- placed in time other motor parts may be damaged. For increased life length of the vanes use an oil lubri- cator to dose oil into the air inlet. © Atlas Copco Industrial Technique AB - 9836 9691 01...
  • Page 7: Installation

    Air quality ■ For optimum performance and maximum product life we recommend the use of compressed air with a maximum dew point of +10°C (50°F). We also recommend to install an Atlas Copco refrigeration type air dryer. ■ Use a separate air filter which removes solid particles larger than 30 microns and more than 90% of liquid water.
  • Page 8: Visual Inspection - Air Installation

    Look for any damage that can compromise the safety of the tool. Installation of vibrating tools We recommend using a minimum length of 300 mm (12") of flexible hose for compressed air between a vi- brating tool and the quick-action coupling. © Atlas Copco Industrial Technique AB - 9836 9691 01...
  • Page 9: Operation

    Remove the support handle and attach two screws in the holes of the angle head. Hold the tool by the screws using a vice. Remove the lever using a slotted screwdriver. © Atlas Copco Industrial Technique AB - 9836 9691 01...
  • Page 10 Tighten the adapter using a 21 mm socket and torque wrench. Tighten the trigger pin bushing using a 10 mm socket and a torque wrench. Attach the lever in the opposite position. © Atlas Copco Industrial Technique AB - 9836 9691 01...
  • Page 11: Adjusting The Wheel Guard

    Make sure that the wheel guard is put in a suitable position before operating the tool. Release the wheel guard lock button and make sure that the wheel guard is safely attached. © Atlas Copco Industrial Technique AB - 9836 9691 01...
  • Page 12: Fitting Of Support Handle

    Use an abrasive wheel with a permitted speed higher than or equal to the air grinder speed. ► Do not use any other abrasive wheels than specified by the manufacturer. See Section Design ► and function. ■ Use only recommended sizes and types of abrasives. © Atlas Copco Industrial Technique AB - 9836 9691 01...
  • Page 13: Operating The Tool

    When the tool is running or connected to the air line, never touch any rotating parts. ► Never use the tool above head height. ► Stop using the tool if abnormally loud noises and vibrations occur during use. ► © Atlas Copco Industrial Technique AB - 9836 9691 01...
  • Page 14 WARNING Risk of Damage and Injury Rotating parts may cause damage and injury Make sure that the tool is switched off and has stopped rotating before putting it down. ► © Atlas Copco Industrial Technique AB - 9836 9691 01...
  • Page 15: Service

    The air inlet is equipped with a strainer. If this is punctured, foreign objects may harm the valves, resulting in overspeed. Lubricating guide Use lubricants of good quality. The oils and greases listed in the lubrication table are examples of lubri- cants that can be recommended. © Atlas Copco Industrial Technique AB - 9836 9691 01...
  • Page 16 For accurate lubrication propertiets use Rhenus LKR03 fluid grease. The requisite amount of grease is max. 11 cm³. Do not use ball bearing grease or chassis grease. Lubrication angle gears Grease for angle gears Rhenus LKR03 © Atlas Copco Industrial Technique AB - 9836 9691 01...
  • Page 17 Part Recycle as Housing Metal, Aluminium Insulation sleeve Plastics, Other, TPU Vane motor Metal, Steel* Spindle complete Metal, Steel Wheel guard Metal, Steel End cover Metal, Steel Screws Metal, Steel © Atlas Copco Industrial Technique AB - 9836 9691 01...
  • Page 18 Metal, Brass Inlet Metal, Steel Lever complete Metal, Steel Adapter Metal, Steel *The vanes in the product contains PTFE, the normal health and safety recommendations concerning PTFE must be observed. © Atlas Copco Industrial Technique AB - 9836 9691 01...
  • Page 20 Original instructions Atlas Copco Industrial © Copyright 2019, Atlas Copco Industrial Technique AB. All rights reserved. Any Technique AB unauthorized use or copying of the contents or part thereof is prohibited. This SE-10523 STOCKHOLM applies in particular to trademarks, model denominations, part numbers and drawings.
