Summary of Contents for Konica Minolta RANGE 5

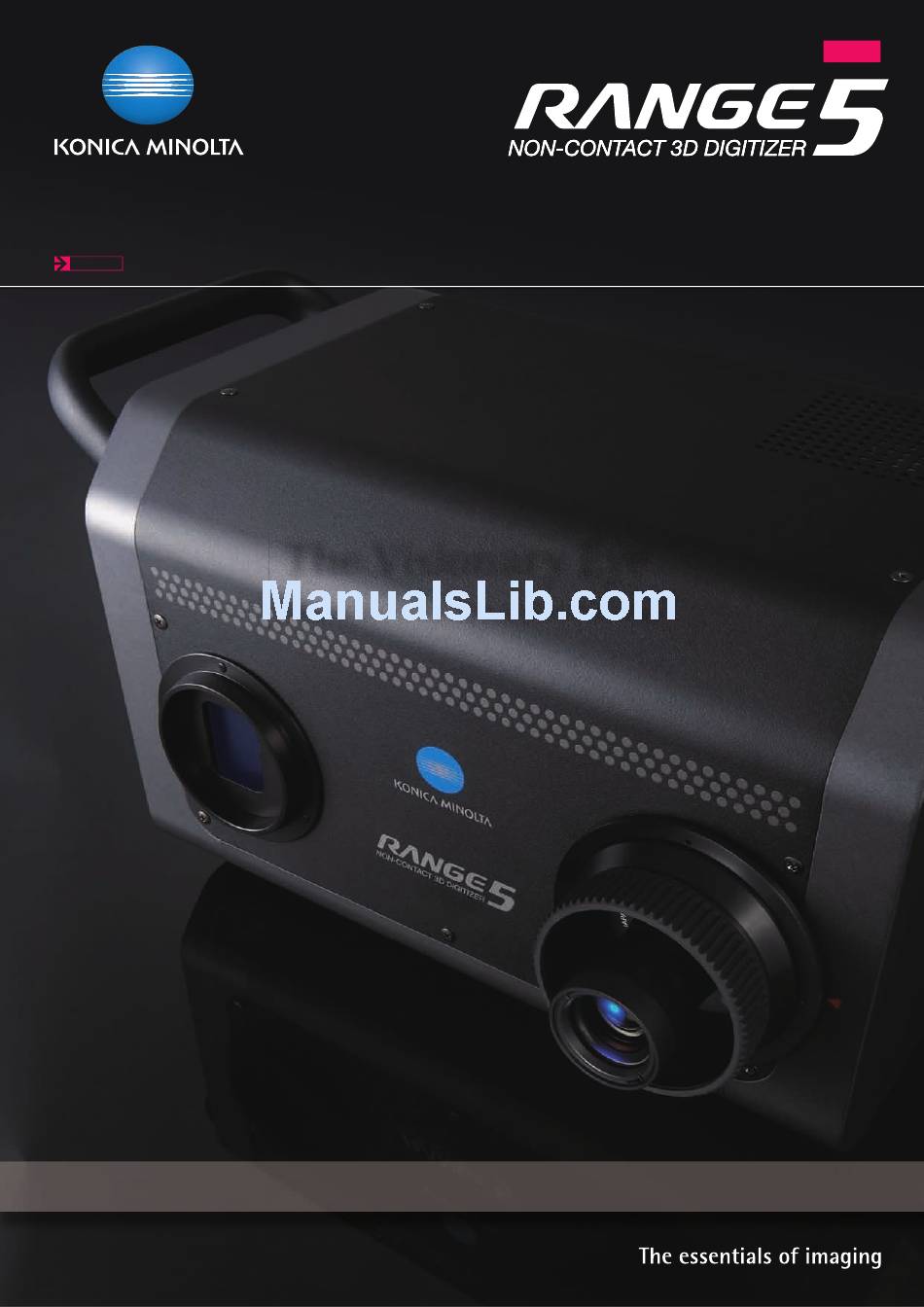

- Page 1 New addition to RANGE7 lineup! New RANGE5 offers excellent cost performance! The Visionary Eye Creating the Future Style of Manufacturing Non-contact 3D digitizer suitable for industrial applications requiring high accuracy and reliability...
- Page 2 • Rapid prototyping • Creation of machining data • Digital mockup KONICA MINOLTA RANGE5 opens up the future possibilities of non-contact 3D measurement by adding the elements of increased reliability, improved operability and easier transportability to Konica Minolta's accumulated optical technologies and auto-focus function.
- Page 3 SOLUTION KONICA MINOLTA RANGE5 will change the process of manufacturing. Problems can be solved by using KONICA MINOLTA RANGE5 and 3D CAD data, without the need for 2D drawings. The direct comparison of 3D scan data against 3D CAD data provides visual and quantitative evaluation of surface distortion and cross-sections of part exteriors, even those with multiple free-form surfaces.
- Page 4 The 3D preview function reduces erro- camera and controller neous measurements The KONICA MINOLTA RANGE5 is a new 3D digitizer series full The 3D preview function allows users to predict measurement of 3D digitizing know-how accumulated from Konica Minolta's results quickly. With a pre-scan of only 0.4 seconds, users can over 10 years of experience.
- Page 5 USABILITY The newly developed software RANGE VIEWER allows comfortable scanning operations. The software, designed specifically for KONICA MINOLTA RANGE Series, makes the process from scanning to data integration quick and easy. Capable of measuring dark surfaces with- User-friendly software with navigation out using spray or a special darkroom.
- Page 6 RELIABLE Toward new horizons for optical 3D digitizers The KONICA MINOLTA RANGE5 boasts high accuracy and reliability. Points Konica Minolta Sensing cannot compromise as a manufacturer of measuring instruments. Stable scanning with light sectioning High measurement accuracy based on method...
- Page 7 VERSATILE Increased mobility and operability of the compact, lightweight KONICA MINOLTA RANGE5 Various accessories specifically designed for KONICA MINOLTA RANGE Series offer flexible system configuration according to the application and operating environment. Measuring Stand Set with laptop shelf Rotating Stage Kit (3 kg/20 kg)
- Page 8 Konica Minolta Sensing measurement conditions: Temperature: 20±1°C, Measurement distance: 450 mm; Warm- up: 20 min.; Software used: Konica Minolta processing software; After calibration of the instrument; Measurement target: Konica Minolta standard target (2 balls); Arrangement of measurement target: Konica Minolta standard ar- rangement (10 positions inside measurement space);...
