Summary of Contents for DeWalt DCS575

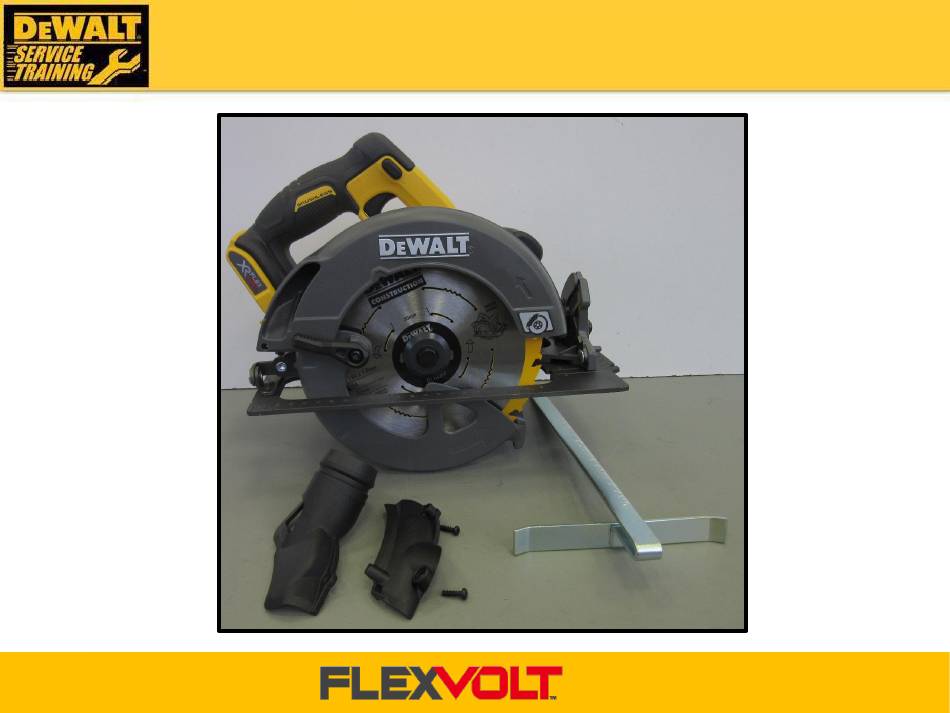

- Page 1 DCS575 Circular Saw...
- Page 2 Battery Ergonomics Runs on 1 x FlexVolt Over-moulded Touch Points 128 cuts 100x50mm soft wood Blade Motor EU 190 x 30mm, 24t as per the BL61X30 1500w Corded Units ANZ 184 x 20mm, 24t as per the Corded Units Guard & Gearbox Constructed from Robust Aluminium Guard &...
- Page 3 Dust Extraction Safety Lock Airlock compatible Quick Depth Adjustment Quick Adjust Bevel Bevel gauge with embossed scale and auto detents Improve ease and accuracy of bevel set-up On Board Tool LED Light & Dust Blower Blade spanner stored on the tool Improve cut line visibility...
- Page 4 Before repair Before repair and strip down Carry out an visual check: Condition of contacts (unit charger and battery) Mode selector Leakages Condition of tool holder Carry out an functionality check: Hammer mechanism Modes Reverse mode Measure the unload current Measure the capacity of batteries Check condition of charger (use the charger to charge a obviously good battery and measure the capacity of the battery...
- Page 5 Follow the safety instructions...
- Page 6 PRODUCT STRIP DOWN Safety Notes Cordless Woodworking Before attempting any repairs, the following should be observed, - Check that guards function correctly, if not repair before running the product. - Before turning product on for analysis carry out a visual check for loose/broken parts Including accessories, blades, cutters etc.
- Page 7 Legend of Icons ENGLISH GERMAN ITALIAN FRENCH SPANISH PORTUGUESE DUTCH CHECK ÜBERPRÜFEN CONTROLLARE CONTROLER COMPROBAR VERIFIQUE CONTROLEREN Entfernen / TAGLIARE/RIMUOVERE Couper / Enlever Cortar/ quitar SNIJ / VERWIJDER Cortar / Remover CUT / REMOVE TRENNEN SWITCH ON ANSCHALTEN ACCENDERE ALLUMEZ ENCENDER LIGAR AANSCHAKELEN...
- Page 8 Visually check...
- Page 9 Visually check...
- Page 11 Functionality check...
- Page 12 Disassembling...
- Page 23 5x13 Tx20...
- Page 26 12x5 Tx20...
- Page 32 4,5 x 18 Tx15...
- Page 33 5 x 40 Tx 20...
- Page 34 3,5 x 16 Tx15...
- Page 38 4 x 10 Tx15...
- Page 43 5 x 12 Tx20...
- Page 46 4 x 14 Tx 15...
- Page 47 4 x 14 Tx15...
- Page 49 WWW.2HELPU.COM...
- Page 50 Remember: the next check will be made by your customer...
