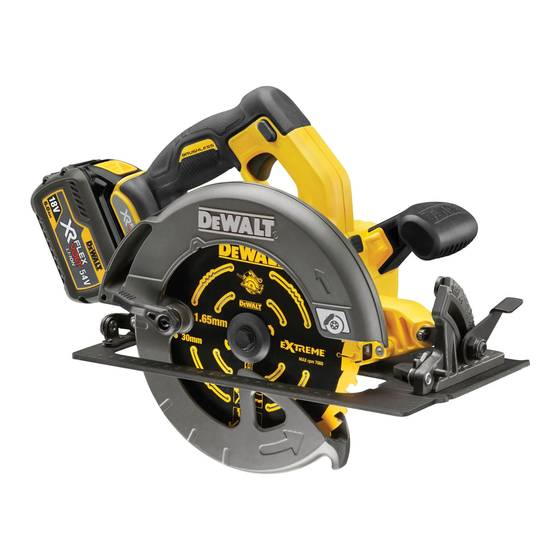

ENGLISH 184 mm (7-1/4") 54V (60V MAX) CORDLESS CIRCULAR SAW DCS575, DCS576 Congratulations! You have chosen a D WALT tool. Years of experience, thorough product development and innovation make WALT one of the most reliable partners for professional power tool users.
ENGLISH General Power Tool Safety Warnings 3) PERSONAL SAFETY Stay alert, watch what you are doing WARNING: Read all safety and use common sense when operating warnings, instructions, illustrations a power tool. Do not use a power tool and specifications provided with while you are tired or under the influence this power tool.
ENGLISH source and/or remove the battery pack, additionally seek medical help. Liquid if detachable, from the power tool before ejected from the battery may cause irritation making any adjustments, changing or burns. accessories, or storing power tools. Such Do not use a battery pack or tool that preventive safety measures reduce the risk of is damaged or modified.
ENGLISH exposed metal parts of the power tool “live” and saw teeth are not engaged into the material. could give the operator an electric shock. If saw blade binds, it may walk up or kickback from the workpiece as the saw is restarted. f) When ripping always use a rip fence or straight edge guide.
ENGLISH Additional Safety Instructions for Important Safety Instructions for All Circular Saws Battery Chargers • Wear ear protectors. Exposure to noise can SAVE THESE INSTRUCTIONS: This manual cause hearing loss. contains important safety and operating instructions for compatible battery chargers (refer to •...
ENGLISH Charging a Battery (Fig. 1) • Do not expose charger to rain or snow. • Pull by plug rather than cord when 1. Plug the charger into an appropriate outlet disconnecting charger. This will reduce risk before inserting battery pack. of damage to electric plug and cord.
ENGLISH at that slower rate throughout the entire charging READ ALL INSTRUCTIONS cycle and will not return to maximum charge rate • Do not charge or use battery in explosive even if the battery pack warms. atmospheres, such as in the presence of The DCB118 charger is equipped with an internal flammable liquids, gases or dust.
In most instances, shipping a D WALT battery pack BATTERY TYPE will be excepted from being classified as a fully The DCS575 and DCS576 operate on a 54V (60V regulated Class 9 Hazardous Material. In general, Max) battery pack. only shipments containing a lithium-ion battery...
ENGLISH NOTE: Battery packs should not be stored 1 Circular saw completely depleted of charge. The battery pack will 1 Circular saw blade need to be recharged before use. 1 Blade wrench Labels on Charger and Battery Pack 1 Parallel fence 1 Dust extraction port In addition to the pictographs used in this manual, the labels on the charger and the battery pack may...
ENGLISH These heavy-duty saws are professional power charged. tools. TO INSTALL THE BATTERY PACK INTO THE TOOL HANDLE DO NOT let children come into contact with the 1. Align the battery pack (O) with the rails inside tool. Supervision is required when inexperienced the tool’s handle (Fig.
Page 23
ENGLISH saw spindle by hand (screw has right-hand as proper operation of the saw. threads and must be turned clockwise to Check the lower blade guard for tighten). proper closing before each use. If the lower blade guard is missing 5.
Page 24
ENGLISH Kickback body control (out of balance), can result in twisting the blade. Kickback is a sudden reaction to a pinched, bound D. Changing hand grip or body position while or misaligned saw blade, causing an uncontrolled cutting can result in blade twist. saw to lift up and out of the workpiece toward the operator.
Page 25
Guide Rail System (DCS576, Fig. 13) Bevel Detent (Fig. 9) Guide rails, available in different lengths as The DCS575 and DCS576 are equipped with a accessories, allow the use of the circular saw for bevel detent feature. As you tilt the base plate you...
ENGLISH instructions for setting the circular saw to the guide edge of the blade (Fig. 17). rail. To tune in the anti-splinter guard on the other side of the guide rail, remove the saw from the rail and REMEMBER: Set the rail adjusters on the saw to rotate the rail 180°.
Page 27
ENGLISH WARNING: To reduce the risk of serious work surface and bringing the material personal injury, ALWAYS hold securely in to the tool. Always securely clamp the anticipation of a sudden reaction. workpiece and bring the tool to the workpiece, securely holding the tool with Proper hand position requires one hand on the two hands as shown in Figure 25.
Page 28
ENGLISH A pocket cut is one that is made in a floor, wall or WARNING: To reduce the risk of injury other flat surface. from the circular saw falling on operators or bystanders, make sure it is supported 1. Adjust the saw base plate so the blade cuts at securely when using the hang hook, or desired depth.
ENGLISH used in these parts. Use a cloth when it is no longer easy to push the saw through the cut, when the motor is straining, or when dampened only with water and mild soap. Never let any liquid get inside the excessive heat is built up in the blade.
Page 44
한국어 184 mm (7-1/4") 54V (60V MAX) 충전식 원형톱 DCS575, DCS576 축하합니다! WALT 공구를 선택해 주셔서 감사합니다. D WALT는 오랜 경험과 제품 개발 및 혁신을 통해 전문 전동 공구 사용자들이 인정하는 기업으로 자리잡아 왔습니다. 기술 데이터 DCS575 DCS576 최대/정격 전압 54 (60 Max) 54 (60 Max) 배터리 유형...
Page 45
한국어 사항을 따르지 않으면 감전, 화재 및/또 의력을 잃어 순간적으로 부상을 당할 수 있습니다. b) 신체 보호 장비를 착용하십시오. 항상 보안경 는 심각한 부상을 초래할 수 있습니다. 을 착용하십시오. 적합한 상황에서 방진 마스 향후 참고할 수 있도록 모든 경고 및 지시 크, 미끄럼 방지 안전화, 안전모 또는 청력 보 사항을 보관해두십시오. 호 기구 등의 보호 장비를 사용하면 신체 부상 경고에서...
Page 46
한국어 e) 전동 공구 및 액세서리 유지 보수. 움직이는 하여 정비 작업을 수행해야 합니다. 그래야 전 부품의 잘못된 정렬이나 바인딩, 부품 파손 및 동 공구의 안전이 보장됩니다. b) 손상된 배터리 팩을 정비하지 마십시오. 배터 기타 전동 공구의 작동에 영향을 미칠 수 있는 기타 모든 상태를 확인하십시오. 손상된 부분 리 팩은 제조업체 또는 공인 서비스 공급업체 를 통해서만 점검을 받아야 합니다. 이 있는 경우 사용하기 전에 전동 공구를 수리 하십시오. 많은 사고는 전동 공구를 제대로 유 원형톱에 특정하게 적용되는 추가 지 보수하지 않아 발생합니다. 절단 공구를 예리하고 깨끗한 상태로 유지하십시 안전 규칙 오.
Page 47
한국어 예방 조치를 통해 막을 수 있습니다. 이 재료에 들어가는 즉시 하부 가드를 해제해야 a) 톱을 두 손으로 꽉 잡고 반동의 힘을 막을 수 있 합니다. 기타 모든 톱질을 위해 하부 가드가 자동 으로 작동해야 합니다. 도록 팔의 위치를 잡습니다. 몸은 날의 어느 쪽이 d) 항상 벤치 또는 마루에 톱을 내려 놓기 전에 하부 든 위치하되, 날의 라인과 일치하지 않도록 합니 가드가 날을 덮고 있는지 주시하십시오. 보호되 다. 반동은 톱이 뒤쪽으로 획 움직일 수 있지만, 적 지 않은 타성의 날이 톱이 뒤쪽으로 움직여 무엇 절한...
Page 48
한국어 십시오. 연장 코드를 잘못 사용하면 화재, 감전 모든 배터리 충전기에 대한 중요한 또는 감전사의 위험이 있습니다. 안전 지침 • 충전기 위에 물건을 올려놓거나 부드러운 표면에 본 지침을 잘 보관해 두십시오. 본 사용 설명서에는 충전기를 두면 환기 슬롯이 막혀 내부가 과열될 호환이 되는 배터리 충전기에 대한 중요한 안전 및 작 수 있습니다. 충전기는 열원에 가까이 두지 마십 시오. 충전기는 하우징의 상단과 하단에 있는 슬 업...
Page 49
한국어 착하는 경우, 충전기는 전기 콘센트에 닿을 수 있는 충전기 작동 범위 내에 놓고, 공기 흐름이 방해될 수 있는 코너 또 배터리 팩의 충전 상태는 아래 표시등을 참조하십시오. 는 기타 장애물로부터 멀리 두십시오. 벽에서 장착 나 사의 위치는 견본으로 충전기의 뒤쪽을 사용하십시오. 충전...
Page 50
칙 (European Agreement Concerning The International 배터리 유형 Carriage of Dangerous Goods by Road, ADR)에 대한 UN DCS575 및 DCS576은 54V (60V Max) 배터리 팩에서 권고사항을 포함하여, 산업 및 법적 기준에 의한 규정에 작동합니다. 따라 모든 해당 운송 규정을 준수하고 있습니다. 리튬 이...
Page 51
한국어 보관 권장 사항 운반: 내장된 운반 캡으로 운반, Wh 등 1. 보관 장소로는 직사광선을 받지 않고 지나치 급은 3 x 36 Wh를 나타냅니다(36 Wh 게 덥거나 춥지 않은 시원하고 건조한 곳이 가 의 배터리 3개). 장 좋습니다. 최적의 배터리 성능과 수명을 위 포장 내용물...
Page 52
한국어 본 헤비듀티 원형톱은 전문가용 목재 절단용으로 설계되 십시오. 었습니다. 금속, 플라스틱, 콘크리트, 석재 또는 섬유 시 배터리 팩을 공구 핸들에 설치하려면 멘트 등을 절단하지 마십시오. 이 톱에는 급수 부가 장 1. 공구 핸들 안쪽의 레일에 배터리 팩(O)을 맞춥 니다(그림 1). 치를 사용하지 마십시오. 연마 휠 또는 날을 사용하지 마 십시오.
Page 53
한국어 핀들을 돌리는 동안 날 잠금(D)을 누릅니다. 3. 레버를 풀고 가드(K)가 완전히 닫힌 위치로 복귀 6. 날 렌치를 사용하여 날 클램핑 나사를 단단히 조 하는지 살펴봅니다. 입니다. 다음의 경우 공구를 유자격 서비스 센터에서 정비를 받 참고: 톱이 돌고 있을 때 날 잠금을 작동하거나 공 아야...
Page 54
면 날이 비틀릴 수 있습니다. 베벨 멈춤쇠(그림 9) 4. 무디거나 더러운 날의 사용 무딘 날은 톱의 로딩을 증가시킵니다. 보상하기 DCS575 및 DCS576에는 베벨 멈춤쇠 기능이 장착 위해 조작자는 대게 장치 로드를 더 많이 하기 되어 있습니다. 기판을 기울이면, 22.5 및 45도에서 위해 더 세게 밀어서 벤 자국에서 날의 비틀림...
Page 55
1. 레일 조절 장치 내의 나사를 풀어서 톱과 가이 집진 포트를 장착하려면(그림 1,6, 12) 드 레일 간에 조절할 수 있습니다. 2. 날이 최고 위치에 있는지 확인하면서 하부 가 DCS575/DCS576 원형톱에는 집진 포트가 제공되 드를 수축하고 장치를 가이드 레일에 놓습니다. 어 있습니다. 3. 톱이 가이드 레일에 잠길 때까지 조절 장치를...
Page 56
한국어 다. 이제 쪼개짐 가드의 가장자리는 날의 절삭 경고: 심각한 신체 부상의 위험을 줄이려 가장자리에 정확하게 일치합니다(그림 17). 면, 항상 급작스러운 반동을 예상하고 확 가이드 레일의 다른 쪽에 있는 쪼개짐 방지 가드를 돌 실하게 잡으십시오. 리려면, 레일에서 톱을 제거하고 레일을 180도 돌립 손...
Page 57
한국어 지되는 작업물 쪽에 톱 기판의 넓은 부분을 놓습니다. 4. 날 가드를 놓습니다(작업물과 맞닿으면 제자리 예를 들어, 그림 25는 판자의 끝을 절단할 오른쪽 방 에 유지되어 절단을 시작함에 따라 자유롭게 열립니다). 손을 가드 레버에서 떼고 그림 27에 향을 보여 줍니다. 항상 작업물을 고정합니다. 손으로 짧은...
Page 58
한국어 유지 보수 기판 조정(그림 5, 28, 29) WALT 전동 공구는 최소한의 유지 보수로 장기간에 기판은 날이 기판에 수직이 되도록 공장 출고 시 설정 걸쳐 작업이 가능하도록 설계되어 있습니다. 만족스러 되어 있습니다. 연장 사용 후 날을 다시 맞추어야 할 운 연속 작동은 적절한 청소기 관리와 정기적인 청소 경우, 아래의...
Page 59
환경 보호 분리 수거. 이 기호가 표시된 제품과 배터 리를 일반 가정용 쓰레기와 함께 처리하면 안됩니다. 제품과 배터리에는 재용되거나 재활용되고 고철 자원 에 대한 수요를 줄일 수 있는 자재가 포함되어 있습니 다. 전기 제품과 배터리는 지역 규정에 따라 재활용하 십시오. 자세한 내용은 www.2helpU.com에서 찾아 볼...
