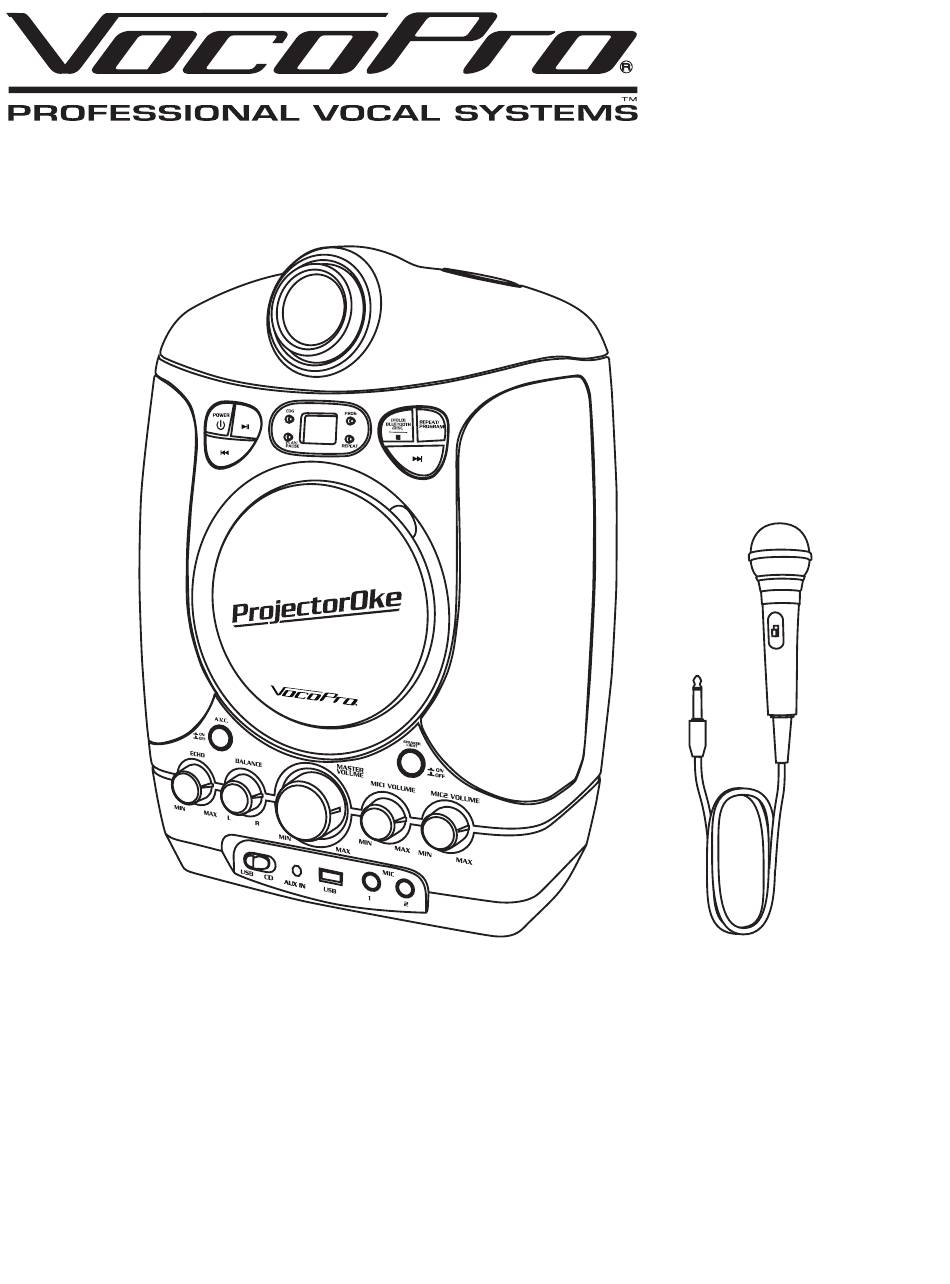

  • Page 1 ProjectorOke CD+G Karaoke Projector with LED Light Show...

  • Page 3: Table Of Contents

    Table of Contents FCC Information ............4 Safety Instructions ........... 5 Welcome ............... 6 Listening for a Lifetime ..........7 Getting Started ............8 Getting Connected ........... 9 Descriptions and Functions ........24 Specifications ............29 Troubleshoot ............30...

  • Page 4: Fcc Information

    1. To ensure the finest performance, please read this requirements. Modifications not expressly approved by manual carefully. Keep it in a safe place for future Vocopro may void your authority, granted by the FCC, reference. to use this product. 2. Install your unit in a cool, dry, clean place - away from 2.

  • Page 5: Safety Instructions

    Safety Instructions 8. Ventilation - The appliance should be situated so its CAUTION location does not interfere with its proper ventilation. For example, the appliance should not be situated on a bed, sofa, rug, or similar surface that may block the RISK OF SHOCK ventilation slots.

  • Page 6: Welcome

    And while you're there don't forget to check out our Club VocoPro for Karaoke news and events, chat rooms, club directories and even a KJ Service directory! We look forward to hearing you sound like a PRO, with VocoPro, the singer’s ultimate choice. FOR YOUR RECORDS Please record the model number and serial number below, for easy reference, in case of loss or theft.

  • Page 7: Listening For A Lifetime

    Now itʼs time to consider how you can maximize the fun and excitement your equipment offers. VocoPro and the Electronic Industries Associationʼs Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level. One that lets the sound come through loud and clear without annoying blaring or distortion and, most importantly, without affecting your sensitive hearing.

  • Page 8: Getting Started

    Getting Started What’s in the box? • ProjectorOke (x1) • Wired Microphone (x1) • Power Adapter (x1)

  • Page 9: Getting Connected

    Getting Connected Connecting for Power: Plug the supplied AC adapter into the DC jack on the rear side of the unit and connect to a standard AC wall socket with 120V ~ 60Hz continuous power supply. Note: When the unit is not operated for long periods of time, unplug the AC adapter from the unit and wall outlet.
  • Page 10 Getting Connected PROJECTOR FUNCTIONS INSTALLING THE UNIT The lens shift allows you to have broader options for placing the unit and viewing pictures easily. A:Push switch, lift the lens B: Rotating lens C: Press down the lens will be auto locked .

  • Page 11: Installing The Unit

    Getting Connected INSTALLING THE UNIT: The installation distance between the unit and a screen varies depending on the size of the screen or whether or not you use the lens shift features. Install this unit so that it fits the size of your screen.
  • Page 12 Getting Connected START-UP AND SHUT DOWN THE PROJECTOR 1. Press Projector ON/OFF button to turn on the unit. The lens protector will open. 2. Press Projector LED button Close projection display output Operation through the Menus The unit is equipped with an on-screen menu for making various adjustments and settings. If you select an item name followed by an arrow ( ), the next menu window with setting items appears.
  • Page 13 Getting Connected Contrast: Adjusts the contrast. Higher values increase the sharpness in images, while lower values decrease the sharpness. You can make adjustments by pressing the CONTRAST +/– on the Brightness The higher the setting, the brighter the picture. The lower the setting, the darker the picture. You can make adjustments by pressing the BRIGHTNESS +/–...
  • Page 14 Getting Connected ADJUSTING THE PROJECTION FOCUS The projector lens is placed perpendicular to the projection screen, press the Projector MENU button to display the menu screen, rotate the lens until the clear text display. PROJECTOR ON/OFF MENU ENTER PROJ. LIGHT ON/OFF...

  • Page 15: Bluetooth Operation

    Getting Connected BLUETOOTH OPERATION Bluetooth wireless technology is a short-range radio technology that enables wireless communication between various types of digital devices, such as mobile phone or computer. It operates within a range of about 10meters (30 feet) without the hassle of having to use cables to connect these devices.
  • Page 16 The unit is now in pairing mode and is ready to be paired with other Bluetooth source devices. 3. Perform pairing procedure on the source device to detect this unit. “ProjectorOke” will appear in the detected devices list (if available) in the source device. (Refer the source device operating...
  • Page 17 • Some source devices are unable to display lists of detected devices. To pair this unit with the source device, refer to the source device operating manual for details. 4. Select “ProjectorOke” from the source list. If Passcode* is required, enter “0000”. * Passcode may be called PIN Code, Passkey, PIN number or Password.

  • Page 18: Connecting A Microphone

    Getting Connected GETTING PREPARED FOR YOUR SINGING SESSION You will need to do the following things: • Connect your unit to a compatible TV using the included A/V cable. • Plug in the included MICROPHONE into either the MIC 1 or MIC 2 JACK. Note: Always set the mic to OFF until you are ready to sing to avoid possible sharp feedback noises.
  • Page 19 Getting Connected SINGING ALONG WITH CD+G, CD, CD-R/CD-RW OR USB FLASH DRIVE WITH MP3 FILES 1. Set the FUNCTION SELECTOR to “CD”. 2. Load a CD/CD+G disc as follows: A.) Grip the top front edge on the CD DOOR where indicated and pull gently to open it. The LED DISPLAY will display “OP”.

  • Page 20: Getting Connected

    Getting Connected On the top line of the menu, “T: 011/118 means track #11 out of total 118 tracks is now playing. The elapsed time of current track is shown on the right. • If the number of songs on the disc/USB drive is more than 99, the 10th digit of LED DISPLAY will show letter A to F (A=10, b=11, C=12, d=13, E=14 &...
  • Page 21 Getting Connected SINGING ALONG FROM AUX INPUT SOURCES This karaoke unit features an AUX-IN jack for connecting your iPod, MP3 player or other digital music player. 1. Connect the headphone jack of your external device to the AUX IN jack located on the lower side of this unit (The connection cable is not included).
  • Page 22 Getting Connected USING THE UNIT AS A PUBLIC ADDRESS SYSTEM This unit can also be used as a PA (Public Address System). Note: To prevent feedback or whistling from occurring, please be sure that the microphone is not held too close to unit’s speaker. 1.

  • Page 23: Video Connection

    Getting Connected Video connection Please follow the steps below to display CD+G lyrics on the TV screen: 1. Locate the color-coded patch cords. 2. Connect video cable (Yellow) to the VIDEO OUT on the back of the karaoke system. 3. Connect the other end of the video cable (Yellow) to the VIDEO/AV INPUT on your TV. 4.

  • Page 24: Descriptions And Functions

    • Slide the CD/USB FUNCTION switch to USB position to playback MP3 files on a USB flash drive. • Once the AUX IN JACK is plugged into, the ProjectorOke will automatically enter the AUX mode. You can attach other music sources (iPod, MP3 or other digital audio players) through the AUX IN JACK to your external player’s audio out jack or headphone jack.
  • Page 25 Descriptions and Functions • PROGRAM function • This function allows music tracks to be played in a programmed sequence. • NOTE: Program function can only be set in STOP mode. • Press the PROGRAM button once. Program Number 01 will display and PROGRAM INDICATOR will flash.

  • Page 26: Input Functions

    Descriptions and Functions Program Play mode: When finished programming, tap PLAY BUTTON to confirm and start program play. The PROG INDICATOR in the LED DISPLAY will light. While playing, you may tap the NEXT or PREV BUTTON to skip to a desired song in the program list. To stop program play temporarily, tap the STOP BUTTON once.

  • Page 27: Mic Volume

    Descriptions and Functions KARAOKE CONTROL FUNCTIONS MASTER VOLUME Adjust this to obtain the desired volume level from the built-in speaker. BALANCE CONTROL Adjust this to obtain the optimum music and vocal levels while playing a CD+G or file or as left (L) and right (R) channel balance while playing ordinary stereo sound tracks of CD or MP3.
  • Page 28 Descriptions and Functions PROJECTOR LENS CDG INDICATOR PROGRAM INDICATOR PROGRAM /REPEAT POWER BUTTON (HOLD) BLUETOOTH REPEAT/ BUTTON /DISC C DG PROGRAM NEXT BUTTON PREV BUTTON BLUETOOTH/STOP BUTTON PLAY/PAUSE BUTTON PLAY/PAUSE REPEAT INDICATOR INDICATOR LED DISPLAY L SPEAKER R SPEAKER CD DOOR MASTER VOLUME A.V.C.

  • Page 29: Specifications

    Specifications AC Operation ................AC/DC Adapter (Included) Input AC 120V ~ 60Hz Output DC 12V 3.5A Output Power (RMS) ................3W x2CH (RMS) Video Output ..................NTSC Composite USB Flash Drive Support .............Max 32 GB (FAT32 Formatted) Microphone Jacks (2x) ..............Each 6.3mm (Stereo) AUX IN Jack (1x) ..................

  • Page 30: Troubleshoot

    Troubleshoot PR OBLEM POSSIBLE CAUSE SOLUTION No power when POWER DC plug of the AC adapter is not Re - insert the DC plug of the AC ON/OFF plugged into the DC JACK adapter properly. BUTTON is properly. pressed No power when The AC outlet may not have Ch eck the outlet with a working lamp plugged in...
  • Page 31 Notes...
  • Page 32 ProjectorOke Owner’s Manual © VocoPro 2017 V1.1227 www.vocopro.com...
