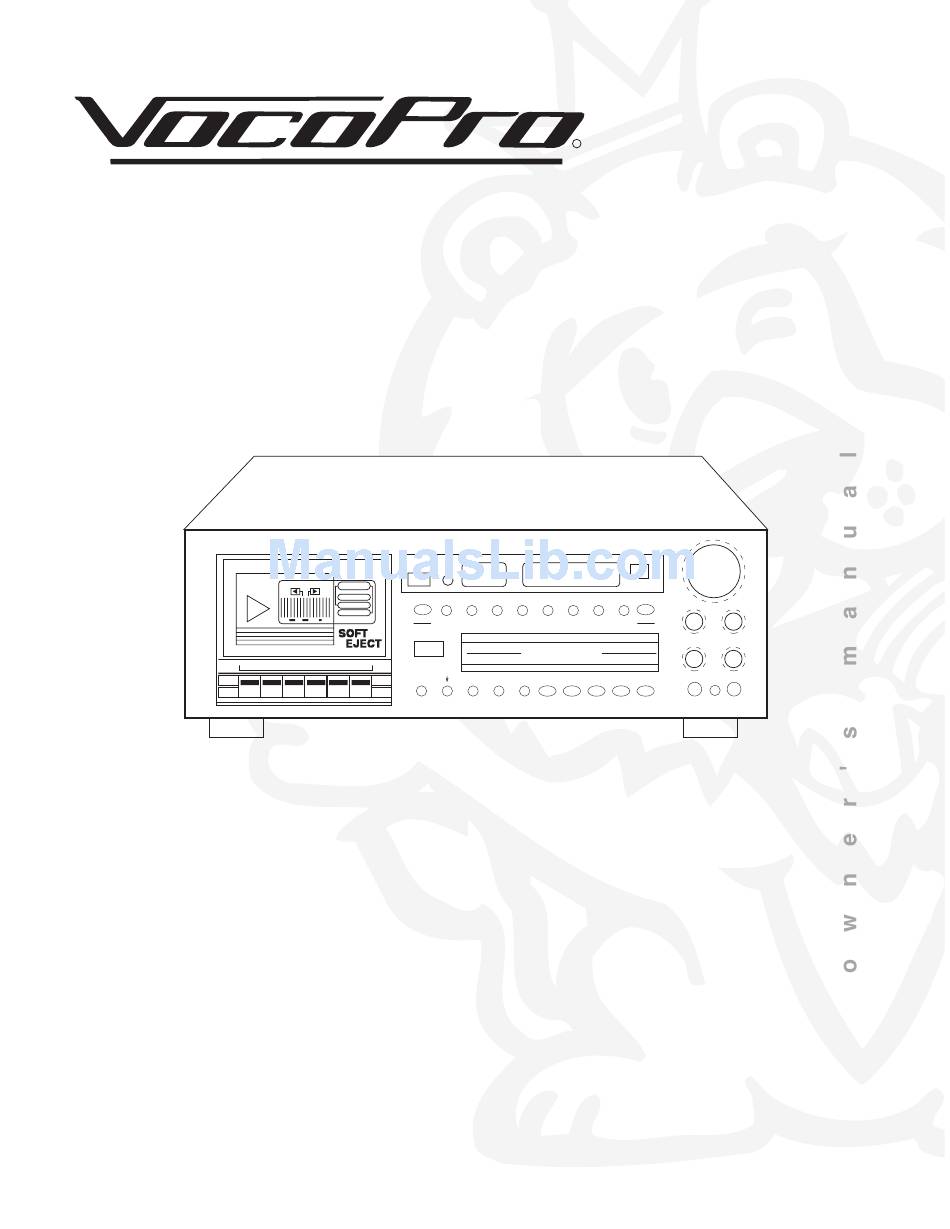

Digital key control cd/cdg cassette karaoke player
Hide thumbs Also See for CDG-X3P II:

Advertisement

Quick Links

R
TM
THE SINGER'S ULTIMATE CHOICE
OPEN
DISP
REPEAT MEMORY
PREV
NEXT
B.SCAN F.SCAN
STOP
PLAY
CLOSE
PAUSE
CDG PLAYER
POWER
b
#
KEY CONTROL
VOC/C
VOC/P CASSETTE CDG
LD
DVD
AUX
CDG-X3P II
Digital Key Control CD/CDG Cassette Karaoke Player

Advertisement

Table of Contents
loading

Summary of Contents for VocoPro CDG-X3P II

  • Page 1 THE SINGER'S ULTIMATE CHOICE OPEN DISP REPEAT MEMORY PREV NEXT B.SCAN F.SCAN STOP PLAY CLOSE PAUSE CDG PLAYER POWER KEY CONTROL VOC/C VOC/P CASSETTE CDG CDG-X3P II Digital Key Control CD/CDG Cassette Karaoke Player...
  • Page 2: Table Of Contents

    Table of contents Introduction Safety instructions ... 2 FCC information ... 3 Welcome ..4 Listening for a lifetime ... 5 Specifications and Unpacking ... 6 Getting Connected Basic Connections ... 7-9 Controls and Functions Front panel ... 10-12 Rear panel ...
  • Page 3 ������������������� ������� ������������� ������������������������������������������������������ ������� ������ ���� ������� ��� ����������������� ������ �������� ����� ������ ���������� ��� ���������� �������� ���������� �������������������������������� ���������������������������������������� �������������������������������������������� ��������������������������������������� ���� ������������ ������ ������� ��� ������������ ��������� ��� ��������� ��� ������ ���� ��� ���� ��������� ��� ���������� ����������������������������������������...
  • Page 4 ��� ����������� �������� �� ��������� ������� �� ��� ������ ���� ������ ���� �������� ���� ��������� �� ��������� �� ��� ������������ ��������� �� ���� ������� ����� ��� ������������� ������������� ��� ��������� �������� �� ������� ��� ���� ���� ���������� ������� �� ��� ���� �� ��� ���� ��������...
  • Page 5: Welcome

    Be sure to visit the VocoPro website www.vocopro.com for the latest information on new products, packages and promos. And while you're there don't forget to check out our Club VocoPro for Karaoke news and events, chat rooms, club directories and even a KJ Service directory!
  • Page 6 ������������������������ ����������������������������������������������������������������������������������������������������������������������� �������������������������������������������������������������������������������������������������������������������� ���������������������������������������������������������������������������������������������������������������������� ����� ������� ���� ����� ����� ���� ������ ����� �������� ����� ���� ������ �������� ��������� �������� ��� ����������� ����� ����� ������������������������������������������������������ ������ ���� ��� ����������� ����� ����� ����� �������� ��������� ������� ������� ��� �� ������� ������� ��� ������� ��� ����� ������� ������������������������������������������������������������������������������������������������������������������������...
  • Page 7: Specifications And Unpacking

    Unswitched ... 1 (Total 250W) Unpacking the CDG-X3P II Carefully remove the CDG-X3P II player from its carton before discarding the packaging materi- als. If it should become necessary to return the unit for any reason the original packaging mate- rials are best suited for transporting the unit to minimize any potential damage.
  • Page 8: Getting Connected

    Connecting the CDG-X3P II to a Television/Monitor 1. Connect one end of the RCA cable to the VIDEO OUTPUT on the rear panel of the CDG-X3P II 2. Connect the other end of the RCA cable to the RCA video input on your Television Monitor.
  • Page 9 “XLR” connector. 2. Connect the end of the cable with the ¼” connector into either of the MIC ¼” jacks on the front of the CDG-X3P II. The CDG-X3P II is designed so you can connect other components to it and use the Karaoke features that are built-in to the CDG-X3P II in conjunction with those components.
  • Page 10 To Play Music From an Additional Tape Deck Through the CDG-X3P II: Using an RCA connector cable, connect the “L” and “R” “AUX” INPUT jacks on the CDG-X3P II to the “L” and “R” “AUDIO OUTPUT OR PLAY OUT” jacks on the tape deck (check manufacturer’s instructions).
  • Page 11 Getting connected cont. External speaker connection You can connect directly to speakers using either MDP (banana plug) speaker cables or standard speaker wires. Using MDP (Banana Plug) Speaker Cables Be sure to correctly match the polarities (+/-). Please do not try to connect more than one speaker per channel, as the load may exceed the amplifiers handling capacity, causing it to overload.
  • Page 12: Front Panel

    MIC 1 MIC 2 CONT 1. POWER button - Turns on the power to the CDG-X3P II. 2. TAPE COUNTER - Use the tape counter when playing or recording cassettes to keep track of your location on the tape. 3. OPEN/CLOSE button - To open/close the disc tray.
  • Page 13 26. DVD - Digital video disc input selector button. Pressing this button will select the component that is connected to the DVD input jacks. For example, if a DVD player is used with the CDG-X3P II, and it is connected to the “DVD” input jacks, this button will need to be selected before the component can be used.
  • Page 14 29. CASSETTE selector button - This button must be pressed when playing a cassette in the CDG-X3P II cassette deck. NOTE: Do not press the cassette button if you are recording from the CGD player in the CDG-X3P II onto the cassette deck, otherwise you will not be able to hear the CDG disc that is being played.
  • Page 15 Front panel controls and functions cont. Front Panel 38. FAST FORWARD button - When playing a cassette, this button can be used to advance the cassette to the next desired location. To advance the tape, press the ST/EJ (Stop/Eject) button first to stop the tape, then press F.FWD. 39.
  • Page 16: Rear Panel

    DO NOT REPLACE THE FUSE! Doing so could possibly cause additional damage to the unit. Take your CDG-X3P II to an authorized repair facillity. 3. 117/200W AC OUTLET - This outlet can be used to connect another component providing it does not exceed 200 watts maximum power consumption.
  • Page 17 Rear panel controls and functions cont. Rear Panel ECHO BYPASS DJ MIC 16. ECHO CONTROL FOR MIC-1 AND MIC-2 - This controls the amount of ECHO that microphones 1 and 2 will receive. Turn clockwise to increase echo and counterclockwise to decrease echo. 17.
  • Page 18: Remote Control

    CD/CDG player. The remote control will not work with the tape deck. Be sure not to block the infrared eye on the CDG-X3P II or the sensor on the hand held remote control. If either of these parts are covered while attempting to use the remote control it will not function.
  • Page 19: Remote Control Operations

    Remote control operations Installing the batteries First remove the battery compartment lid from the back of a remote control. Insert two AAA batteries, ensuring that the polarities are aligned correctly. Signs that the batteries need to be changed include: - The remote only works when held closer to the player than usual. - The remote does not work at all.
  • Page 20: Basic Operations

    Turn on the CDG-X3P II 1. Locate the power switch on the front of the CDG-X3P II player. Press the power switch once to turn on the machine. 2. Locate the “CDG” button below the CDG tray. This selects the mode you will use the player in.
  • Page 21 Adding Bass and Treble to the Mic 1 and 2 Channels The Bass and Treble controls for microphones 1 and 2 are located on the rear panel of the CDG-X3P II. Turn the con- trols clockwise to increase the Bass or Treble level and counter-clockwise to decrease the Bass or Treble level.
  • Page 22 IMPORTANT! IF THE FUSE BLOWS OUT IT IS AN IMPORTANT INDICATION THERE MAY BE A SHORT SOMEWHERE IN THE SYSTEM. DO NOT REPLACE THE FUSE! TAKE YOUR CDG-X3P II TO AN AUTHORIZED REPAIR FACILITY. REPLACING THE FUSE COULD POSSIBLY CAUSE ADDITIONAL DAMAGE THAT MAY NOT BE COVERED BY THE WARRANTY.
  • Page 23: Troubleshooting

    Troubleshooting Problem PROBLEM No video signal. Words don’t appear on the TV monitor. Unable to connect the CDG-X3P to my television monitor with the “RCA” cable provided. There is a loud “squealing” noise coming from speakers. Possible Cause POSSIBLE CAUSE(S) The television may not be switched to the proper video input channel.
  • Page 24 THE SINGER'S ULTIMATE CHOICE VOCOPRO 2006 Version 1.0 www.vocopro.com...
