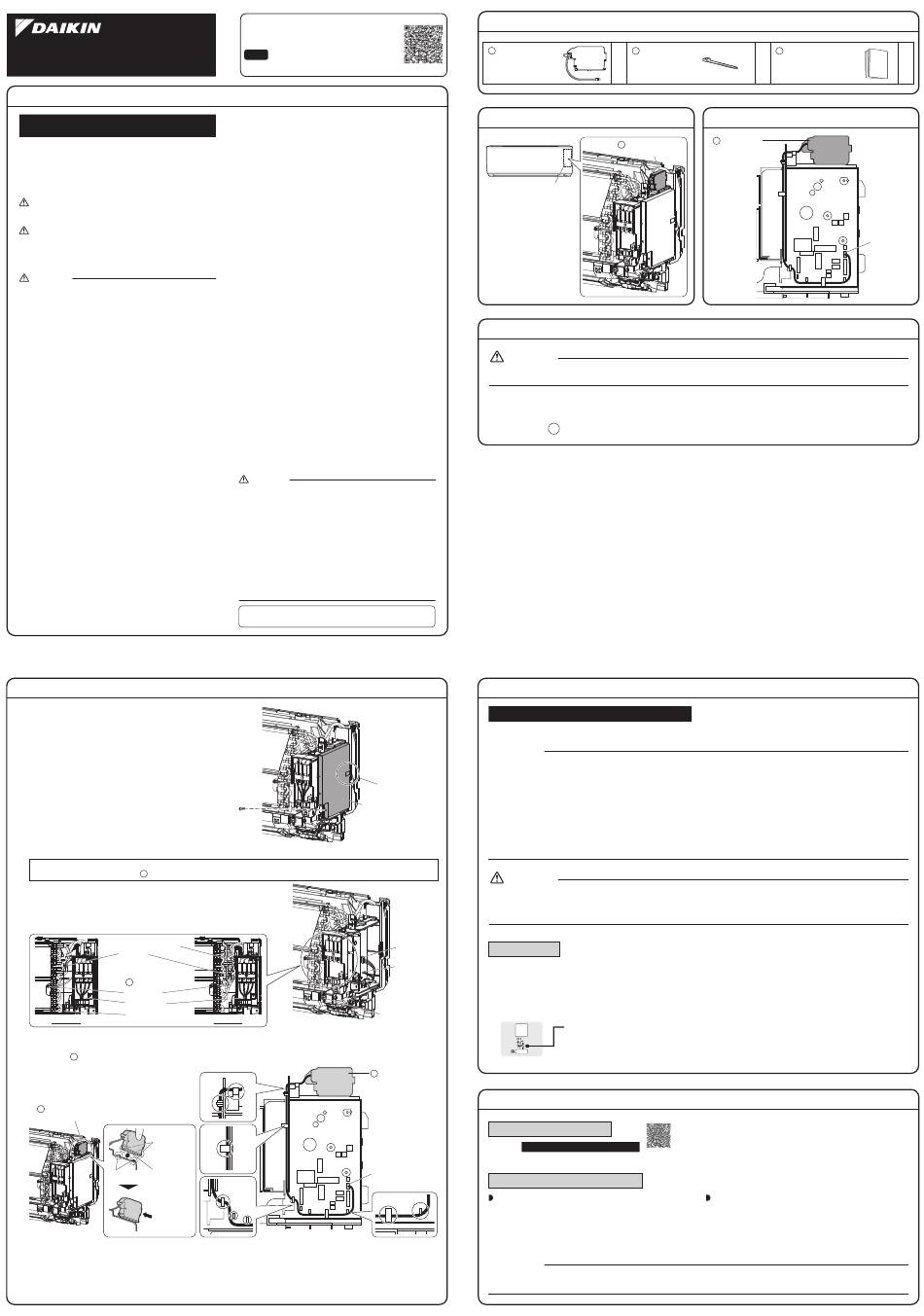

Daikin BRP084A61 Installation Manual

3P790257-1
M24B195
WIRELESS LAN CONNECTION ADAPTER [BRP084A61]
INSTALLATION MANUAL
Safety Considerations
Give this installation manual to the customer when
installation is completed.
• Read these Safety Considerations carefully to ensure
correct installation.
• Be sure to complete trial operation of the air conditioner /
heat pump, in advance, in accordance with the instructions
in the installation manual for the air conditioner / heat pump.
• Meanings of WARNING and CAUTION symbols:
WARNING Indicates a potentially hazardous situation
:
which, if not avoided, could result in death or
serious injury.
CAUTION Indicates a potentially hazardous situation
:
which, if not avoided, may result in minor or
moderate injury.
It may also be used to alert against unsafe
practices.
WARNING
• Only qualified personnel must carry out the installation
work. Installation must be done in accordance with this
installation manual. Improper installation may result in
electric shock, fire, or equipment damage.
• Use only specified accessories and parts for installation
work. Failure to use specified parts may result in electric
shock, fire, the product falling, or equipment damage.
• Before touching electrical parts, turn off the air conditioner /
heat pump.
• Electrical work must be performed in accordance with
relevant local and national regulations and with the
instructions in this installation manual. Always use a
dedicated circuit.
Failure to comply may result in electric shock or fire.
• Do not disassemble, modify, or repair.
Doing so may result in fire, electric shock, or injury.
• Do not handle this product with wet hands.
Doing so may result in electric shock or fire.
• Do not allow this product to get wet or use it when bathing
or similar activities using water.
Failure to comply may result in electric shock or fire.
• Do not use this product near medical equipment or persons
using cardiac pacemakers or defibrillators. This product
may cause life-threatening electromagnetic interference.
• Do not use this product near auto-control equipment such
as automatic doors or fire alarm equipment.
Doing so may result in accidents due to malfunctioning.
• Immediately turn off the circuit breaker for the air conditioner /
heat pump if there is an abnormal odor or sound, the unit is
overheating, or smoke is emanating from the unit.
There is a risk of fire or malfunction.
Request an inspection by your dealer.
• Turn off the circuit breaker for the air conditioner / heat
pump if the product was dropped or the case is damaged.
There is a risk of fire or electric shock.
Request an inspection by your dealer.
• Do not install the wireless LAN connection adapter in the
plenum of the building. Doing so may result in fire.
Wireless LAN connection adapter Installation Procedure (2)
3. Remove the electrical wiring box cover.
• Disengage the hooks to remove the electrical wiring box cover
(1 screw).
4. Remove the electrical wiring box (if necessary).
If there is workspace on the right-hand side of the indoor unit, the installation work can be conducted without removing the
electrical wiring box. Connect the A Wireless LAN connection adapter without removing the electrical wiring box, if possible.
1) Disconnect the inter-unit wire.
2) Cut the cable tie.
3) Disconnect the thermistor and ground wire from the heat exchanger (1 screw).
4) Remove the mounting screw of the electrical wiring box (1 screw).
5) Disconnect the fan motor connector (S200) and swing motor connector (S6).
Thermistor*
Cable tie
(cut)
• When attaching, fasten
in the same place using
cable tie.
B
Ground wire
Inter-unit wire
Thermistor*
09 CLASS 09 CLASS
* Make sure that the mounting bracket of the thermistor will not fall off.
5. Install the Wireless LAN connection adapter to the electrical wiring box.
1) Attach the wireless LAN connection adapter.
A
2) Connect the cord of wireless LAN connection adapter to (S430).
3) Route the connection cord as shown in the figure.
A Wireless LAN
connection adapter
Slide the
ridges into
the grooves
Angle slightly
Grooves
to ensure
that the catch
at the rear
does not get
caught
Push until
you hear a
click
6. Return the electrical wiring box cover and electrical wiring box (if it was removed) to their
original positions.
7. Return the front grille, service lid, and front panel to their original positions in accordance
with the installation manual for the air conditioner.
Website
• For details on specifications, setting methods,
and FAQ, see our website.
URL
https://go.daikincomfort.com/wifi
When operating an air conditioner from outside the
home, it is not possible to check the air conditioner or
the surroundings of the air conditioner, or the state of the
people in the room. Therefore, make sure to adequately
check for safety before use.
In some cases, there is a risk of death, severe injury, or
property damage.
 Check the following in advance (while at home)
• Timer settings or reservations that other users may have
made. (There is a risk of causing harm to the health of
people, animals, or plants in the home if operation starts
and stops unexpectedly)
• There are no signs of abnormality in the air conditioning.
Harm will not be caused to people or to the room if there is
a change in airflow. (For example, that there are no objects
nearby that might blow over) (There is a risk of objects
falling due to airflow and causing fire, bodily injury, or
staining of household items)
 Check the following before/while operating a unit from
outside the home
• If you know that there is someone at home, inform the person
when turning the air conditioner on or off from outside the
home. (If someone at home is standing on something such as
a stool, the air conditioner turning on or off unexpectedly
could surprise them and cause them to fall or topple over.
Additionally, a sudden change in the indoor/outdoor
temperature could harm the health of people at home)
· The air conditioner can be turned off and temperature
adjustment can be made using a remote controller in the
home.
· Do not use the function if the only people at home are
persons who are unable to make adjustments to
temperature or other settings themselves, such as young
children, disabled persons, or elderly persons.
• Regularly check the settings and operating status of the air
conditioner. (Sudden changes in indoor/outdoor
temperature pose a health hazard. There is a risk of harm
to animals and plants)
If an error occurs during operation, immediately turn off the
air conditioner and contact your dealer.
Double check the display to confirm that the power is off.
CAUTION
• Do not install this product where gas leakage could be
exposed to open flames.
If the gas leaks and builds up around the product, it may
catch fire.
• Touch a nearby metal object (doorknob, aluminum sash,
etc.) to discharge static electricity from your body before
touching this set.
Static electricity from your body can damage this set.
• Grip the connector when disconnecting the connection
cord from the outlet.
Otherwise fire or electric shock can occur.
• Do not use where small children can get access.
There is a risk of injury to small children.
• Do not use this product near a microwave oven.
This can affect wireless LAN communications.
Hook
Electrical wiring box cover
Screw
Mounting screw of the
12 CLASS 12 CLASS
electrical wiring box
A Wireless LAN
connection adapter
S430
Wireless LAN
A
connection adapter
Installation Position
Electrical wiring box
Wireless LAN connection adapter Installation Procedure (1)
WARNING
Be sure to turn OFF the power at the time of installation work.
Touching any electric parts with the power turned ON may cause electric shock.
1. Remove the front panel, service lid, and front grille in accordance with the installation
manual for the air conditioner.
A
2. Install the Wireless LAN connection adapter.
Preparation Before Configuring Connection Settings
Wireless LAN connection adapter
The Wireless LAN connection adapter function requires the Daikin One Home App for connecting to the air conditioner and
controlling it via your smartphone or tablet over your network.
ATTENTION
• Wireless LAN sends and receives data using radio waves so there is a risk of transmitted data being subject to
eavesdropping and illegal access.
When using wireless LAN, manage the SSID/KEY of the wireless LAN connection adapter, the SSID/KEY of the wireless
router, and the app login information so that they will not be known to others, and ensure that you have an adequate
understanding of the risks involved.
In the case that the product is accessed and operated illegally, turn off the wireless LAN connection adapter function.
• Do not use this product near a microwave oven. (This can affect wireless LAN communications.)
• This product cannot be directly connected to the communication line of a telecommunications carrier (internet service
provider, etc.). When connecting to the internet, be sure to connect via a device such as a router.
When the wireless LAN connection adapter function is turned on, the right side of the air conditioner may become slightly warm,
but this is not an abnormality.
WARNING
• While the Wireless LAN connection adapter operates, it may affect persons using cardiac pacemakers or defibrillators.
This product may cause electromagnetic interference.
• While the Wireless LAN connection adapter operates, it may affect automatic doors or fire alarm equipment.
This product may cause faulty behavior of the equipment.
Configuration
S200
S6 • The user is responsible for providing the following items before using this product:
 Smartphone or tablet PC
 Internet line and communicating device (Modem/router or similar device)
 Wireless LAN access point
 Application name: [Daikin One Home] (free)
For details on the installation method for the Daikin One Home App.
Wireless LAN connection adapter lamp (Orange)
• The Wireless LAN connection adapter lamp lights when connecting to a router (Wireless LAN
• For Wireless LAN connection adapter operation.
Display
Wireless LAN connection
https://go.daikincomfort.com/wifi
Web site:
For instructions on how to connect your unit to wireless LAN and to your Daikin One Home application, please see the website above.
Application software installation
For Android Phones
1) Open [Google Play].
2) Search using the application name:
[Daikin One Home].
3) Follow the directions on the screen to install.
ATTENTION
• The actual application screen layout and content may differ from what is shown. The layout and content of the application screen
is subject to change without notice.
Accessories
Cable tie
B
1
A Wireless LAN
Wireless LAN
A
connection adapter
connection adapter
access point).
Configuring Connection Settings (1)
For iOS Phones
1) Open the [App Store].
2) Search using the application name:
[Daikin One Home].
3) Follow the directions on the screen to install.
Installation manual
C
(multi-language)
1 1
Wiring Outline
S430
