please contact afifurnishings at customerservice@afifurnishings.com or 1-800-955-3726
PARTS LIST
1
FOOT RAIL
2
LEFT LEG
3
RIGHT LEG
4
SIDE RAILS
5
SUPPORT BOARD
6
CENTER LEGS
NOTE: WE INCLUDE SPARE HARDWARE IN CASE DAMAGE OCCURS DURING ASSEMBLY.

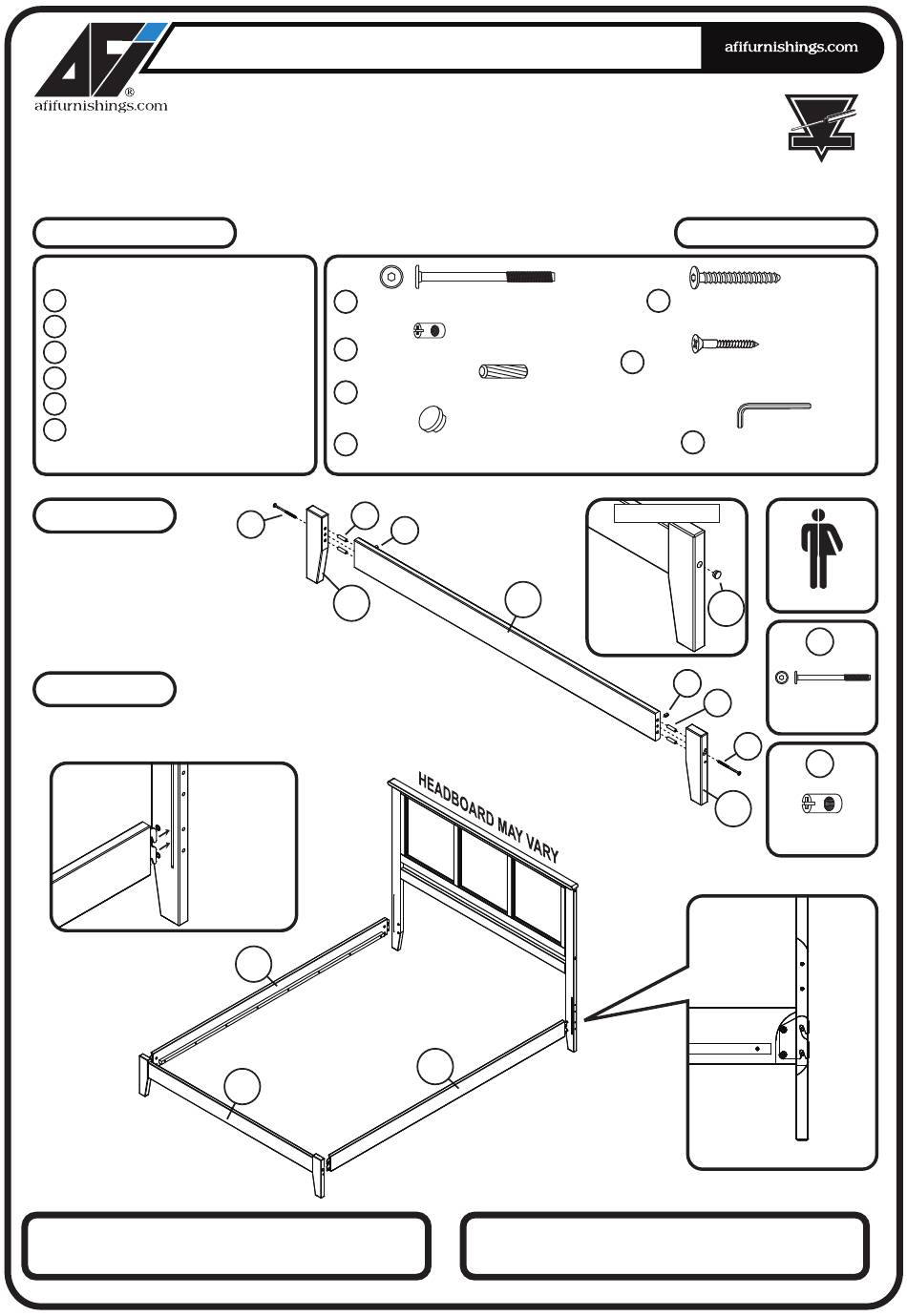

Step 1
Attach the legs (2) and (3)
to foot rail (1), using wood dowel
(C) JCB M6 X 100mm (A) and
barrel nut (B).
Tighten with the Allen wrench (G).
Cover holes with wood button (D) as shown.
Step 2
Attach the side rails (04) to the headboard and footboard (1) using
the bed hook as shown below.
PO:
BED FRAME
QUEEN / KING
ASSEMBLY INSTRUCTIONS
Before assembling your bed frame, please read through these
instructions carefully and familiarize yourself with the different parts.
ATTENTION! If you receive a damaged or defective item,
A
1 PC
JCB M6 X 100mm (4") - 2 pcs
1 PC
B
1 PC
Barrel nut - 2 pcs
2 PCS
C
Wood dowel 10 X 40mm( 1 5/8") - 4 pcs
4 PCS
4 PCS
D
Wood button - 2 pcs
C
A
2
4
1
Spare - 1 pc
Spare - 1 pc
Spare - 1 pc
B
1
4
CODE
FR-UBN2-FNO
HARDWARE
E
Allen Screw - 4 pcs
Spare - 1 pc
F
Wood screw(1 1/4") - 8 pcs
Spare - 1 pc
G
Allen wrench - 1pc
Spare - 1pc
wood button
D
Adult assembly
B
C
JCB M6 X 100mm
A
3
lower set of pins.
ITEM
ITEM
R-26614X
R-26615X
READY
TO
ASSEMBLE
A
B
Barrel nut
Page 1 of 2
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for AFi FR-UBN2-FNO
Summary of Contents for AFi FR-UBN2-FNO
- Page 1 Step 2 JCB M6 X 100mm Attach the side rails (04) to the headboard and footboard (1) using the bed hook as shown below. Barrel nut lower set of pins. CODE ITEM ITEM FR-UBN2-FNO R-26614X R-26615X Page 1 of 2...
- Page 2 QUEEN / KING Step 3 Attach center leg (6) to support board (5) as shown below. Using allen screw (E) tighten with Allen wrench (G). Repeat the others. Allen screw Attach foundation board (5) to the bed as shown below using wood screws 1 1/4" (F). Step 4 Tighten with Phillips head screw driver.
- Page 3 HEADBOARD ASSEMBLY INSTRUCTIONS READY Before assembling your headboard, please read through these instructions carefully and familiarize yourself with the different parts. ASSEMBLE ATTENTION! If you receive a damaged or defective item, please contact afifurnishings at customerservice@afifurnishings.com or 1-800-955-3726 Instructions apply for bed sizes PARTS LIST HARDWARE QUEEN >...
- Page 4 ATTACHING HEADBOARD TO METAL BED FRAME ASSEMBLY INSTRUCTIONS Before assembling your bed, please read through these instructions carefully and familiarize yourself with the different parts. Instructions apply for bed sizes Queen > King Adult assembly Metal bed frames are sold separately from wood headboards. The hardware shown on this page is supplied with your wood headboard for attaching the bed frame to the headboard.
