AFi R-29084X Assembly Instructions

instructions carefully and familiarize yourself with the different parts.
please contact afifurnishings at customerservice@afifurnishings.com or 1-800-955-3726
PARTS LIST
1 HEADBOARD PANEL 1 PC
LEFT LEG 1 PC
2
3 RIGHT LEG 1 PC
4 PILLOW STOP 1 PC
NOTE: WE INCLUDE SPARE HARDWARE IN CASE DAMAGE OCCURS DURING ASSEMBLY.
Step 1
Attach the legs (2) and (3) to headboard panel (1) and pillow stop (4), using
wooden dowels (A) and JCB (B). Tighten with the Allen wrench (F).
B
B
A
A
BACK VIEW
PO:
If you purchased a wood headboard to attach to metal bed frame, please refer to page 2.

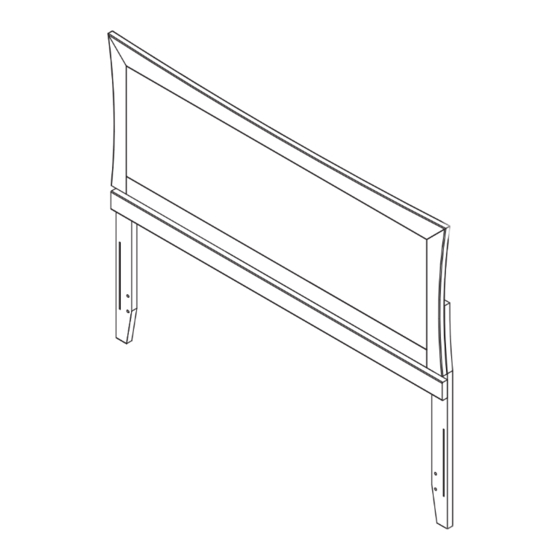

HEADBOARD
ASSEMBLY INSTRUCTIONS
Before assembling your headboard, please read through these
ATTENTION! If you receive a damaged or defective item,
Instructions apply for bed sizes
A
Wooden dowel - 6 pcs
Spare - 2 pcs
B
JCB M6 X 35mm (1 3/8") - 6 pcs
1
B
A
3
QUEEN > KING
Spare - 1 pc
F
Allen wrench - 1pc
Spare - 1pc
B
B
A
A
A
4
CODE
HB-MTR
HARDWARE
HARDWARE FOR METAL BED FRAME
C
JCB M6 X 25mm (1") - 4 pcs
D
Flat washer - 4 pcs
E
Split washer - 4 pcs
B
2
ITEM ITEM
R-29084X R-29085X
READY
TO
ASSEMBLE
Spare - 1 pc
Spare - 1 pc
Spare - 1 pc
Adult assembly
Page 1 of 2
