Vivo DESK-E-200B Series Assembly Manual
Electric dual motor desk frame
Hide thumbs
Also See for DESK-E-200B Series:
- Instruction manual (9 pages) ,
- Manual (8 pages) ,
- Instruction manual (8 pages)
Related Manuals for Vivo DESK-E-200B Series
Summary of Contents for Vivo DESK-E-200B Series

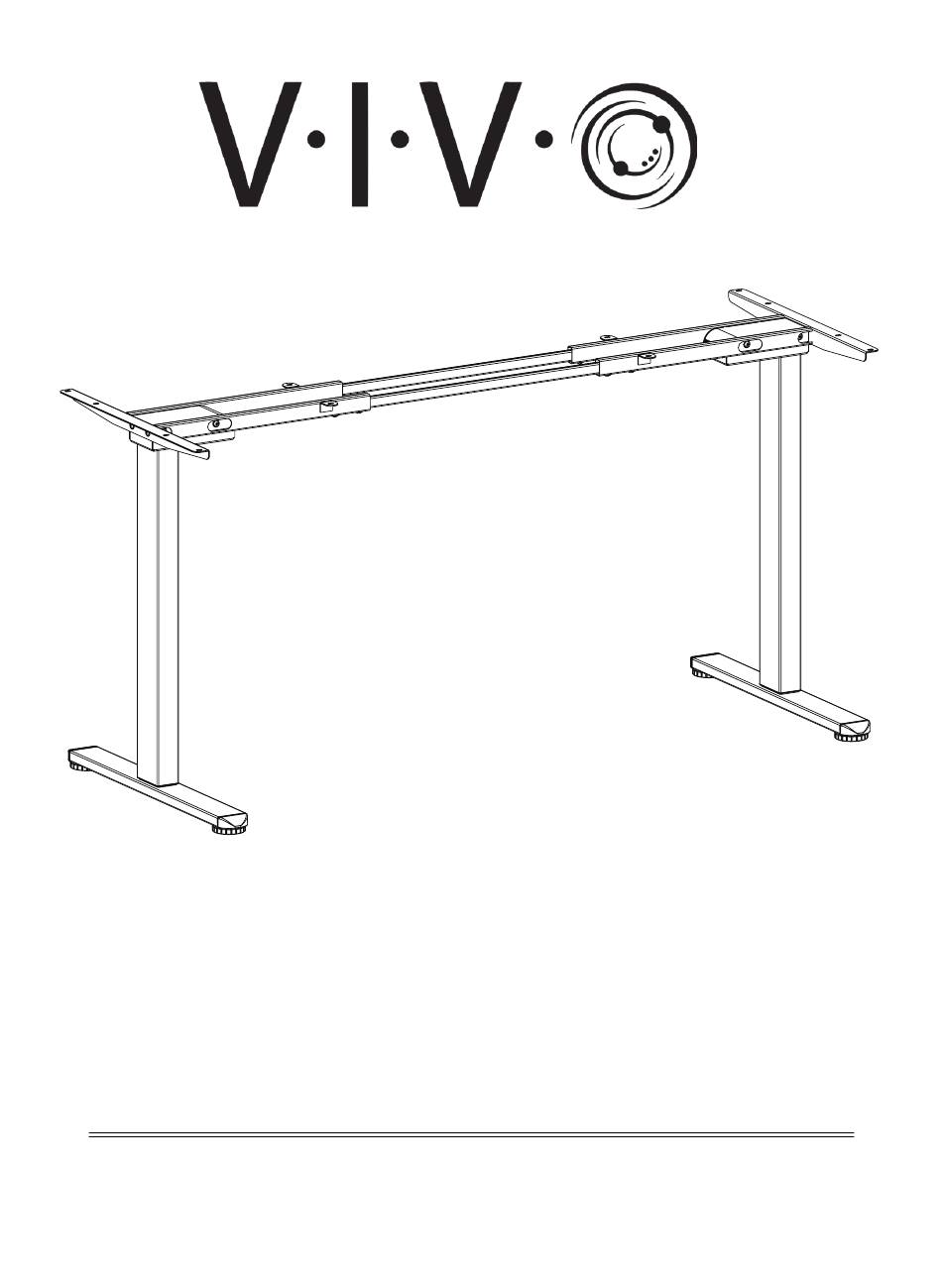

- Page 1 Electric Dual Motor Desk Frame DESK-E-200B Series Assembly Manual Individual Product SKUs DESK-E-200B DESK-E-200W DESK-E-200G...
- Page 2 [ THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK ]...
-
Page 3: We're Here For You
Saturday 8am-4pm CST US-Based Customer Support from Trained Professionals Email Us Chat with Live Agent Give Us a Call help@vivo-us.com www.vivo-us.com 309-278-5303 ext. 1 Assembly Video Available Navigate to the middle of the product page to watch as our product specialists walk you through the assembly process. -
Page 4: Please Read
Returns: We offer a hassle-free 30 day return on all products. Contact customer support at 309-278-5303 or help@vivo-us.com. Please note: For items ordered in error or no longer needed, the return shipping charges will be at the buyer’s expense. Product Specific Warnings: WARNING: CHOKING HAZARD SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. -
Page 5: Package Contents
Package Contents A (x2) B (x2) C (x2) D (x2) Inner Crossbar Left Crossbar Right Crossbar G (x1) H (x1) E (x2) F (x2) Control Panel AC Power Side Bracket Foot Adapter I (x1) J (x2) K (x2) Extension Cable Hook Cable Clip Included Hardware &... -
Page 6: Desk Frame Assembly
User Guide Desk Frame Assembly pg. 7-13 Control Panel Instructions Operating/Overview pg. 15 Troubleshooting pg. 16 Custom Programming pg. 17... -
Page 7: Assembly Steps
Assembly Steps STEP 1 Install Left and Right Crossbars (C,D) to Legs (A) using M6x11mm Screws (S-A) and 5mm Allen Wrench (T-A). Ensure the Tabs on Left and Right Crossbars (C,D) are facing outwards. - Page 8 STEP 2 Attach Side Brackets (E) to Legs (A) using M6x11mm Screws (S-A) and 5mm Allen Wrench (T-A).
- Page 9 STEP 3 Install Feet (F) to Legs (A) using M6x35mm Screws (S-C) and 5mm Allen Wrench (T-A).
- Page 10 STEP 4 Slide Inner Crossbars (B) into both leg assemblies. STEP 5 Flip the frame onto your desktop (not included). If your desktop has pilot holes, adjust the Crossbars (C,D) until the Side Brackets (E) align with them. If there’s no pilot holes, center the frame on the desktop ensuring there is no more than 10”...
- Page 11 STEP 6 Attach the frame assembly, Hook (J) and Control Panel (G) to the desktop using ST5x15mm Screws (S-B) and a Phillips screwdriver or Drill. Ensure all holes are pre-drilled. Ensure All Holes are Pre-Drilled Use the diagram below to pre-drill any holes that are not already pre-drilled.
- Page 12 STEP 7 Secure Inner Crossbars (B) using M6x11mm Screws (S-A) and 5mm Allen Wrench (T-A). Note: The Inner Crossbars are secured using friction. The M6x11mm Screws do not thread into the Inner Crossbars.
- Page 13 STEP 8 8.1 Connect Extension Cable (I) to the leg opposite from the control panel position. 8.2 Plug the Extension Cable (I), the cable from the nearest leg, and the AC Power Adapter (H) into the Control Panel (G). 8.3 Remove adhesive backing from Cable Clips (K) and place where desired to organize cables.
-
Page 14: Control Panel
Control Panel Overview & Troubleshooting... -
Page 15: Controller Manual
Controller Manual Standard Operation LED Panel Displays the current desk height. Up Arrow Press and hold to raise the desk. Release when desired height is reached. Down Arrow Press and hold to lower the desk. Release when desired height is reached. Memory Settings Use these settings to save and return to your desired height. -
Page 16: Troubleshooting
Perform Reset Process. If error persists, please contact our Product Support Team at 309-278-5303 or help@vivo-us.com for further assistance. Undervoltage Warning: The input voltage is too low. Unplug the desk from the wall and disconnect all cables from the controller. Wait 5 minutes then plug the cables back in and restore power. -
Page 17: Custom Programming
Custom Programming Change Displayed Unit (UN) Long press the S button until the screen flashes , then release button. Short press the S button and the screen will display then short press S again to select. Use the arrow keys to switch between (metric) and (imperial/inches). - Page 18 Securely store your PC in Clamp on & under desk and more with our clamp-on an under desk mount or keyboard tray options for and wall mount solutions. cart for easy access. all setup types. Explore Endless Workspace Solutions www.vivo-us.com...
- Page 19 [ THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK ]...
- Page 20 Need Help? We’re Here For You Monday-Friday from 7am-7pm CST Saturday 8am-4pm CST Email Us Chat with Live Agent Give Us a Call help@vivo-us.com www.vivo-us.com 309-278-5303 ext. 1 FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us @VIVOus VIVO...
