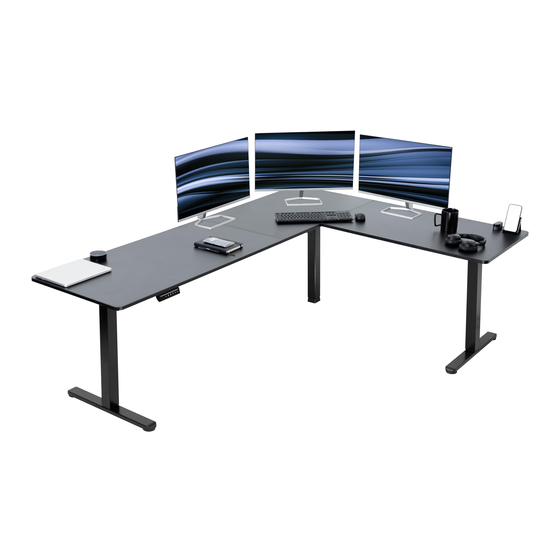

84" x 63" Corner Table Top
Instruction Manual
SKU: DESK-E3CTB-84 SERIES
Frame:
Table Top:
DESK-E384B
DESK-E3CTB-84-A
DESK-E384W
DESK-E3CTN-84-A
ASSEMBLY VIDEO AVAILABLE:
Follow along step-by-step with our video walk through by scanning
the QR code with your mobile device or by following the product
link:
help@vivo-us.com
DESK-E3CTC-84-A
DESK-E3CTW-84-A
vivo-us.com/products/desk-e3ctb
309-278-5303
DESK-E3CTD-84-A
DESK-E3CTG-84-A
www.vivo-us.com
Advertisement
Table of Contents
Related Manuals for Vivo DESK-E3CTB-84 Series
Summary of Contents for Vivo DESK-E3CTB-84 Series
- Page 1 84” x 63” Corner Table Top Instruction Manual SKU: DESK-E3CTB-84 SERIES Frame: Table Top: DESK-E384B DESK-E3CTB-84-A DESK-E3CTC-84-A DESK-E3CTD-84-A DESK-E3CTG-84-A DESK-E384W DESK-E3CTN-84-A DESK-E3CTW-84-A ASSEMBLY VIDEO AVAILABLE: Follow along step-by-step with our video walk through by scanning the QR code with your mobile device or by following the product link: vivo-us.com/products/desk-e3ctb...
- Page 2 7AM - 7PM Monday-Friday Give us a Call: Chat Us: Email Us: 309-278-5303 www.vivo-us.com help@vivo-us.com We’re Here for You! Our customer-minded support team is here for YOU, Monday-Friday 7am-7pm CST. We offer immediate assistance with rapid response times from customer service agents and product techncians to...
-
Page 3: Electrical Warning
Returns | Product Didn’t Work Out? We offer a hassle-free 30 day return on all products. Contact customer support at 309-278-5303 or help@vivo-us.com. Please note: For items ordered in error or no longer needed, the return shipping charges will be at the buyer’s expense. -
Page 4: Package Contents
TOOLS NEEDED: DIFFICULTY LEVEL Phillips Screwdriver Level PACKAGE CONTENTS Please consult the parts list below and ensure you have everything you need to assemble your product. If parts are missing or damaged, please contact us. A (x1) B (x1) C (x1) D (x1) E (x1) Desktop Panel A... -
Page 5: Assembly Steps
ASSEMBLY STEPS STEP 1: Assemble Left Leg Attach Straight Outer Crossbar (D) to Left Leg (M) using M6x8mm Screws (S-A) and 5mm Allen Wrench (T-A). Attach Side Bracket (J) to Left Leg (M) using M6x8mm Screws (S-A) and 5mm Allen Wrench (T-A). D (x1) M (x1) S-A (x4) - Page 6 STEP 2: Assemble Right Leg Attach Angled Outer Crossbar (G) to Right Leg (L) using M6x8mm Screws (S-A) and 5mm Allen Wrench (T-A). Attach Side Bracket (J) to Right Leg (L) using M6x8mm Screws (S-A) and 5mm Allen Wrench (T-A). L (x1) G (x1) S-A (x4)
- Page 7 STEP 3: Install Feet & Connect Motorized Leg Attach Feet (R) to Left and Right Legs (M,L) using M6x35mm Screw (S-B) and 5mm Allen Wrench (T-A). Connect Short Corner Crossbar (E) and Long Corner Crossbar (F) to Motorized Leg (K) using M6x8mm Screws (S-A) and 5mm Allen Wrench (T-A).
-
Page 8: Assembly Options
- Assembly Options - This desk can be assembled with a left or right side extension. Please select an option and proceed with assembly Option A | Left Side Extension Desk frame will extend out to left side, with a short right side Pg 9-14 Option B | Right Side Extension Desk frame will extend out to right... - Page 9 ASSEMBLY OPTION A | Left Side Extension A-STEP 4: Install Anti-Vibration Pads Affix Anti-Vibration Pads (V) to the desk frame and Long Connector Bracket (N) and Short Connector Bracket (O). N (x1) O (x1) V (x27) Long Connector Bracket Short Connector Bracket Anti-Vibration Pads...
- Page 10 A-STEP 5: Assemble Desktop Lay out the desktop panels in the configuration shown in the image with the pilot holes facing up. Use the pilot holes to verify the tops are in the correct orientation. Connect Desktop Panels (A,B,C) together using Connector Bars (P), Connector Plates (Q), ST5x15mm Screws (S-C), and a Phillips Screwdriver.
- Page 11 A-STEP 6: Combine Leg Sections Place the leg assemblies on the desktop assembly as shown with the mounting holes aligned with the desktop pilot holes. Attach the Long Connector Bracket (N) to Angle Outer Crossbar (G) and Long Corner Crossbar (F) using M6x8mm Screws (S-A) and 5mm Allen Wrench (T-A). Attach the Short Connector Bracket (O) to Straight Outer Crossbar (D) and Short Corner Crossbar (E) using M6x8mm Screws (S-A) and 5mm Allen Wrench (T-A).
- Page 12 A-STEP 7: Secure Frame & Desktop Secure the frame assembly to the desktop using ST5x15mm Screws (S-C) and a Phillips screwdriver. Attach Control Panel (S) to the desktop using ST5x15 mm Screws (S-C) and a Phillips screwdriver. S (x1) S-C (x29) Control Panel ST5x15mm Screw...
- Page 13 A-STEP 8: Install Sync Rod Insert the hex shaft end on Long and Short Sync Rods (I,H) into Left and Right Legs (M,L) making sure the metal retaining ring makes contact with the leg. Ensure all three legs are at the same height.
- Page 14 A-STEP 9: Connect Power Cables Connect AC Adapter (T) and cable from Motorized Leg (K) to the back of Control Panel (S). If needed, use Extension Cable (U) for cable from Motorized Leg (K) to extend length. Use Cable Clips (W) to secure cables to the desktop. T (x1) U (x1) W (x2)
- Page 15 ASSEMBLY OPTION B | Right Side Extension B-STEP 4: Install Anti-Vibration Pads Affix Anti-Vibration Pads (V) to the desk frame and Long Connector Bracket (N) and Short Connector Bracket (O). N (x1) O (x1) V (x27) Long Connector Bracket Short Connector Bracket Anti-Vibration Pads...
- Page 16 B-STEP 5: Assemble Desktop Lay out the desktop panels in the configuration shown in the image with the pilot holes facing up. Use the pilot holes to verify the tops are in the correct orientation. Connect Desktop Panels (A,B,C) together using Connector Bars (P), Connector Plates (Q), ST5x15mm Screws (S-C), and a Phillips Screwdriver.
- Page 17 B-STEP 6: Install Connector Brackets Place the leg assemblies on the desktop assembly as shown with the mounting holes aligned with the desktop pilot holes. Attach the Short Connector Bracket (O) to Angle Outer Crossbar (G) and Long Corner Crossbar (F) using M6x8mm Screws (S-A) and 5mm Allen Wrench (T-A). Attach the Long Connector Bracket (N) to Straight Outer Crossbar (D) and Short Corner Crossbar (E) using M6x8mm Screws (S-A) and 5mm Allen Wrench (T-A).
- Page 18 B-STEP 7: Secure Frame & Desktop Secure the frame assembly to the desktop using ST5x15mm Screws (S-C) and a Phillips screwdriver. Attach Control Panel (S) to the desktop using ST5x15mm Screws (S-C) and a Phillips screwdriver. S (x1) S-C (x29) Control Panel ST5x15mm Screw...
- Page 19 B-STEP 8: Install Sync Rod Insert the hex shaft end on Long and Short Sync Rods (I,H) into Left and Right Legs (M,L) making sure the metal retaining ring makes contact with the leg. Ensure all three legs are at the same height.
- Page 20 B-STEP 9: Connect Power Cables Connect AC Adapter (T) and cable from Motorized Leg (K) to the back of Control Panel (S). If needed, use Extension Cable (U) for cable from Motorized Leg (K) to extend length. Use Cable Clips (W) to secure cables to the desktop. T (x1) U (x1) W (x2)
-
Page 21: Troubleshooting
CONTROLLER - USER MANUAL Memory Presets Press any number and the desk will return to the programmed height. See Programing Memory Presets to program presets. Arrow Keys Press and hold the UP arrow for the desk to begin raising. Release when desk reaches desired height. - Page 22 WHO WE ARE VIVO is more than a brand of ergonomic office furniture. We are a team of creative and innovative indivuduals working together to offer high quality, affordable ergonomic solutions. We think and work outside of the box to serve...
-
Page 23: Need Assistance
Call Us: 309-278-5303 Average Resolution Time: 5m 4s Chat Us: www.vivo-us.com Average Resolution Time: < 15m Email Us: help@vivo-us.com Average Resolution Time: 1HR 8M 23% within < 15m 38% within <... - Page 24 LOVE YOUR NEW VIVO SETUP? Ready to share that new amazing setup? Want to brag about that amazing new ergonomic solution? Tag us in your photo! VIVO-us @vivo_us FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM LAST UPDATED: 04/02/2024 REV1.1LF...
