Vivo DESK-E-200B Manual

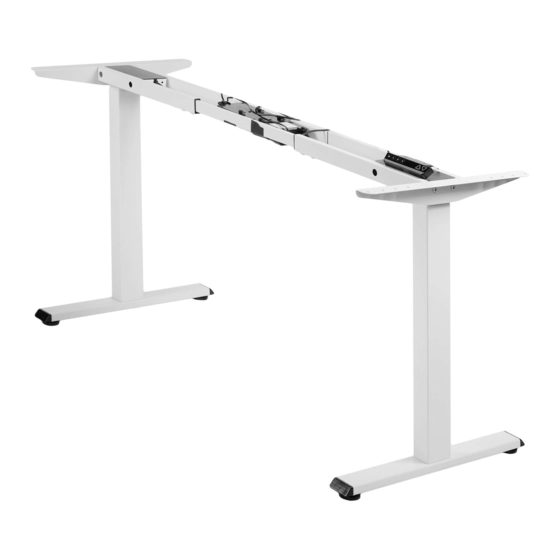

Electric dual motor desk frame
Hide thumbs Also See for DESK-E-200B:
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
Electric Dual Motor Desk Frame
Control Panel Manual
SKU: DESK-E-200B/W CONTROL PANEL
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/desk-e-200b
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DESK-E-200B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vivo DESK-E-200B

Summary of Contents for Vivo DESK-E-200B

  • Page 1 Electric Dual Motor Desk Frame Control Panel Manual SKU: DESK-E-200B/W CONTROL PANEL Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/desk-e-200b GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...

  • Page 2: Electrical Safety Instructions

    WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual and do not exceed weight capacity.

  • Page 3: Using Control Panel

    Using Control Panel IMPORTANT: Desk must be RESET before first use! Please follow reset procedure below before proceeding. RESET PROCEDURE Unplug the power cord and hold the button on the Control Panel for 30 seconds. Plug the power cord back in. Hold the button until the desk reaches its lowest height, then release.

  • Page 4: Custom Programming

    CUSTOM PROGRAMMING To enter the custom programming menu, press and hold “S” for 5 seconds. The control panel will begin flashing and display the minimum height. If no action is taken for more than 10 seconds, the control panel will automatically exit the menu. Unsaved settings may be canceled by waiting for 10 seconds. The following instructions assume the control panel is in the beginning minimum height display state.

  • Page 5: Troubleshooting

    Displayed Unit 1. Tap "S" until "U-0" is displayed. 2. Press the up or down arrow to change the display setting to 0 (cm) or 1 (inches). 3. Press and hold "S" to save. "SUS" will be displayed if successfully saved, or "FAL"...
  • Page 6 Advanced Error Codes Description Code Troubleshooting Solution Abnormal Standby Current Power on again. If code persists, replace the Control Panel Abnormal Power Supply Board Power on again. If code persists, replace the Control Panel Abnormal Memory Power on again. If code persists, replace the Control Panel Abnormal Sensor Power on again.
  • Page 7 [ THIS PAGE INTENTIONALLY LEFT BLANK ]...
  • Page 8 AVG. RESPONSE TIME (within office hrs) - 23% within < 15m - 38% within < 30m - 61% within < 1hr - 83% within < 2hr - 92% within < 3hr FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...

This manual is also suitable for:

Desk-e-200w
