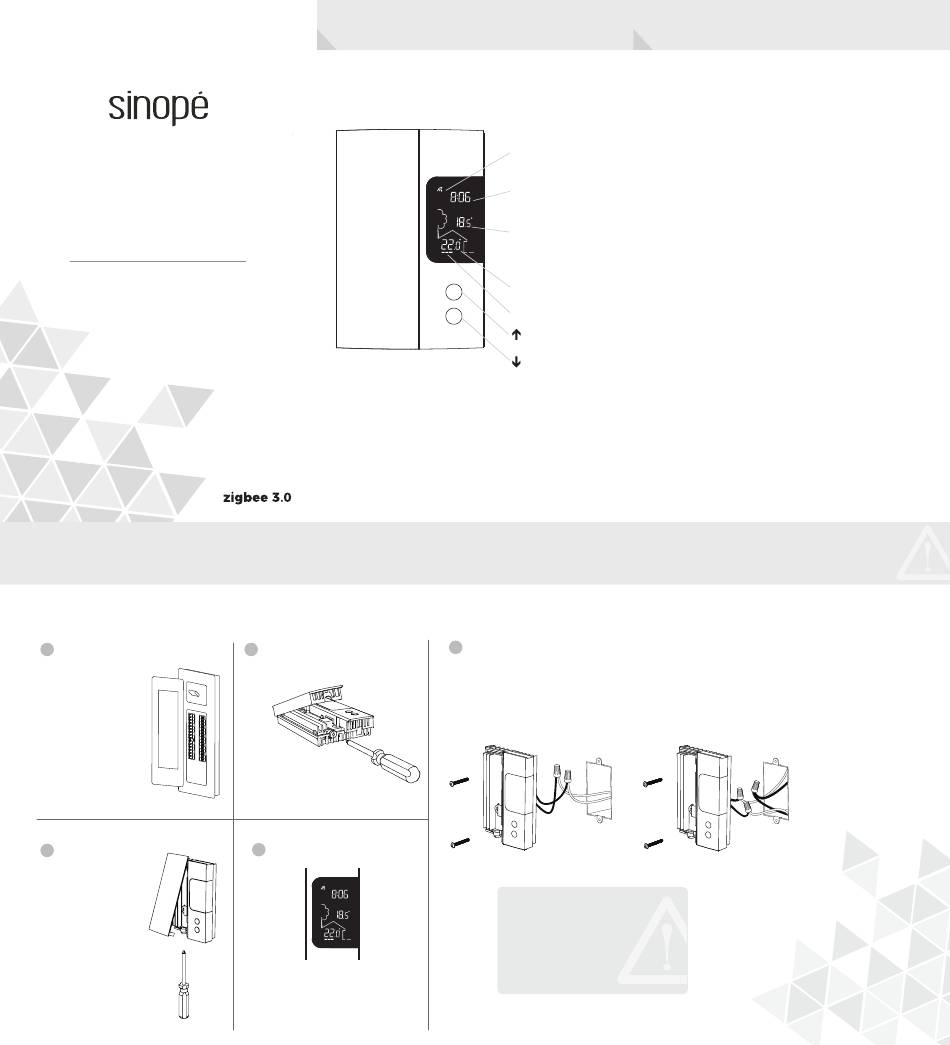

Sinope TH1123ZB Installation Manual

TH1123ZB
TH1124ZB
Installation Guide
Smart Thermostat for
Electric Heating

Warnings

The installation of this thermostat must be performed by a certified electrician and comply with the
national and local electrical codes and regulations.
1
Make sure that the
breakers for your
heating system are
off at the main
electrical panel.
Replace the cover
4
and lock

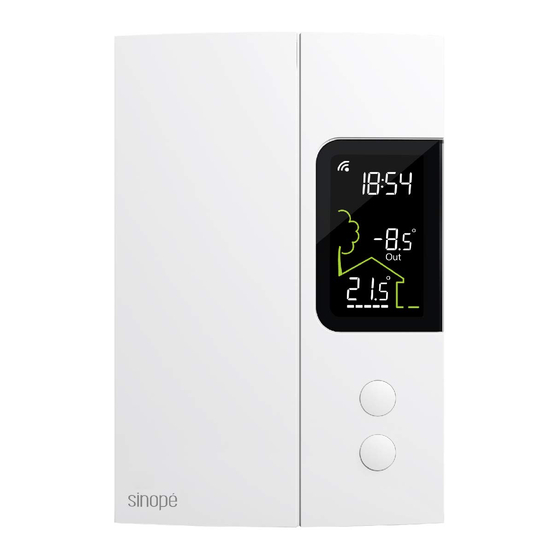

YOUR TH1123ZB / TH1124ZB THERMOSTAT

INSTALL YOUR THERMOSTAT

2 Unlock and lift the
thermostat cover.
5
Power up the thermostat.
Out
Gateway connection status
Time
(provided by the gateway)
Secondary display:
Out
Setpoint [Set) or outside
temperature [Out]
Ambient temperature
Heating indicator
Use the connectors provided to connect the thermostat wires
3
to the wires in the electrical box.
Note: The wires of this thermostat are non-polarized.
Two-wire installation
Make sure to firmly tighten the wire
connectors for a secure connection.
A loose connection can be a tire hazard.
Special CO/ ALR solderless connectors
must be used when connecting with
aluminum conductors.

TECHNICAL SPECIFICATIONS

Operatlng voltage: 120 / 208 / 240 Vac, 60 Hz
• TH1123ZB Thermostat
Maximim load:
12.5 A / 3000 W @ 240 Vac
Resistive load only.
Minimum load:
1.25 A / 300 W @ 240 Vac
• TH1124ZB Thermostat
Maximum load:
16.7 A / 4000 w @ 240 Vac
Resistive load only.
Minimum load:
1.25 A / 300 W @ 240 Vac
Setpoint range: 5 ˚C to 30 ˚C (41 ˚F to 86 ˚F)
Display range: 0 ˚C to 50 ˚C (32 ˚F to 99 ˚F)
Resolution: ± 0.5 ˚C (± 1 ˚F)
Storage: -20 ˚C to 50 ˚C (-4 ˚F to 122 ˚F)
Operation: 0 ˚C to 50 ˚C (32 ˚F to 122 ˚F)
Protocole: Zigbee 3.0
Frequency: 2.4 GHz
Transmission power: +20 dBm
Receiver sensitivity: -108 dBm
Compatible with an electric heating system such as:
• Baseboard heater [short cycle]
• Convector [short cycle]
• Fan-forced convector [long cycle)
• Radiant ceiling heating
Four-wire installation
