Sinope TH1120-3000 User Manual

Warnings
The installation of this thermostat should be made by a certified
electrician and must be installed in conformity with the national
and local Electrical Codes.
Since you are a valuable customer, before starting
the installation of your new thermostat, please
make sure that the breakers for your heating system
are off at the main electrical panel!
User's guide
TH1120-3000
(3000 W)
TH1120-4000
(4000 W)
Non-programmable thermostat The thermostat must be installed in
series with your heating device.
Connecting the thermostat directly
to the line voltage source will
damage the unit.
Note: The wires of this thermostat are non-polarized.
Setpoint Temperature
setpoint
Room Temperature
Heating Indicator
L1
L2/N

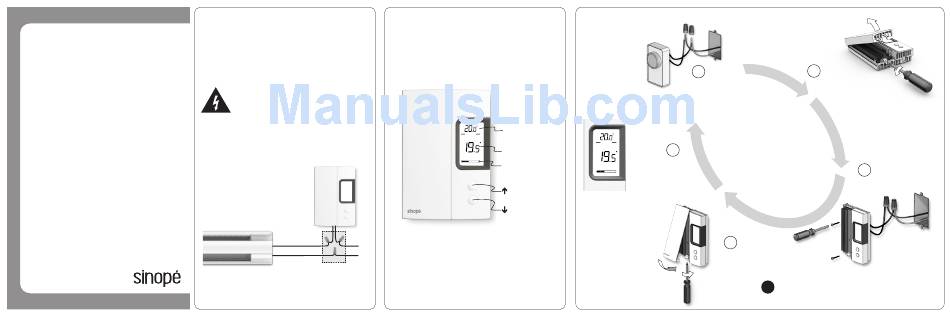

Install your thermostat
1
Remove your old
thermostat. It should be
connected to 2 wires. If
you have more than 2
wires, refer to our website
(FAQ).
Power up the
thermostat.
setpoint
5
Note: For a fan-forced
convector, go to the
''Advanced Settings'' section
to change the control cycle
of the thermostat.
4
Replace the
cover and lock.
Unlock and lift
the thermostat cover.
2
Use the provided connectors to
connect the two wires of the
thermostat to the wires previously
connected to your old thermostat.
Use the two screws to
3
secure the thermostat
to the electrical box.
Make sure to firmly tighten the wire connectors for a secure
!
connection. A loose connection can be a fire hazard.
Special CO/ALR solderless connectors must be used when
connecting with aluminum conductors.
