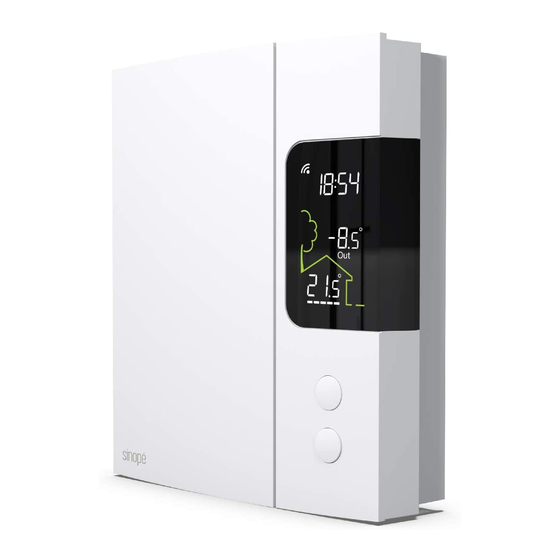

Sinope TH1123ZB-C4 Installation Manual

Warnings
The installation of this thermostat should be made by a
certified electrician and must be installed in conformity with
the national and local Electrical Codes.
This product is only compatible with the Control4 home
automation system.
Installation
Before starting the installation of your new
thermostat, make sure that the breakers for
Guide your heating system are off at the main
electrical panel.
TH1123ZB-C4
(3000 W)
TH1124ZB-C4
(4000 W)
The thermostat must be installed in
Smart Thermostat for
series with your heating device.
Electric Heating
Connecting the thermostat directly
to the line voltage source will
damage the unit.
Note: The wires of this thermostat are non-polarized.
Technical Specifications
Operating voltage: 120 / 208 / 240 Vac, 60 Hz
TH1123ZB-C4 thermostat
Maximum load:
12.5 A / 3000 W @ 240 Vac
Resistive load only.
Minimum load:
0.5 A / 120 W @ 240 Vac
TH1124ZB-C4 thermostat
Maximum load:
16.7 A / 4000 W @ 240 Vac
Resistive load only.
Minimum load:
0.5 A / 120 W @ 240 Vac
Setpoint range: 5 ˚C to 30 ˚C (41 ˚F to 86 ˚F)
Display range: 0 ˚C to 50 ˚C (32 ˚F to 99 ˚F)
Resolution: ± 0.5 ˚C (± 1 ˚F)
Storage: -20 ˚C to 50 ˚C (-4 ˚F to 122 ˚F)
Operation: 0 ˚C to 50 ˚C (32 ˚F to 122 ˚F)
Zigbee profile HA 1.2
Frequency: 2.4 GHz
L1
Transmission power: +20 dBm
L2/N
Receiver sensitivity: -108 dBm
Compatible with an electric heating system such as:
Baseboard heater
Ÿ
Convector (short cycle)
Ÿ
Fan-forced convector (long cycle)
Ÿ

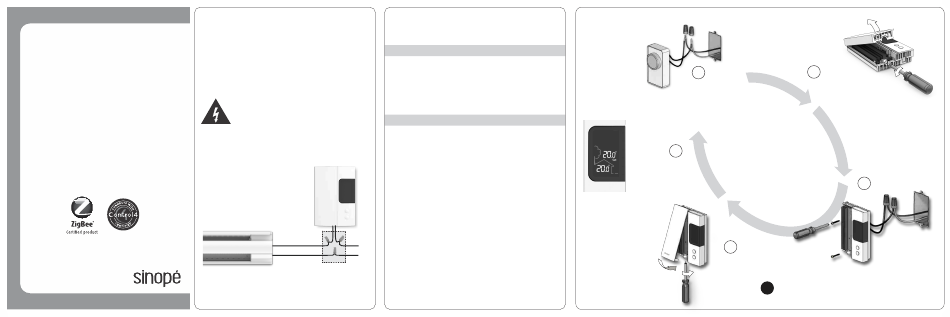

Install your thermostat
1
Remove your old
thermostat. It should be
connected on 2 wires.
If you have more than 2
wires, refer to our
Website (FAQ).
Power up the
thermostat.
5
Note: For a fan-forced
convector, go to the ''Cycle
Length'' section to change
the control cycle of the
thermostat.
4
Replace the
cover and lock.
!
Unlock and lift
the thermostat cover.
2
Use the provided connectors to
connect the two wires of the
thermostat to the wires previously
connected to your old thermostat.
Use the two screws to
secure the thermostat
to the electrical box.
3
Make sure to firmly tighten the wire connectors for a
secure connection. A loose connection can be a fire
hazard. Special CO/ALR solderless connectors must be
used when connecting with aluminum conductors.
