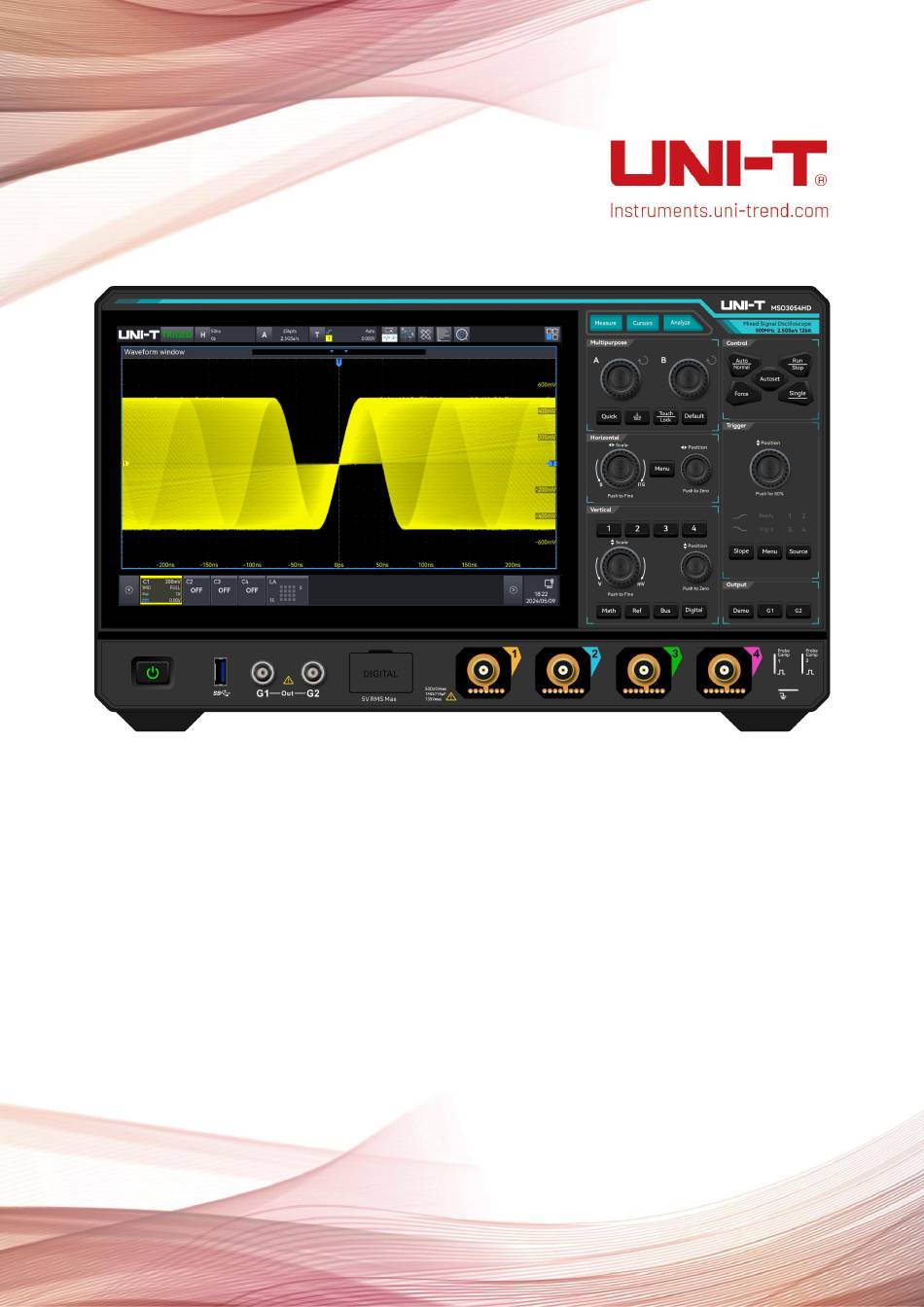

Page 1 Oscilloscopes User’s Manual MSO3000HD Series High-Definition The manual applies to: MSO3000HD series V1.0 September 25 , 2024...
Page 2: Warranty Service
If the product is shipped to the location of the UNI-T service center, UNI-T shall pay the return shipping fee. If the product is sent to any other location, the customer shall be responsible for all shipping, duties, taxes, and any other expenses.
Page 3: Copyright Information
This warranty is written by UNI-T for this product, and it is used to substitute any other express or implied warranties. UNI-T and its distributors do not offer any implied warranties for merchant ability or applicability purposes.
Page 4: Safety Instructions
Users must follow the following conventional safety precautions in operation, service and maintenance of this device. UNI-T will not be liable for any personal safety and property loss caused by the user's’ failure following the safety precautions. This device is designed for professional users and responsible organizations for measurement purposes.
Page 5 Oscilloscopes User’s Manual MSO3000HD Series to procedures, methods and conditions, etc. The contents of “Note” should be highlighted if necessary. Safety Signs It indicates possible danger of electric shock, which Danger may cause personal injury or death. It indicates that there are factors you should be...
Page 6 Oscilloscopes User’s Manual MSO3000HD Series III circuit or sockets more than 20 meters away from CAT IV circuit. Primary circuit of large equipment directly connected to the distribution board and circuit between the distribution board and the socket (three-phase distributor circuit includes a single commercial CAT III lighting circuit).
Page 7 Oscilloscopes User’s Manual MSO3000HD Series Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is  connected.
Page 8 If this device may be faulty, please contact the authorized maintenance Abnormality personnel of UNI-T for testing. Any maintenance, adjustment or parts replacement must be done by the relevant personnel of UNI-T. Do not block the ventilation holes at the side and back of this device.
Page 9: Environmental Requirements
Oscilloscopes User’s Manual MSO3000HD Series transportation damage the buttons, knobs or interfaces on the instrument panel. Poor ventilation will cause the device temperature to rise, thus causing Proper ventilation damage to this device. Please keep proper ventilation during use, and regularly check the vents and fans.
Page 10: Electrostatic Protection
Oscilloscopes User’s Manual MSO3000HD Series Connecting to the service cable: This instrument is a Class I safety product. The supplied power cables have reliable performance in terms of case grounding. This spectrum analyzer is equipped with a three-prong power cable that meets international safety standards.
Page 11 MSO3000HD series high-definition oscilloscopes is a versatile, high-performance instrument based on UNI-T's original Ultra Phosphor technology. It offers an ideal combination of ease of use, excellent technical specifications, and a range of functional features to help users complete their testing more efficiently.
Page 12: Document Overview
Note: The latest edition of the user manual can be downloaded from the UNI-T website: https://www.uni-trend.com (1) Software Version The software update may change or add new functions. Please visit the UNI-T website for the latest version or contact UNI-T to upgrade the software. (2) Document Format A key with a character frame represents a key on the front panel.
Page 13: General Inspection
If the packaging carton or the foam plastic cushions are severely damaged, please contact the UNI-T distributor of this product immediately. (2) Check Accessories The details of the supplied accessories are described in the MSO3000HD Series High-Definition Oscilloscopes accessories section in this manual. Please refer to this section for the list of accessories.
Page 14: Before Use
Oscilloscopes User’s Manual MSO3000HD Series transportation department and UNI-T distributors, UNI-T will arrange maintenance or replacement. 5.2. Before Use To perform a quick verification of the instrument’s normal operations, please follow the steps below. (1) Connecting to the Power Supply Refer to Connecting Power Supply, use the assembled power line or other power line that meets the local country standards to connect the oscilloscope.
Page 15: Front Panel
Oscilloscopes User’s Manual MSO3000HD Series compensation. Set the attenuation coefficient in the probe menu to 10x and set the probe switch to 10x.  Connect the oscilloscope probe to CH1. If using the probe's hook tip, ensure it makes stable contact.
Page 16 Oscilloscopes User’s Manual MSO3000HD Series Description Description Probe compensating signal connection Display area clip and ground terminal ① Measurement analysis area Vertical control area Multi-function area Analog channel input terminal ② Control area Digital channel input terminal ③ Horizontal control area Gen output port ④...
Page 17: Rear Panel
Oscilloscopes User’s Manual MSO3000HD Series 5.4. Rear Panel Rear Panel EXT Trig: The input terminal of external trigger AUX OUT: Output terminal for trigger output, Pass/Fail output, DVM output 10MHz REF: 10 MHz REF IN&OUT, BNC. Use this port to import the external reference clock signal or export 10 MHz clock signal generated by the internal crystal oscillator of the instrument.
Page 18 Oscilloscopes User’s Manual MSO3000HD Series 5.5. Operation Panel (1) Vertical Control 4 : Analog channel setting key respectively  represents CH1, CH2, CH3 and CH4. Four channel's tabs are identified by different colors and it also corresponding to the colors of waveforms on the screen and the channel input connectors.
Page 19 Oscilloscopes User’s Manual MSO3000HD Series horizontal, auto roll, quick roll time base, horizontal position, time base extension and time base selection. For more details, refer to the section of Horizontal System for more details. Scale: Horizontal scale rotary knob is used to adjust all channel time base. During the ...
Page 20 Oscilloscopes User’s Manual MSO3000HD Series (4) Control Area Auto/Normal: Press the Auto/Normal key to switch the  oscilloscope trigger mode between Auto and Normal. Run/Stop: This key is used to set the operating mode of the  oscilloscope to “Run” or “Stop”.
Page 21 Oscilloscopes User’s Manual MSO3000HD Series Default: Restore factory settings. Press the Default key to reset all oscilloscope settings to  their default values. Multipurpose Multi-function knob A. When a numerical menu is selected in the function  popup window, the LED on the multi-function knob will light up, allowing the user to adjust values using the knob.
Page 22: User Interface
Oscilloscopes User’s Manual MSO3000HD Series 5.6. User Interface Display: C1-C4 waveform measurement window, Ref waveform, and Math waveform. Trigger state icon: TRIGED, AUTO, READY, STOP, ROLL, and SCAN Horizontal base label: Displays the current horizontal time base, click to enter the horizontal setting menu.
Page 23: Touch Screen
5.7. Touch Screen MSO3000HD series provides 10.1-inch super capacitive touch screen, multiple point touch control and gesture control. MSO3000HD has easily operating system with flexible and high-sensitive touch screen features for great waveform display and excellent user experience.
Page 24 Oscilloscopes User’s Manual MSO3000HD Series Tap the virtual keyboard to set the label name and file name.  Tap a message to open a close button in the top right corner to close the pop-up window.  Tap another window displayed on the screen and then to setup.
Page 25: Parameter Setting
, it indicates that “Operating Waveform” mode is enabled. 5.8. Parameter Setting MSO3000HD series supports use the Multipurpose A (Multipurpose rotary knob) and touch screen to set the parameter. The setting steps as follows.
Page 26 Oscilloscopes User’s Manual MSO3000HD Series When naming a file or folder, use the character keyboard to enter a string. Keyboard name Text field Clear key Backspace Tab key Caps lock Enter key Shift key Virtual keyboard Space key Input field Enter text: input letters, numbers, and special characters, with a maximum length of 16 characters.
Page 27 Oscilloscopes User’s Manual MSO3000HD Series Enter key Once the content has been entered, press the “Enter” key to confirm the setting and close the virtual keyboard. (3) Enter Numeric Value When setting or editing a parameter, use the numeric keypad to enter the numeric value.
Page 28: Remote Control
Set the parameter to the default value. Clear the parameter input field. 5.9. Remote Control MSO3000HD series high-definition oscilloscopes can communicate with a PC via USB and LAN port for remote control. Remote control is implemented using SCPI (Standard Commands for Programmable Instruments) MSO3000HD series has three methods for remote control.
Page 29 Oscilloscopes User’s Manual MSO3000HD Series Operating steps: Setup the communication between the instrument and a PC.  Open the instrument manager software and search the instrument source.  Right-click to open the oscilloscope, operate the instrument manager to remotely control ...
Page 30: Vertical System
Oscilloscopes User’s Manual MSO3000HD Series 6. Vertical System  Open/Activate/Close Analog Channel  Vertical Scale  Offset  Channel Coupling  Bandwidth Limitation  Probe Multiplier  Inverse Phase  Impedance  Unit  Label MSO3000HD provides a separate vertical control system for each channel. The setup method of the vertical system for each channel is the same.
Page 31: Vertical Scale
Oscilloscopes User’s Manual MSO3000HD Series 6.1. Open/Activate/Close Analog Channel C1-C4 analog channels have three states: open, close, and activated. (1) Open the analog channel When an analog channel is turned off, click on the channel key on the front panel to ...
Page 32 Increase scale Text field MSO3000HD series supports vertical adjustment. In the “Channel Setting” menu, the adjustment method can set to “Coarse tuning” or “Fine tuning”. “ON” indicates coarse tuning, “OFF” indicates fine tuning. The default is coarse tuning. Press the vertical Scale rotary knob on the right side of the front panel to toggle between “Coarse tuning”...
Page 33: Channel Coupling
Oscilloscopes User’s Manual MSO3000HD Series 6.3. Offset The vertical offset indicates that the offset of the channel signal zero position of a waveform relative to the center of the screen in the vertical direction. When adjusting the vertical offset, the waveform of a channel will move up and down, and the vertical offset in the channel label at the bottom of the screen will change in real time (as shown in the following figure).
Page 34: Bandwidth Limitation
MSO3000HD series can set the bandwidth limitation to 20 MHz or FULL. 20 MHz: When the measured signal contains the high-frequency that greater than 20 MHz, it ...
Page 35 Oscilloscopes User’s Manual MSO3000HD Series When the oscilloscope detects a probe with a probe attenuation ratio detection pin (different resistors represent different attenuation ratios), it automatically recognizes the probe's attenuation coefficient, sets the probe attenuation ratio to the matching value, and displays information such as the manufacturer, probe model, serial number, and probe magnification in the probe setup menu.
Page 36 Oscilloscopes User’s Manual MSO3000HD Series Inverse Phase: ON Inverse Phase: OFF 6.8. Impedance To reduce the electric load cause by the interaction of the oscilloscope and the circuit to be measured, this oscilloscope provides two input impedance mode 1 MΩ (default) and 50 Ω. In the “Channel Setting”...
Page 37 Oscilloscopes User’s Manual MSO3000HD Series 6.9. Unit Click the channel tab at the bottom of the screen to open the “Channel Setting” menu, and then click on the “Unit” to set the unit to “V”, “A”, “W”, or “U”. The default unit is V. When using the current probe, the unit switches to “A”.
Page 38: Horizontal System
Oscilloscopes User’s Manual MSO3000HD Series 7. Horizontal System  Horizontal Scale  Horizontal Extension  Auto Roll Mode  Fastest Roll Time Base  Horizontal Position  Time Base Extension  XY Access the Horizontal Control System menu using the following method.
Page 39: Horizontal Scale
Decrease Scale Increase Scal Text Field MSO3000HD series supports horizontal adjustment. In the “Channel Setting” menu, the adjustment method can set to “Coarse tuning” or “Fine tuning”. “ON” indicates coarse tuning, “OFF” indicates fine tuning. The default is coarse tuning. Press the horizontal Scale rotary knob on the right side of the front panel to toggle between “Coarse tuning”...
Page 40 Oscilloscopes User’s Manual MSO3000HD Series Coarse tuning：Click the “ Decrease Scale” or “ Increase Scale” key on the right side of  the horizontal scale tab. The horizontal time base for all channel waveforms will be adjusted within the allowable range using the 1-2-5 step sequence.
Page 41 Oscilloscopes User’s Manual MSO3000HD Series No：When the time base is slower than the fastest roll time base, the oscilloscope will not enter  the ROLL mode and will be in SCAN state. In the SCAN state, the oscilloscope enters the slow sweep mode.
Page 42: Horizontal Position
Oscilloscopes User’s Manual MSO3000HD Series 7.4. Fastest Roll Time Base The fastest scrolling time base enters the time base mode of ROLL or SCAN, with only a prompt function and does not support setting. 7.5. Horizontal Position Tap on the “Horizontal Position” input field to change its value. Set the horizontal center as the zero point, the waveform will move to the left if the horizontal position is greater than 0;...
Page 43 Oscilloscopes User’s Manual MSO3000HD Series (1) Enlarge Waveform When the window is extended, you can adjust the horizontal and vertical position magnification of the waveform in the main window. Set the magnification using the following steps. Double-click on the “ Horiz Zoom ” and “ Vert Zoom ” input field on the screen to open the ...
Page 44 Oscilloscopes User’s Manual MSO3000HD Series roll time base. When the time base extension is enabled in ROLL mode, the main time base will default to the fastest roll time base. 7.7. XY The waveform displayed in XY mode is also known as a Lissajous curve. XY mode supports cursor measurements, allowing for quick measurement of the phase difference between two signals.
Page 45 Oscilloscopes User’s Manual MSO3000HD Series In this state, set the menu to display in split screen, and press the Cursor key, as shown in the following figure. When XY mode is enabled, the cursor supports both time and voltage measurements. For time measurement, the cursor is displayed in the waveform window, and you can move it only within the waveform window.
Page 46 Oscilloscopes User’s Manual MSO3000HD Series Cursor ①: Time, rectangular coordinates, polar coordinates, product, and ratio. Cursor ②: Time, rectangular coordinate, polar coordinates, product, and proportion. △: Delta (numerical difference between two cursors). Application of XY mode The phase difference between in two signals with the same frequency can be easily observed through Lissajous curve.
Page 47: Triggering System
Oscilloscopes User’s Manual MSO3000HD Series 8. Triggering System  Noun Explanation of Triggering System  Edge Triggering  Pulse Width Triggering  Video Triggering  Slope Triggering  Runt Pulse Triggering  Over-amplitude Triggering  Delay Triggering  Timeout Triggering ...
Page 48 1 input signal enables the user to capture the desired waveform more efficiently. Understanding the signal under test is crucial for quickly acquiring the desired waveform. MSO3000HD series offers several advanced trigger types, including various serial bus triggers. This chapter describes each trigger type in detail.
Page 49 Oscilloscopes User’s Manual MSO3000HD Series Aerospace serial bus MIL - STD - 1553，ARINC MSO3000HD Option triggering and analysis Series Wireless communication MSO3000HD Manchester Option trigger and analysis Series Follow the steps below to access the “Trigger” menu. Press the Menu key on the front panel to enter the “Trigger Setting” menu.
Page 50 Oscilloscopes User’s Manual MSO3000HD Series contains data captured before the trigger. The oscilloscope then proceeds to fill the post-trigger buffer with the data captured after the trigger and displays the sampled waveform. Trigger event Pre-trigger buffer Post-trigger buffer Acquisition storage This oscilloscope provides three trigger modes: auto, normal, and single.
Page 51 Oscilloscopes User’s Manual MSO3000HD Series The single mode is suitable for the following conditions. Capture a single event by accident or non-periodic signal, such as rising or falling  waveforms. A rare trigger event.  (3) Trigger Coupling Trigger coupling determines which part of the signal will be transmitted to the trigger circuit.
Page 52 Oscilloscopes User’s Manual MSO3000HD Series input field to open the virtual keyboard to set the trigger level. For details on the use of the numeric keypad, refer to the section of 5.8 Parameter Setting. The current trigger level is displayed in the trigger label on the screen. For this trigger source, only the trigger level change is displayed, but no trigger level line.
Page 53: Edge Triggering
Oscilloscopes User’s Manual MSO3000HD Series it ON or OFF. (7) Force Trigger Press the Force key to manually generate a trigger signal. If the waveform is not displayed on the screen in the “Normal” or “Single” mode, press the Force key to collect the signal baseline, allowing you to confirm that the acquisition is functioning normally.。...
Page 54 Oscilloscopes User’s Manual MSO3000HD Series (2) Trigger Mode Trigger Mode Set the trigger mode to auto, normal, or single. For more details on , refer to the section Noun Explanation of Triggering System. (3) Source Click on the “Source” to select C1-C4, main electricity, EXT, or D0-D15. For more details on...
Page 55: Pulse Width Triggering
Oscilloscopes User’s Manual MSO3000HD Series Trigger Position rotary knob, and the numeric keypad on the front panel. For more details on Level, refer to the section Noun Explanation of Triggering System. 8.3. Pulse Width Triggering Pulse width triggering sets the oscilloscope to trigger on the specified width and a positive or negative pulse meets the judgment conditions.
Page 56: Video Triggering
Oscilloscopes User’s Manual MSO3000HD Series (4) Trigger Condition ＞: When the pulse width of the trigger signal (positive pulse width, negative pulse width) is greater than the set pulse width, the lower limit can be set. ＜: When the pulse width of the trigger signal (positive pulse width, negative pulse width) is less than the set pulse width, the upper limit can be set.
Page 57 Oscilloscopes User’s Manual MSO3000HD Series (2) Trigger Mode Trigger Mode Set the trigger mode to auto, normal, or single. For more details on , refer to the section Noun Explanation of Triggering System. (3) Source Trigger Source, Click on the “Source” to select C1-C4. For more details on...
Page 58 Oscilloscopes User’s Manual MSO3000HD Series Frame Video TV Scan Line Frequency Sweep Type Format (Line) (Frame) Interlaced NTSC scanning Interlaced PAL/SECAM scanning Progressive 525 p/60 scanning Progressive 625 p/50 scanning Progressive 720 p/24 scanning Progressive 720 p/25 scanning Progressive 720 p/30...
Page 59: Slope Triggering
System. Note：To observe detailed waveforms in the video signal, increase the memory depth. MSO3000HD series incorporates UNI-T’s proprietary digital 3D technology, featuring a multi-level greyscale display. This allows varying brightness levels to indicate the frequency of different signal components, helping experienced users quickly assess signal quality and identify anomalies during debugging.
Page 60 Oscilloscopes User’s Manual MSO3000HD Series (2) Trigger Mode Trigger Mode Set the trigger mode to auto, normal, or single. For more details on , refer to the section Noun Explanation of Triggering System. (3) Source Trigger Source, Click on the “Source” to select C1-C4. For more details on...
Page 61 Oscilloscopes User’s Manual MSO3000HD Series limit of time can be set. Note: The slope time of the trigger signal refers to both the slope time of the rising edge and the slope time of the falling edge, as illustrated in the figure below.
Page 62 Oscilloscopes User’s Manual MSO3000HD Series level but does not cross the upper limit of the trigger level; the negative runt pulse is the pulse that crosses the upper limit of the trigger level but does not cross the lower limit of the trigger level, as shown in the following figure.
Page 63 Oscilloscopes User’s Manual MSO3000HD Series Noun Explanation of Triggering System. The current source is displayed in the trigger label at the top of the screen. The source can only trigger stably if the selected channel has a connected signal and is set as the trigger source.
Page 64 Oscilloscopes User’s Manual MSO3000HD Series 8.7. Over-amplitude Pulse Triggering The over-amplitude pulse trigger has both a high level and a low level. The oscilloscope will trigger when the rising edge of the input signal crosses the high level or the falling edge crosses the low level, as shown in the following figure.
Page 65 Oscilloscopes User’s Manual MSO3000HD Series (4) Over-amplitude Type Set the input signal to trigger on the specified edge type, which can be rising, falling, or arbitrary edge. The current over-amplitude type is displayed in the top right corner of the screen.
Page 66 Oscilloscopes User’s Manual MSO3000HD Series meets the preset time limit, the oscilloscope will be triggered, as shown in the following figure. Edge 1 Source 1 Edge 2 Source 2 △T Edge 1 is set as the rising edge. Edge 2 is set as the falling edge. △T is the area marked in red.
Page 67 Oscilloscopes User’s Manual MSO3000HD Series (3) Source 1 Trigger Source, Click on the “Source 1” to select C1-C4 or D0-D15. For more details on refer to the section Noun Explanation of Triggering System. The current source is displayed in the trigger label at the top of the screen.
Page 68 Oscilloscopes User’s Manual MSO3000HD Series When the trigger condition is “≤≥”, click on the input field of the lower limit or the upper  limit to open the numeric keypad to set the lower or upper limit of time. Alternatively, rotate the Multipurpose A rotary knob on the front panel to adjust the lower or upper limit of time, the lower limit of time must be less than or equal to the upper limit of time.
Page 69 Oscilloscopes User’s Manual MSO3000HD Series (2) Trigger Mode Trigger Mode Set the trigger mode to auto, normal, or single. For more details on , refer to the section Noun Explanation of Triggering System. (3) Source Trigger Source, Click on the “Source” to select C1-C4 or D0-D15. For more details on...
Page 70 Oscilloscopes User’s Manual MSO3000HD Series oscilloscope will be generated when timeout ＜ △T. Click on the “Timeout” input field to open the numeric keypad to set the timeout. Alternatively, rotate the Multipurpose A rotary knob on the front panel to adjust the timeout.
Page 71 Oscilloscopes User’s Manual MSO3000HD Series (2) Trigger Mode Trigger Mode Set the trigger mode to auto, normal, or single. For more details on , refer to the section Noun Explanation of Triggering System. (3) Source Trigger Source, Click on the “Source” to select C1-C4 or D0-D15. For more details on...
Page 72: Setup & Hold Triggering
Oscilloscopes User’s Manual MSO3000HD Series ＞: The oscilloscope will be generated when the duration is greater than the set lower limit of time, and the lower limit of time can be set. ＜: The oscilloscope will be generated when the duration is less than the set upper limit of time, and the upper limit of time can be set.
Page 73 Oscilloscopes User’s Manual MSO3000HD Series △T1: Setup time △T1 △T2 △T2: Hold time Data Source Clock Source Data pattern: H Edge type: Rising edge (1) Trigger Type Press the Menu softkey on the front panel or tap the T trigger label on the top to open the “Trigger”...
Page 74 Oscilloscopes User’s Manual MSO3000HD Series the trigger source. (4) Data Type Select the valid code pattern for the data signal. It can be set to H or L. H: Sets the valid code pattern for the data signal to a high level.
Page 75 Oscilloscopes User’s Manual MSO3000HD Series example, waveform as shown in the following figure, it is set to trigger on the 2nd rising edge after the specified idle time (the time between two adjacent rising edges), then set the idle time as P< idle time <M, M is the time between the 1st rising edge and the next rising edge, P is the maximum time...
Page 76 Oscilloscopes User’s Manual MSO3000HD Series the section Noun Explanation of Triggering System. The current source is displayed in the trigger label at the top of the screen. The source can only trigger stably if the selected channel has a connected signal and is set as the trigger source.
Page 77 Oscilloscopes User’s Manual MSO3000HD Series (1) Trigger Type Press the Menu softkey on the front panel or tap the T trigger label on the top to open the “Trigger” menu. Tap “Trigger Type” to open the dropdown menu, then select “Code Pattern”...
Page 78 Oscilloscopes User’s Manual MSO3000HD Series H: Set the code pattern for the selected channel to “H”, i.e. the voltage level is higher than the trigger level of the channel. L: Set the code pattern for the selected channel to “Low”, i.e. the voltage level is lower than the trigger level of the channel.
Page 79 Oscilloscopes User’s Manual MSO3000HD Series Source Trigger Source, Click on the “Source” to select C1-C4 or D0-D15. For more details on refer to the section Noun Explanation of Triggering System. The current source is displayed in the trigger label at the top of the screen.
Page 80 Oscilloscopes User’s Manual MSO3000HD Series or 8 bits. Bit Sequence Set the data bit sequence for RS232 signal, click on the “Bit Sequence” to select MSB or LSB MSB: The Most Significant Bit, i.e., the bit with the highest value in a sequence, transmitted first.
Page 81 Oscilloscopes User’s Manual MSO3000HD Series data bits and the parity bit is odd. Even parity check: The transmission is considered correct if the total number of 1s in  both the data bits and the parity bit is even. With this setting, the user can quickly locate and find the transmission process of parity error during the RS232 communication.
Page 82 Oscilloscopes User’s Manual MSO3000HD Series (2) Source Setting Set both the clock source and the data source. The oscilloscope will only trigger stably if the selected channel has a connected signal and is set as the trigger source. Clock Source Trigger Source, Click on the “Clock Source”...
Page 83 Oscilloscopes User’s Manual MSO3000HD Series (4) Operating Direction Click on the “Operating Direction” to select “Read” or “Write”. Write: The oscilloscope will be generated when I C protocol “Read/write” bit is set to “Write Read: The oscilloscope will be generated when I C protocol “Read/write”...
Page 84: Spi Triggering
Oscilloscopes User’s Manual MSO3000HD Series the Multipurpose B rotary knob to move the cursor, and use the Multipurpose A rotary knob to adjust the data value. The data range can be set from 00 to FFFFFFFFFF (10 Fs). Address & Data: The oscilloscope will be generated when the same address is found during the transmission and the data relation is conform to the set condition.
Page 85 Oscilloscopes User’s Manual MSO3000HD Series Trigger Source, Click on the “Clock Source” to select C1-C4 or D0-D15. For more details on refer to the section Noun Explanation of Triggering System. The current source is displayed in the trigger label at the top of the screen.
Page 86 Oscilloscopes User’s Manual MSO3000HD Series Chip selection: When the Chip Select (CS) signal is valid, the oscilloscope triggers upon  detecting data on SDA that meets the specified trigger conditions. (6) Trigger Condition Set the trigger condition for SPI. The start and data can be set.
Page 87: Can Triggering
Oscilloscopes User’s Manual MSO3000HD Series 8.17. CAN Triggering (1) Trigger Type Press the Menu softkey on the front panel or tap the T trigger label on the top to open the “Trigger” menu. Tap “Trigger Type” to open the dropdown menu, then select “CAN” to configure the trigger settings.
Page 88 Oscilloscopes User’s Manual MSO3000HD Series line signal. Click on the “Signal type” to select “CAN_H”, or “CAN_L“. (5) Bitrate Select the bitrate for CAN serial bus data, click on the “Bitrate” to select 10 kbps, 19.2 kbps, 20 kbps, 33.3 kbps, 38.4 kbps, 50 kbps, 57.6 kbps, 62.5 kbps, 83.3 kbps, 100 kbps, 115.2 kbps, 125 kbps, 230.4 kbps, 250 kbps, 490.8 kbps, 500 kbps, 800 kbps, 921.6 kbps, 1 Mbps, 2 Mbps, 3...
Page 89 Oscilloscopes User’s Manual MSO3000HD Series When the byte length or data is selected, the corresponding menus can be configured. Byte length: The different byte length has different data range. Double-click on the  “Byte Length”input field to select the byte length. The setting range can be set from 1 to 8.
Page 90 Oscilloscopes User’s Manual MSO3000HD Series (2) Source Trigger Source, Click on the “Source” to select C1-C4 or D0-D15. For more details on refer to the section Noun Explanation of Triggering System. The current source is displayed in the trigger label at the top of the screen.
Page 91 Oscilloscopes User’s Manual MSO3000HD Series If "Custom" is selected, a custom bitrate can be entered. (6) FD Bitrate Select the FD bitrate for CAN-FD serial bus data, click on the “FD Bitrate” to select 250 kbps, 500 kbps, 800 kbps, 1 Mbps, 1.5 Mbps, 2 Mbps, 4 Mbps, 5 Mbps, 6 Mbps, 8 Mbps, or a custom FD bitrate.
Page 92: Lin Triggering
Oscilloscopes User’s Manual MSO3000HD Series “Byte Length”input field to select the byte length. For details on the use of the numeric keypad, refer to the section of 5.8 Parameter Setting. Alternatively, select the parameter, use the Multipurpose A rotary knob to adjust the byte length. The setting range can be set from 1 to 16.
Page 93 Oscilloscopes User’s Manual MSO3000HD Series the trigger settings. (2) Source Trigger Source, Click on the “Source” to select C1-C4 or D0-D15. For more details on refer to the section Noun Explanation of Triggering System. The current source is displayed in the trigger label at the top of the screen.
Page 94 Oscilloscopes User’s Manual MSO3000HD Series If "Custom" is selected, a custom bitrate can be entered. ID Parity Check Set ID Parity check to toggle it ON or OFF. ON: Includes parity bit and ID. OFF: Does not include parity bit and ID.
Page 95: Flexray Triggering
Oscilloscopes User’s Manual MSO3000HD Series knob to adjust the data. The data range can be set from 00 to FFFFFFFFFFFFFFFF. ID and Data: Triggered on the data frame that match with the specified ID and data. When the ID, byte length, or data is selected, the corresponding menus can be configured.
Page 96 Oscilloscopes User’s Manual MSO3000HD Series Source Trigger Source, Click on the “Source” to select C1-C4 or D0-D15. For more details on refer to the section Noun Explanation of Triggering System. The current source is displayed in the trigger label at the top of the screen.
Page 97 Oscilloscopes User’s Manual MSO3000HD Series When the cycle number is selected, the cycle number menu can be configured. Cycle number: Double-click on the “Cycle Number” input field to open the numeric  keypad to set the cycle number. For details on the use of the numeric keypad, refer to the section of 5.8 Parameter...
Page 98 Oscilloscopes User’s Manual MSO3000HD Series on the use of the numeric keypad, refer to the section of 5.8 Parameter Setting. Alternatively, use the Multipurpose A rotary knob to adjust the byte length. The range of byte length can be set from 1 to 16.
Page 99: Audio Triggering
Oscilloscopes User’s Manual MSO3000HD Series 8.21. Audio Triggering In the Audio triggering type, the oscilloscope recognizes the trigger condition by referencing the specified data value. You need to specify the serial clock line (SCLK, which receives 1 pulse on the...
Page 100 Oscilloscopes User’s Manual MSO3000HD Series Left justifying: Data transmission (MSB first) starts at the WS transition edge, without the  one-bit delay used in the standard format. Right justifying: Data transmission (MSB first) is right aligned with the WS signal.
Page 101 Oscilloscopes User’s Manual MSO3000HD Series (3) Bit Sequence Click on the “Bit Sequence” to select “LSB” or “MSB”. The default is “MSB”. (4) Source Setting Set bit clock, bit selection, and data source. The source can only trigger stably if the selected channel has a connected signal and is set as the trigger source.
Page 102 Oscilloscopes User’s Manual MSO3000HD Series Falling edge: Samples SDA on the falling edge of the clock. WS Polarity Click on the “WS Polarity” to select “Normal” or “Reverse”. The WS polarity determines the valid level for the bit selection signal. The bit selection signal indicates the start frame and end of frame for the audio data.
Page 103 Oscilloscopes User’s Manual MSO3000HD Series Data Format (select TDM) When the format is standard, left justifying, right justifying, data bit per channel, clock bit per channel, channel number per frame, bit delay, or trigger condition (frame synchronization, data, channel, and data) is selected, the corresponding menus can be configured.
Page 104 Oscilloscopes User’s Manual MSO3000HD Series When the channel or data is selected, the corresponding menus can be configured. -Channel: Double-click on the “Channel” input field to open the numeric keypad to set the channel number. For details on the use of the numeric keypad, refer to the section 5.8 Parameter...
Page 105 Oscilloscopes User’s Manual MSO3000HD Series (3) Polarity Click on the “Polarity” to select “Positive” or “Negative”. (4) High/Low Level Double-click on “High Level (Low Level)” input field to open the numeric keypad to set the trigger level. Alternatively, rotate the Multipurpose A rotary knob to adjust the trigger level, or...
Page 106 Oscilloscopes User’s Manual MSO3000HD Series Parity check: Select the “Parity Check” to set X, 0, or 1. The default is X.  State: Triggered when the state word completely matches the set parameters. When the terminal address, error message (9), Instr (10), service request (11), BCR (15), Busy (16), system flag (17), DBCA (18), terminal flag (19), or parity check, the corresponding menus can be configured.
Page 107: Manchester Triggering
Oscilloscopes User’s Manual MSO3000HD Series Non-continuous data: Triggered when non-continuous data is detected.  8.23. Manchester Triggering (1) Trigger Type Press the Menu softkey on the front panel or tap the T trigger label on the top to open the “Trigger”...
Page 108 Oscilloscopes User’s Manual MSO3000HD Series G.E：”1” indicates that a jump from low to high; ”0“indicates that a jump from high to low.  (5) Bitrate Click on the “Bitrate” to select the bitrate for DUT to 1.2 kbps, 2.4 kbps, 4.8 kbps, 9.6 kbps, 10.417 kbps, 19.2 kbps, 125 kbps, 250 kbps, 500 kbps, 1 Mbps, 2 Mbps, 5 Mbps, 10 Mbps or...
Page 109 Oscilloscopes User’s Manual MSO3000HD Series field”. Double-click on “End field” input field to open the numeric keypad to set the end field. For details on the use of the numeric keypad, refer to the section of Parameter Setting. Alternatively, select the parameter, use the Multipurpose B rotary knob to move the cursor, and use the Multipurpose A rotary knob to adjust the end field.
Page 110: Sent Triggering
Oscilloscopes User’s Manual MSO3000HD Series range can be set from 1 to 255. (15) Bit Size Click on the “Bit Size” input field to open the numeric keypad to enter the bit size. For details on the use of the numeric keypad, refer to the section of 5.8 Parameter...
Page 111 Oscilloscopes User’s Manual MSO3000HD Series (2) Source Trigger Source, Click on the “Source” to select C1-C4 or D0-D15. For more details on refer to the section Noun Explanation of Triggering System. The current source is displayed in the trigger label at the top of the screen.
Page 112 Oscilloscopes User’s Manual MSO3000HD Series (6) Half Byte Set the half byte for fast channel message, double-click on “Half Byte” input field to open the numeric keypad to set the half byte. For details on the use of the numeric keypad, refer to the section of 5.8 Parameter...
Page 113 Oscilloscopes User’s Manual MSO3000HD Series knob to adjust the half byte. Trigger half byte≤Half byte. The setting range can be set from 1 to 6. Data field: Double-click on the “Data Field” input field to open the numeric keypad to ...
Page 114 Oscilloscopes User’s Manual MSO3000HD Series enhance data, enhance CRC, enhance ID and data, or slow channel CRC error is selected, the corresponding menus can be configured. Synchronization: Triggered on the synchronization data. Short ID: The oscilloscope will be generated when short ID meet the condition.
Page 115: Arinc429 Triggering
Oscilloscopes User’s Manual MSO3000HD Series keypad to set the enhance data. For details on the use of the numeric keypad, refer to the section of 5.8 Parameter Setting. Alternatively, use the Multipurpose B rotary knob to move the cursor, and use the Multipurpose A rotary knob to adjust the enhance data.
Page 116 Oscilloscopes User’s Manual MSO3000HD Series (2) Source Trigger Source, Click on the “Source” to select C1-C4. For more details on refer to the section Noun Explanation of Triggering System. The current source is displayed in the trigger label at the top of the screen.
Page 117 MSO3000HD series add the screen touch regional trigger function, it's helpful for user to get the using of advanced trigger. Zone triggering function is very easy to use. User only need to open rectangle drawing function to draw one or two rectangle areas in the corresponding signal, it can quickly separate it and for observing signal.
Page 118 Oscilloscopes User’s Manual MSO3000HD Series Zone triggering provides tow rectangle areas: Zone A and Zone B. Both regions support setting the region trigger condition to intersection or non-intersection; and the two regions support setting the corresponding enable sources C1-C4. (1) “Rectangle drawing” setting menu: Enable Zone A, Source A, Zone A, enable Zone B, Source B, and Zone B.
Page 119 Oscilloscopes User’s Manual MSO3000HD Series it does not intersect the waveform and will not trigger if it does intersect the waveform. B: intersection: The currently drawn region as Zone B, condition: Zone B will trigger if it intersects with the waveform and will not trigger if it does not intersect the waveform.
Page 120: Protocol Decoding
Oscilloscopes User’s Manual MSO3000HD Series 9. Protocol Decoding  RS23S Decoding  I C Decoding  SPI Decoding  FlexRay Decoding  CAN Decoding  CAN-FD Decoding  LIN Decoding  Audio Decoding  1553B Decoding  Manchester Decoding  SENT Decoding ...
Page 121 Oscilloscopes User’s Manual MSO3000HD Series 9.1. RS232 Decoding RS232 is asynchronous transmission standard interface established by Electronic Industries Association. It usually includes two application formats DB-9 or DB-25. It is suitable for the communication that the data transmission rate within the range 0-29491200/s.
Page 122 Oscilloscopes User’s Manual MSO3000HD Series Source Click on the “Source” to select CH1-CH4 or D0-D15. The current source is displayed in the top right corner of the screen. When the digital channel is enabled, the source can be set to D0-D15 and displayed.
Page 123 Oscilloscopes User’s Manual MSO3000HD Series Bit” to select 5 bits，6 bits，7 bits, or 8 bits. Bit Sequence Set the data bit sequence for RS232 protocol signal. Click on the “Bit Sequence” to select MSB or LSB. MSB: The Most Significant Bit, i.e., the bit with the highest value in a sequence, ...
Page 124 Oscilloscopes User’s Manual MSO3000HD Series Format Set the display format for the decoding bus and event list decoding. Click on the “Format” to select hexadecimal, decimalism, binary, or ASCII. Label Click on the “Label” to switch on/off the decoding bus label. When the decoding bus label is switched on, it will display on the left top and display the current protocol type.
Page 125 Oscilloscopes User’s Manual MSO3000HD Series with the decoding type. (6) Copy Trigger Settings When the trigger type and parameter settings are completed, and the decoding type is the same, click on the “Copy Trigger” on the decoding page to transfer the parameter settings to the decoding menu.
Page 126 Oscilloscopes User’s Manual MSO3000HD Series Source Setting Set the clock source and data source. The source can only trigger stably if the selected channel has a connected signal and is set as the trigger source. Clock Source  Trigger Click on the “Clock Source” to select C1-C4 or D0-D15. For more details on...
Page 127 Oscilloscopes User’s Manual MSO3000HD Series Decoding Line Set the display position of decoding bus on the screen. The display position of decoding line can be adjusted by using Multipurpose A rotary knob. Alternatively, double-click on the “Decoding Line” input field to open the numeric keypad to set the position.
Page 128 Oscilloscopes User’s Manual MSO3000HD Series (when a USB flash drive is detected). For the setting steps, refer to Save and Load section. Note: When the operating state is RUN, the decoding data may be unstable, the user can manually stop the oscilloscope to export a stable decoding signal.
Page 129 Oscilloscopes User’s Manual MSO3000HD Series Source Setting Set the clock source, data source and CS source. The source can only trigger stably if the selected channel has a connected signal and is set as the trigger source. Clock Source ...
Page 130 Oscilloscopes User’s Manual MSO3000HD Series Click on the “CS Polarity” to select “Positive” or “Negative”. Positive: It is set to 1 if the signal is greater than the threshold, otherwise, it is 0. Negative: It is set to 1 if 1 when the signal is less than the threshold, otherwise, it is 0.
Page 131 Oscilloscopes User’s Manual MSO3000HD Series Multipurpose A rotary knob to adjust the timeout. The setting range can be set from 3.2 ns to 1 s. (2) Decoding Bus Setting Bus Switch Click on the “Bus Switch” to switch on/off the bus function.
Page 132 Oscilloscopes User’s Manual MSO3000HD Series Save Event List When the operating state is RUN/STOP, the time and decoding data in the current event list can be exported. Click the “Save Event List” key in the decoding menu to open the export setting menu, the data can be saved in *.csv, *.html, and *.pdf to internal storage or external USB flash drive (when a...
Page 133 Oscilloscopes User’s Manual MSO3000HD Series Source Trigger Source, Click on the “Source” to select C1-C4 or D0-D15. For more details on refer to the section Noun Explanation of Triggering System. The current source is displayed in the trigger label at the top of the screen.
Page 134 Oscilloscopes User’s Manual MSO3000HD Series Set the display position of decoding bus on the screen. The display position of decoding line can be adjusted by using Multipurpose A rotary knob. Alternatively, double-click on the “Decoding Line” input field to set the position. The setting range can be set from 0 from 560.
Page 135 Oscilloscopes User’s Manual MSO3000HD Series USB flash drive is detected). For the setting steps, refer to Save and Load section. Note: When the operating state is RUN, the decoding data may be unstable, the user can manually stop the oscilloscope to export a stable decoding signal.
Page 136 Oscilloscopes User’s Manual MSO3000HD Series as the trigger source. Threshold Double-click on the “Threshold” input field to open the numeric keypad to set the threshold. Alternatively, rotate the Multipurpose A rotary knob to adjust the threshold. When the threshold is changed, a dotted line appears on the screen indicating the current trigger level.
Page 137 Oscilloscopes User’s Manual MSO3000HD Series Save Event List When the operating state is RUN/STOP, the time and decoding data in the current event list can be exported. Click the “Save Event List” key in the decoding menu to open the export setting menu, the data can be saved in *.csv, *.html, and *.pdf to internal storage or external USB flash drive (when a...
Page 138 Oscilloscopes User’s Manual MSO3000HD Series Source Trigger Source, Click on the “Source” to select C1-C4 or D0-D15. For more details on refer to the section Noun Explanation of Triggering System. The current source is displayed in the trigger label at the top of the screen.
Page 139 Oscilloscopes User’s Manual MSO3000HD Series FD Bitrate Select the FD bitrate for CAN-FD serial bus data, click on the “Bitrate” to select 250 kbps, 500 kbps, 800 kbps, 1 Mbps, 1.5 Mbps, 2 Mbps, 4 Mbps, 6 Mbps, 8 Mbps or a custom bitrate.
Page 140 Oscilloscopes User’s Manual MSO3000HD Series Save Event List When the operating state is RUN/STOP, the time and decoding data in the current event list can be exported. Click the “Save Event List” key in the decoding menu to open the export setting menu, the data can be saved in *.csv, *.html, and *.pdf to internal storage or external USB flash drive (when a...
Page 141 Oscilloscopes User’s Manual MSO3000HD Series Source Trigger Source, Click on the “Source” to select C1-C4 or D0-D15. For more details on refer to the section Noun Explanation of Triggering System. The current source is displayed in the trigger label at the top of the screen.
Page 142 Oscilloscopes User’s Manual MSO3000HD Series Set ID Parity check to toggle it ON or OFF. ON: Includes parity bit and ID. OFF: Does not include parity bit and ID. Data Length Menu Set whether to display the data length menu, click on the “Data Length” to toggle it ON or OFF.
Page 143: Audio Decoding
Oscilloscopes User’s Manual MSO3000HD Series Save Event List When the operating state is RUN/STOP, the time and decoding data in the current event list can be exported. Click the “Save Event List” key in the decoding menu to open the export setting menu, the data can be saved in *.csv, *.html, and *.pdf to internal storage or external USB flash drive (when a...
Page 144 Oscilloscopes User’s Manual MSO3000HD Series Protocol Type Click on the “Protocol Type” to select “Audio”. Format Click on the “Format” to select standard, left justifying, right justifying, or TDM. Standard: MSB of each sampled data is sent first and the LSB is sent last. MSB is ...
Page 145 Oscilloscopes User’s Manual MSO3000HD Series Right justifying：Data transmission (MSB first) is right justifying with WS.  TDM：(Time Division Multiplexing) mode can transmit multi-channel data.  Bit Sequence Click on the “Bit Sequence” to select “LSB”or “MSB”. The default is “MSB”.
Page 146 Oscilloscopes User’s Manual MSO3000HD Series refer to the section Noun Explanation of Triggering System. The current source is displayed in the trigger label at the top of the screen. The clock line (SCLK) provides the clock signal for synchronizing audio data transmission.
Page 147 Oscilloscopes User’s Manual MSO3000HD Series For details on the use of the numeric keypad, refer to the section of 5.8 Parameter Setting. Alternatively, select the parameter, use the Multipurpose A to adjust the threshold. Bit Size The bit size can be set when the format is standard, left justifying or right justifying.
Page 148 Oscilloscopes User’s Manual MSO3000HD Series Save Event List When the operating state is RUN/STOP, the time and decoding data in the current event list can be exported. Click the “Save Event List” key in the decoding menu to open the export setting menu, the data can be saved in *.csv, *.html, and *.pdf to internal storage or external USB flash drive (when a...
Page 149 Oscilloscopes User’s Manual MSO3000HD Series (1) Decoding Menu Setting Protocol Type Click on the “Protocol Type” to select “1553B”. Source Trigger Source, Click on the “Source” to select C1-C4. For more details on refer to the section Noun Explanation of Triggering System.
Page 150 Oscilloscopes User’s Manual MSO3000HD Series If the format is the command word, the “state” trigger condition will be hidden. If the format is the state word, the “command” trigger condition will be hidden. (2) Decoding Bus Setting Bus Switch Click on the “Bus Switch” to switch on/off the bus function.
Page 151: Manchester Decoding
Oscilloscopes User’s Manual MSO3000HD Series Save Event List When the operating state is RUN/STOP, the time and decoding data in the current event list can be exported. Click the “Save Event List” key in the decoding menu to open the export setting menu, the data can be saved in *.csv, *.html, and *.pdf to internal storage or external USB flash drive (when a...
Page 152 Oscilloscopes User’s Manual MSO3000HD Series Source Trigger Source, Click on the “Source” to select C1-C4 or D0-D15. For more details on refer to the section Noun Explanation of Triggering System. The current source is displayed in the trigger label at the top of the screen.
Page 153 Oscilloscopes User’s Manual MSO3000HD Series Click on the “Bit Sequence” to switch between “MSB” and “LSB”. MSB: The Most Significant Bit, i.e., the bit with the highest value in a sequence,  transmitted first. LSB: The Least Significant Bit, i.e. the bit with the least value in a sequence, ...
Page 154 Oscilloscopes User’s Manual MSO3000HD Series Click on the “Word count” input field to open the numeric keypad to enter the data bit. For details on the use of the numeric keypad, refer to the section of 5.8 Parameter Setting. Alternatively, select the parameter, use the Multipurpose A to adjust the data bit. The setting range can be set from 1 to 255.
Page 155 Oscilloscopes User’s Manual MSO3000HD Series Label Click on the “Label” to switch on/off the decoding bus label. When the decoding bus label is switched on, it will display on the left top and display the current protocol type. When the decoding bus label is switched off, it will not be displayed.
Page 156 Oscilloscopes User’s Manual MSO3000HD Series same, click on the “Copy trigger” on the decoding page to transfer the parameter settings to the decoding menu. 9.11. SENT Decoding SENT (Single Edge Nibble Transmission) protocol is a point-to-point, unidirectional transmission scheme introduced by SAE, which is used for data transmission between on-board sensors and electronic control units (ECUs).
Page 157 Oscilloscopes User’s Manual MSO3000HD Series Trigger Source, Click on the “Source” to select C1-C4 or D0-D15. For more details on refer to the section Noun Explanation of Triggering System. The current source is displayed in the trigger label at the top of the screen.
Page 158 Oscilloscopes User’s Manual MSO3000HD Series Data Field Format Set the display format of decoding data field, it can set to half byte or fast channel. Half byte: The decoding data of data field is displayed in half byte.  Fast channel: The decoding data of data field is displayed together.
Page 159 Oscilloscopes User’s Manual MSO3000HD Series Save Event List When the operating state is RUN/STOP, the time and decoding data in the current event list can be exported. Click the “Save Event List” key in the decoding menu to open the export setting menu, the data can be saved in *.csv, *.html, and *.pdf to internal storage or external USB flash drive (when a...
Page 160 Oscilloscopes User’s Manual MSO3000HD Series (1) Decoding Menu Setting Protocol Type Click on the “Protocol Type” to select “ARINC429”. Source Trigger Source, Click on the “Source” to select C1-C45. For more details on refer to the section Noun Explanation of Triggering System.
Page 161 Oscilloscopes User’s Manual MSO3000HD Series Click on the “Bus Switch” to switch on/off the bus function. Decoding Line Set the display position of decoding bus on the screen. The display position of decoding line can be adjusted by using Multipurpose A rotary knob. Alternatively, double-click on the “Decoding Line”...
Page 162 Oscilloscopes User’s Manual MSO3000HD Series can be saved in *.csv, *.html, and *.pdf to internal storage or external USB flash drive (when a USB flash drive is detected). For the setting steps, refer to Save and Load section. Note: When the operating state is RUN, the decoding data may be unstable, the user can manually stop the oscilloscope to export a stable decoding signal.
Page 163: Automatic Measurement
 in the top right corner to enter the “Measure” menu. 10.1. Parameter Measurement Overview MSO3000HD series oscilloscope can automatically measure 54 kinds of parameter, such as voltage, time, and other parameters. Voltage Parameter  163 / 304...
Page 164 Oscilloscopes User’s Manual MSO3000HD Series (Overshoot) (Vmax) (Vtop) (Vamp) (Vbase) (Vmin) (Preshoot) Maximum (Vmax): The voltage from the highest point of the waveform to GND. Minimum (Vmin): The voltage from the lowest point of the waveform to GND. Top (Vtop): The voltage value from the flat top of the waveform to GND.
Page 165 Oscilloscopes User’s Manual MSO3000HD Series Positive overshoot: The nearest extreme point after the signal along the rising edge of the waveform crosses the upper threshold limit. Negative overshoot: The nearest extreme point after the signal along the falling edge of the waveform crosses the lower threshold limit.
Page 166 Oscilloscopes User’s Manual MSO3000HD Series Negative duty ratio: The ratio of the negative pulse width to period. Positive pulse number: The number of positive pulses from the lower threshold to the upper threshold. Negative pulse number: The number of negative pulses from the upper threshold to the lower threshold.
Page 167 Oscilloscopes User’s Manual MSO3000HD Series falling edge of source 2. FRLR：Time at the middle threshold intersection from the first rising edge of source 1 to the last rising edge of source 2. FFLR：Time at the middle threshold intersection from the first falling edge of source 1 to the last rising edge of source 2.
Page 168 Oscilloscopes User’s Manual MSO3000HD Series Counter Setting Once the counter is enabled, tap the counter parameter to open the counter box to set the display state, source, test type, refresh time, effective digit, and clear count. Display State Click on the “Display” to switch on/off the counter display.
Page 169 Oscilloscopes User’s Manual MSO3000HD Series numeric keypad to set the effective digit. The range of effective digit can be set from 3 to Clear Count If the “Accumulation” is selected and the count of signal edge event is being measured, click on the “Clear Count”...
Page 170 Oscilloscopes User’s Manual MSO3000HD Series (1) Voltmeter Setting Once the voltmeter is enabled, tap the voltmeter parameter to open the voltmeter box to set the display state, source, test type, refresh time, and beep. Display State Click on the “Display” to switch on/off the voltmeter display.
Page 171 Oscilloscopes User’s Manual MSO3000HD Series Display State Click on the “Display” to switch on/off the beep. ON: The oscilloscope will have an alarm if the test result meets the condition, otherwise, the alarm will not be sound. Limit Condition >: The oscilloscope will have an alarm if the DVM value is greater than the set lower ...
Page 172: Parameter Measurement
Oscilloscopes User’s Manual MSO3000HD Series In the parameter snapshot box, click on the “Source” to select the source to be tested, CH1-CH4 and Math1-Math4 can be selected. The color of measured results is consistent with the color of all sources.
Page 173: Measurement Statistics
Oscilloscopes User’s Manual MSO3000HD Series The parameter measurement is displayed above volts/div info box, showing the measure parameter and the current value. During the measurement, the counter, voltmeter is displayed on the far left by default, and the custom parameter follow behind. The parameter measurement supports the setting of up to 27 parameters.
Page 174 Oscilloscopes User’s Manual MSO3000HD Series Click to switch statistical charts 10.7. Add Parameter Add the parameter to be tested to the parameter measurement info box, enter the “Add parameter” menu using the following steps. Press the Measure key on the front panel, click on the “Add parameter” in the “Measure” menu ...
Page 175 Oscilloscopes User’s Manual MSO3000HD Series Horizontal parameter: period, frequency, rise time, fall time, positive pulse width, negative pulse  width, positive duty ratio, negative duty ratio, positive pulse width number, negative pulse width number, rising edge, falling edge, rising edge number, falling edge number, burst width, burst interval, burst period, and burst period number.
Page 176: Global Setting
Oscilloscopes User’s Manual MSO3000HD Series 10.8. Clear Added Measurement This oscilloscope allows the user to delete all added measurements. In the “Add measurement” menu, click on the added parameter to select and to delete.  In the results window at the bottom of screen, click on the "-" in the top right corner of any ...
Page 177 Oscilloscopes User’s Manual MSO3000HD Series The general and measurement settings can be set in the “Advanced setting” menu. (1) General Setting Threshold Default: Click on the “Default” to restore the upper limit, middle value and lower limit  to default value.
Page 178 Oscilloscopes User’s Manual MSO3000HD Series parameter measurement. The measure range can be set to screen area or cursor area. Screen area: Full screen  Cursor area: The horizontal time cursor area allows the user to set the cursor position ...
Page 179 Oscilloscopes User’s Manual MSO3000HD Series Idle level：High or low level  Setup & Hold Setting Clock edge: Rising edge, falling edge, or arbitrary edge.  Data edge: Rising edge, falling edge, or arbitrary edge.  179 / 304 Instruments.uni-trend.com...
Page 180: Power Analysis
Oscilloscopes User’s Manual MSO3000HD Series 11. Power Analysis  Power Quality  Harmonics Analysis  Surge Current This oscilloscope supports power analysis function (option), it can help the user to quickly analyze the efficiency and reliability of switch power. With this function, the user can analyze the power...
Page 181 Oscilloscopes User’s Manual MSO3000HD Series Click on the “Analysis Mode” to select “Power Quality”. (2) Function Switch Click on the “Function Switch” to switch the power analysis ON/OFF. (3) Wiring Diagram Click on the “Wiring Diagram” to display the wiring diagram of the power quality analysis, please follow the instructions to make the wiring connection, as shown in the following figure.
Page 182 Oscilloscopes User’s Manual MSO3000HD Series adjust the statistics number. The setting range can be set from 10 to 10000. (8) Application (9) Click on the “Application” key, the oscilloscope will be automatically set by the user-defined input voltage, input current and cycle number (Note：multiply operation in Math function will also be automatically enabled）and perform the power quality analysis.
Page 183: Harmonics Analysis
Oscilloscopes User’s Manual MSO3000HD Series Voltage peak V_Crest = Vpeak / Vrms factor Measure the current parameters at the input of the power supply, such Current peak as current peak, RMS current, and current crest factor. Root mean square of current �� = ∗...
Page 184 Oscilloscopes User’s Manual MSO3000HD Series (1) Analysis Mode Click on the “Analysis Mode” to select “Harmonic Analysis”. (2) Function Switch Click on the “Function Switch” to switch the power analysis ON/OFF. (3) Wiring Diagram Click on the “Wiring Diagram” to display the wiring diagram of the current harmonics analysis, please follow the instructions to make the wiring connection, as shown in the following figure.
Page 185 Oscilloscopes User’s Manual MSO3000HD Series Click on the “Input Current” to select the channel to collect voltage （C1-C4） , the current channel should set the unit and probe multiplying power according to the input current probe. (6) Line Frequency Click on the “Line Frequency” to set the input line frequency, it can be set to auto acquire, 50 Hz, 60 Hz, or 400 Hz.
Page 186 Oscilloscopes User’s Manual MSO3000HD Series (11) Result Table Click on the “Result Table” key to open the measurement results table of power quality analysis. (12) Harmonic Analysis Measurement Results Displays the frequency component in the input current. waveforms Using Hanning window to perform FFT.
Page 187: Surge Current
Oscilloscopes User’s Manual MSO3000HD Series (RMS), limit unit that is specified by the Harmonic unit. (RMS), margin, Limit (RMS): Limit set by the selected harmonic analysis and state standard Margin: Margin set by the selected harmonic analysis standard. Pass/Fail: Whether the value passes or fails according to the selected harmonic analysis standard.
Page 188 Oscilloscopes User’s Manual MSO3000HD Series (3) Wiring Diagram Click on the “Wiring Diagram” to display the wiring diagram of the power quality analysis, please follow the instructions to make the wiring connection, as shown in the following figure. Connect the voltage probe D+ to AC input live wire.
Page 189 Oscilloscopes User’s Manual MSO3000HD Series prospective current. The setting range can be set from 100 mA to 500 A. (8) Application Click on the “Application” key and follow the instructions on the screen. The result will be displayed after the analysis is complete.
Page 190: Cursor Measurement
Oscilloscopes User’s Manual MSO3000HD Series 12. Cursor Measurement  Time Measurement  Voltage Measurement  Screen Measurement Use the cursor to measure X axis (time) and Y axis (voltage) of the waveform. The cursor measurement supports simultaneous measurement of multiple channels, as well as Math wave and Ref wave.
Page 191: Time Measurement
Oscilloscopes User’s Manual MSO3000HD Series 12.1. Time Measurement In the “Cursor” menu to switch on the cursor and click on the “Type” to select “Time” and then tick on the "Source” to be tested, as shown in the following figure.
Page 192 Oscilloscopes User’s Manual MSO3000HD Series In the “Cursor” menu to switch on the cursor and click on the “Type” to select “Voltage” and then tick on the "Source” to be tested, as shown in the following figure. Cursor results info box in top left corner: “Y” represents the results of channel voltage measurement.
Page 193 Oscilloscopes User’s Manual MSO3000HD Series Cursor results info box in top left corner: “X” represents the results of channel time measurement, “Y” represents the results of voltage measurement. Math wave supports split screen display, so when the cursor is measuring Math wave, it can also be displayed in split screen, allowing the cursor of each Math channel to be adjusted individually without affecting each other.
Page 194: Sampling System
Oscilloscopes User’s Manual MSO3000HD Series 13. Sampling System  Sampling Rate  Acquistion Mode  Memory Depth  Interpolation Method  Enhanced Resolution (ERES) Sampling is the conversion of the signal from an analog input channel, through an analog-to-digital converter (ADC), into a discrete point.
Page 195 Oscilloscopes User’s Manual MSO3000HD Series rate of MSO3000HD series high-definition oscilloscopes is 2.5 GSa/s. The sampling rate will change with the time base scale and memory depth. The real-time sampling rate is displayed in the A sampling label at the top of the screen, the horizontal time base can be adjusted by using the horizontal Scale or change the “Memory Depth”.
Page 196: Acquisition Mode
Oscilloscopes User’s Manual MSO3000HD Series 13.2. Acquisition Mode The acquisition mode controls how the oscilloscope uses the sampling rate to create a waveform. In the “Sampling” menu, click on the “Acquisition Mode” to select the mode. (1) Normal Sampling The oscilloscope samples the signal and reconstruct the waveform with equal time interval in normal mode.
Page 197: Memory Depth
Oscilloscopes User’s Manual MSO3000HD Series Note: Average and high resolution uses different average methods. The former is “multiple sampling averaged”, the latter is “single sampling averaged”. (5) Enhanced Resolution If the signal-to-noise ratio and the effective resolution of the oscilloscope need improvement, select the enhanced resolution acquisition method, then set the desired number of enhanced resolution bits.
Page 198 Oscilloscopes User’s Manual MSO3000HD Series interpolation methods. Sinc Interpolat Linear Interpolation Interpolation Method Comparison 13.5. Enhanced Resolution (ERES) In Enhanced Resolution mode, the oscilloscope digitally filters the sampling points, reducing broadband random noise on the input signal and improving the signal-to-noise ratio, thereby increasing the effective resolution (ENOB) of the oscilloscope.
Page 199: Display System
Oscilloscopes User’s Manual MSO3000HD Series 14. Display System In the “Display” menu, set the waveform type, persistence, grid type, waveform brightness, backlight brightness, and window transparence. The “Display” menu can be entered using the following steps. Click the Home icon...
Page 200: Grid Brightness
Oscilloscopes User’s Manual MSO3000HD Series 14.2. Persistence Set the persistence in the “Display” menu, once the persistence is enabled, the oscilloscope uses the new acquired waveform to refresh the display but will not immediately delete the old acquired waveform. The old acquired waveform is displayed with the low brightness color, and the new acquired waveform is displayed with the normal color and brightness.
Page 201: Backlight Brightness
Oscilloscopes User’s Manual MSO3000HD Series 14.6. Backlight Brightness In the “Display” menu, rotate the Multipurpose A rotary knob or drag the scroll bar to set the backlight brightness. The brightness range: 0%-100%. The default is 50%. 14.7. Window Transparence Set the window transparence for all pop-up info box (e.g. Cursor menu, Waveform view menu, etc.), set to the appropriate value for a better view of the measured data.
Page 202: Save And Load
Oscilloscopes User’s Manual MSO3000HD Series 15. Save and Load  Save Menu  Save Waveform  Save Setting  Save Picture  Load Setting  File Browser Users can save the current oscilloscope settings, waveforms, screen images and parameters in various formats to internal memory or external USB storage devices (e.g.
Page 203: Save Waveform
Oscilloscopes User’s Manual MSO3000HD Series 15.2. Save Waveform Enter the submenu of “Save” to select “Save Waveform” to enter the setting menu, the channel that has selected source (vertical scale, horizontal time base) can be saved to internal or external storage.
Page 204: Save Setting
Oscilloscopes User’s Manual MSO3000HD Series (1) Data Type Click on the “Data Type” to select the data type of the waveform to be saved, it has two kinds of type of screen (.dat) and deep memory (.csv). (2) Source Click on the “Source” to select the source of waveform to be saved. For waveform data storage, only open sources are supported.
Page 205 Oscilloscopes User’s Manual MSO3000HD Series be loaded as required. Save setting menu: file type, source, save path, filename, and suffix. (1) File Type Click on the “Data Type” to select the data type of waveform to be saved, *.set can be selected.
Page 206: Save Picture
Oscilloscopes User’s Manual MSO3000HD Series (5) Disk Manager Click on the “Disk Manager” to jump to the file browser, for the use of file browser, refer to the section of File Browser. (6) Save Click on the “Save”, the system will save the setting file according to the current setting and display a saving result hint.
Page 207 Oscilloscopes User’s Manual MSO3000HD Series Color The oscilloscope's screenshot will be saved with the displayed color. The oscilloscope's screenshot will change the dark background to Save ink light color and be saved, this is to save ink. The oscilloscope's screenshot will change the color to grey and be Grey saved.
Page 208: Load Setting
Oscilloscopes User’s Manual MSO3000HD Series display a saving result hint. 15.5. Load Setting Enter the submenu of “Save” to select “Load Setting” to enter the setting menu, to load the saved setting file to the oscilloscope. (1) File Type Select the type of loading setting file, the default type is“.set”, and cannot be changed.
Page 209 Oscilloscopes User’s Manual MSO3000HD Series (1) Select Disk Before connecting an external storage, please make sure that USB (FAT32, Flash) is correctly connected. The save interface displays the contents of Local by default. If an external storage is connected, click the hardware icon in the top left in the “Save” menu to select “Local”, or “USB”.
Page 210 Oscilloscopes User’s Manual MSO3000HD Series (8) Delete All Delete all files and file folders in the current directory. Click on the delete icon and then click on the “Enter” to complete this setting, click on the “Cancel” to cancel this setting.
Page 211: Reference Waveform
Oscilloscopes User’s Manual MSO3000HD Series 16. Reference Waveform During the actual test, the user can compare the signal waveform with the reference waveform to determine the cause of the fault. The reference waveform can be entered using the following steps.
Page 212: Quick Reference
Oscilloscopes User’s Manual MSO3000HD Series catalogue in the file browser menu, then click “Enter” key to set the save path. For the use of file browser, refer to the section of File Browser. When a USB flash drive is not connected, the default save path is the local disk “Local:/wave”.
Page 213 Oscilloscopes User’s Manual MSO3000HD Series knob on the front panel to change the vertical position. Tap the arrow key on the right of the vertical position to increase or decrease the  vertical position. Click on the number input field to open the numeric keypad to enter the specified numeric ...
Page 214: Utility Function
Oscilloscopes User’s Manual MSO3000HD Series 17. Utility Function Set the system function in the “Utility” menu. The utility menu can be entered using the following steps. Click the Home icon in the top right corner and select the utility icon to enter the ...
Page 215: Network Setting
Oscilloscopes User’s Manual MSO3000HD Series Click on the “Sound” to switch on/off the beep. When the sound is on, a buzzer sounds when the following operations or actions are performed. Press the key on the front panel or menu key ...
Page 216: Wifi Setting
Oscilloscopes User’s Manual MSO3000HD Series recommended that user can consult network administrator for an available subnet mask. Gateway address: The format is nnn.nnn.nnn.nnn, the first nnn range is from 1 to 255, and the second nnn range is from 0 to 255. It is recommended that user can consult network administrator for an available gateway address.
Page 217 Oscilloscopes User’s Manual MSO3000HD Series the second nnn range is from 0 to 255. It is recommended that user can consult network administrator for an available DNS address. Apply After manually editing the IP address, subnet mask, gateway address, and DNS address information, click on the "Apply"...
Page 218: Self-Inspection
Oscilloscopes User’s Manual MSO3000HD Series will not be possible to access the device through LAN at ip:9000. To restore normal LAN access, press the Default button on the oscilloscope panel to reset the configuration, after which access via port 9000 can resume.
Page 219 Oscilloscopes User’s Manual MSO3000HD Series Rotary knob test: Rotate and press each rotary knob from up to down, left to right, observing the rotary whether the rotary knob indicator is lit on the display interface. Key test: Rotate and press each key from up to down, left to right, observing the rotary whether the key indicator is lit in real time on the display interface.
Page 220 Oscilloscopes User’s Manual MSO3000HD Series Rotary knob test: Enter the LED test, rotate the Multipurpose A rotary knob, the first LED on the front panel is light and the corresponding position of the key will be illuminated on the screen, continue rotating the Multipurpose A rotary knob to switch to the next LED.
Page 221 Oscilloscopes User’s Manual MSO3000HD Series Touch each grid on the touch screen to observe if the gird turns blue. When all rotary knobs and keys have been tested, press the Run/Stop keys three times to exit the touch screen test in accordance with the on-screen instructions.
Page 222: Auto Calibration
Oscilloscopes User’s Manual MSO3000HD Series Press any key to switch to the red, green, blue, black and white according to the on-screen instruction. Observe the screen under the appropriate surface of each color to see if there are any serious problems such as color differences, stains or scratches.
Page 223: Auto Setting
Oscilloscopes User’s Manual MSO3000HD Series CAN-FD, LIN, FlexRay, SNET, Audio, 1553B, Manchester, ARINC429, power analysis, and AWG. 17.11. Auto Setting Click on the “Auto setting” in the auxiliary menu to enter the auto setting menu. (1) Channel Setting In hold mode, the bandwidth limit, inverse phase, impedance, unit, probe multiplying ratio, ...
Page 224: Waveform Recording
Oscilloscopes User’s Manual MSO3000HD Series 18. Waveform Recording The Waveform Record and Playback function allows you to playback recorded waveforms, enabling convenient analysis. The Waveform Recording Menu can access using the following methods. Click the Home icon in the top right corner and select the...
Page 225: Recording Setting
Oscilloscopes User’s Manual MSO3000HD Series After recording, the recording icon will change to , indicating that recording has  stopped. During recording, click the icon can pause the recording,  Total recorded frame Current frame (3) Playback Click on the “Playback” icon to play back the recorded waveform.
Page 226: Playback Setting
Oscilloscopes User’s Manual MSO3000HD Series in fewer frames being recorded. Therefore, the maximum number of frames is directly related to the currently selected Memory Depth (see Memory Depth). The number of points per frame equals the current memory depth, which is calculated as ≥ sampling rate × horizontal time base ×...
Page 227 Oscilloscopes User’s Manual MSO3000HD Series Click the icon in the bottom right corner of the screen to switch between them. : Playback starts from the start frame to the end frame. : Playback starts from the end frame to the start frame.
Page 228: Pass/Fail Test
Oscilloscopes User’s Manual MSO3000HD Series 19. Pass/Fail Test In product design and production, monitoring signal changes and determining product qualification is often necessary. The standard pass/fail test function of this series of oscilloscopes effectively fulfills this need. Users can establish test rules based on known 'standard' waveforms, compare the signal under test with these standards, and display statistical information about the results.
Page 229: Template Setting
Oscilloscopes User’s Manual MSO3000HD Series Source 19.2. Click on the “Source” to select C1-C4. 19.3. Template Setting (1) Template Source Click on the “Template Source” to select the source for creating a template. The source can choose from C1-C4 and Ref.
Page 230: Output Setting
Oscilloscopes User’s Manual MSO3000HD Series 19.4. Output Setting (1) Aux Output Click on the “Aux Output” switch to toggle the Aux Output function to ON or OFF. ON: When the Aux Output function is enabled, the AUX Output menu will automatically ...
Page 231 Oscilloscopes User’s Manual MSO3000HD Series (2) Stop Condition Click on the“Stop Condition” to configure the condition for ceasing the test. This can be set to ≥ or ≤. ≥: The test will automatically stop when the number of frames of the stop type is greater ...
Page 232 Oscilloscopes User’s Manual MSO3000HD Series Blue area is mask area Test the waveform Test result If it intersects with the masked area, the test will be considered a failure. Note: Pass/fail tests can only be started or stopped when the pass/fail test function is enabled, and the test rule ranges are saved and loaded.
Page 233: System Upgrade
② Download the update file from UNI-T official website or ask UNI-T distributor to provide the upgrade file. The upgrade file is the same as the model and hardware version of the instrument, the software version is higher than the version of the instrument.
Page 234 Oscilloscopes User’s Manual MSO3000HD Series (3) Online Upgrade First, make sure that the LAN port on the rear panel of the instrument is connected to the network (if there is any restriction on the privileges, please open the network privileges).
Page 235: Web Access
Oscilloscopes User’s Manual MSO3000HD Series 21. Web Access 21.1. Access Local Area Network The computer and spectrum analyzer should share the same LAN. Check the local IP address through the UTILITY menu of spectrum analyzer, and then the browser accesses the spectrum analyzer using http://ip:9000 port.
Page 236 Oscilloscopes User’s Manual MSO3000HD Series 21.3. Access Outer Network To access the oscilloscope from an external network, where the access terminal and the oscilloscope are not on the same network segment, follow these procedures: Ensure the network cable is plugged into the oscilloscope and that internet access is available.
Page 237: Instrument Control
Oscilloscopes User’s Manual MSO3000HD Series list displays all the SCPI commands supported by the oscilloscope. Select the desired command and edit the parameters (channel, etc.) as needed. Click “Execute” to send the SCPI command. SCPI output: Displays the results of the SCPI commands. When a command is executed, the ...
Page 238 Oscilloscopes User’s Manual MSO3000HD Series (1) Configuration Click on “Configuration” to open the save configuration window, where you can save trigger or waveform settings, set up video recording, and print screenshots. 21.7. Network Setting Network configuration allows users to set the oscilloscope's network details, including LAN settings and external network proxy configurations.
Page 239 Oscilloscopes User’s Manual MSO3000HD Series Click the “Modify Oscilloscope Configuration” key to set the oscilloscope's local network information. The network settings include the IP address acquisition method (DHCP/STATIC), local IP address, subnet mask, and gateway settings. DHCP: If you select DHCP as the IP setting method, there is no need to enter the IP address, ...
Page 240: Password Setting
Oscilloscopes User’s Manual MSO3000HD Series Once you have finished inputting the necessary information, click “OK.” You can continue to access the oscilloscope using the modified FRP proxy address information (assuming the configuration is correct). Note: If each oscilloscope is connected to the same FRP server, the web_port, pic_port, and ctrl_port for each oscilloscope must be unique.
Page 241: Service And Support
Click on the “Help” page to enter the Web usage help page, which provides basic instructions for each tab of the oscilloscope Web access. 21.10. Service and Support Click on the “Service and Support” page to be directed to the UNI-T official website of https://www.uni-trend.com/. 241 / 304...
Page 242: Mathematical Operation
22. Mathematical Operation  Basic Operation  Digital Filter  Advanced Operation MSO3000HD series mixed signal oscilloscope carries a variety of mathematical operations, including Math, digital filter and advanced operation. The “Math” menu can be entered using the following steps. Press the Math key on the front panel to enter the math setting menu.
Page 243 Oscilloscopes User’s Manual MSO3000HD Series example to introduce the math function. (1) Operation In the Math menu, click on the “Operation” to switch on/off the operation result of Math wave. The default is “OFF”. Once M1-M4 is set to “ON”, the operation result of Math wave will be displayed on the screen, as shown in the following figure.
Page 244: Basic Operation
Oscilloscopes User’s Manual MSO3000HD Series 22.1. Basic Operation In the Math menu, click on the “Math type” to select “Basic operation” to enter the setting. (1) Operation A+B: The waveform of source A and waveform of source B are added point by point and the ...
Page 245 Oscilloscopes User’s Manual MSO3000HD Series (2) Source Click on the “Source A” or “Source B” to select C1-C4 separately. Vertical Scale Set the vertical scale of Math wave in the display window, it can be set using the following steps.
Page 246: Digital Filter
Oscilloscopes User’s Manual MSO3000HD Series 22.2. Digital Filter In the “Math” menu, click on the “Math type” to select “Filter” to enter the setting. (1) Source Click on the “Source” to select C1-C4. (2) Filter Type Low pass: Only signal with the source frequency lower than the upper limit of the current ...
Page 247: Advanced Operation
Oscilloscopes User’s Manual MSO3000HD Series (4) Upper Limit of Frequency Click on the “Upper Limit of Frequency” input field, and rotate the Multipurpose A rotary knob on the front panel to change the upper limit of frequency; or double-click on “Upper Limit of...
Page 248 Oscilloscopes User’s Manual MSO3000HD Series (1) Expression Double-click on “Expression” input field or click the “Edit” on the right to enter the setting. The function operation can be edited in the expression window, as shown in the following figure. Input field...
Page 249 Oscilloscopes User’s Manual MSO3000HD Series (2) Edit Expression Expression: It represents the formula consist of channel, function, variation, and operator. The length of expression cannot over 13 characters. Channel: C1-C4 Function options: The functional description of each function option is shown in the following table.
Page 250 Oscilloscopes User’s Manual MSO3000HD Series Operator: The functional description of each operator is shown in the following table. Operator Description Mathematical operator: add, subtract, multiply, + - * / ^ divide, exponent Parentheses is used to raise the priority of operations in parentheses.
Page 251 Oscilloscopes User’s Manual MSO3000HD Series 251 / 304 Instruments.uni-trend.com...
Page 252 Oscilloscopes User’s Manual MSO3000HD Series 23. FFT Using FFT (Fast Fourier Transform) mathematical operations, the time domain signal (YT) can be converted into frequency domain signal. This oscilloscope has an FFT function. This allows the user to view the frequency spectrum of the signal while viewing the waveform in the time domain. The following types of signals can be easily observed by using FFT.
Page 253 Oscilloscopes User’s Manual MSO3000HD Series Operation Click on the “Operation” to open the FFT operation window. Source Click on the “Source” to select C1-C4. FFT Count The number of points processed by the FFT spectrum, it can set to 8 k, 16 k, 32 k, 64 k, 128 k, 253 / 304 Instruments.uni-trend.com...
Page 254 Oscilloscopes User’s Manual MSO3000HD Series 256 k, 512 k, 1 M, 2 M, or 4 M. Frequency Mode Range Start frequency: Click the "Start Frequency" input field on the left of the window  open the numeric keypad to set the start frequency; or select the “Start Frequency”...
Page 255 Oscilloscopes User’s Manual MSO3000HD Series Window Function Table Window function Feature Waveform Transient or short pulse, the signal level is It has the best frequency almost equal to before and after resolution and the worst Equal amplitude sine wave with very...
Page 256 Oscilloscopes User’s Manual MSO3000HD Series Waterfall Curve Click on the “Waterfall Curve” to switch on/off whether the waterfall curve is opened in FFT wave. ON: The spectrum and waterfall curve are split to upper and lower part for display, the ...
Page 257 Oscilloscopes User’s Manual MSO3000HD Series Sampling Mode OFF: Turn off the current detection waveform.  + Peak: It takes and displays the maximum value in each sample interval.  - Peak: It takes and displays the minimum value in each sample interval.
Page 258 Oscilloscopes User’s Manual MSO3000HD Series rotary knob adjust the marker threshold. Marker list：Click on the “Marker list” to switch on/off the marker list. ON: Displays the marker list, count number, frequency, and voltage. OFF: Not display the marker list. Manual: Move the marker cursor to any point on the trace by rotating the Multipurpose A rotary knob.
Page 259: Digital Channel
0. The oscilloscope can intuitively display the logic 1 and logic 0 in figure. It’s convenient for user to detect and analysis the error in circuit design (hardware and software design). This chapter is to introduce how to use the digital channel of MSO3000HD series high-definition oscilloscopes.
Page 260 Oscilloscopes User’s Manual MSO3000HD Series 24.1. Basic (1) isplay: Click on the “Display” to switch on/off the digital channel. ON: when the channel is selected, the digital channel will be displayed on the screen. OFF: The digital channel will be not displayed on the screen even if the channel is selected.
Page 261 Oscilloscopes User’s Manual MSO3000HD Series down. It can set to “D0-D15” or “D15-D0” . The default is “D0-D15”. (8) Delay time: When using an oscilloscope for actual measurements, the transmission delay of the probe cable can introduce a large error (zero offset).
Page 262 Oscilloscopes User’s Manual MSO3000HD Series 24.3. Threshold The threshold levels for the "D7-D0" and "D15-D8" channels can be set independently, and the thresholds for CH1 and CH2 can also be configured independently as needed. If the input signal voltage exceeds the set threshold, it is recognized as logic 1; otherwise, it is recognized as logic 0.
Page 263 Oscilloscopes User’s Manual MSO3000HD Series (1) Bus: Click on the “Bus” to select the bus, “BUS1” or “BUS2”. (2) Bus state: Click on the “Bus state” to switch on/off the bus display state. (3) Quick selection: Click on the “Quick Selection” to select the channel group which correspond to BUS1 or BUS2, it can be select to D0-D7, D8-D15 , D0-D15, group 1, group 2, group 3, group 4, or None.
Page 264 Oscilloscopes User’s Manual MSO3000HD Series cause the change of the bus data. When bus data changes, unnecessary data will occur due to the shaking. When shake proof is opened, the bus will not display the change in bus data caused by a certain shake time, but still maintain the valid data.
Page 265 Oscilloscopes User’s Manual MSO3000HD Series 25. Search and Navigation The search function allows the user to quickly find and highlight the events of interest, and then use the event navigation to quickly find the highlighted signals to view. Waveform search criteria can be set to edge, pulse width, slope, runt, window, delay, timeout, duration, setup &...
Page 266 Oscilloscopes User’s Manual MSO3000HD Series Click on the “Search Type” to select edge, pulse width, slope, runt, over-amplitude, delay, timeout, duration, setup & hold, Nth edge, and code pattern. Edge search: Click on the “Search Type” and select “Edge”, for the edge type setting ...
Page 267 Oscilloscopes User’s Manual MSO3000HD Series 26. Function/Arbitrary Waveform Generator (Gen)  Open Function/Arbitrary Waveform Generator  Carrier Waveform Output  Advanced Application MSO3000HD has a built-in function/arbitrary waveform generator. It uses direct digital synthesis (DDS) technology to generate accurate and stable waveform outputs with a resolution as low as 1 μHz.
Page 268 Oscilloscopes User’s Manual MSO3000HD Series the selected tabs will be highlighted. This chapter uses G1 as an example to introduce Gen. (1) Output Switch Click on the “Output Switch” to set the G1 output state. ON: Outputs the current G1 signal.
Page 269 Oscilloscopes User’s Manual MSO3000HD Series noise, or DC wave. For details on the parameters associated with each waveform, refer to the following table. Continuous Frequency Parameter Amplitude range Offset range wave range Frequency/cycle, 20 mVpp-6 Vpp ±3 V (high amplitude/high level, DC 1 μHz-50...
Page 270 Oscilloscopes User’s Manual MSO3000HD Series section of 5.8 Parameter Setting. Alternatively, select the parameter, use the Multipurpose B rotary knob to move the cursor, and use the Multipurpose A rotary knob to adjust the frequency. (3) Amplitude The default waveform is a sine wave with an amplitude of 100 mVpp. Double-click on the “Amplitude”...
Page 271: Advanced Application
Oscilloscopes User’s Manual MSO3000HD Series (9) DC Offset The default DC offset is 0 V. Double-click on the “DC offset” to open the numeric keypad to set the DC offset. For details on the use of the numeric keypad, refer to the section of Parameter Setting.
Page 272 Oscilloscopes User’s Manual MSO3000HD Series Once the carrier wave for AM is selected, each parameter can be configured. For the carrier wave setting, refer to the section of 26.2 Carrier Waveform. Modulation Wave Setting Modulation wave: sine, square, square, rising ramp, falling ramp, arbitrary, and noise wave.
Page 273 Oscilloscopes User’s Manual MSO3000HD Series - When the modulation depth is greater than 100%, the output amplitude will not over than 10 Vpp (the load is 50 Ω). (2) Frequency Modulation (FM) In FM, the modulation waveform is consisting of carrier wave and modulation wave. The frequency of carrier wave will change with the amplitude of modulation wave.
Page 274 Oscilloscopes User’s Manual MSO3000HD Series Modulation Wave Description Square wave Duty ratio is 50%. Rising ramp Symmetry is 100%. Falling ramp Symmetry is 0%. Arbitrary wave Use automatic sampling to limit the arbitrary wavelength at 4 kpts. Noise White Gaussian noise Modulation Frequency ...
Page 275 Oscilloscopes User’s Manual MSO3000HD Series Enable Arbitrary Wave Function  Click on the “Continuous” to select “Arbitrary Wave” to enable this function. The instrument will output the arbitrary wave according to the current setting, as shown in the following figure.
Page 276 Oscilloscopes User’s Manual MSO3000HD Series In G1 menu, select “Output Type” to “ASK”. Configure the parameters for the carrier wave and ASK as shown in the following figure. Select Carrier Wave Click on the “Carrier Wave” to select sine, square, ramp, or arbitrary wave.
Page 277 Oscilloscopes User’s Manual MSO3000HD Series allowing users to configure the same or different modulation modes for each channel. Enable FSK In G1 menu, select “Output type” to “FSK”. Configure the parameters for the carrier wave and FSK as shown in the following figure.
Page 278 Oscilloscopes User’s Manual MSO3000HD Series Rate  Once FSK is enabled, the default rate 100 Hz will be displayed. Double-click on the “Rate” input field to open the numeric keypad to set the rate. For details on the use of the numeric keypad, refer to the section of 5.8 Parameter...
Page 279 Oscilloscopes User’s Manual MSO3000HD Series Once the carrier wave for span is selected, each parameter can be configured. For the carrier wave setting, refer to the section of 26.2 Carrier Waveform. Span Setting The start frequency, stop frequency, and sweep time should be configured.
Page 280 Oscilloscopes User’s Manual MSO3000HD Series the use of the numeric keypad, refer to the section of 5.8 Parameter Setting. Alternatively, select the parameter, use the Multipurpose B rotary knob to move the cursor, and use the Multipurpose A rotary knob to adjust the sweep time.
Page 281 Oscilloscopes User’s Manual MSO3000HD Series 27. Toolbar Click on the Home icon in the top right corner of the screen, click the “Edit” key at the bottom to enter the toolbar menu. The toolbar allows you to edit, delete, and adjust shortcut menu icons.
Page 282 Oscilloscopes User’s Manual MSO3000HD Series 28. Region Histogram The region histogram provides a probabilistic count of the vertical and horizontal direction of the waveform, showing the number of times the waveform crosses (or triggers) rows and columns in a user-defined window, which can help the user quickly analyses potential anomalies in the signal.
Page 283 Oscilloscopes User’s Manual MSO3000HD Series The measuring channel in the region histogram is the currently activated logic channel, switch  the activated channel that is to switch the measuring channel of the region histogram. Click on the measuring window of the region histogram and drag the histogram to move its ...
Page 284: Help System
Oscilloscopes User’s Manual MSO3000HD Series 29. Help System The help system provides information about the function keys (including menu keys) on the front panel. The user can access the help system by following these steps. In Home menu, click on the help icon “...
Page 285: Notification Setting
Oscilloscopes User’s Manual MSO3000HD Series 30. Notification Setting Click on the notification area at the bottom of the screen to enter the time setting, WiFI setting, and file browser setting. 30.1. Time Setting Click on the time at the bottom of the screen to open the “Time Setting” pop-up box.
Page 286: Wifi Connection
Oscilloscopes User’s Manual MSO3000HD Series keypad to enter the month. For the details on the use of the numeric keypad, refer to the section of 5.8 Parameter Setting. The time zone can be set from 1 to 12. (4) Date Click on the “Date”...
Page 287 Oscilloscopes User’s Manual MSO3000HD Series to enter the password. For details on the use of the virtual keyboard, refer to the section of 5.8 Parameter Setting-Input Character String. Remember password: Click to tick “Remember Password” to save the current password ...
Page 288: Automatic Setting
Oscilloscopes User’s Manual MSO3000HD Series 31. Additional Function Key  Automatic Setting  Run/Stop  Clear Setting  Factory Setting 31.1. Automatic Setting Automatic settings will choose appropriate time base scale, amplitude scale and trigger parameter according to the input signal so that the waveform will automatically display on the screen. Press the Autoset key on the front panel to enable automatic settings.
Page 289: Factory Setting
Oscilloscopes User’s Manual MSO3000HD Series 31.4. Factory Setting Press the Default key on the front panel, the oscilloscope can quickly restore to factory setting. The factory settings of MSO3000HD series high-definition oscilloscopes are listed in the following table. System Function Factory Setting...
Page 290 Oscilloscopes User’s Manual MSO3000HD Series window Backlight brightness Persistence Minimum Temperature color Grid brightness Waveform brightness Type MATH Source 1 MATH Operator Source 2 Probe multiplier Main source of measurement All parameter measurement Custom parameter Measurement Statistics Slave source Indicators enable...
Page 291 Oscilloscopes User’s Manual MSO3000HD Series RS232 polarity Positive RS232 bitrate RS232 bit width 5 bits RS232 bit sequence RS232 stop bit RS232 parity bit None RS232 trigger condition Start frame RS232 data Low 8 channel threshold (custom) High 8 channel threshold...
Page 292: System Prompt And Troubleshooting
Oscilloscopes User’s Manual MSO3000HD Series 32. System Prompt and Troubleshooting  System Prompt  Troubleshooting 32.1. System Prompt This chapter describes the system prompts, with detailed explanations provided in the table below. It is prompt that the adjusting is up to extremity in the status.
Page 293 Oscilloscopes User’s Manual MSO3000HD Series calibration and digital calibration. It will be prompt when auto-calibration is Auto-calibration is completed！ completed. Channel has no signal！ It will be prompt when channel is no signal. The record function is invalid in It will be prompt when the oscilloscope operates Roll mode！...
Page 294 Oscilloscopes User’s Manual MSO3000HD Series Update is completed, reboot It will be prompt when the program is upgraded. system now? It is in recording, please exit It will be prompt if press other function key when in the recording！ recording waveform.
Page 295: Troubleshooting
Restart the oscilloscope after completing the above steps. If the product still does not work properly, contact the UNI-T Service Center for assistance. (2) After signal acquisition, the waveform of the signal does not appear on the screen.
Page 296 Oscilloscopes User’s Manual MSO3000HD Series If the product still does not work properly, contact the UNI-T Service Center for assistance. (3) The measured voltage amplitude value is 10 times larger or 10 times smaller than the actual value. Check whether the channel probe attenuation coefficient settings are consistent with the used probe attenuation rate.
Page 297: Appendix A Maintenance And Cleaning
Oscilloscopes User’s Manual MSO3000HD Series 33. Appendix 33.1. Appendix A Maintenance and Cleaning (1) General Maintenance Keep the instrument away from the direct sunlight. Caution: Keep sprays, liquids and solvents away from the instrument or probe to avoid damaging the instrument or probe.
Page 298 Oscilloscopes User’s Manual MSO3000HD Series SineTra TraSine wave signal SineVer VerSine wave signal StairUD Stair up and down StairDn Stair down StairUp Stair up Trapezia Trapezoid BandLimited Band limited signal Vibration of blasting “time-vibration BlaseiWave velocity” curve Butterworth Butterworth filter...
Page 299 Oscilloscopes User’s Manual MSO3000HD Series Bessely Besselj function II Cauchy Cauchy distribution Cubic Cubic function Dirichlet Dirichlet function Error function Erfc Complementary error function Inverse complementary error ErfcInv function ErfInv Inverse error function ExpFall Exponential falling function ExpRise Exponential rising function...
Page 300 Oscilloscopes User’s Manual MSO3000HD Series Expiration rate curve of common ResSpeed people Low frequency pulse electrotherapy LFPulse waveform Transcutaneous electric nerve Tens1 Medical stimulation waveform 1 （4） Transcutaneous electric nerve Tens2 stimulation waveform 2 Transcutaneous electric nerve Tens3 stimulation waveform 3...
Page 301 Oscilloscopes User’s Manual MSO3000HD Series Transient phenomena of automobile ISO7637-2 TP5B caused by power cut of battery SCR (sintering temperature distribution) Surge Surge signal CosH Hyperbolic cosine CosInt Cosine integral Cotangent function CotHCon Concave hyperbolic cotangent CotHPro Convex hyperbolic cotangent...
Page 302 Oscilloscopes User’s Manual MSO3000HD Series Concave arc hyperbolic cosecant ACscHPro function Convex arc hyperbolic cosecant ASecCon function ASecPro Concave arc secant function ASecH Convex arc secant function ASin Arc hyperbolic secant function ASinH Arcsin function ATan Arc hyperbolic sine function...
Page 303 Oscilloscopes User’s Manual MSO3000HD Series Wavelets Complex Gaussian Complex Gaussian function （7） Complex Morlet Complex Morlet wavelet Complex Shannon Complex Shannon function Mexican hat Mexican hat wavelet Meyer Meyer wavelet Morlet Morlet wavelet ABA_1_1 ABA_1_2 ALT_03 ALT_04 ALT_05 AUDIO COIL_2_1...
Page 304: Appendix C Contact Us
33.3. Appendix C Contact Us If you experience any issues with this product and are in mainland China, you can contact UNI-T directly. Our service support is available from 8 a.m. to 5:30 p.m. (UTC+8), Monday to Friday, or via email at infosh@uni-trend.com.cn.

This manual is also suitable for:

Mso3054hd Mso3034hd Mso3024hd

UNI-T MSO3000HD Series User Manual

Quick Links

Troubleshooting

Need help?

Questions and answers

Related Manuals for UNI-T MSO3000HD Series

Summary of Contents for UNI-T MSO3000HD Series

This manual is also suitable for:

Table of Contents
