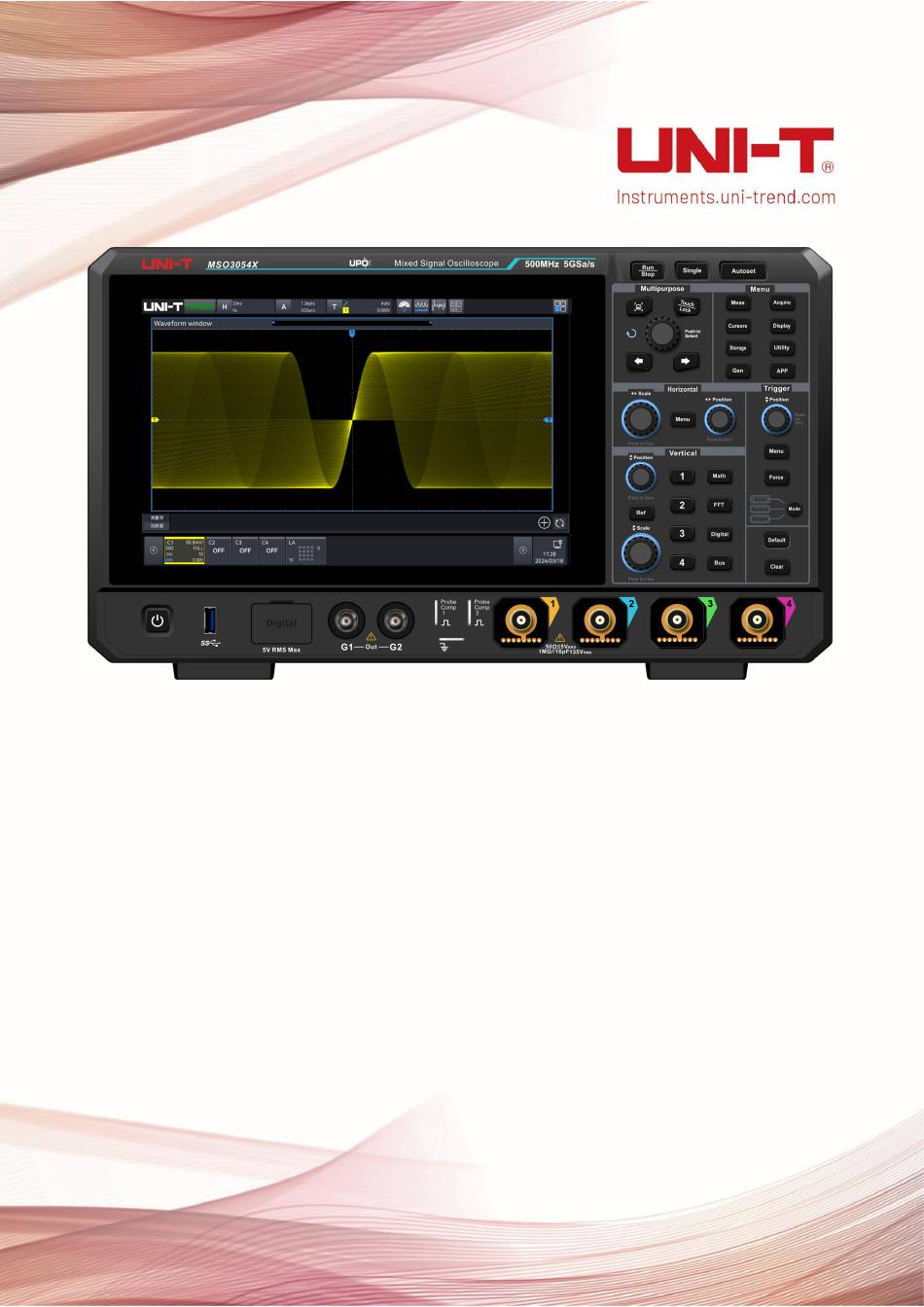

- Page 1 Quick Guide MSO2000X/3000X Series Quick Guide MSO2000X/3000X Series Mixed Signal Oscilloscope This document applies to the following models: MSO2000X series MSO3000X series V1.0 2024.05 Instruments.uni-trend.com 2 / 29...
-
Page 2: Copyright Information
UNI-T, pay the shipping cost, and provide a copy of the purchase receipt of the original purchaser. If the product is shipped domestically to the location of the UNI-T service center, UNI-T shall pay the return shipping fee. -
Page 3: File Version
This warranty is written by UNI-T for this product, and it is used to substitute any other express or implied warranties. UNI-T and its distributors do not offer any implied warranties for merchant ability or applicability purposes. -
Page 4: Safety Requirements
Users must follow the following conventional safety precautions in operation, service and maintenance of this device. UNI-T will not be liable for any personal Warning safety and property loss caused by the user’s failure to follow the following safety precautions. - Page 5 Quick Guide MSO2000X/3000X Series It indicates potential problems, which may cause failure of this device if you fail to follow a certain procedure or condition. If the Note “Note” sign is present, all conditions must be met before this device will function properly. Alternating current of device.
- Page 6 Quick Guide MSO2000X/3000X Series regulations. This environment-friendly use period (EFUP) mark indicates that dangerous or toxic substances will not leak or cause damage within this indicated time period. The environment-friendly use EFUP period of this product is 40 years, during which it can be used safely.
-
Page 7: Power Fuse
Caution If this device may be faulty, please contact the authorized maintenance personnel of UNI-T for testing. Any maintenance, Abnormality adjustment or parts replacement must be done by the relevant personnel of UNI-T. -
Page 8: Safe Transportation
Quick Guide MSO2000X/3000X Series Please transport this device safely to prevent it from sliding, Safe transportation which may damage the buttons, knobs or interfaces on the instrument panel. Poor ventilation will cause the device temperature to rise, thus Proper ventilation causing damage to this device. -
Page 9: Connecting Power Supply
Quick Guide MSO2000X/3000X Series 1.2. Connecting Power Supply The specification of input AC power. Voltage Range Frequency 100V～240VAC (fluctuant：±10%) 50 Hz/60 Hz 100V～120VAC (fluctuant：±10%) 400 Hz Please use the attached power lead to connect to the power port. Connecting to service cable This instrument is a Class I safety product. - Page 10 Quick Guide MSO2000X/3000X Series 2. Introduction This manual is to introduce the safety requirements, installment and the operation of MSO2000X/3000X series mixed signal oscilloscope. 3. MSO2000X/3000X Series MSO2000X/3000X series mixed signal oscilloscope has 5 models. Analog channel Model Analog bandwidth Digital number MSO2304X...
-
Page 11: Getting Started Manual
UNI-T or local distributors of this product. If the equipment is damaged due to shipping, please keep the packaging and notify both the transportation department and UNI-T distributors, UNI-T will arrange maintenance or replacement. 4.2. Before Use To perform a quick verification of the instrument’s normal operations, please follow the steps below. - Page 12 Quick Guide MSO2000X/3000X Series (3) Connecting Probe This oscilloscope provides 2 pieces of compensating signal probe. Connect the BNC of the probe to the BNC of oscilloscope’s CH1, and connect the probe to the “probe compensating signal connection clip”, and then connect the ground alligator clip of the probe with the ground terminal of compensating signal connection clip.
-
Page 13: Front Panel
Quick Guide MSO2000X/3000X Series Warning：To avoid electric shock when using the probe to measure high voltage, please ensure that the probe insulation is in good condition and avoid physical contact with any metallic part of the probe. 4.3. Front Panel Front Panel Table 1 Front Panel Description... -
Page 14: Rear Panel
Quick Guide MSO2000X/3000X Series *MSO2000X have no probe power outlet board 4.4. Rear Panel Rear Panel Table 2 Rear Panel Description Description EXT Trig AUX Out USB Device 10MHz REF AC Power Input Socket USB HOST Power Switch HDMI Safety Lock Instruments.uni-trend.com 15 / 29... -
Page 15: Operation Panel
Quick Guide MSO2000X/3000X Series 4.5. Operation Panel (1) Vertical Control Ref ：Loading the reference waveform from ‘local or USB”, so the measured waveform can compare with the reference waveform. ：Analog channel setting key respectively represents CH1, CH2, CH3 and CH4. Four channel’s tab are identified by different colors and it also corresponding to the colors of waveforms on the screen and the channel input connectors. -
Page 16: Trigger Control
Quick Guide MSO2000X/3000X Series time base, horizontal position, time base extension and time base selection. Scale ：Horizontal scale rotary knob is used to adjust all channel time base. During the adjustment, the waveform is compressed or extended in horizontal show on the screen and the horizontal scale value will change in real-time. -
Page 17: Single Trigger
Quick Guide MSO2000X/3000X Series (6) Single Trigger This key is used to set the trigger mode of the oscilloscope to “Single”，the key is illuminated in orange. (7) Clear All key is used to clear all the load waveforms. When the oscilloscope is in the “RUN” This state, the waveform is continuously refreshed. - Page 18 Quick Guide MSO2000X/3000X Series Utility ：Press the Utility key to enter the auxiliary function setting menu, to set the basic information, network, WiFi, frp, socket server, rear panel, USB, self-inspection, auto calibration, About, option and Auto. Gen：Press the Gen key to enter the Gen menu, to set Gen output. ...
-
Page 19: User Interface
Quick Guide MSO2000X/3000X Series 4.6. User Interface User Interface Table 3 User Interface Description Description Waveform display window Multiple window display area Trigger state Digital label Time base label Ref label Sampling rate and storage depth FFT label Trigger info bar Math label Function toolbar Measured result display window... - Page 20 Quick Guide MSO2000X/3000X Series In each function menu popups, click on the help icon “ ” on the top right to open the relevant help menu. The help screen is divided into two parts, the left side is ‘Help Options’ and the right side is ‘Help Display Area’.
-
Page 21: Parameter Setting
Quick Guide MSO2000X/3000X Series 5. Parameter Setting MSO2000X/3000X series supports use the Multipurpose rotary knob and touch screen to set the parameter, the setting steps as follows. (1) Multipurpose rotary knob For the parameter of time and voltage, once the parameter is selected, rotating the Multipurpose rotary knob on the front panel to enter the parameter value. - Page 22 Quick Guide MSO2000X/3000X Series Shift key Press the “Shift” key to switch among number, special character, upper and lower case. Arrow key (left, right) If part of the content needs to be changed, press the “←, →” key to move the cursor to left or right and then to edit the content.
- Page 23 Quick Guide MSO2000X/3000X Series numeric keyboard, the unit of parameter will be set by default. You can also use the numeric keyboard to process the setting as follows. Delete the parameter value that has been entered Set the parameter to Max or Min (sometimes, it refers specifically to the maximum or minimum value in the current state) Set the parameter to default value Clear the text field of parameter...
-
Page 24: Touch Screen
Quick Guide MSO2000X/3000X Series 6. Touch Screen MSO2000X/3000X series provides 10.1 inch super capacitive touch screen, multiple point touch control and gesture control. MSO2000X/3000X has easily operating system with flexible and high sensitive touch screen features for great waveform display and excellent user experience. Touch control function includes tap, squeeze, drag and rectangle drawing. - Page 25 Quick Guide MSO2000X/3000X Series (3) Drag Use one finger to press and drag the selected item to the aimed position as shown in the following figure. Drag gesture can use for: Drag the waveform to change the waveform position Drag the window to change the window position ...
-
Page 26: Remote Control
The user can use a PC software to remotely control the oscilloscope. The instrument manager can display the oscilloscope screen in real time, and control the operation with the mouse. It is recommended to use the PC software provided by UNI-T. It can be downloaded from UNI-T official website (https://www.uni-trend.com). -
Page 27: Troubleshooting
Restart the oscilloscope after completing the above steps. If the product still does not work properly, contact the UNI-T Service Center for assistance. (2) After signal acquisition, the waveform of the signal does not appear on the screen. - Page 28 Quick Guide MSO2000X/3000X Series exceed the waveform range. If the trigger mode is in normal or single and the trigger level is in the center, set the trigger mode to Auto. Press the Auto key to automatically complete the above settings. (6) Waveform refresh is very slow.
- Page 29 Service support: 8am to 5.30pm (UTC+8), Monday to Friday or via email. Our email address is infosh@uni-trend.com.cn For product support outside mainland China, please contact your local UNI-T distributor or sales center. Many UNI-T products have the option of extending the warranty and calibration period, please contact your local UNI-T dealer or sales center.
