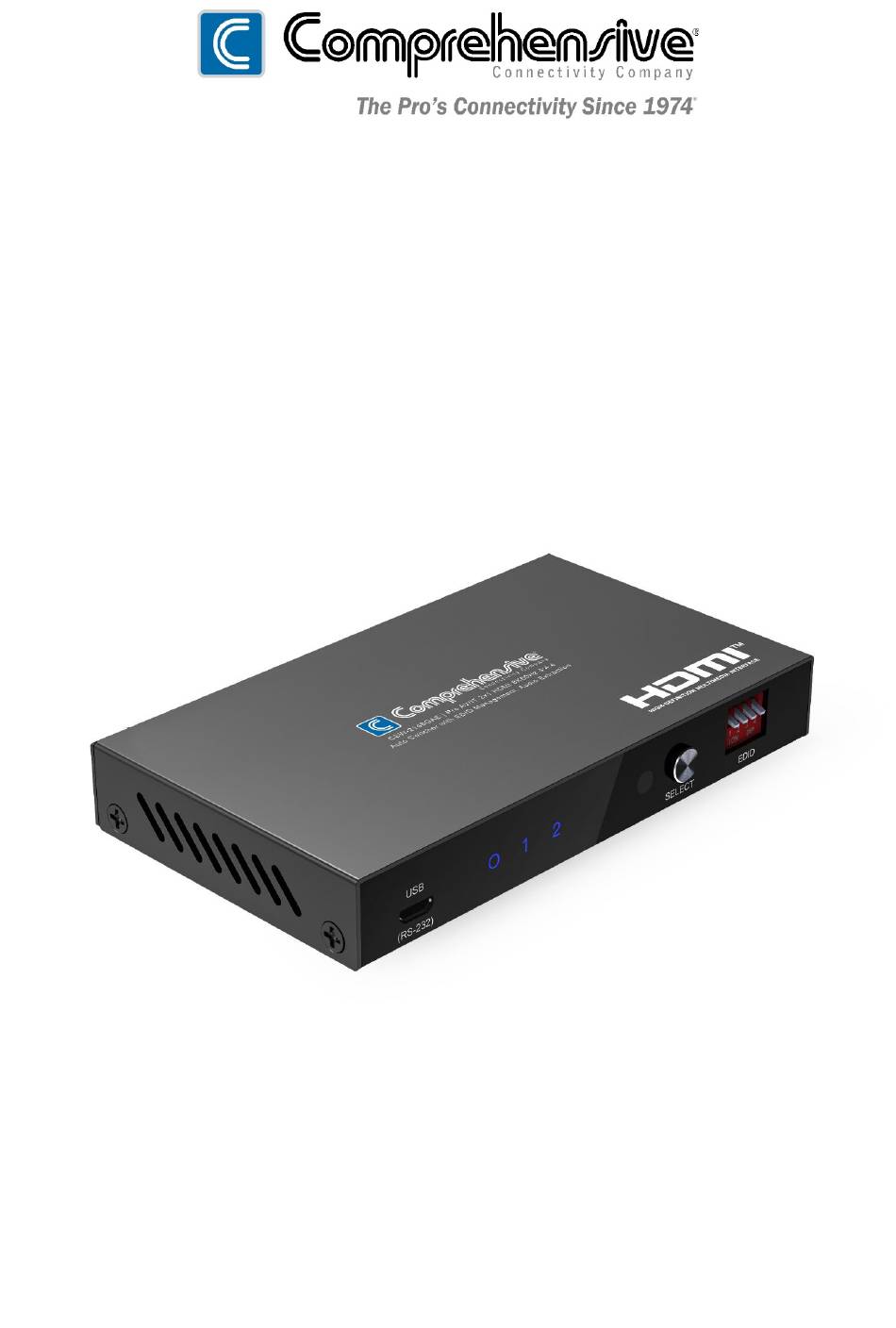

- Page 1 CSW-2148GAE Pro AV/IT Integrator Series™ 2x1 HDMI 8K 60Hz 4:4:4 Auto Switcher with EDID Management, Audio Extraction User Manual...
-
Page 2: Safety Instructions
Introduction The Comprehensive CSW-2148GAE is a HDMI 2x1 switcher which allows you to switch any of the two (2) 8K HDMI source signals to a single 8K HDMI display. It supports video resolutions up to 8K@60Hz 4:4:4. The CSW-2148GAE 8K switcher includes a 4-pin DIP switch for advanced EDID management and supports digital and analog audio de-embedding. -
Page 3: Panel Description
Panel Description 1.USB (Service): For Factory Use Only 2. IR Receiver port 3. O: HDMI Output LED Indicator 4. 1-2: HDMI Input 1-2 LED Indicator 5. SELECT: Change the Input Source Select Button 6. EDID: DIP Switch for Bypass EDID and Fifteen Default EDID modes 7. -
Page 4: Specifications
Specifications Input Ports HDMI x2 Output Ports HDMI x1 Vertical Frequency Range 50/60Hz Video Amplifier Bandwidth 12Gbps/1200MHz per channel (48Gbps all channels) Interlaced(50&60Hz) 480i,576i,1080i Progressive(50&60Hz) 480p,576p,720p,1080p,4K@24/30Hz,4K@50/60/120Hz, 8K@24/30/50/60Hz Warranty 3 Year Operating Temperature 0℃ to 70℃ Storage Humidity 5% to 90% RH non-condensation Power Supply USB Power Cable Power Consumption (Max) -
Page 5: Package Contents
Q: The switcher can’t output 8K resolution to the display. Is that normal? A: No, the CSW-2148GAE can support 8K resolution. Ensure the input source, display and the HDMI cable support the 8K resolution. If one of the devices does not support the higher resolution, please change another lower resolution to display.
