Summary of Contents for Comprehensive CSW-HDMI210
-

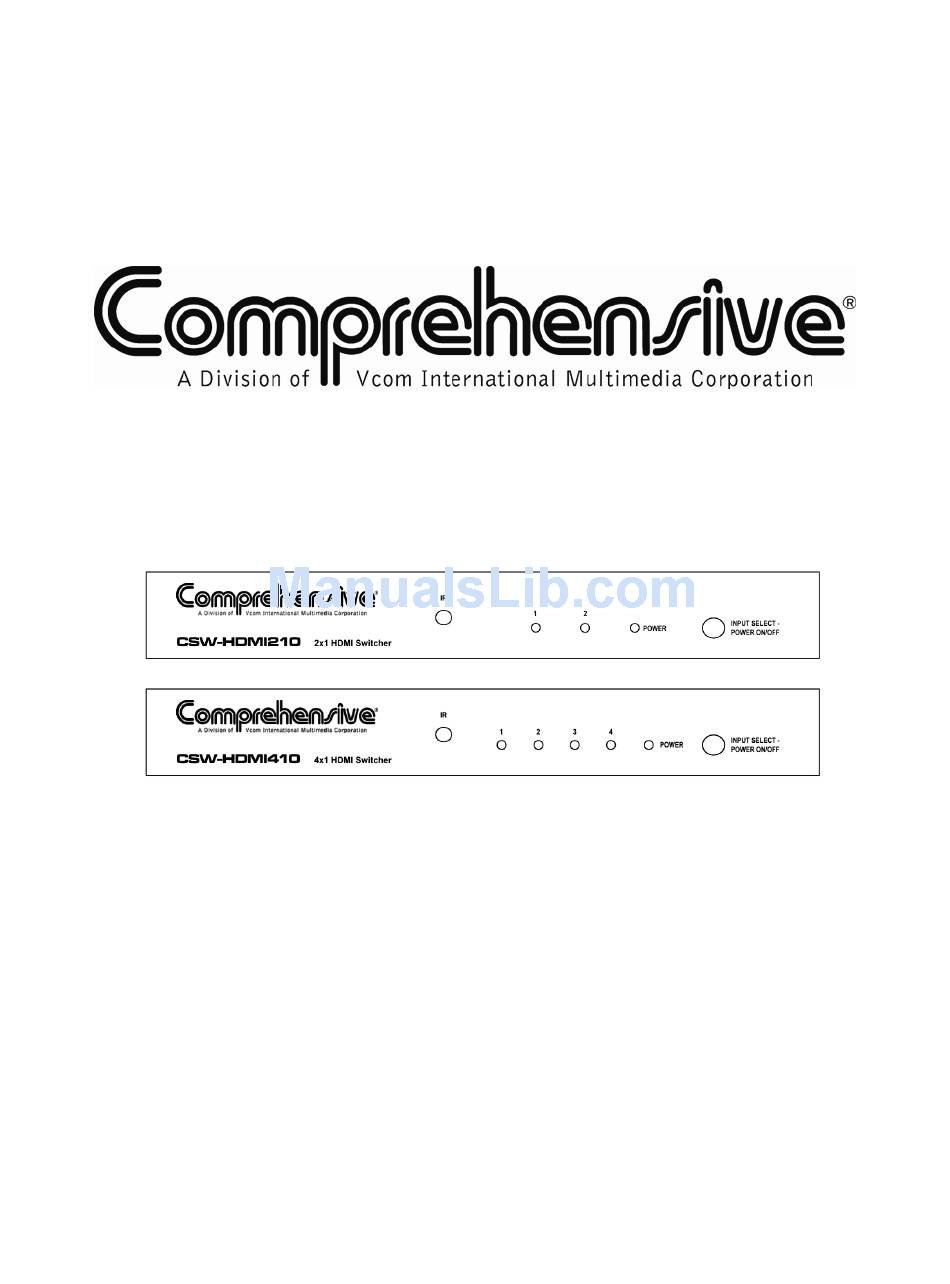

Page 1: Instruction Manual
Instruction Manual CSW-HDMI210 & CSW-HDMI410 HDMI Switchers... -
Page 3: Table Of Contents
Table of Contents Introduction Specifications Checking Package Contents Connecting The Hardware Operating The Unit Installation of Mounting Components Troubleshooting Limited Warranty Regulatory Compliance 10.0 Appendix A: RS-232 Code Information... -
Page 4: Introduction
Every effort has been made to ensure that this product is free of errors. Comprehensive cannot be held liable for the use of this hardware or any direct or indirect consequential damages arising from its use. It is the responsibility of the user of the hardware to check that it is suitable for his/her requirements and that it is installed correctly. -
Page 5: Specifications
HDMI, TMDS x1 (All Models) Output Mechanical Dimensions (H-W-D) CSW-HDMI210 1.1”x8.7”x2.8” (28x220x71mm) CSW-HDMI410 1.1”x8.7”x2.8” (28x220x71mm) Weight CSW-HDMI210 1.0 lbs (480g) CSW-HDMI410 1.0 lbs (480g) Warranty Limited Warranty 2 Years Parts and Labor Environmental Operating Temperature +0 to +40° C (+32° to 104° F) -
Page 6: Checking Package Contents
Note: Please retain the original packing material should the need ever arise to return the unit. If you find any items are missing, contact your reseller or Comprehensive immediately. Have the Model Number, Serial Number and Invoice available for reference when you call. -
Page 7: Connecting The Hardware
A Cable providing low loss, high bandwidth signal handling is the recommended cable for use with all Comprehensive HDMI products. The distance specification of 50 feet is for HDMI signals up to 1080i resolution but cannot be guaranteed unless highest quality cables are used throughout the system. -
Page 8: Installation Of Mounting Components
Operation using the extended IR module accessory is the same as with the standard IR remote capability. INSTALLATION OF MOUNTING COMPONENTS The CSW-HDMI210 and CSW-HDMI410 switchers can be mounted on any flat surface. Mounting the CSW-HDMI210 or CSW-HDMI410 Switchers Attach the two “L” shaped mounting brackets to the product using the furnished hardware and then attach the combined assembly to the desired location. -
Page 9: Troubleshooting
Comprehensive at 800-526-0242 or via Fax at 201-814-0510. LIMITED WARRANTY Comprehensive warrants that for a period of 2 years from date of original purchase, our products will be free from defects in material and workmanship under normal use and service. -
Page 10: Regulatory Compliance
REGULATORY COMPLIANCE The Comprehensive CSW series HDMI Switchers have been tested for compliance with appropriate FCC and CE rules and regulations and are also RoHS compliant. The Power Adaptor/Supplies have been tested for compliance with UL, CE, CEC and CSA rules and regulations and are also RoHS compliant. - Page 11 4X1 Commands: Command Code Description 0x01 Port 1 On 0x02 Port 2 On 0x03 Port 3 On 0x04 Port 4 On 0x05 Power On/Off...
- Page 12 Comprehensive 55 Ruta Court South Hackensack, NJ 07606 Phone: 800-526-0242 Fax: 201-814-0510...
