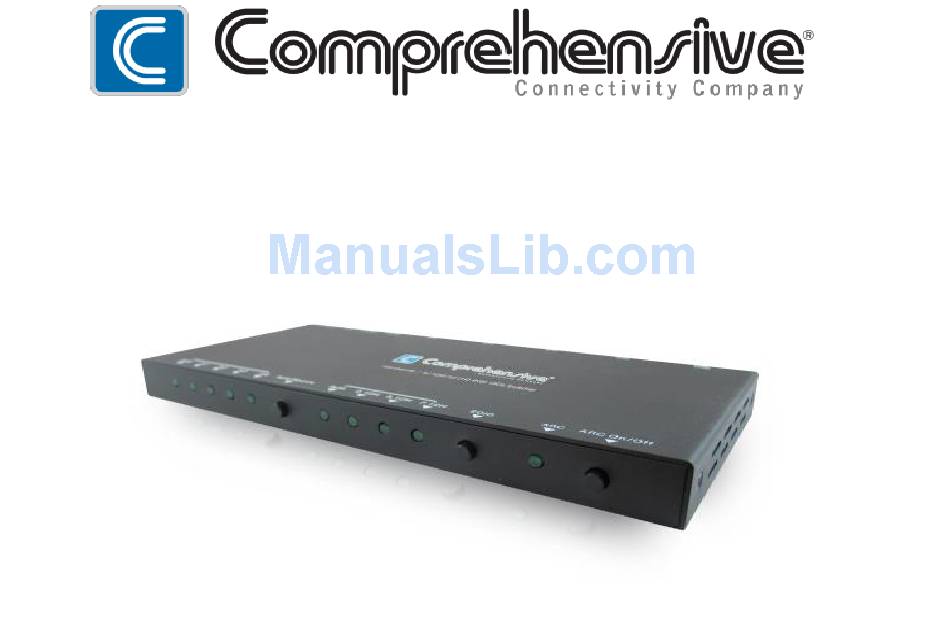

- Page 1 CSW-HD40118G 4K@60 HDMI Switcher 4×1 User manual V1.1...
- Page 2 Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. I. Introduction This is a high performance HDMI 4x1 switcher that supports HDTV formats up to 4Kx2K@60Hz and all HDMI 3D TV formats.
- Page 3 Video formats up to 4Kx2K@60 and all HDMI 3D video formats Support PCM, Dolby TrueHD, DTS-HD Master Audio up to 7.1CH Digital and analog audio output Support smart EDID management (Auto/2CH/5.1CH/7.1CH selectable) Support input port auto switching or manual switching mode ...
- Page 4 IV. Specifications Frequency Bandwidth 18Gbps Input Ports 4 HDMI Female ports, 1 IR Receive port and 1 RS232 port Output port 1 HDMI Female port and 1 L/R & Optical port HDMI Audio Output PCM2.1/5.1/7.1CH,Dolby 5.1, DTS5.1, Dolby-TrueHD, DTS-HD ESD Protection Human Body Model: ±...
- Page 5 V. Switcher Operation controls and Functions Front Panel: ① Input indicator LED - corresponding port LED will light when port is selected. ② Auto or manual select button: Press this button >2 seconds to select auto switching or manual switching mode. Under manual switching mode, short press this button to select input port.
- Page 6 ⑥ ARC function on/off button Rear Panel: ① HDMI output port, connect to HDTV or monitor via HDMI cable ②③④⑤ HDMI input ports, connect with DVD, PS4 or other source unit ⑥ Audio output (including L/R analog and optical audio out) ⑦...
- Page 7 VI. IR Remote ARC: Press this button to enable or disable ARC function. ARC LED on front panel will be illuminated if ARC function is enabled successfully. Auto/2.1ch/5.1ch/7.1ch: Press select different EDID settings. corresponding LED on front panel will be illuminated. Auto Source: Press this button to select auto switching / manual switching mode.
- Page 8 VII. Application Example...
- Page 9 CSW-HD40118G RS232 Protocol and Commands Baudrate: 19200 Data Width: 8 bit Parity: None Stop: 1 bit Output 1 Auto Switch Input 1 A5 5B 02 03 01 00 01 00 00 00 00 00 F9 A5 5B 02 05 0F 00 00 00 00 00 00 00 EA...
- Page 10 Check out the collection of computers & hardware we offer. Comprehensive puts everything within reach.
