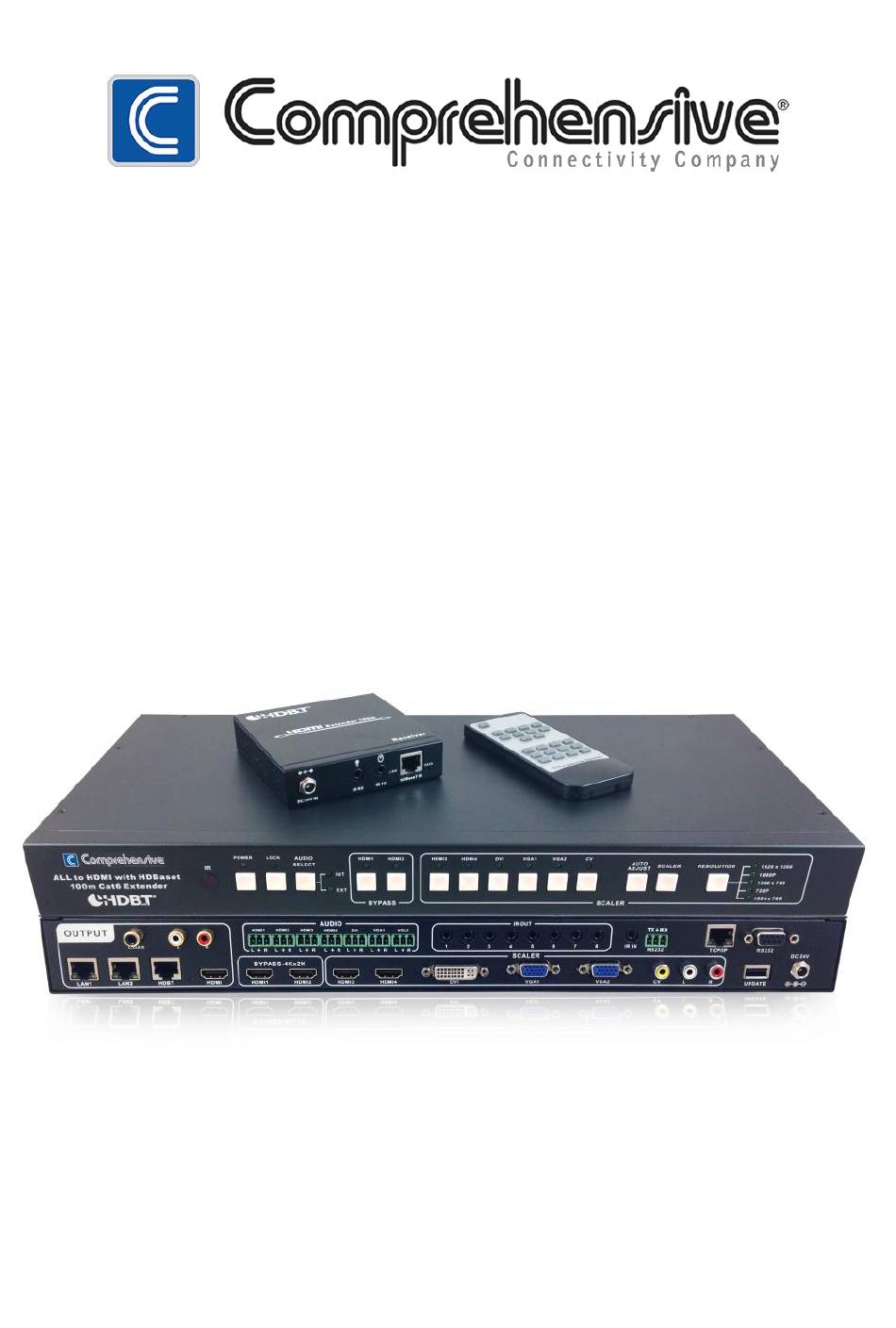

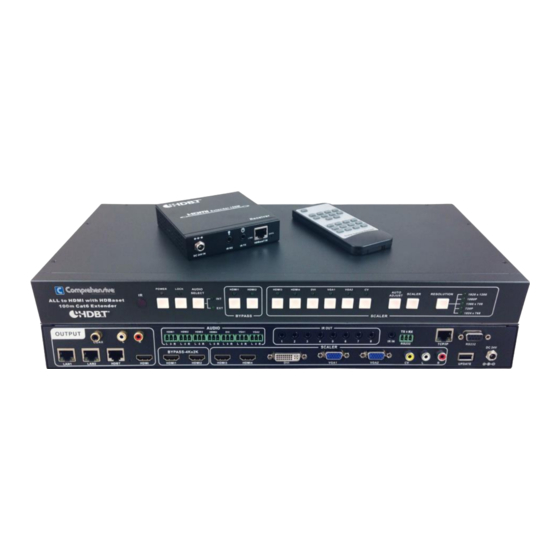

- Page 1 CSW-HDBT300M Multi-Input Switcher to HDMI with HDBaseT up to 330ft – Transmitter & Receiver Operation Manual...
- Page 2 1.Introduction This machine is a high−performance presentation scaler and switcher. It accepts one of eight inputs: one DVI, two VGA, one composite video and four HDMI signals. The HDMI1, HDMI2 to bypass the input function, supports input resolutions up to 4Kx2K@30Hz, and HDMI3, HDMI4, DVI, VGA1, VGA2, CV scales the video, supports output resolutions up to 1920x1080P@60Hz.
-
Page 3: Package Contents
Supports HDBaseT LAN Serving function The USB and RS-232 for the firmware update Supports RS-232, remote control, on-panel control and TCP/IP Control Supports smart EDID management 3.Package Contents ALL to HDMI with HDBaset 100m Cat6 Extender 1pcs ... -
Page 4: Panel Functions
Power Supply 24 V/1 A DC (US/EU standards, CE/FCC/UL certified) Dimensions 440 mm (W)×200 mm (D)×45 mm (H) Weight 2300g Chassis Material Metal Silkscreen Color Black Operating Temperature 0 ºC~40 ºC/32 ºF~104 ºF Storage Temperature −20 ºC~60 ºC/−4 ºF~140 ºF Relative Humidity 20~90 % RH (non-condensing) Power Consumption... -
Page 5: Rear Panel
AUDIO SELECT: Press this button to select audio from digital(INT) or analog(EXT),When the signal is HDMI input. Note: DVI interface as HDMI input has the same function. Part 2. HDMI INPUT BYPASS: Press these buttons to switch directly to the required source. An LED will illuminate to indicate the selected input source. - Page 6 Part1: OUTPUT The HDMI OUTPUT connect to HDMI equipped TVs or monitors and the HDBT OUTPUT connect to the HDBT Receiver. The coaxial and stereo output is connected an audio amplifier. The LAN is connected to PC or Router. Part2: INPUT 1) HDMI 1/ 2/ 3/ 4: Connect to HDMI sources such as DVD player /Blu-ray player for both video and audio signal conversion.
-
Page 7: Part5: Update Port
2) RS232(DB9): Connect to a PC or control system with D-Sub 9-pin cable for the transmission of RS-232 commands. Note: The RS-232 interface can control the machine. 3) IR IN: Connect with the supplied wideband IR RX 4) RS232(3.81mm 3P captive screw connector):Connect to a PC or control system with a D-Sub 9pin to 3P cable. -
Page 8: Serial Control
7. Serial Control The RS-232 port lets you send and receive simple RS-232 signals between a controller and a serial device via the switcher which is connected to the RS-232 port (3.81mm 3P captive screw connector) and outputs via CAT5e/6/7 cable. The example, illustrated in Figure 2, shows a PC or control system that is connected to the switcher via the RS-232 port (3.81mm 3P captive screw connector). - Page 9 connected via CAT5e/6/7 cable to an HDBT receiver. The HDBT receiver connect to a TV via HDMI, and the IR Transmitter (Tx2) is connected to the HDBT receiver IR OUT port. To control this machine(switcher) or far-end display device from local by using corresponding remote controller.
- Page 10 Figure 4 IR Cable Pin Assignment, illustrated in Figure 5: Page 9...
-
Page 11: Hdbt Receiver
Figure 5 9. HDBT Receiver 1. OUTPUT LED: The output status indicating lamp. This red LED illuminate when the TV plug in with HDMI cable. Page 10... - Page 12 2. HDMI OUT: HDMI output port. This slot is where you connect the HDTV or monitor with HDMI cable 3. ETHERNET: This slot provide Internet signal from transmitter or to transmitter. 4. RS232: Phoenix jack provide Serial port control signal from transmitter or to transmitter.
- Page 13 How to control Switcher “General” page 1. Select RS232 COM or TCP mode 2. Select RS232 COM port 3. Click to connect or disconnect PC and Switcher 4. Select Switcher IP 5. Connect to Switcher IP 6. Search Switcher IP 7.
- Page 14 After action of 7, edit form will pop-up as below: 1. Select auto or static IP 2. Rewrite the Switcher IP 3. Rewrite the Switcher MAC “EDID control” page Page 13...
- Page 15 1. Select the needed EDID to input port and click set button the EDID will write to the selected HDMI input ports. 2. Copy the selected HDMI output or HDBT output EDID and click set button to write to the selected HDMI input ports. Note: 1.The HDMI1/HDMI2 support EDID management mode: The EDID mode table: EDID Mode...
- Page 16 EDID. What is it and what is it used for? Under normal circumstances, a source device (digital and analog) will require information about a connected device/display to assess what resolutions and features are available. The source can then cater its output to send only resolutions and features that are compatible with the attached device/display.
-
Page 17: Auto Adjust
3. Resolution select: Click these buttons to select different resolution output. 4. When the signal is switched to the VGA1 or VGA2 of port, these buttons can be used. Automatically adjust the output picture. a. AUTO ADJUST: b. RGBHV: Chick this button to set VGA1 or VGA2 port for RGBHV signal source input. -
Page 18: Operate And Connect
3. Displaying the progress of the software upgrade 4. Click to upgrade the Switcher software 5. Display the message of the software upgrade 6. Click to upgrade the Switcher scaler software switcher software version information 7. Display the 10. Operate and Connect 1. - Page 19 3. Connect a computer (YPbPr) or RGBHV source to the VGA1/2 IN video input D-Sub 15pin HD connector. You can connect the audio signal via the AUDIO IN VGA1/2 3.81mm 3P captive screw connector. Connect with Component Video (YPbPr) Source: control software Operation Examples: Via PC Click the VGA1 or VGA2 button switch to YPbPr or RGBHV source, and chick...
- Page 20 80 Little Falls Road, Fairfield, NJ 07004 Phone: 800.526.0242 l Fax: 201.814.0510 www.ComprehensiveCo.com...
