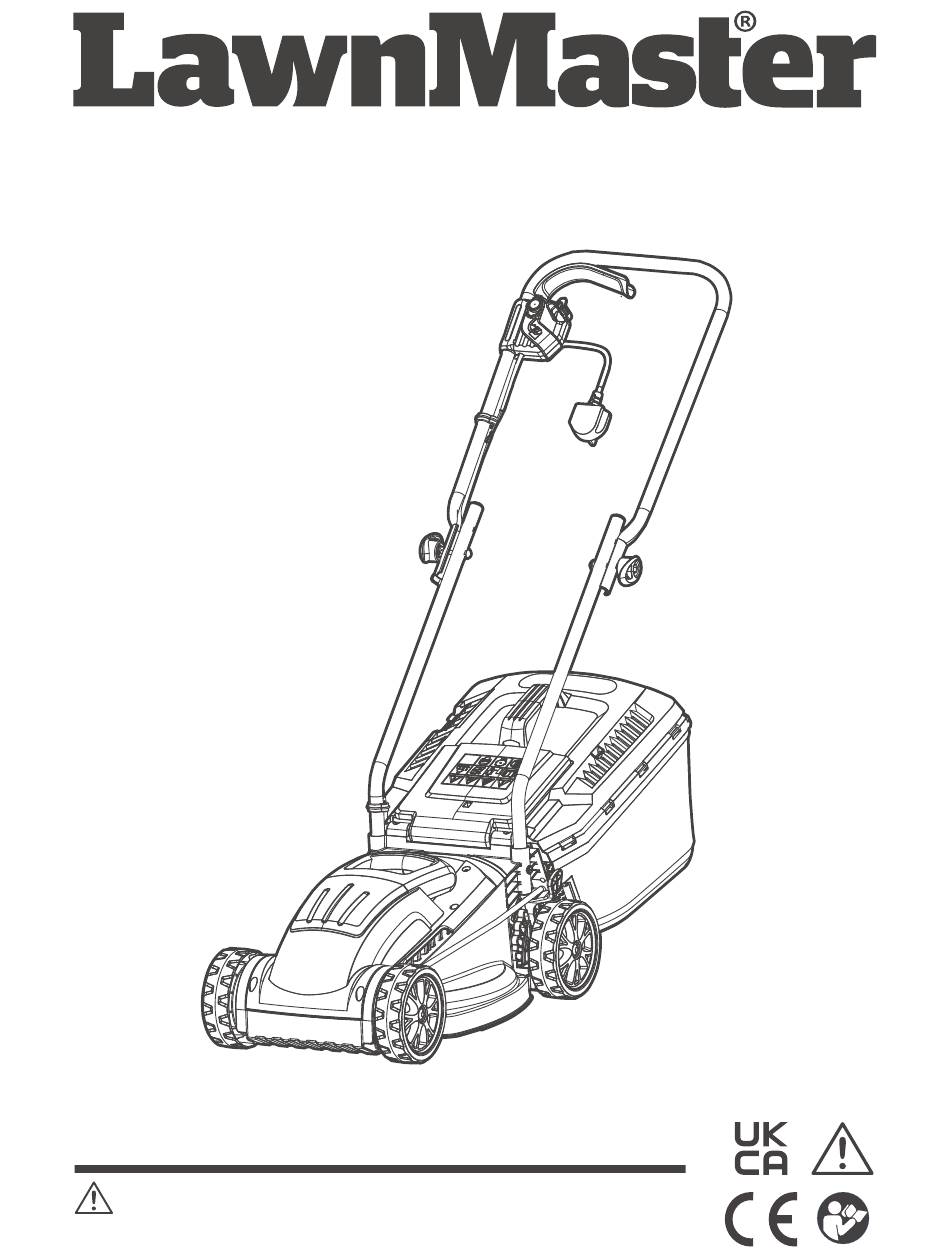

Instruction Manual
LawnMaster 32cm 1200W Electric Mower M2EB1232M
Original Instructions
WARNING:
Read all safety instructions carefully before assembling and operating
this machine. Ensure the machine has been assembled correctly and safely. Keep the
instructions safe and pass them on to any subsequent user so that the information is always
available.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M2EB1232M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LawnMaster M2EB1232M

Summary of Contents for LawnMaster M2EB1232M

  • Page 1 Instruction Manual LawnMaster 32cm 1200W Electric Mower M2EB1232M Original Instructions WARNING: Read all safety instructions carefully before assembling and operating this machine. Ensure the machine has been assembled correctly and safely. Keep the instructions safe and pass them on to any subsequent user so that the information is always...

  • Page 4: Table Of Contents

    TABLE OF CONTENTS Section Page Symbols Safety Information 6-18 In the Box Assembly 20-21 Operation 22-24 Maintenance 25-26 Troubleshooting 27-28 Technical Data Recycling and Disposal...

  • Page 5: Symbols

    SYMBOLS The following warning symbols appear throughout this manual and indicate the appropriate safety measures you should take when operating and maintaining the appliance. SYMBOL DESIGNATION/EXPLANATION Caution! Take extra care, beware of hazards. Read the instructions. Do not expose the equipment to rain or leave outdoors. Do not work in the rain and do not cut wet grass.

  • Page 6: Safety Information

    SAFETY INFORMATION General Power Tool Safety Warnings WARNING Read all safety warnings, instructions, illustrations and Failure to follow all instructions listed below may result in electric The term "power tool" in the warnings refers to your mains- operated (corded) power tool or battery-operated (cordless) 1) Work area safety Cluttered or dark Power tools create sparks which may ignite the dust...
  • Page 7 SAFETY INFORMATION 2) Electrical safety There is an increased risk of electric shock if your body is Damaged Use of a cord f) If operating a power tool in a damp location is Use of an RCD reduces the risk of 3) Personal safety A moment of inattention while operating power tools may result in serious personal...
  • Page 8 SAFETY INFORMATION Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used energising power tools that have the switch on invites A wrench or a key left attached to a This enables better control of the power tool in Use of dust collection can allow you to become complacent and ignore tool A careless action can cause severe...
  • Page 9 SAFETY INFORMATION Ensure that all the knobs, bolts and screws are tight and that the mower is in a safe condition case only tilt it up as far as is really necessary and only r) Make sure you keep your feet at a safe distance from Do not stand near the grass...
  • Page 10 SAFETY INFORMATION 4) Power tool use and care Any power tool that cannot be controlled with Such preventive safety measures reduce the risk of starting the power tool Power Many accidents are caused by Properly maintained cutting tools with sharp cutting edges are less likely to bind...
  • Page 11 SAFETY INFORMATION Slippery handles and grasping surfaces do not allow for safe handling and control of the or mental capabilities, or lack of experience and Children should be supervised to ensure that they do not play with the To prevent imbalance or vibration, worn or damaged cutting blades and fastening...
  • Page 12 SAFETY INFORMATION Avoid pulling it 5) Operating and maintenance safety CAUTION...
  • Page 13 SAFETY INFORMATION A damaged cord could allow parts to The blade can cause damage to cords and lead to contact with live e) Disconnect from the mains supply (i.e. remove the plug from the mains socket) - Whenever leaving the machine unattended. - Before cleaning a blockage.

  • Page 14: Lawnmower Safety Warnings

    SAFETY INFORMATION Lawnmower safety warnings This Worn or damaged parts increase the A damaged supply A worn or damaged grass catcher may A guard that is loose, damaged, or is not functioning correctly may result in...
  • Page 15 SAFETY INFORMATION Blocked air This reduces This reduces the risk of slipping and falling This reduces the risk of loss of control, slipping This reduces the risk of loss of control, slipping and falling which may result in personal This reduces the risk of tripping during...
  • Page 16 SAFETY INFORMATION Entangled or damaged cords can This reduces the risk Unexpected operation as described in DIN 57 282/VDE 0282 and must have a minimum cross-section of 1 mm . The plug must have an earth and any connection must also be earthed and splashproof.
  • Page 17 SAFETY INFORMATION DOUBLE INSULATION Double insulation is a concept in safety in electric power tools, which eliminates the need for the usual three-wire grounded power cord. All exposed metal parts are isolated from the internal metal motor components with protecting insulation. Double insulated tools do not need to be grounded.
  • Page 18 SAFETY INFORMATION the capacity to handle the current the product will draw. An undersized cord will cause a drop in line voltage, resulting in overheating and loss of power. Before you connect the mower to the mains supply make sure that data on the rating plate are identical to the mains data.

  • Page 19: In The Box

    IN THE BOX 8. Rear Roller 9. Rear Wheel Indicator 3. Wing Knob (x2) 10. Deck 17. Cable Guide 18. Cable Clip (x2) 5. Grass Collection Bag 19. Safety Button 6. Screw (x2) 21. Instruction Manual 15. Grass Collection Bag...

  • Page 20: Assembly

    ASSEMBLY Assembly Preparation includes suitable personal protective equipment. WARNING If any parts are damaged or missing do not operate this product until the parts are replaced. WARNING Do not attempt to modify this product or create accessories not recommended for use with this leading to possible serious personal injury.
  • Page 21 ASSEMBLY (See Figs. 4-5) Your mower comes with a tool free grass collection bag. (See Fig. 6) NOTE: closing to avoid personal injury. brackets provided at the back of the lawn mower. Align the bottom of the grass collection bag NOTE: inspect the bag assembly and replace if there are any signs of wear or deterioration.

  • Page 22: Operation

    OPERATION WARNING Do not allow familiarity with this type of product to make you careless. Always pay attention when operating this product, not doing so can result in serious injury. WARNING Always wear safety goggles or safety glasses with side shields when operating this product. injury.
  • Page 23 OPERATION its current setting, and then move it towards the back of the mower and engage the lever in the cut longer grass in 2 passes or more. This method will also cause less stress to your grass for a healthier lawn.
  • Page 24 OPERATION been mowed. have full control over the product. Mowing (See Fig. 12) lawn mower blades or motor. Such objects could be accidentally thrown by the mower in any direction and cause serious personal injury to the operator and others. the cable strain-relief hook provided.

  • Page 25: Maintenance

    MAINTENANCE WARNING any other parts may create a hazard or cause product damage. WARNING until the blade stops. WARNING Do not use any attachments or accessories not recommended by the manufacturer of this product. The use of attachments or accessories not recommended can result in serious personal injury. General Maintenance solvents when cleaning plastic parts.
  • Page 26 MAINTENANCE towards the mower deck and not down towards the ground. Ensure that the blade is positioned tightened. The tightening torque should be approx. 25 Nm. NOTE: Make certain all parts are replaced in the exact order in which they were removed. (See Fig.

  • Page 27: Troubleshooting

    TROUBLESHOOTING WARNING Only perform the steps described within these instructions! All further inspection, maintenance and Gloves and appropriate protective clothing must be worn when performing these instructions. any adjustment. PROBLEM SOLUTION Adjust the height of the handle and The carriage bolts are not make sure the carriage bolts are seated properly.
  • Page 28 TROUBLESHOOTING Cut long grass down in stages by Poor collection The mowing conditions are not gradually lowering the height of cut. performance. optimal. Wait for wet grass to dry. The blade is blocked by grass. Remove the grass. The blade fails to rotate. The blade bolt is loose.

  • Page 29: Technical Data

    TECHNICAL DATA Voltage Power 1200W 3400/min Cutting Width 32cm 20/30/40/50/60mm (5 Positions) Grass Collection Bag Capacity Wheel Size 140mm Weight 10.81kg Protection Type IPX4 ) Guaranteed 96dB(A) Vibration (a , K=1.5m/s Protection Class / II RECYCLING AND DISPOSAL This marking indicates that this product should not be disposed with other household wastes.
