Summary of Contents for LawnMaster MEB1014K

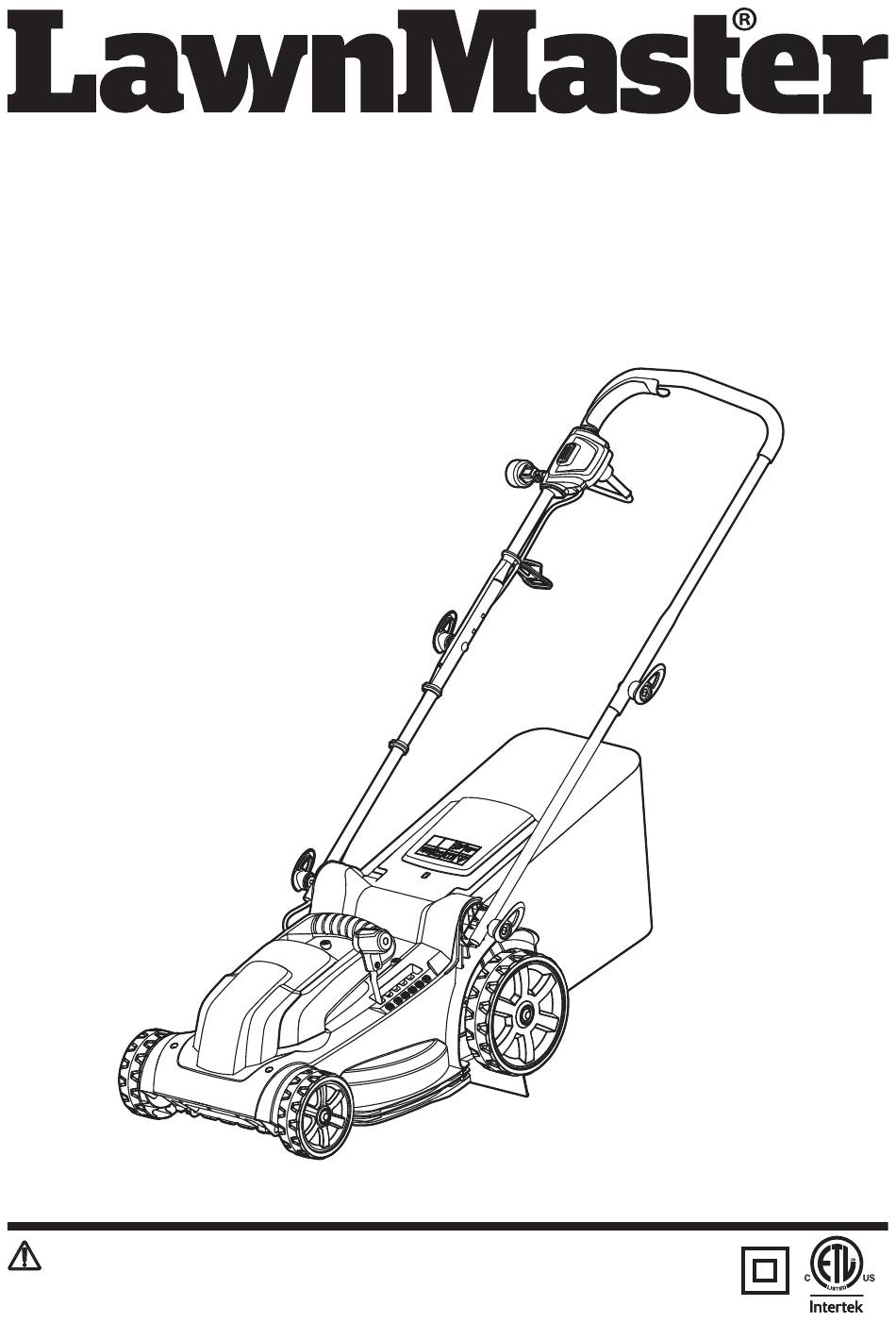

- Page 1 Operator's Manual 14" Electric Mower MEB1014K Save this manual for future reference Read all safety rules and instructions carefully before operating this tool.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Section Page TABLE OF CONTENTS SPECIFICATIONS IMPORTANT SAFETY INSTRUCTIONS SYMBOLS 10-11 KNOW YOUR ELECTRIC MOWER ASSEMBLY 13-17 OPERATION 18-20 MAINTENANCE 21-24 TROUBLESHOOTING 25-26 EXPLODED VIEW PARTS LIST 28-29 NOTES 30-31... -
Page 3: Specifications
SPECIFICATIONS ELECTRIC MOWER MEB1014K Voltage 120 V ~ 60 Hz Current 10 A Motor Speed 3300 RPM Deck Width 14.4 inch (366 mm) Cutting Width 14 inch (350 mm) Cutting Height Adjustment 1 inch -3 inch (25-75 mm) Collection Bag Capacity... -
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS INTRODUCTION This product has many features for making its use more pleasant and enjoyable. Safety, performance, and dependability have been given top priority in the design of this product making it easy to maintain and operate. WARNING This symbol indicates important safety instructions. - Page 5 IMPORTANT SAFETY INSTRUCTIONS rubber gloves and footwear is recommended when working outdoors. ■ This cutting tool is capable of amputating hands and feet and throwing objects. Failure to observe all safety instructions could result in serious injury or death. ■ Do not operate the tool while under the influence of alcohol or drugs. ■...
- Page 6 IMPORTANT SAFETY INSTRUCTIONS ■ Stop the blade(s) when crossing gravel drives, walks, or roads. ■ If the equipment should start to vibrate abnormally, stop the motor and check immediately for the cause. Vibration is generally a warning of trouble. ■ Stop the motor and disconnect the plug from power source whenever leaving the equipment, before cleaning the mower housing, and before making any repairs or inspections.
- Page 7 IMPORTANT SAFETY INSTRUCTIONS MAINTENANCE AND STORAGE ■ Use caution when servicing blades. Wrap the blade(s) or wear gloves. Replace damaged blades. Do not repair or alter blade(s). ■ Store idle lawn mower indoors. When not in use, lawn mower should be stored in an indoor dry and locked-up place-out of reach of children.
- Page 8 IMPORTANT SAFETY INSTRUCTIONS DOUBLE INSULATED This lawn mower has a plug. The lawn mower is double insulated to provide a double thickness of insulation between you and the tool’s electrical system. All exposed metal parts are isolated from the internal metal motor components with protective insulation. WARNING USE ONLY IDENTICAL REPLACEMENT PARTS WHEN SERVICING THE LAWN MOWER TO AVOID INJURY.
- Page 9 IMPORTANT SAFETY INSTRUCTIONS Minimum Gauge for Extension Cords (AWG) (Using 120 V only) Total Length of Cord in Feet (meters) 120V 25ft (7.62m) 50ft (15.24m) 100ft (30.48m) 150ft (45.72m) Ampere Rating More Than Not More Than Not Recommended Make sure your extension cord is properly wired and in good electrical condition. Always replace a damaged extension cord or have it repaired by a qualified person before use.
-
Page 10: Symbols
SYMBOLS Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer. SYMBOL NAME DESIGNATION/EXPLANATION Volts Voltage Amperes Current Hertz Frequency(cycles per second) - Page 11 SYMBOLS The following signal words and meanings are intended to explain the levels of risk associated with this product. SYMBOL SIGNAL MEANING Indicates an imminently hazardous situation, which, if not DANGER avoided, will result in death or serious injury. Indicates a potentially hazardous situation, which, if not WARNING avoided, could result in death or serious injury.
-
Page 12: Know Your Electric Mower
KNOW YOUR ELECTRIC MOWER The safe use of this product requires an understanding of the information on the product and in this Operator’s Manual as well as a knowledge of the project you are attempting. Before use of this product, familiarize yourself with all operating features and safety rules. Components 1. -
Page 13: Assembly
ASSEMBLY UNPACKING This product requires assembly. ■ Carefully remove the product and any accessories from the box. Make sure that all items listed in the packing list are included. ■ Inspect the product carefully to make sure no breakage or damage occurred during shipping. ■... - Page 14 ASSEMBLY WARNING Do not connect power supply until assembly is complete. Failure to comply could result in accidental starting and possible serious personal injury. WARNING Never operate the mower without the proper safety devices in place and working. Never operate the mower with damaged safety devices.
- Page 15 ASSEMBLY Blot Washer Locking Knob Fig. 2 ■ Secure the control cable with the cable clips (Fig. 3). Control Cable Cable Clip Fig. 3 ASSEMBLING THE GRASS COLLECTION BAG (See Figs. 4-5) ■ Check the grass collection bag before assembling to make sure there is no damage. ■...
- Page 16 ASSEMBLY INSTALLING / REMOVING THE GRASS COLLECTION BAG (See Figs. 6-7) NOTE: The safety flap is spring operated. Ensure you have a firm grip when opening and closing to avoid personal injury. Installing the grass collection bag: ■ Lift the rear safety flap (9) and hold it in position (Fig. 6). ■...
- Page 17 ASSEMBLY ADJUSTING THE CUTTING HEIGHT (See Fig. 8) WARNING Do not at any time make any adjustment to the lawn mower without first stopping the motor and removing the safety key. Keep your feet away from the mower deck when adjusting its height. When shipped, the rear wheels on the mower are set to a low-cutting position.
-
Page 18: Operation
OPERATION WARNING Do not allow familiarity with this type of product to make you careless. Remember that a careless fraction of a second is sufficient to inflict serious injury. WARNING Always wear safety goggles or safety glasses with side shields when operating this product. Failure to do so could result in objects being thrown into your eyes, resulting in possible serious injury. - Page 19 OPERATION Start/Stop Bale Switch Safety Switch Button Fig. 10 MOWING TIPS (See Fig. 11) ■ Make sure the lawn is clear of stones, sticks, wires, and other objects that could damage the lawn mower blades or motor. Such objects could be accidentally thrown by the mower in any direction and cause serious personal injury to the operator and others.
- Page 20 OPERATION MOWING ON A SLOPE (See Fig. 12) ■ Slopes are a major factor related to slip and fall accidents that can result in severe injury. Mowing on slopes requires extra caution. If you feel uneasy on a slope, do not mow it. For your safety, do not attempt to mow slopes greater than 15 degrees.
-
Page 21: Maintenance
MAINTENANCE WARNING When servicing, use only identical replacement parts. Use of any other parts may create a hazard or cause product damage. WARNING Always wear safety goggles or safety glasses with side shields during power tool operation or when blowing dust. If operation is dusty, also wear a dust mask. GENERAL MAINTENANCE Avoid using solvents when cleaning plastic parts. - Page 22 MAINTENANCE REPLACING THE MOWER BLADE (See Figs. 13-14) NOTE: Only use identical replacement blades. LawnMaster® mower blade replacement part NO.GM80BX.00.11. ■ Stop the motor and allow the blade to come to a complete stop. Disconnect the power supply. ■ Turn the mower on its side.
- Page 23 MAINTENANCE Fig. 15 WARNING When removing, inspect the blade carefully. If the blade is bent or damaged, replace immediately with a new blade. Failure to replace a bent or damaged blade could cause an accident resulting in possible serious injury. BALANCING THE BLADE (See Fig.
- Page 24 MAINTENANCE STORING THE MOWER (See Figs. 17-18) ■ Disconnect the mower from the power supply. ■ Turn mower on its side and clean grass clippings that have accumulated on the underside of the mower deck. ■ Wipe the mower clean with a dry cloth. ■...
-
Page 25: Troubleshooting
TROUBLESHOOTING Suspected malfunctions are often due to causes that the user can fix themselves. Therefore check the product using this section. In most cases the problem can be solved quickly. WARNING Only perform the steps described within these instructions! All further inspection, maintenance and repair work must be performed by an authorized service center or a similarly qualified specialist if you cannot solve the problem yourself! PROBLEM POSSIBLE CAUSE... - Page 26 TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION High grass and low cutting height. Rear of Mower is hard to push. Raise the cutting height. mower housing and blade dragging in heavy grass. The cutting blade is not Tighten the blade bolts. assembled securely. Sharpen and balance the blade Mower vibrates overly The blade is not balanced.
-
Page 27: Exploded View
EXPLODED VIEW MEB1014K EXPLODED VIEW... -
Page 28: Parts List
PARTS LIST MEB1014K MANUAL PARTS LIST Key Number Part Number Description Quantity 111309101 Motor cover assembly 111030102 Motor assembly 111014103 Drive belt 111309102 Rear wheel assembly (200mm) 111005107 111008129 Cable clamp assembly 111309103 Deck assembly 111309104 Front wheel assembly (140mm) - Page 29 PARTS LIST MEB1014K MANUAL PARTS LIST Key Number Part Number Description Quantity 111309111 Switch box assembly 27.1 111006139 Switch 111001111 Cable clip...
-
Page 30: Notes
NOTES... - Page 31 NOTES...
