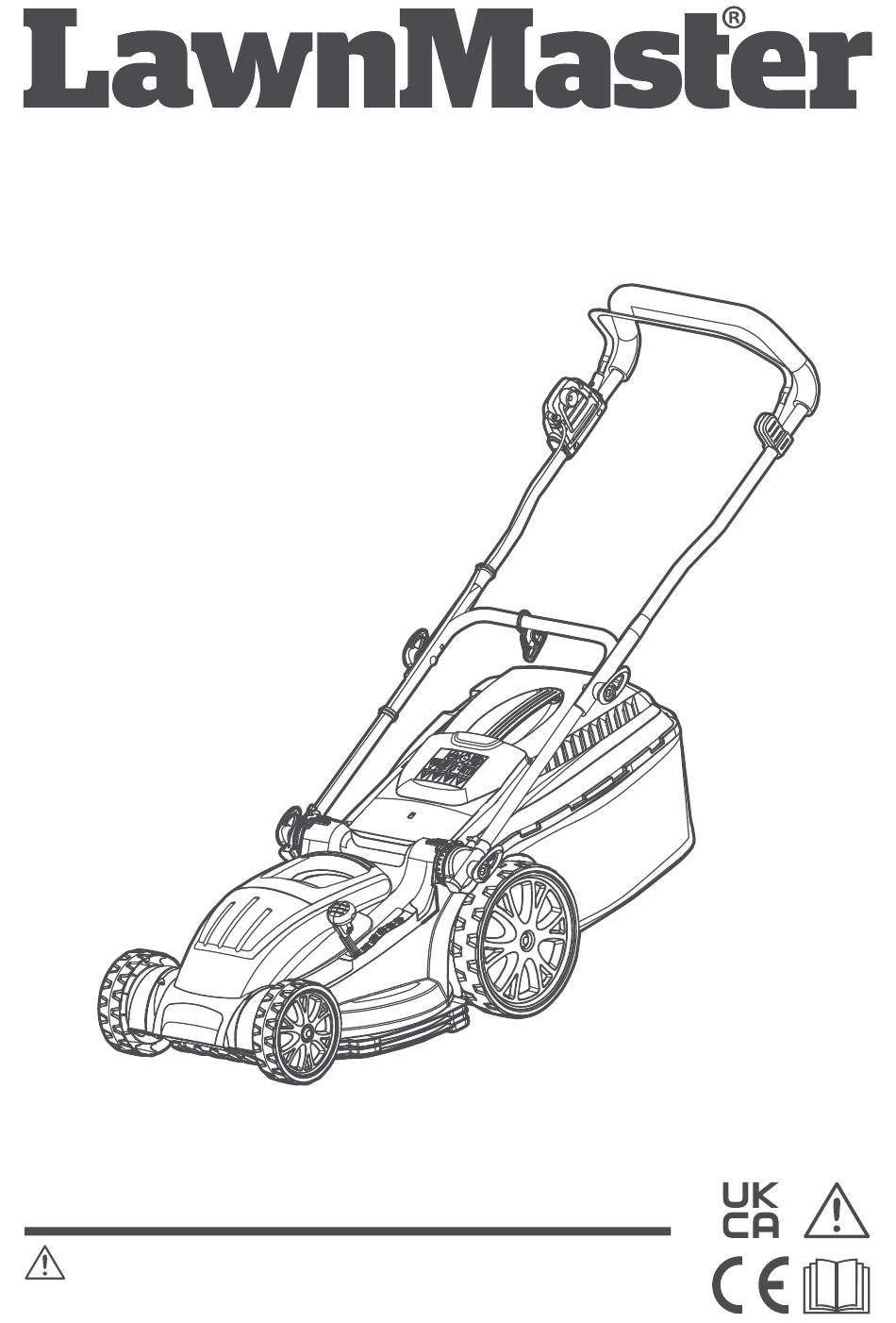

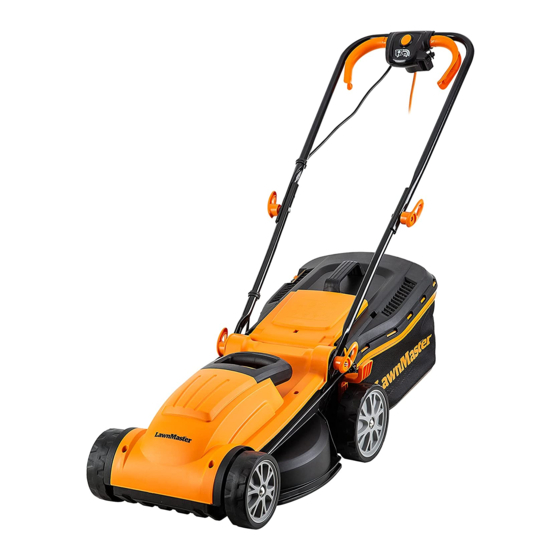

Instruction Manual
LawnMaster 40cm 1800W Electric Mower MEB1840M
Original Instructions
WARNING:
Read all safety instructions carefully before assembling and operating
this machine. Ensure the machine has been assembled correctly and safely. Keep the
instructions safe and pass them on to any subsequent user so that the information is always
available.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MEB1840M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LawnMaster MEB1840M

Summary of Contents for LawnMaster MEB1840M

  • Page 1 Instruction Manual LawnMaster 40cm 1800W Electric Mower MEB1840M Original Instructions WARNING: Read all safety instructions carefully before assembling and operating this machine. Ensure the machine has been assembled correctly and safely. Keep the instructions safe and pass them on to any subsequent user so that the information is always...

  • Page 4: Table Of Contents

    TABLE OF CONTENTS Section Page Symbols Safety Information 6-13 In the Box Assembly 14-16 Operation 17-19 Maintenance 20-21 Troubleshooting 22-23 Technical Data Recycling and Disposal...

  • Page 5: Symbols

    SYMBOLS The following warning symbols appear throughout this manual and indicate the appropriate safety measures you should take when operating and maintaining the appliance. SYMBOL DESIGNATION/EXPLANATION Caution! Take extra care, beware of hazards. Read instruction manual. Do not expose the equipment to rain or leave outdoors. Do not work in the rain and do not cut wet grass.

  • Page 6: Safety Information

    SAFETY INFORMATION IMPORTANT Read all safety regulations and instructions and keep in a safe place for future use. Important! When using equipment, the following safety precautions must be followed to avoid injuries and damage: them. It is important to understand these instructions and to acquaint yourself with the machine, its correct usage and all safety requirements.
  • Page 7 SAFETY INFORMATION footwear and long trousers. Do not operate the machine when barefoot or wearing open toed sandals. Avoid cords or ties. used and remove all objects which can be thrown by the machine. blade, blade bolt and the blade assembly are not worn or damaged.
  • Page 8 SAFETY INFORMATION transportation when crossing surfaces other than grass, and when transporting the machine to and from the area to be used. and/or grass collector, in place. if the machine has to be tilted for starting. In this case, do not tilt it more than absolutely necessary and lift only the part, which is away from the operator.
  • Page 9 SAFETY INFORMATION is in safe working condition. deterioration. parts of the machine. power source is switched off, the blades can still be moved. genuine replacement parts and accessories. on the rating plate. are no more than 75 m long and suitable for outdoor use. The power cable wire cross section must be at least 2.5 .
  • Page 10 SAFETY INFORMATION socket if the power cable is damaged. If the power cable is damaged, it must be replaced by the manufacturer, the order to avoid hazards. not touch a damaged power cable when it is connected to the mains. A damaged power cable may result in contact with live parts.
  • Page 11 SAFETY INFORMATION manufacturer. Do not use the equipment with damaged safety devices or screens or with missing safety equipment running. Risk of injury from cuts. explosion. children. Remove cut material only when the equipment is stopped and disconnected from power supply. even if the power source is off.
  • Page 12 SAFETY INFORMATION WARNING The double insulated system is intended to protect the user from shock resulting from a break in the tool’s internal insulation. Observe all normal safety precautions to avoid electrical shock. NOTE: Servicing of a product with double insulation requires extreme care and knowledge of the system and should be Electrical Connection This product has a precision-built electric motor.

  • Page 13: In The Box

    SAFETY INFORMATION WARNING Keep the extension cord clear of the working area. Position the cord so that it will not get caught on other obstructions while you are working. Failure to do so can result in serious personal injury. Intended Use This lawnmower is designed for domestic use only: domestic and hobby gardens.

  • Page 14: Assembly

    ASSEMBLY Assembly Preparation includes suitable personal protective equipment. WARNING If any parts are damaged or missing do not operate this product until the parts are replaced. Failure to pay attention to this warning could result in serious personal injury. WARNING Do not attempt to modify this product or create accessories not recommended for use with this leading to possible serious personal injury.
  • Page 15 ASSEMBLY Assembling the Grass Collection Bag (See Fig. 3) Attaching/Removing the Grass Collection Bag (See Fig. 4) NOTE: When using the grass collection bag, do not install the mulching plug. The mulching plug collection chute of the mower. Grass Collection Full Indicator (See Figs. 5-6) Attaching/Removing the Mulching Plug (See Fig.
  • Page 16 ASSEMBLY To install the mulching plug: To remove the mulching plug: the mulching plug up and out of the discharge chute.

  • Page 17: Operation

    OPERATION WARNING Do not allow familiarity with this type of product to make you careless. Always pay attention when operating this product, not doing so can result in serious injury. WARNING Always wear safety goggles or safety glasses with side shields when operating this product. Failure to do so could result in objects being thrown into your eyes, resulting in possible serious injury.
  • Page 18 OPERATION To set the cutting height: its current setting, and then move it towards the back of the mower and engage the lever in the its current setting, and then move it towards the front of the mower and engage the lever in the Starting/Stopping the Mower (See Figs.
  • Page 19 OPERATION been mowed. have full control over the product. Mowing (See Fig. 11) lawn mower blades or motor. Such objects could be accidentally thrown by the mower in any direction and cause serious personal injury to the operator and others. the cord retainer provided.

  • Page 20: Maintenance

    MAINTENANCE WARNING If a part become warn or damage, use recommended manufacturers replacement parts. Use of any other parts may create a hazard or cause product damage. WARNING Switch off the equipment before all maintenance and cleaning work, disconnect the plug and wait until the blade stops.
  • Page 21 MAINTENANCE Storing the Mower (See Fig. 13) The device features the following storage options to save space:...

  • Page 22: Troubleshooting

    TROUBLESHOOTING WARNING Only perform the steps described within these instructions! All further inspection, maintenance and Gloves and appropriate protective clothing must be worn when performing these instructions. Always turn off the machine and disconnect the plug and wait until the blade stops before making any adjustment.
  • Page 23 TROUBLESHOOTING The lawn is rough or uneven or Adjust the cutting position to the cutting height not set properly. height best suited for your lawn. The blade is blunt. Replace the blade. The mower cuts grass unevenly Clean the blade area and or motor labours.

  • Page 24: Technical Data

    TECHNICAL DATA Power 1800W 3500/min Cutting Width 40cm Cutting Height Adjustment Grass Collection Bag Capacity Wheel Size 170/255mm Weight 15.01kg Protection Type IPX4 3.6m/s K=1.8m/s Protection Class / II RECYCLING AND DISPOSAL This marking indicates that this product should not be disposed with other household wastes.
  • Page 26 Fig.1 Fig.2 Fig.3 Fig.4 Fig.5 Fig.7 Fig.6 Fig.8 Fig.9 Fig.10 Fig.12 Fig.11 Fig.13...
  • Page 28 MEB1840M No.8 Ting Rong Street Suzhou Industrial Park, Suzhou Jiangsu Province, China www.cleva-europe.com Made in P.R.C...
  • Page 29 Instruction Manual LawnMaster 350W Grass Trimmer GT2551X Original Instructions WARNING: Read all safety instructions carefully before assembling and operating this machine. Ensure the machine has been assembled correctly and safely. Keep the instructions safe and pass them on to any subsequent user so that the information is always available.
  • Page 32 TABLE OF CONTENTS Section Page Symbols Safety Information 6-11 In the Box Assembly Operation 13-15 Maintenance 15-17 Troubleshooting Technical Data Recycling and Disposal...

  • Page 33: Symbols

    SYMBOLS The following warning symbols appear throughout this manual and indicate the appropriate safety measures you should take when operating and maintaining the appliance. SYMBOL DESIGNATION/EXPLANATION Caution Read instruction manual. Keep bystanders away. Do not expose to rain. Wear eye protection. Wear ear protection.

  • Page 34: Safety Information

    SAFETY INFORMATION IMPORTANT READ CAREFULLY BEFORE USE. KEEP FOR FUTURE REFERENCE. IMPORTANT! When using this equipment, the following safety precautions must be followed to avoid injuries and damage. Read the instructions carefully. Be familiar with the controls and the proper use of the machine. Never allow people unfamiliar with these instructions or the age of the operator.
  • Page 35 SAFETY INFORMATION damaged, missing or misplaced guards or shields. Keep all bystanders, children, and pets away. The operator is responsible for accidents or hazards occurring to other people or property. Never operate the trimmer while people, especially children, or pets are nearby. Do not use the trimmer if any part is damaged or defective.
  • Page 36 SAFETY INFORMATION Do not use the machine for applications that are beyond its capacity. Use the correct machine for your application. The correct appliance will do the job better and more safely at the rate for which it was designed. Do not use the machine if the switch does not turn it ON and OFF.
  • Page 37 SAFETY INFORMATION Operational Safety This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Page 38 SAFETY INFORMATION before checking, cleaning or working on the machine, after striking a foreign object. Use common sense. means. of debris. and remove the plug from the socket. Allow rotating parts to stop and inspect the appliance for damage and loose parts. Keep the cord away from heat, oil and sharp edges.
  • Page 39 SAFETY INFORMATION Use only the manufacturer’s recommended replacement parts and accessories. Inspect and maintain the trimmer regularly. Have the When not in use, the appliance should be stored in a safe, dry place. Children should not have access to stored appliances.

  • Page 40: In The Box

    IN THE BOX 1. Main Handle 2. Cable Strain-relief 3. Upper Shaft 9. Motor Housing 4. Middle Shaft 10. Auxiliary Handle 11. On/Off Trigger 12. Instruction Manual ASSEMBLY Assembly Preparation includes suitable personal protective equipment. Assembling the Handle Shafts (See Fig. 1) Insert the upper and lower handle shafts securely into the middle handle shaft and ensure they are Fitting the Safety Guard (See Figs.

  • Page 41: Operation

    OPERATION Switching On and Off (See Figs. 4&5) WARNING Risk of injury! Do not operate the appliance without the safety guard. To operate the appliance, wear suitable clothing, eye and ear protection. Prior to every use, check that the appliance is operative. Do not block the on/off trigger. The trigger must reliably turn off the motor when you release it.
  • Page 42 OPERATION Safety Guard WARNING The line cutting blade on the safety guard is delivered with a protective covering. Ensure this is Adjusting Trimmer Head Angle for Edging (See Figs. 6-8) Adjust the angle of the trimmer head according to the intended operation. Place the trimmer along the edge of the lawn.

  • Page 43: Maintenance

    OPERATION discharge of grass clippings. switched off and unplugged. sensitive bark, and damage fence posts. MAINTENANCE WARNING Switch off the product, disconnect the plug and let the product cool down before all maintenance and cleaning work. WARNING Do not use any attachments or accessories not recommended by the manufacturer of this product. The use of attachments or accessories not recommended can result in serious personal injury.
  • Page 44 MAINTENANCE Storage cutting device with a soft, dry brush. that the safety guard does not come into contact with other objects. This is because the safety guard could become deformed, thereby changing its dimensions and its safety properties. Spool Replacement (See Figs. 12&13) NOTE: replacement line for best performance.
  • Page 45 MAINTENANCE Line Replacement (See Figs. 14&15) NOTE: Self-winding is not recommended. If the line is not wound properly it can cause the trimmer feed system to malfunction. For this reason, users are strongly urged to purchase the pre-wound spool. Should you wish to wind the line yourself, the instructions are provided below: inside upper section of the spool as shown, and the other is in the opposite lower section of the criss-cross.

  • Page 46: Troubleshooting

    TROUBLESHOOTING WARNING Only perform the steps described within these instructions! All further inspection, maintenance and Gloves and appropriate protective clothing must be worn when performing these instructions. Always turn off the machine and disconnect the plug and wait until the product stops before making any adjustment.

  • Page 47: Technical Data

    TECHNICAL DATA 350W Grass Trimmer Rated Voltage 220-240V~ 50Hz Power 350W 12000/min Cutting Width 250mm 1.5mm 4.3m/s Protection Class / II Net Weight 2.1kg RECYCLING AND DISPOSAL This marking indicates that this product should not be disposed with other household wastes.
  • Page 50 Fig.1 Fig.2 Fig.3 Fig.5 Fig.6 Fig.4 30° Fig.7 Fig.9 Fig.8 Fig.11 Fig.10 Fig.12 Fig.15 Fig.14 Fig.13...
  • Page 52 GT2551X No.8 Ting Rong Street Suzhou Industrial Park, Suzhou Jiangsu Province, China www.cleva-europe.com Made in P.R.C...
