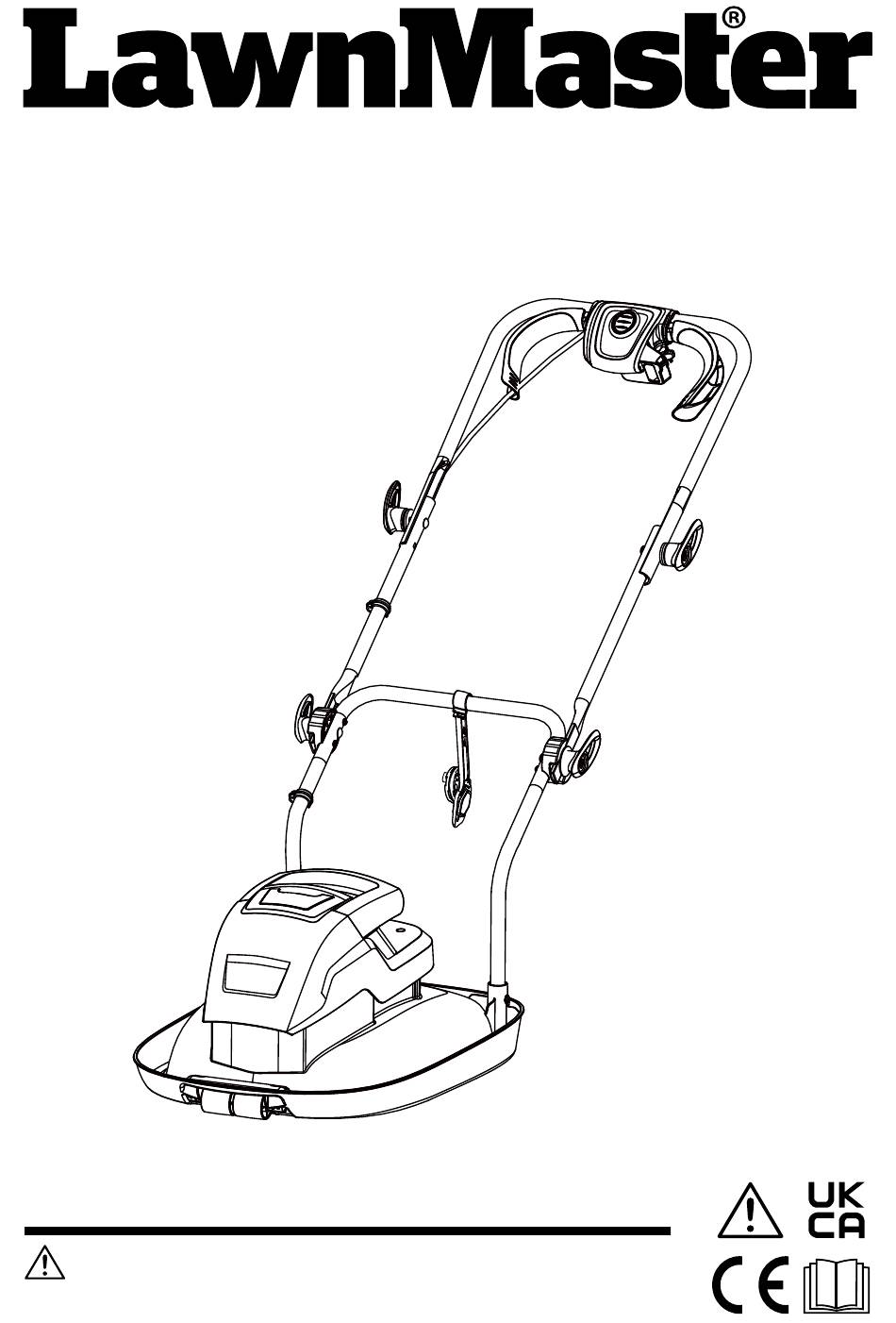

Instruction Manual
33cm 1500W Hover Mower MEH1533M
Original Instructions
WARNING:
Read all safety instructions carefully before assembling and operating
this machine. Ensure the machine has been assembled correctly and safely. Keep the
instructions safe and pass them on to any subsequent user so that the information is always
available.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MEH1533M and is the answer not in the manual?

Questions and answers

Tony
April 10, 2025

There are two sizes of washer. Which goes in lower connection and which size washer goes in the upper?

1 comments:
Mr. Anderson
April 10, 2025

The LawnMaster MEH1533M uses two types of washers:

- Washer for Middle Handle (x2) – used in the lower handle connection.
- Washer for Upper Handle (x2) – used in the upper handle connection.

This answer is automatically generated

Subscribe to Our Youtube Channel

Summary of Contents for LawnMaster MEH1533M

  • Page 1 Instruction Manual 33cm 1500W Hover Mower MEH1533M Original Instructions WARNING: Read all safety instructions carefully before assembling and operating this machine. Ensure the machine has been assembled correctly and safely. Keep the instructions safe and pass them on to any subsequent user so that the information is always...
  • Page 5: Table Of Contents

    TABLE OF CONTENTS Section Page Symbols Safety Information 8-16 In the Box Assembly Operation 18-20 Maintenance 21-22 Troubleshooting 23-24 Technical Data Recycling and Disposal...
  • Page 6: Symbols

    SYMBOLS The following warning symbols appear throughout this manual and indicate the appropriate safety measures you should take when operating and maintaining the appliance. SYMBOL DESIGNATION/EXPLANATION Caution Read instruction manual. Keep bystanders away. Beware of sharp blades. Blades may continue to rotate after the motor is switched off.
  • Page 7 SYMBOLS WARNING To avoid serious personal injury, do not attempt to use this product until you read thoroughly and understand completely the instruction manual. If you do not understand the warnings and instructions in the instruction manual, do not use this product.
  • Page 8: Safety Information

    SAFETY INFORMATION IMPORTANT When using equipment, the following safety precautions must be followed to avoid injuries and damage: ■ Read all operating instructions carefully and comply with them. It is important to understand these instructions and to acquaint yourself with the machine, its correct usage and all safety requirements.
  • Page 9 SAFETY INFORMATION children, or pets are nearby. ■ Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people or their property. ■ While operating the mower always wear substantial footwear and long trousers. Do not operate the mower when barefoot or wearing open toed sandals.
  • Page 10 SAFETY INFORMATION ■ Walk, never run. ■ Switch off the motor and disconnect the plug before carrying out any inspection, servicing or maintenance work. ■ Ensure that all the guards are securely fitted and in good working order. ■ Mow across the face of slopes, never up and down. ■...
  • Page 11 SAFETY INFORMATION clear of the discharge opening at all times. ■ Never pick up or carry the machine while the motor is running. ■ Do not overreach. Keep proper footing and balance at all times. ■ Do not use a machine if the switch does not turn it on and off.
  • Page 12 SAFETY INFORMATION ■ Replace worn or damaged parts for safety. Use only genuine replacement parts and accessories. ■ Always be alert when using the machine, so that you can recognise and handle risks early. Fast intervention can prevent serious injury and damage to property. ■...
  • Page 13 SAFETY INFORMATION ■ Use only authorised power cables of type H05VV-F, which are no more than 75 m long and suitable for outdoor use. The power cable wire cross section must be at least 2.5 . Always completely unroll cable drums before use. Check the cable for damage.
  • Page 14 SAFETY INFORMATION for heavy work. Do not use your equipment for purposes other than those for which it is designed. ■ Do not lift or carry the equipment when the motor is running. Risk of injury from cuts. ■ Do not use the equipment near inflammable liquids or gases.
  • Page 15 SAFETY INFORMATION Electrical Connection ■ This product has a precision-built electric motor. It should be connected to a power supply that is 220-240V~50 Hz, AC only (normal household current). Do not operate this product on direct current (DC). A substantial voltage drop will cause a loss of power and the motor will overheat.
  • Page 16: In The Box

    SAFETY INFORMATION Intended Use This lawnmower is designed for domestic use only: ■ This electric lawnmower is intended for mowing lawns in domestic and hobby gardens. ■ This product is not to be used in wet weather conditions and may not be used to mow wet or unusually high grass. ■...
  • Page 17: Assembly

    ASSEMBLY Assembly Preparation ■ Carefully remove all contents from the product packaging. ■ Ensure you have all the accessories and tool(s) needed for assembly and operation. This also includes suitable personal protective equipment. WARNING If any parts are damaged or missing do not operate this product until the parts are replaced. Failure to pay attention to this warning could result in serious personal injury.
  • Page 18: Operation

    OPERATION WARNING Do not allow familiarity with this type of product to make you careless. Always pay attention when operating this product, not doing so can result in serious injury. WARNING Always wear safety goggles or safety glasses with side shields when operating this product. Failure to do so could result in objects being thrown into your eyes, resulting in possible serious injury.
  • Page 19 OPERATION ■ For the first cut each season, a higher cutting setting should be selected. It is recommended to cut longer grass in 2 passes or more. This method will also cause less stress to your grass for a healthier lawn. ■...
  • Page 20 OPERATION ■ When cutting longer grass, cut the grass in two or more passes by lowering the cutting height gradually at each pass. Never cut the grass by more than half its height. ■ When cutting dense grass, reduce walking speed to allow for more effective cutting and a proper collection of the clippings.
  • Page 21: Maintenance

    MAINTENANCE WARNING Always switch the product off, disconnect from the power supply and let the product cool down before performing inspection, maintenance and cleaning work! WARNING If a part becomes worn or damaged, use manufacturer recommended replacement parts. Use of any other parts may create a hazard or cause product damage.
  • Page 22 MAINTENANCE ■ Torque the blade bolt down using the spanner provided to ensure the bolt is properly tightened. NOTE: Make certain all parts are replaced in the exact order in which they were removed. Sharpening the Blade (See Fig. 12) For best mowing performance, the mower blade must be kept sharp.
  • Page 23: Troubleshooting

    TROUBLESHOOTING WARNING Only perform the steps described within these instructions! All further inspection, maintenance and repair work must be performed by a qualified specialist. Gloves and appropriate protective clothing must be worn when performing these instructions. PROBLEM POSSIBLE CAUSE SOLUTION Check underneath the mower Possible clogging.
  • Page 24 TROUBLESHOOTING Switch off the garden product The cutting blade is not rotating The cutting blade is obstructed. and clear obstruction (always while the garden product is wear gardening gloves). switched on. The blade bolt is loose. Tighten the blade bolt. The blade bolt is loose.
  • Page 25: Technical Data

    TECHNICAL DATA Hover Mower MEH1533M Model MEH1533M Power 1500W No Load Speed 4300/min Cutting Width 33cm Cutting Height Adjustment 12/19/26/33mm (4 Positions) Weight 8.75kg Sound Pressure Level (L 74.3dB(A) K=1.89dB Sound Power Level (L ) Guaranteed 96dB(A) Sound Power Level (L ) Measured 94.3dB(A) K=1.89dB...
  • Page 27 Fig.1 Fig.3 Fig.2 Fig.4 Fig.5 Ⅰ Ⅱ Fig.6 Fig.7 Fig.8 Fig.9 Fig.10 Fig.11 Fig.12 Fig.13 Fig.14...
  • Page 29 MEH1533M Suzhou Cleva Electric Appliance Co. Ltd 8 Ting Rong Street, Suzhou Industrial District 215122 Suzhou, Jiangsu Province, P.R.C www.cleva-europe.com...
