SwitchBot Curtain I Rail Manual

In the Box

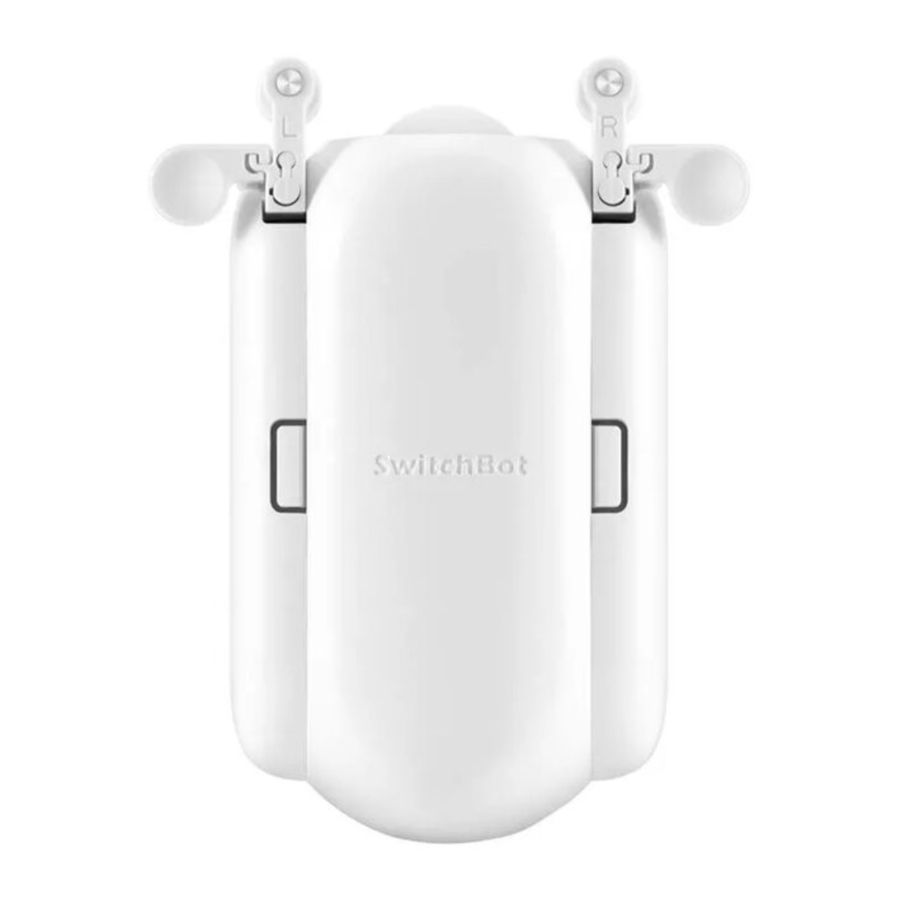

Device Instruction

What You'll Need before Installation

• A compatible phone or tablet with Bluetooth 4.2 or above
• Download the SwitchBot App
• A SwitchBot Account
• Wi-Fi if you want to enable Cloud Service
• Charge the Curtain for about 4 hours

App Store

Installation

Select the Right Curtain Track

For double side curtain, tap "Open from middle".

2. Install on Your Curtain Track
   Retrofitting is simple with SwitchBot Curtain. It only takes a few seconds to make your existing curtains smart. It is straight forward and intuitive with our App instruction.
   1. Please fully close your curtain and then detach the end curtain hook from the track.


2. Take one Hook (l Rail). Push the Hook Button down and hold.
   Then attach the Hook onto the curtain rail. When both of the Hook Wheels are aligned with the rail, release the Hook Button so that they are firmly attached.


3. Take the Main Body with a Hook (l Rail) installed. Push the Hook Button down and hold. Then attach the Hook onto the curtain rail. When both of the Hook Wheels are aligned with the rail, release the Hook Button so that they are firmly attached. The SwitchBot LOGO should face your room.


4. Pull the single Hook down and attach it back to the Main Body.


5. Put the curtain back in place so the Curtain is hidden.


Install the Clip (Optional)
If you use double side curtain, you need two SwitchBot Curtains to open it from the middle. Alternatively, you can use the auxiliary Clip we provide to turn it into a single side curtain so that you only need one SwitchBot Curtain. To do that, fully close the curtain so the 2 panels are closest to each other. Connect the upper parts of the two panels by using the Clip. Draw the curtain back and forth to make sure the two panels move as one. Then you can refer to Step 2: Install on Your Curtain Track on how to set the Curtain up.

Control

Lots of convenient ways to control, at your will.

App Control
Open and close the curtain at your fingertip. We offer intuitive App control for iOS and Android, with weekly/- bi-weekly updates following feedback from you. OTA firmware update is also available for better user experience.

Touch & Go
Even with SwitchBot Curtain, you'd probably still instinctively draw the curtains by hand sometimes. When it senses you drawing the curtain, the SwitchBot Curtain will kick in and do the work for you. We call this Touch & Go.

Voice Control and Home Automation*
Smart living is powered by your voice commands. Wouldn't it be great to just say it?
"Alexa, close the curtain."
"OK Google, close my bedroom curtain."
"Hey Siri, open the living room curtain."
* Require SwitchBot Hub Mini (sold separately).

Control with SwitchBot Remote (Sold Separately)
A wireless remote add-on for you to place anywhere.

App Control

App Store

Touch & Go
Even with SwitchBot Curtain, you'd probably still instinctively draw the curtains by hand sometimes. When it senses you drawing the curtain by more than 5 cm*, the SwitchBot Curtain will kick in and do the work for you. For double side curtain, drawing on one side of curtain will trigger both Curtains to open or close simultaneously. "Touch & Go" is turned on by default. To turn off, go to "Advanced Settings", and turn off" Touch & Go".
* 5 cm is the best threshold we tested because it lowers the possibility of false trigger by your cats and dogs.

Voice Control and Home Automation*
You need to turn on Cloud Service in Settings and then connect respective service. Voice command can trigger fully open and fully close.
Alexa, close the curtain.
OK Google, close my bedroom curtain.
Hey Siri, open the living room curtain.
* Require SwitchBot Hub Mini (sold separately).

SwitchBot Scene
You can set up SwitchBot Scene for home automation within the SwitchBot eco-system when you turn on the Cloud Service within the Settings. There are unlimited possibilities.

Settings

Tap the gear icon on the Home Page near the Curtain icon to go to the Settings. Or tap the Curtain icon to go to the Control page.

Delay
You can set up 1 Delay for countdown action. You can set the countdown time, percentage of opening or closing, and Motion Mode.

Schedule
You can set up 5 Schedules on board, or unlimited Schedules with a Hub. You can set the day, time, percentage of opening or closing, and Motion Mode.

Charging, Firmware and Factory Reset

Charging
It takes about 10 hours¹ to fully charge the battery and the battery lasts 8 months after a full charge². You may also purchase our Solar Panel to charge by sunlight³

1. 5V 1 A adapter is required to charge with adapter.
2. Battery life is tested under condition of runway of 3 meters, loaded with 8 kg of curtain, opened and closed twice a day, 25ºC.Battery lifemay vary given different condition.
3. Illuminance Level 6 is required to charge with Solar Panel.

Firmware
Please make sure you have the up to date firmware by upgrading in time.

Specification

Model Number: W0701600
Color: White / Black
Material: ABS plastic with UV-Resistant coating
Product Size (Main Body): 42mm x 51 mm x 110mm
Product Net Weight (Main Body): 135g
Power: Type-C, DC 5V 1k, 3350 mAh Lithium-ion Battery. Or by Solar Panel¹
Battery Life: 8 months2. Or unlimited with Solar Panel
Connectivity: Bluetooth 5.0 Long Range
Sensor: Accelerometer, light sensor
Strength: Up to 8 kg / 17 pounds of curtain
Max Runway: 3 meters
Mode: Silent Mode / Performance Mode
Timer: Up to 5. Or unlimited with a Hub3
Voice Control (Hub Required): Amazon Alexa, Google Assistant, Siri
Shortcuts, SmartThings, IFTTT, and LINE Clova

1. Solar Panel is sold separately.
2. Battery life is tested under condition of runway of 3 meters, loaded with 8 kg of curtain, opened and closed twice day, 25 C. Battery life may vary given different condition.
3. Hub is sold separately.

Note: Use under regular temperature only.

Contact and Support

Setup and Troubleshooting: support.switch-bot.com
Support Email: support@wondertechlabs.com
Feedback: Please send feedback via the SwitchBot App in the left side menu with the details of the issue.
