Forno JK36A1 Instruction Manual

Free standing gas range
Hide thumbs

Advertisement

Table of Contents

®
RANGE
MODEL NUMBER SERIES
JK36A1/JK48A1
FFSGS6219-36WHT | FFSGS6219-36BLK | FFSGS6219-48WHT | FFSGS6219-48BLK
INSTRUCTION MANUAL
Read these instructions carefully before using your appliance, and keep it carefully.
If you follow the instructions, your appliance will provide you with many years of good service.
06/2024

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JK36A1 and is the answer not in the manual?

Questions and answers

Related Manuals for Forno JK36A1

Summary of Contents for Forno JK36A1

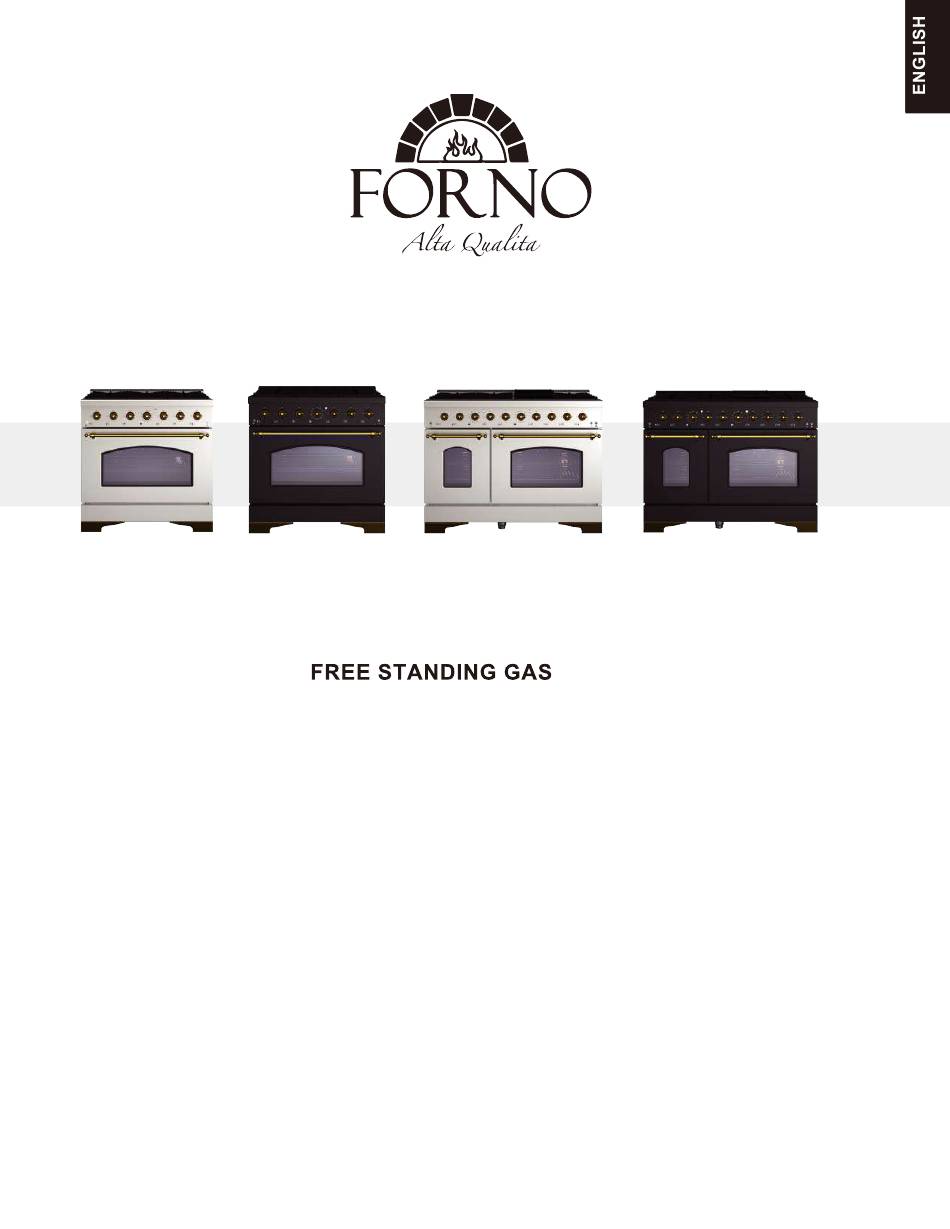

  • Page 1 ® RANGE MODEL NUMBER SERIES JK36A1/JK48A1 FFSGS6219-36WHT | FFSGS6219-36BLK | FFSGS6219-48WHT | FFSGS6219-48BLK INSTRUCTION MANUAL Read these instructions carefully before using your appliance, and keep it carefully. If you follow the instructions, your appliance will provide you with many years of good service.
  • Page 2 Contents Customer Care ....................4 Safety Instructions ……………………………………………………………. 5~7 Unpackage instruction …………………………………………………………8 Installation Instructions ………………………………………………………. 9~18 Cooktop Operation …………………………………………………………… 19~21 Oven Operation ………………………………………………………………. 22~23 Broiler Operation ……………………………………………………………... Griddle Operation …………………………………………………………….. Care & Cleaning ……………………………………………………………… 26~27 Troub leshooting ………………………………………………………………. Ng to LPG Conversion 29~33 WARNING If the information in this manual is not followed exactly, a fire or an explosion may result...
  • Page 3 RANGE MODEL NUMBER SERIES MODEL NUMBER SERIES JK36A1 JK48A1 FFSGS6319-36WHT FFSGS6319-48WHT FFSGS6319-36BLK FFSGS6319-48BLK...
  • Page 4 Customer Care Model And Serial Number nd Seria Model Number S/N: XXXXXXX FFSGS6319-36WHT Serial Number Services in Canada and Untied States...

  • Page 5: Safety Instructions

    SAFETY INSTRUCTIONS Definitions –...
  • Page 6 SAFETY INSTRUCTIONS What to do if you smell gas? Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions. WARNING Make sure the anti-tip bracket is installed:...
  • Page 7 SAFETY INSTRUCTIONS ELECTRICAL GROUNDING INSTRUCTIONS...

  • Page 8: Unpacking And Handling

    UNPACKING AND HANDLING WARNING WARNING...
  • Page 9 INSTALLATION AND OPERATION INSTRUCTIONS...

  • Page 10: Installation Instructions

    INSTALLATION INSTRUCTIONS Gas Supply Requirements...

  • Page 11: Dimensions And Clearances

    INSTALLATION INSTRUCTIONS Dimensions and Clearances INSTALLATION INSTRUCTIONS FFSGS6219-36WHT FFSGS6219-36BLK *Product features may not match. Image meant for dimension reference only.
  • Page 12 FFSGS6219-48WHT FFSGS6219-48BLK *Product features may not match. Image meant for dimension reference only.
  • Page 13 FFSGS6219-36WHT FFSGS6219-36BLK 13” 36” 13” Minium to cabinets on either side of the range 30”Minimum 18” 2”To wall on either side sealed burner models 36” FFSGS6219-48WHT FFSGS6219-48BLK...
  • Page 14 FFSGS6219-48WHT FFSGS6219-48BLK 13” 48” 13” Minium to cabinets on either side of the range 30”Minimum 2” To wall on either side 18” sealed burner models 36”...
  • Page 15 Installation Instructions Bcfore using your range 1.Remove all packaging material. 2.Check to make sure you have all of the accessories listed below (FFSGS6219-36: 0.53，0.74，0.89，0.90， FFSGS6219-36 1 set 0.94，1.00，1.16，1.40) LPG injector (FFSGS6219-48: FFSGS6219-48 1 set 0.53，0.74，0.89，0.90， 0.94，1.00，1.09，1.40) Anti-tip bracket and screws 1 set Wall-against mat 2 pieces...
  • Page 16 WARNING Electrical Grounding Instructions: Do Not Caution...
  • Page 17 INSTALLATION INSTRUCTIONS • • • • • Install male ½” flare union adapter to ½” NPT internal thread elbow at inlet of thread end of the ½” flare union adapter to the ½” NPT internal thread at inlet of • Install male ½”...
  • Page 18 Hood/Composite Overlay Install ISLAND WALL INSTALLATION INSTALLATION wood compsite overtay wood compsite overtay metal hood metal hood 30”(762)min 30”(762)min 36”(914)max 36”(914)max 66”-72” 66”-72” countertop countertop (1676-1829) (1676-1829) 36“ 36“ After Installation:...

  • Page 19: Cooktop Operation

    COOKTOP OPERATION Push to release gas. Turn to Ignite and ‘Hi’ position. Adjust to appropriate flame height. NOTE: Heat Settings: Simmer Low-Medium Medium Medium – Hi...
  • Page 20 Simmer and Boil Flame Size Approximate 1 1/2“ Flame Height Power Failure Cooktop...
  • Page 21 Oven Vent WARNING FOOD SAFETY Burner Grates...
  • Page 22 Never cover any slots, holes or passages in the oven bottom or cover an entire rack with materials such as aluminum foil. Doing so blocks air flow through the oven and may cause carbon monoxide poisoning. Aluminum foil lining may also trap heat, causing a fire hazard.
  • Page 23 Convection Bake Convection Roast Convection Defrost Convection Dehydrate...
  • Page 24 Note: Door must be closed during broiling operation. Preheating To Broil Setting Broil DO NOT DO NOT cover the broil pan insert with foil. To set the oven to Broil:...
  • Page 25 Before Using the Griddle Use of the Griddle CAUTION: “Broil” WARNING Before Baking or Broiling...
  • Page 26 Cooktop Control Panel, Door Handle, Control Housing Oven Window Porcelain Surfaces Stainless Steel Surfaces...
  • Page 27 Metal Finishes Plastic Finishes Oven Racks Oven Frame Oven Gasket Replacing the Oven Light Outer Oven Door Inner Oven Door...
  • Page 28 Before you call for service, please review the potential problem / possible causes and remedies shown in the table below.
  • Page 29 Instructions for Converting Range to Operate on Liquefied Petroleum Gas INSTALLATION AND SERVICES MUST BE PERFORMED BY A QUALIFIED INSTALLER IMPORTANT: SAVE INSTRUCTION MANUAL FOR THE LOCAL INSPECTOR’S USE. INSTRUCTIONS READ AND SAVE THESE FOR FUTURE REFERENCE This conversion kit must be installed by a qualified service technician in accordance with the manufacturer's instructions and all applicable codes and requirements of the authority having jurisdiction.
  • Page 30 Instructions for Converting Range to Operate on Liquefied Petroleum Gas 1. Convert the Pressure Regulator 2. Convert Top Burner for LP/ Propane Gas To access the gas regulator, pull the range away from the cabinet wall. Save the natural gas orifices The gas regulator is located at the removed from the appliance for possible future bottom right corner of the range.
  • Page 31 Instructions for Converting Range to Operate on Liquefied Petroleum Gas 3. Convert Oven Burner Orifice for LP/Propane Gas Remove 3 screws between the kick panel and the oven door . Hold the toe kick panel on both ends and slowly pull away towards the front.
  • Page 32 Instructions for Converting Range to Operate on Liquefied Petroleum Gas 5. Convert Gas Valves for LP/Propane Remove control knobs. Care should be taken when removing and replacing gas components. Use proper support to prevent damage to components. This cooking rang can be used with LPG(Liquid Propane Gas) This cooking rang can be used with LPG(Liquid Propane Gas) and NG (Natural Gas).
  • Page 33 Instructions for Converting Range to Operate on Liquefied Petroleum Gas 6. Reconnect Gas and Electrical Supply 7. Air Shutter Oven Burner to Range The air shutter for the oven burner may Leak testing of the appliance shall be need adjustment, especially if the unit has conducted according to the installation been converted for use with LP/Propane instructions provided with the range.
  • Page 34 ®...

This manual is also suitable for:

Jk48a1Ffsgs6219-36whtFfsgs6219-36blkFfsgs6219-48whtFfsgs6219-48blk
