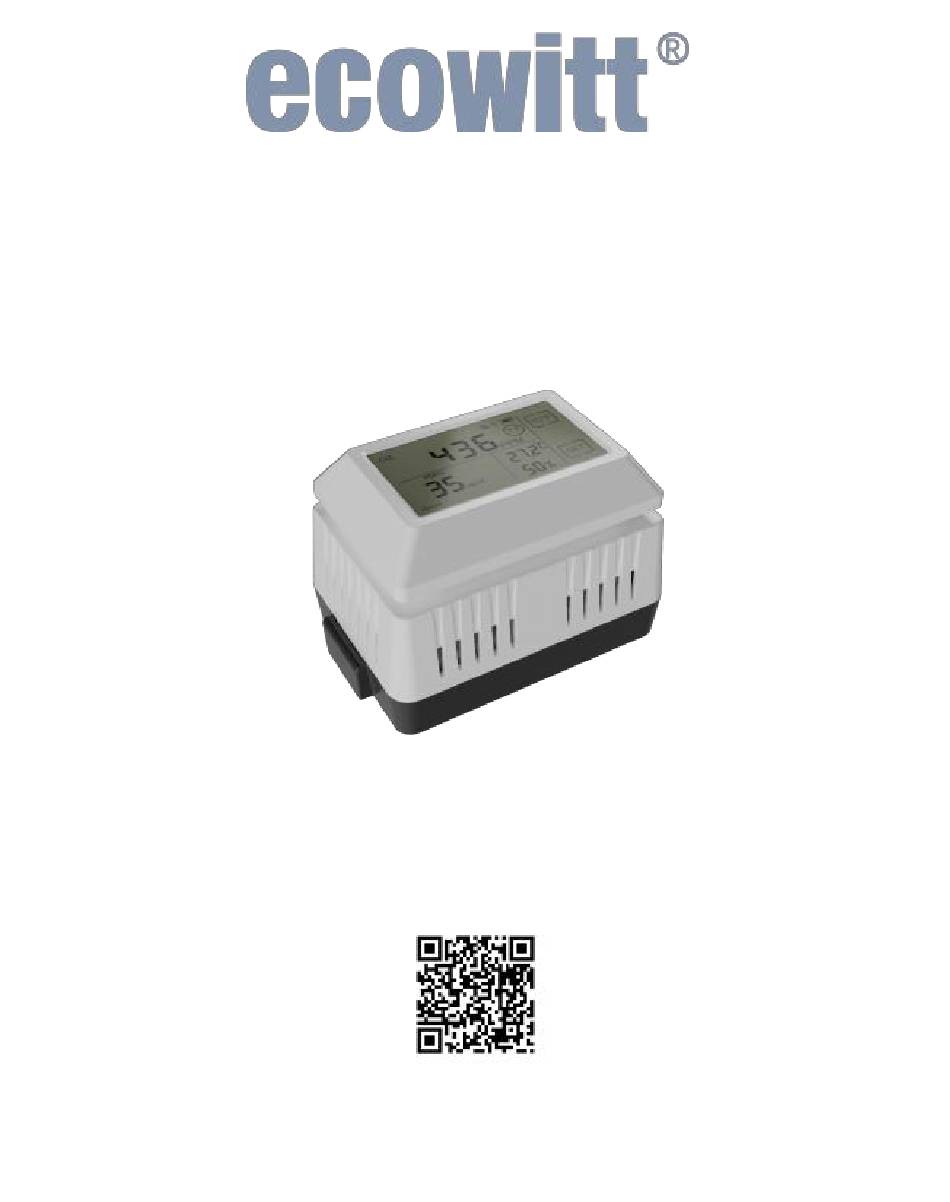

- Page 1 CO₂and Air Quality Monitoring CO₂(NDIR)/PM1.0/PM2.5/PM4.0/PM10/Temperature/Humidity 7-in-1 AQI Sensor with LCD Screen Manual Model WH46D https://s.ecowitt.com/F9VBJC...
-
Page 2: Table Of Contents
4.4. Display .............. 9 4.5. Button ..............11 4.6. Icon and label ..........11 4.7. Adding and setting sensor on APP ....13 5. Placement ..............14 6. View Online Data ........... 15 7. History data on ecowitt.net ........20 8. Sensor Placement & Mounting ....... 22... - Page 3 9. Features ..............24 10. Specification ............24 11. Carbon Dioxide Levels and potential health problems are indicated below: ........27 12. What types of NDIR sensors exist and how do they work? ................29 13. Troubleshooting for inaccurate readings ....35 13.1 Auto Calibration Operation: ......
-
Page 4: Ecowitt Ecosystem
1. Ecowitt Ecosystem Welcome to our product! To send data to the ecowitt cloud server and enable users to access it via our mobile app, our product requires to be connected via a gateway and a router. - Page 5 General Terms Used in the Manual: Weather Station: Includes the console and sensors (or sensor array). Gateway: Also known as a hub, it is a Displayless console. Transmitter: Refers to the sensor. Receiver: Refers to the console. Radio frequency. It refers to the ISM and SRD SUBG (Industrial, Scientific and Medical and Short Range Devices frequency bands below 1 GHz) for communicating between the gateway and its sensors.
-
Page 6: Available Air Quality Sensors
✔ ✔ Power cord supply Battery backup ✔ ✔ ✔ ✔ ✔ 4 CH PM2.5 AQIN Sensor ID Name Note: If you have a WH41/WH43/WH45/WH46/WH46D PM2.5 sensor, the reading of PM2.5 may be different due to different sensor type used. -
Page 7: Before Configuration
3. Before Configuration Prepare a console that has been added to the Ecowitt app, ensuring the frequency matches. The compatible models are listed in the table below. GW1XXX GW2000 WS38XX GW3000 WN19XX WS39XX WN182X WN1980 HP25XX HP3500 WN1920 WS6210... -
Page 8: Getting Started
4. Getting Started 4.1. Parts List One CO ₂ and Air Quality Monitor One USB Cable One User Manual... -
Page 9: Multiple Views And Size (Unit:mm)
4.2. Multiple Views and Size (Unit:mm) Figure 1... -
Page 10: Sensor Set Up
4.3. Sensor Set Up 1.Remove the battery door on the base of the air quality sensor as shown in Figure 2. Figure 2... - Page 11 Description Description Battery Compartment Type C port Cover Battery Compartment LCD Display 2.Insert two AA batteries and close the battery door. Note: The batteries (not included) are mainly for backup purpose. 3.Connect the type-C cable between the sensor and an AC adapter(not included).
-
Page 12: Display
4.4. Display Content Description Show all of content Sensor ID (The sensor ID consists of the letters A to E and the numbers 0 to Firmware version RF frequency... - Page 13 No data was read within 15 seconds, and it keeps showing “-” Done...
-
Page 14: Button
4.5. Button Type Description Press to switch temperature units °C or °F. Press to confirm the target readings while the CO2 calibration mode. (Learn more in section 13 before calibration.) Press to switch PM2.5, PM10, PM4.0, PM1.0. Hold 5s to enter or exit the CO2 calibration mode. Press to add 10 PPM target readings per one while the CO2 calibration mode. - Page 15 0 < PPM < 800 800 ≤ PPM < 1200 1200 ≤ PPM (The "PM_XX" including PM1.0, PM2.5 and PM4.0) 0 < PM_XX ≤ 12 “Good” 0 < PM_10 ≤ 54 12 < PM_XX ≤ 35.4 “Moderate” 54 < PM_10 ≤ 154 35.4 <...
-
Page 16: Adding And Setting Sensor On App
4.7. Adding and setting sensor on APP Open the ecowitt APP → “…” → “Sensor ID”→ “ ” →Enter sensor ID (section 4.4) from WH46D to save... -
Page 17: Placement
5. Placement For long-term use, the sensor should be connected to a power supply, as battery power alone can only last for about 7 days. Therefore, battery power is used as a backup power source. The particle sensor has a built in fan inside： It will be turned on/off regularly when measurement is needed. -
Page 18: View Online Data
6. View Online Data When paired with HP2550/HP2560 Console: Dashboard Scrolls displaying Figure 1 Dashboard The CO₂ , PM1.0, PM2.5, PM4.0, PM10 data automatically scrolls displaying on the screen every 5 seconds. - Page 19 Figure 2 Page Sensor Name&Data The T&H, CO₂ , PM1.0, PM2.5, PM4.0, PM10 data on Figure 2 Page Sensor Name&Data When paired with WS3800/WS39X0 Console:...
- Page 20 PM2.5, PM10 and AQI data when default mode. Note: The PM4.0 and Temp&Hum readings can be viewed on the Ecowitt APP, the inbuilt WebUI (https://IP-address-of-console or on the dashboard at ecowitt.net (Ecowitt Weather Server), but will not be displayed on the WS3800/WS39X0 console...
- Page 21 When paired with other Console: The readings can be viewed on the Ecowitt APP, the inbuilt WebUI (https://IP-address-of-console or on the dashboard at ecowitt.net. When uploaded data to Ecowitt APP: Edit panel and title by “…” . Tap “...
- Page 22 When uploaded to Ecowitt Weather Server: View current sensor data & history records & graph on the website. Set and receive email alerts from the server when alarm condition set under your account. Remote monitoring with smart phone, laptop, or ...
-
Page 23: History Data On Ecowitt.net
7. History data on ecowitt.net Export history data: ecowitt.net - click "Export" button on the dashboard. - Page 24 You can set the time period and data interval for the data here. The data will be exported in .csv format. Clear history data: Under "menu" → "devices" → “…” button to reset history data.
-
Page 25: Sensor Placement & Mounting
8. Sensor Placement & Mounting Place the sensor on a horizontal surface. Make sure that the vents are clear of any obstructions, and we recommend placement away from other electronic devices to prevent interference. Do not place on a metal table to prevent RF signal loss. - Page 26 Finally, please reset your sensor data on ecowitt.net and start using it. Note: This device is mainly meant to detect the particle concentration in air.
-
Page 27: Features
WiFi Gateway or Console (all sold separately). 10. Specification Model WH46D Name CO₂ and Air Quality Monitor Dimensions 106×68×67(mm) Screen Size 63×35(mm) - Page 28 Weight 144(g) Material of Plastic Casing ABS Mass concentration range 0 ug/m³ to 1000 ug/m³ Mass concentration ±【5ug/m³+5%】(0 ug/m³ to 100 precision for PM1.0 & ug/m³) PM2.5 ±10 % (100 ug/m³ to 1000 ug/m³) Mass concentration ±25 ug/m³(0 ug/m³ to 100 ug/m³) precision for PM4.0 &...
- Page 29 Temperature Metering 0.1°C ( 0.1°F) Resolution Humidity Metering Range 1%RH to 99%RH ± 6%RH when 15°C to 35°C (59°F to Humidity Metering 95°F) Accuracy ± 9%RH when -10°C to 60°C (14°F to 140°F) Humidity Metering 1%RH Resolution Humidity Accuracy drift <...
-
Page 30: Carbon Dioxide Levels And Potential Health Problems Are Indicated Below
11. Carbon Dioxide Levels and potential health problems are indicated below: 250-350 ppm: background (normal) outdoor air level. 350-1,000 ppm: typical level found in occupied spaces with good air exchange. 1,000-2,000 ppm: level associated with complaints of drowsiness and poor air. 2,000-5,000 ppm: level associated with headaches, ... - Page 31 Air Quality Index (AQI) for the PM2.5 Concentration (24hr) PM2.5 Air Pollution Concentration Level ug/m3 0 - 50 Good 0.0-12.0 51 -100 Moderate 12.1-35.4 101-150 Poor 35.5-55.4 151-200 Unhealthy 55.5-150.4 201-300 Severe 150.5-250.4 300+ Hazardous 250.5+ Air Quality Index (AQI) for the PM10 Concentration (24hr) PM2.5 Air Pollution...
-
Page 32: What Types Of Ndir Sensors Exist And How Do They Work
Note: The WH46D sensor data can be only viewed on the Live Data interface since it doesn’t support uploads to weather underground. If you choose to upload the data to our weather server: https://www.ecowitt.net, you can view the live data/history graph and download the records on the website. - Page 33 Instead, the light produced by the emitter is shown through a non-dispersive band-pass filter, allowing only the infrared wavelengths of interest to pass. These characteristics give the sensors their classification: Non-dispersive Infra-red. Transmissive NDIR: These NDIR sensors typically feature an IR emitter and an optical detector, such as a photodiode, at opposite ends of a specially designed optical cavity.
- Page 34 NDIR CO₂ sensors leverage infra-red absorption at 4.2 µm wavelength without the use of dispersive optical elements. Absorption spectra of common trace gases (HITRAN2016 molecular spectroscopic database)
- Page 35 Note that this reference value heavily depends on precise positioning of IR emitter and photodetector, as well as the emission properties of the IR source and the optical cavity. Mechanical and thermal stresses acting on the measurement chamber can thus significantly falsify CO₂...
- Page 36 Photoacoustic NDIR: In contrast to transmissive NDIR sensors, photoacoustic NDIR sensors detect the amount of energy that is absorbed by CO₂ molecules. When pulsing the infra-red emitter, CO₂ molecules absorb infra-red light periodically. This causes additional molecular vibration resulting in a pressure wave inside the measurement chamber.
- Page 37 A microphone inside the gas chamber measures this, from which the CO₂ concentration can then be calculated. Photoacoustic NDIR sensing allows for much greater miniaturization of the measurement chamber. Furthermore, as sound waves are omnidirectional, relative positioning of emitter and microphone is unconstrained.
-
Page 38: Troubleshooting For Inaccurate Readings
13. Troubleshooting for inaccurate readings 13.1 Auto Calibration Operation: If you find that the readings of the carbon dioxide sensor are inaccurate after a period of use, please place the device in a well-ventilated location for at least one day. Make sure there are no other sources of pollution around, and ensure that the sensor surface is not obstructed or affected by external interference. - Page 39 current PPM reading and 400 target reading digits will be flashing. You can press the “SET” button to choose between 400~420ppm, and then press "°C/°F" to continue, leaving the device untouched for 5 minutes until the calibration routine is completed and returns to normal display mode.
- Page 40 If calibration is triggered by mistake, hold “SET” to cancel and exit. The target readings enable to set 400 to 1990. Figure 4 Calibrating After calibration, the screen will automatically return to the standard screen. Otherwise, the animation will be...
- Page 41 spinning to check the environment until the CO2 stabilizes. Figure 5 Loading Please don’t do anything when it is loading the calibration value.
-
Page 42: Care +Maintenance
14. CARE +MAINTENANCE When batteries of different brand or type are used together, or new and old batteries are used together, some batteries may be over-discharged due to a difference of voltage or capacity. This can result in venting, leakage, and rupture and may cause personal injury. - Page 43 • Remove batteries from product during periods of non- use. Battery leakage can cause corrosion and damage to this product. • Remove used batteries promptly. • For recycling and disposal of batteries, and to protect the environment, please check the internet or your local phone directory for local recycling centers and/or follow local government regulations.
-
Page 44: Warranty Information
15. Warranty Information We disclaim any responsibility for any technical error or printing error, or the consequences thereof. All trademarks and patents are recognized. We provide a 1-year limited warranty on this product against manufacturing defects, or defects in materials and workmanship. -
Page 45: Fcc
16. FCC This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 46 interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna.
- Page 47 To maintain compliance with RF Exposure guidelines, This equipment should be installed and operated with minimum distance between 20cm the radiator your body: Use only the supplied antenna. IC Caution: English: This device contains licence-exempt transmitter(s) /receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s).
- Page 48 French: L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1. L’appareil ne doit pas produire de brouillage; 2.
-
Page 49: After-Sales Service
17. After-sales Service Order Issues: If you encounter any missing or incorrect shipments of Ecowitt products purchased, please reach out to the respective platform's customer service from the store you bought product for assistance. Usage Inquiries: For any issues related to product usage, feel free to contact our customer support team at support@ecowitt.com. -
Page 50: Stay In Touch
18. Stay in Touch Ask questions, watch setup videos, and provide feedback on our social media outlets. Follow Ecowitt on Discord, YouTube, Facebook and Twitter. Copyright©2024 ecowitt All Rights Reserved. DC101424...
