1. Getting Started ...................................................................... 4
1.1 Parts List ..........................................................................4
2. Overview ............................................................................... 5
2.1 Features ........................................................................... 6
3. Setup Guide ...........................................................................9
3.1 Installing battery ..............................................................9
4. Sensor Placement ................................................................ 12
5.Wi-Fi Configuration with gateway ....................................... 20
5.1 Pair with Gateway ......................................................... 20
5.2 Wi-Fi Connection for the Gateway ................................23
6. View Online Data with WS View Plus/ Ecowitt APP ..........23
7. Set Email Alerts ...................................................................28
8.Specification .........................................................................30
9.Warranty Information ........................................................... 31
Leaf Wetness Sensor
Model: WN35
1
Advertisement
Table of Contents
Related Manuals for ECOWITT WN35
Summary of Contents for ECOWITT WN35
-
Page 1: Table Of Contents
5.Wi-Fi Configuration with gateway ........20 5.1 Pair with Gateway ............20 5.2 Wi-Fi Connection for the Gateway ........23 6. View Online Data with WS View Plus/ Ecowitt APP ..23 7. Set Email Alerts ..............28 8.Specification .................30 9.Warranty Information ............31... - Page 2 ＊ Please scan the QR code to read English manual and keep it for future reference ＊Bitte scannen Sie den QR-Code zudeutsche Anleitung lesen und aufbewahren füZukunftsbezug ＊Si prega di scansionare il codice QR perleggi il manuale italiano e conservalo perReferenza futura Instruction manuals https://www.ecowitt.com/support/download/122...
- Page 3 Help Our product is continuously changing an- d improving, particularly online services and associated applications. To download the latest manual and additional help, pl- ease contact our technical support team: support@ecowitt.com support.eu@ecowitt.net (EU/UK)
-
Page 4: Getting Started
1. Getting Started 1.1 Parts List One Leaf Wetness Sensor One Hose clamp for mounting to crossbar (crossbar not included) One User Manual... -
Page 5: Overview

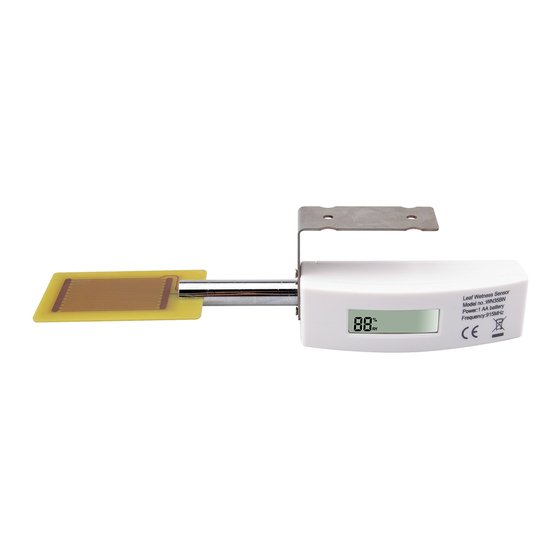

2. Overview Figure 1: Leaf Wetness Sensor... -
Page 6: Features
2.1 Features Leaf Wetness Sensor This sensor can be simulated as a leaf and detects the moisture level of the nearby leaf or plant. Long wireless range up to 300 feet (100 meters) in open areas Transmits readings every 79.5... - Page 7 (requires the gateway and your phone is using the same Wi-Fi network) Up to 8 channels supported. Channel names can be edited on the app. Battery level information displayed on the WS View Plus/ Ecowitt APP When paired with a Weather Station...
- Page 8 Display Up to 8 channels supported. Channel names edited console(for HP2551 only). When uploaded to Ecowitt Weather Server: View current moisture data & history records & graph on the website Receive email alerts from the server...
-
Page 9: Setup Guide
laptop, or computer by visiting the website 3. Setup Guide 3.1 Installing battery 1. Remove the battery door on the back of the transmitter by removing of the screw, as shown in Figure 2:( make sure the rubber seal is intact when mount or dismount the battery door ) - Page 10 Figure 2: Battery installation...
- Page 11 2. Insert one 1.5V AA battery (be aware of polarity: flat side of the battery go to the spring side of the battery compartment). The moisture reading will display on the LCD screen immediately and normally update every 79.5 seconds (the sensor transmission update period).
-
Page 12: Sensor Placement
Note: If no reading on the screen, make sure the battery is inserted the correct way or a proper reset happens. Do not install the battery backwards. You can permanently damage the sensor. 4. Close the battery door by installing the screw. - Page 13 If you need the crossbar and installation set, please contact us at support@ecowitt.com support.eu@ecowitt.net(EU/UK)
- Page 14 To mount the unit on a vertical pole (compatible diameter range: 25.4~50.8mm; not included): Install the U-bolts set and crossbar (optional) on a vertical pole as shown on figure 2-1:...
- Page 16 Figure 2-1: Crossbar mounting...
- Page 17 When tight the nut: hand turn the nut until no further turns to be turned, then use a wrench to turn 1/3 ~ 1/2 turn and no more. Mount the unit to the crossbar (not included) with the included hose clamp:...
- Page 18 Figure 2-2: Sensor mounting to crossbar Orientation or Tilt: Make sure the sensing side ( PCB grid visible ) is facing upwards, and adjust the sensor to have...
- Page 19 the sensor leveled same as the leaf to be monitored. Usually it should be in the range between 0 – 30 degrees. And this will simulate the real wetness condition matched against leaves. The optimal sensor placement should be with 60 degrees tilt with north facing to simulate the condition in most ideal way: https://cdnsciencepub.com/doi/10.4141/cj ps78-027...
-
Page 20: Wi-Fi Configuration With Gateway
GW1000/GW1100 Wi-Fi Gateway or HP2551/HP3500/HP3501 Weather Station (sold separately). 5.1 Pair with Gateway If the GW1000/GW1100 has been in operation, and you have never had any WN35 sensor setup before, just power up the sensor and GW1000/GW1100 will... - Page 21 The channel name can be edited both on the app and ecowitt.net (will not sync, and it should be edited on your device setup page on ecowitt.net separately). If you want to use a new WN35 sensor to...
- Page 22 (already configured on certain channel), please try the following: 1. Open the Sensor ID page on the WS View Plus/ Ecowitt APP, and find your old sensor ID. 2. Power off the old sensor and power on the new sensor.
-
Page 23: Wi-Fi Connection For The Gateway
GW1000/GW1100 Wi-Fi gateway. View Online Data with WS View Plus/ Ecowitt APP When the Wi-Fi configuration is done( to tell the gateway to be hooked to your WiFi network), your sensor data as well as the sensor battery voltage information... - Page 24 WS View Plus/ Ecowitt APP at the live data page.
- Page 27 WS View Plus/ Ecowitt APP. Live data is referring to current data received by the gateway. Live data is not stored on WS View Plus/ Ecowitt APP. However data is always pushed and saved on www.ecowitt.net...
-
Page 28: Set Email Alerts
Any question, please feel free to contact customer service support@ecowitt.com support.eu@ecowitt.net(EU/UK) 7. Set Email Alerts Once your device is added successfully on the Ecowitt Weather server, you may set alerts for the sensor on the website to get email notifications. -
Page 30: Specification
8.Specification Power: 1x1.5V AA battery(not included) Frequency: 433 / 868 / 915 MHz depending on location (North American: 915 MHz; Europe: 868MHz; Other areas: 433MHz) Wireless transmitting range: 100M (300feet) Sensor reporting interval: 79.5 seconds Sensing moisture: 0~99%; Accuracy: +-10% Battery life: 12 months minimum Waterproof level: IP66... -
Page 31: Warranty Information
9.Warranty Information We disclaim any responsibility for any technical error or printing error, or the consequences thereof. trademarks patents recognized. We provide a 1-year limited warranty on this product against manufacturing defects, or defects in materials and workmanship. This limited warranty begins on the original date of purchase, is valid only on... - Page 32 products purchased, and only to the original purchaser of this product. To receive warranty service, the purchaser must contact problem determination and service procedures. This limited warranty covers only actual defects within the product itself and does not cover the cost of installation or removal from a fixed installation, normal set-up or adjustments, or claims based on misrepresentation by the...
