Cielo Breez Max Manual

Hide thumbs Also See for Breez Max:

Advertisement

Quick Links

Download this manual
How can I install Cielo Breez Max?
Cielo Breez Max can be mounted on a wall using the backplate or placed on a table using
the table stand (both included in the box).
Before finalizing the placement, it is recommended to first power up, register, and test the
device to ensure signals can easily reach the AC.
For optimal placement and control:
● Make sure Breez Max is in the line of sight of your air conditioner or heat pump.
● To avoid deviated sensor readings, do not place Breez Max where it may be exposed
to excessive
sunlight or other heat sources.
Note: It is strongly advised that whenever there is a need to use the remote control for
AC/heat pump, point it towards Breez Max while performing any action. This way, your
AC/heat pump and Cielo Home app will always be in sync.

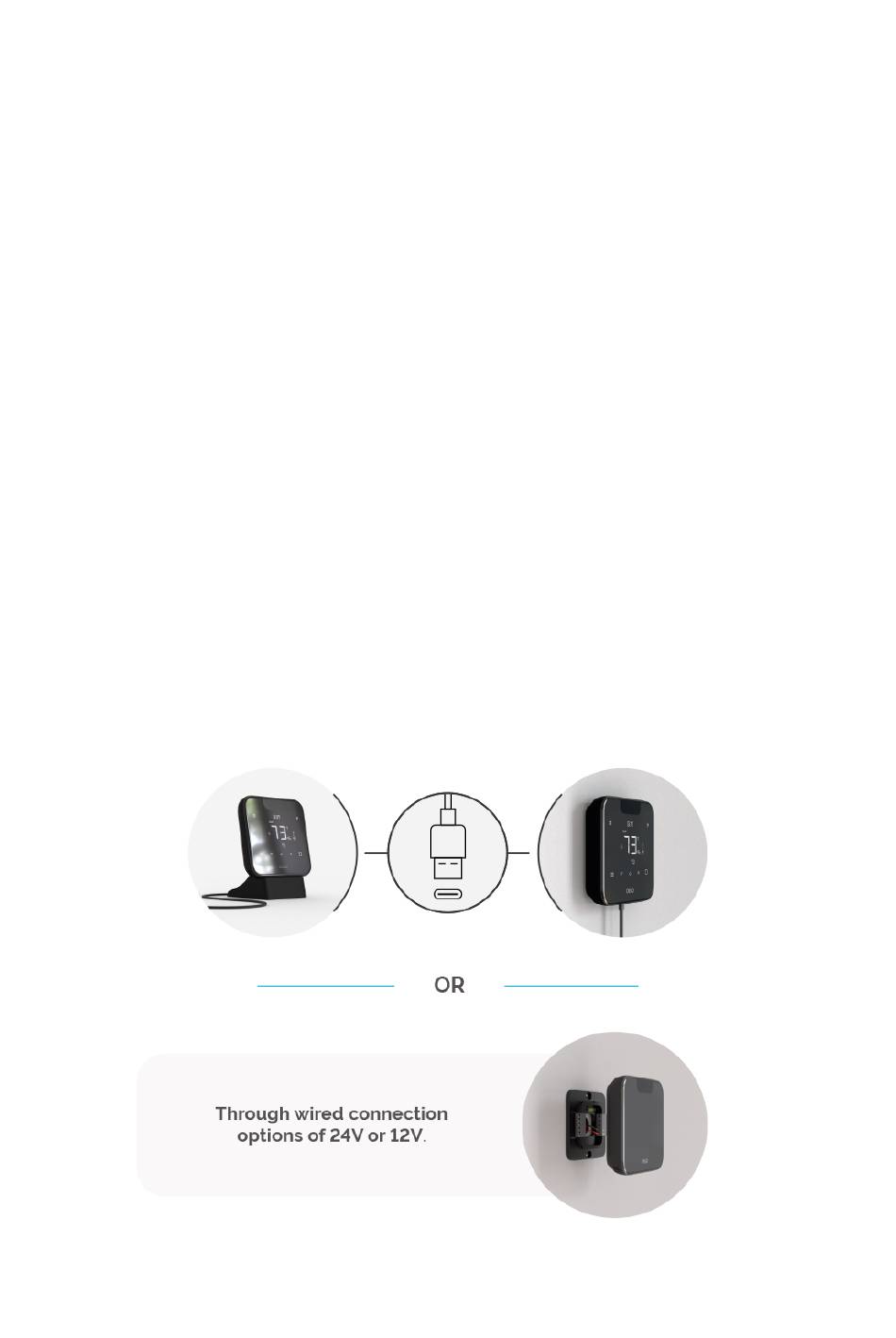

Powering Up Options
Breez Max can be powered up using a 5V adapter (always use the provided power adapter
and USB cable for optimal results).

Advertisement

loading
Need help?

Need help?

Do you have a question about the Breez Max and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cielo Breez Max

Summary of Contents for Cielo Breez Max

  • Page 1 How can I install Cielo Breez Max? Cielo Breez Max can be mounted on a wall using the backplate or placed on a table using the table stand (both included in the box). Before finalizing the placement, it is recommended to first power up, register, and test the device to ensure signals can easily reach the AC.
  • Page 2 Step 3: Take out the wires through the hole in the middle of the backplate. Screw in the backplate using the provided pair of drywall anchors and screws. Step 4: Cielo Breez Max has two terminals marked as Rc and C on its backplate. Insert red wire into Rc and black wire into C from the side (press the terminal block buttons for ease of insertion).
  • Page 3 How can I turn OFF the display screen on Cielo Breez Max? If you wish to turn off the Device display, follow the instructions given below: Step 1: On the Home screen, tap on the Breez Max device you want to turn the display On/Off for.
  • Page 4 Step 4: In Device preferences, tap on 'Display Brightness'. Step 5: Toggle the screen backlight off.
  • Page 5 Can I pair my multi-zone mini-split system with Cielo Breez Max? Yes, but you will need a separate Breez Max device for each air handler. This ensures efficient operation and personalized comfort control throughout your home. What is a mode conflict, and why does it occur in multi-zone...
  • Page 6 Cielo Breez Max offers a unique feature to avoid mode conflict and ensure uninterrupted operation with a multi-zone system. To avoid mode conflict, this feature offers two key functionalities to either: ● The Follow option enables synchronized settings across all units, meaning that if one unit is switched to heat mode while others are cooling or vice versa, all the units will switch to the latest chosen mode.
  • Page 7 Step 3: Select the mini-splits that you want to group as a multi-zone. Tap on 'Continue'. Step 4: Choose a name for your multi-zone. Also, select a suitable icon. Tap on 'Continue'.
  • Page 8 Step 5: Select from the two options; ‘Follow’ or ‘Turn Off’. Tap on 'Save'. Your multi-zone mini-split control will be activated.
  • Page 9 What is Comfy Max & how can I activate it? Comfy Max transforms Cielo Breez Max into a true smart thermostat for your mini-split. It enables your mini-split to work in a configurable and intelligent mode. With Comfy Max, your indoor environment remains consistently comfortable, eliminating the need for constant manual temperature adjustments.
  • Page 10 Your Breez Max will keep observing the room temperature with its in-built sensors, and as soon as it reaches 70F, it will signal your mini-split to minimize the heating.
  • Page 11 Step 1: On the Home screen, tap on the mini-split you want to set comfy max on. Step 2: Tap on ‘eSaver’ in the navigation bar. Step 3: Tap on 'Comfy Max'. Step 4: Tap on ‘Add Template’ to set up Comfy Max. Step 5: Choose your preferred temperature setpoints, and select whether you want the fan to run (for air circulation) after your desired cooling temperature is reached.
  • Page 12 Step 6: Your Comfy Max settings are now saved. You can turn Comfy Max 'On' from the toggle next to the name of the Comfy Max template.
  • Page 13 What is the difference between Comfy mode & Comfy Max? The purpose of both Comfy mode and Comfy Max is to automatically maintain your desired room temperature. The difference between the two is how they work. When using Comfy mode, you have to specify your preferred temperature range. In addition to that, you also have to manually add the exact AC settings (AC mode, temperature set point, and fan speed) on which you want your unit to operate after the room temperature goes above or falls below the preferred room temperature.
  • Page 14 Are there any rebates available on Cielo Breez Max? Where can I find information on eligible rebates in my area? You may be eligible for rebates when you purchase or use Cielo Breez Max. Please visit https://cielowigle.com/rebates to check for available rebates in your area. Select your utility company and follow the rebate application process.
  • Page 15 Step 4: Tap on ‘Custom Schedule’. Step 5: Select the time/days you want to set the schedule for and choose whether you want to set it up as a repeat schedule. Tap on 'Custom Settings'. Step 6: Select the power state, mode, temperature, and fan speed of your choice and tap on ‘Done’.
  • Page 16 Step 7: Tap on ‘Save’ to set up the schedule. Once the schedule is set, it will appear on the schedule tab. You can turn it On/Off by toggling the slider against the schedule.
  • Page 17 2. Scheduling a Preset Step 1: On the Home screen, tap on the Air-Conditioner / Heat Pump you want to schedule. Step 2: Tap on ‘Schedule’ in the navigation bar. Step 3: Tap on '+ Add Schedule'.
  • Page 18 Step 4: Tap on ‘Preset Schedule’. Step 5: Select the time/days you want to set the schedule for choose whether you want to set it as a repeat schedule. Step 6: Select the Preset you want to schedule.
  • Page 19 Step 7: Tap on 'Save' to set up the schedule.
  • Page 20 3. Scheduling Comfy Max To schedule Comfy Max, you need to save at least one template setting for Comfy Max in the app. After you have done that, follow the steps below to schedule your Comfy Max. Step 1: On the Home screen, tap on the mini-split you want to schedule. Step 2: Tap on ‘Schedule’...
  • Page 22 Step 4: Select ‘Comfy Max Schedule’. Step 5: Select the time and day(s) and choose whether you want to set it as a repeat schedule. Then, select your desired Comfy Max template. Once the Comfy Max schedule is set, it will appear on the schedules tab. You can enable/disable it by toggling the slider against the schedule.
  • Page 24 Edit/Delete appear. Choose your desired option and proceed. Will pre-set schedules still work in case Cielo Breez Max loses Wi-Fi connectivity? Cielo Breez Max supports offline schedules. Your pre-set schedules will work as intended even if the device looses Wi-Fi connectivity.
  • Page 25 How is the filter cleaning schedule determined in Cielo Breez Max? The air filter feature in the Breez Max calculates the number of hours your unit has run and sends you cleanliness reminders based on that. What are Presets and how can I edit them? Presets are predefined comfort settings for different situations, including Home, Away, and Sleep.
  • Page 26 Step 4: Make your desired changes and tap on the ‘Done’ button. Your Preset has been updated successfully. How can I set location-based controls (geo-fencing) using Cielo Home App connected to Cielo Breez Max? Enabling Location Control (Turn Your AC on Before You Arrive and Turn It off After...
  • Page 27 Step 4: Toggle the slider to enable Location Control, as shown in the red box. Step 5: You will see your current location on the map. Set a Geo-Fence range for your Air-Conditioner/Heat Pump between 1 - 10 Miles using the slider. Entering or exiting this range will trigger the Air-Conditioner / Heat Pump ON/ OFF.
  • Page 28 Here's how you can easily change the Wi-Fi network of your Cielo Breez Max: Step 1: On the Home screen, tap on the Breez Max device you want to change the Wi-Fi of. Step 2: Tap on the ‘Settings’ icon on the top right.
  • Page 29 Step 4: Make sure your phone's Bluetooth is turned on. Press the power-up and temperature buttons simultaneously on your Breez Max for 6 seconds. The Bluetooth icon on the screen should start blinking. Tap "Next". Step 5: Cielo Home app will show your connected device. Tap "Next".
  • Page 30 How can I create a Zone (group), add & delete a Cielo Breez Max to or from a zone and edit a created zone using Cielo Home App? A group will allow you to control all your registered devices together with a simple tap.
  • Page 31 Step 4: Tap on ‘Move to Group. Step 5: Tap on Create a new group. Step 6: Give your group a name (e.g. Ground floor, First floor, Basement, etc.) Step 7: Choose an icon. Step 8: Tap on ‘Done’. Group is created successfully.
  • Page 32 2. Adding a Device to a Group Step 1: On the Home screen, tap on the group you just created. Step 2: Tap on the Breez Max device you want to move to that group. Step 3: Tap on the ‘Settings’ icon on the top right.
  • Page 33 3. Removing a Device from a group Step 1: On the Home Screen, go to the ‘Groups’ section at the bottom and select your created group. Step 2: Tap on the device you want to remove from your group. Step 3: Go to the ‘Settings’ on the top right.
  • Page 34 Step 5: Tap on ‘Remove from Group.’ Tap on ‘Yes’. Device removed from the group successfully. Does Cielo Breez Max work without Wi-Fi or internet access? Once you've completed the setup, you'll be able to control your unit using its on-device controls, even when there is no internet access.
  • Page 35 Adjusting the temperature of your mini-split: Use the up or down button to set the temperature of your choice. Changing the mode of your mini-split: Touch the menu button once. The modes will start blinking. Use the up or down button to select the mode (e.g.
  • Page 36 4. Editing a Group Step 1: Tap on the ‘Settings’ icon of the group you wish to edit. Step 2: In group settings, tap on ‘Edit Group. You can change the icon and name of the group as you desire. Step 3: Tap on 'Done'.
  • Page 37 5. Deleting a Group Note: To delete a group, you have to remove all the devices added to it individually. You may not be allowed to delete a group otherwise. To delete a device from a group, refer to Section Step 1: Tap on the ‘Settings’...
  • Page 38 Can I use one Cielo Breez Max to control two mini-splits? Ideally, it is recommended to use one Cielo Breez Max to control one mini-split at a time. However, If both mini-splits are of the same make and model, you can use one Cielo Breez...
  • Page 39 Max to manage them. They should be within the controller's line of sight, ensuring both units receive the IR signals transmitted by the controller. Step 4: Tap on ‘Add Template' to set up a Comfy Humidity template. Step 5: Select what actions to perform if the humidity falls below or goes above the set range e.g.
  • Page 40 You can turn Comfy Mode On/Off from the app control screen. Step 7: Tap on the 'Up' arrow icon at the bottom of the control screen. Step 8: On the pop-up navigation bar, tap on 'Comfy' to toggle it On or Off. Currently, it is turned 'Off', shown by the greyed-out icon.
  • Page 41 How can I set comfy temperature mode using Cielo Home app connected to Cielo Breez Max? You can set up comfy temperature mode for your air conditioner/heat pump by performing these steps via the Cielo Home app: Step 1: On the Home screen, tap on the air conditioner/heat pump you want to set comfy temperature mode on.
  • Page 42 Step 4: Tap on 'Add Template' under the Comfy Temperature heading. Step 5: Select what actions to perform if the temperature falls below or goes above the set range, e.g. turning the AC off or on, changing its mode, temperature, fan speed, and swing position to help it get back into the preferred temperature range.
  • Page 43 Note: You can set up multiple Comfy settings through Comfy templates. Each of the templates can be turned 'On' or 'Off' from the toggle next to its name. You can have a different Comfy Mode for the morning, a different mode for the afternoon, and so on. Step 7: You can turn Comfy Mode On/Off from the app control screen.
  • Page 44 To calibrate your device temperature sensor, follow the instructions mentioned below: Step 1: On the Home screen, tap on the Breez Max you want to calibrate. Step 2: Tap on the ‘Settings’ icon on the top right.
  • Page 45 Step 4: Tap on 'Calibration'. Step 5: Calibrate the temperature by tapping - or + according to your requirements. Step 6: Tap on ‘Apply’. How can I check the timeline of actions I performed on my air conditioner/heat pump connected to Cielo Breez Max?
  • Page 46 Step 3: You'll see a complete list of actions performed over the last 90 days. How can I check the usage history of my air conditioner/heat pump connected to Cielo Breez Max? To check the usage history of your air conditioner/heat pump, follow the instructions given...
  • Page 47 How to change temperature setting between Fahrenheit(F°) and Celsius(C°) on your Breez Max using Cielo Home App? During registration of the device you can either auto detect your remote or opt for manual configuration. When going for auto remote detection your remote model will be selected for you.
  • Page 48 Step 4: Tap on ‘Temperature Unit’. Step 5: Select your preferred unit. Note that changing temperature unit will delete your current schedule, statistics and timeline. Tap ‘Yes’ to proceed. Note: In case the option of switching between Fahrenheit & Celsius doesn't show, you can still select your desired remote model with desired temperature setting via change appliance.
  • Page 49 Step 1: On the Home screen, tap on the Breez Max device you want to change the appliance for. Step 2: Tap on the ‘Settings’ icon on the top right. Step 3: Tap on ‘Change Appliance’. Step 4: Tap on 'Manual Configuration'.
  • Page 50 Step 7: Tap on 'Confirm' once you have selected the correct AC manufacturer and remote model. Step 8: Once selected, send a test On/Off command to your AC. Once the AC accepts the command, tap on 'Done'.
  • Page 51 How can I set Temperature Range Lock on Breez Max so that users can operate the mini split, window or portable unit within the defined range only? Temperature range lock allows you to lock a temperature range of your choice. You can set a minimum and maximum value for your air conditioner to operate within.
  • Page 52 Can I set 'Follow Me' mode on Breez Max? Cielo provides the 'Follow Me' feature for compatible ACs / Heat Pumps. To turn the feature 'On' or 'Off' from the Cielo Home App, follow the instructions mentioned below: Step 1: On the Home screen, tap on the Air-Conditioner / Heat Pump you want to set 'Follow Me' for.
  • Page 53 The icon will now turn white and the 'Follow Me' feature is now active.
  • Page 54 6 seconds. How to manually reset Wi-Fi of Breez Max? To reset the Wi-Fi of Breez Max, press and hold the Power and Temperature Up buttons simultaneously for 6 seconds. The Bluetooth icon on the screen should start blinking.
