How do I install Cielo Smart Thermostat with a C-wire?
Installing Cielo Smart Thermostat with a C-wire
Tools you need:
- Drill for mounting anchors (3/16" drill bit)
- Small flathead screwdriver
- Phillips screwdriver
- Wire stripper (optional)
- Hammer (optional)
- Pencil (optional)

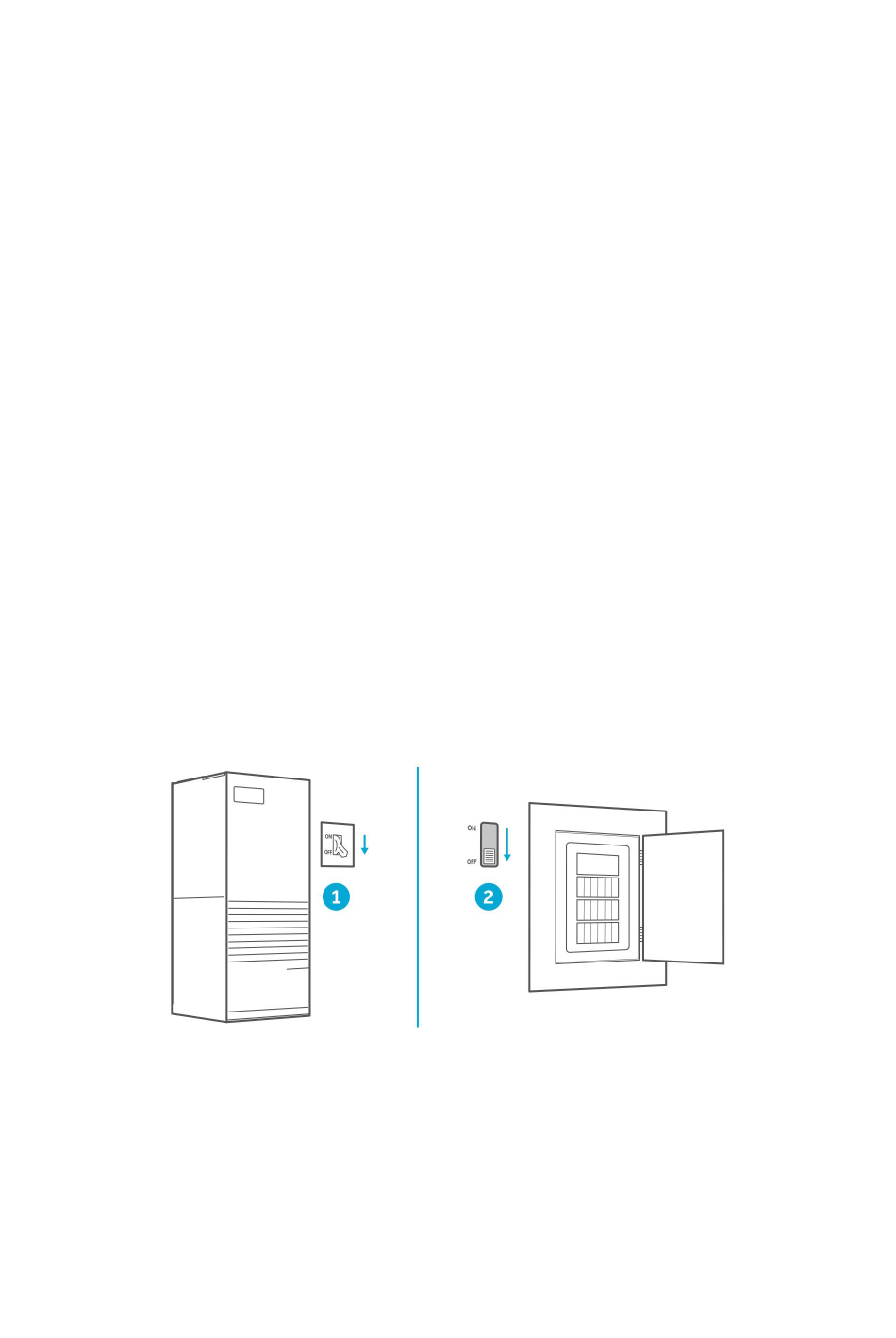

Step 1: Power off your HVAC system using the:
1. The master switch OR
2. The circuit breaker
Step 2: To be on the safe side, ensure that your system is completely switched off.
Double-check that:
1. No air is coming out of air vents

Advertisement

loading
Need help?

Need help?

Do you have a question about the Smart and is the answer not in the manual?

Questions and answers

Related Manuals for Cielo Smart

Summary of Contents for Cielo Smart

  • Page 1 How do I install Cielo Smart Thermostat with a C-wire? Installing Cielo Smart Thermostat with a C-wire Tools you need: - Drill for mounting anchors (3/16” drill bit) - Small flathead screwdriver - Phillips screwdriver - Wire stripper (optional) - Hammer (optional)
  • Page 2 2. Main flame is extinguished in case of boiler. Step 3: Go to your already installed thermostat and remove it from the wall. Step 4: Look closely for any of the following indicators on your old thermostat’s backplate:...
  • Page 3 In case of no such indicators, you can continue with the installation. WARNING: Cielo Smart Thermostat only works with 24V AC. It does not work with line (high) voltage or millivolt systems Step 5: Grab your smartphone and take a picture of your old thermostat wiring.
  • Page 4 Step 7: Optional: You may use the provided wall plate to hide marks or holes on the wall left by your old thermostat installation. Step 8: 1. Take out the labeled wires through the hole in the middle of the Cielo Smart Thermostat backplate. 2. Screw in the backplate using the provided pair of drywall anchors and screws.
  • Page 5 Step 9: Do you have more than one R-Wire? (That includes R, RC, and RH) Yes? Insert your wires: RH > RH R or RC > RC...
  • Page 6 Step 11: Gently push the excess wires back into the center hole of the backplate to ensure that no drafts are coming from the hole. Step 12: Align your Cielo Smart Thermostat with the backplate and press gently to fix it properly.
  • Page 7 Step 13: Go to your HVAC system and turn on the power from the master switch or circuit breaker. Step 14: Welcome screen is displayed on Cielo Smart Thermostat! Follow the on-screen instructions to set up your thermostat. All Done! Enjoy your smart home climate control.
  • Page 8 ● Y/Y1 > CWA How do I install Cielo Smart Thermostat with a C-wire adapter? Installing Cielo Smart Thermostat when you don't have a C-wire using a C-wire adapter. Tools you need: - Drill for mounting anchors (3/16” drill bit)
  • Page 9 Step 1: Power off your HVAC system using the: 1. The master switch OR 2. The circuit breaker Step 2: To be on the safe side, ensure that your system is completely switched off. Double-check that: 1. No air is coming out of air vents 2.
  • Page 10 In case of no such indicators, you can continue with the installation. WARNING: Cielo Smart Thermostat only works with 24V AC. It does not work with line (high) voltage or millivolt systems Step 5: Grab your smartphone and take a picture of your old thermostat wiring.
  • Page 11 Step 6: Take out the C-Wire Adapter (CWA) from the Cielo Smart Thermostat box. Step 7: Your system should have the following wires to work with the C-Wire Adapter:...
  • Page 12 Step 8: Grab the C-Wire Adapter, wire labels, tools, your smartphone, and go to your HVAC system. Step 9: Take off your HVAC system’s cover to access the control board and take a picture of the connected wires. You may need it at a later stage.
  • Page 13 Step 10: Label only the following wires with the matching labels: Note: In the case of a two-transformer system (wires connected to both RC and RH terminals at the control board), please contact Cielo support to help you with installation. Call: +1 (425) 529-5775 Email: support@cielowigle.com...
  • Page 14 Step 12: Securely connect the wires from the control board to their matching terminals on the CWA. Step 13: Securely connect all the wires coming out of the C-Wire Adapter to the corresponding terminals on the control board of your HVAC system.
  • Page 15 Step 14: Place/mount the CWA at a suitable location inside your HVAC system. Close the HVAC cover panel securely and return to your old thermostat. Step 15: 1. Disconnect the old thermostat wires one by one and mark them using the wire labels (included in the box).
  • Page 16 2. Remove the mounting plate of your old thermostat. Step 16: Optional: You may use the provided wall plate to hide marks or holes on the wall left by your old thermostat installation.
  • Page 17 Step 17: 1. Take out the labeled wires through the hole in the middle of the Cielo Smart Thermostat backplate. 2. Screw in the backplate using the provided pair of drywall anchors and screws. Step 18: First, connect these 3 wires as shown: Then, connect the remaining wires to their corresponding terminals (press terminal block buttons for ease of insertion).
  • Page 18 Step 19: Gently push the excess wires back into the center hole of the backplate to ensure that no drafts are coming from the hole. Step 20: Align your Cielo Smart Thermostat with the backplate and press gently to fix it properly.
  • Page 19 Step 22: Welcome screen is displayed on Cielo Smart Thermostat! Follow the on-screen instructions to set up your thermostat. All Done! Enjoy your smart home climate control. Troubleshooting If your Cielo Smart Thermostat doesn’t turn on, please try these steps: 1.
  • Page 20 How to connect Cielo Smart Thermostat to the Cielo Home app? To connect the Cielo Smart Thermostat to the Cielo Home app, follow the steps mentioned below: Step 1: On the thermostat, tap on the 'Menu' icon. Step 2: Select 'Registration'.
  • Page 21 Step 3: Tap on 'Get Registration Code'. You will be presented with a unique six-digit code that will be valid for the next 30 minutes. Step 4: Open the Cielo Home app, tap ‘Add Device' on the home screen, and select Smart Thermostat from the list of devices.
  • Page 22 Step 5: Tap on 'Start Registration', enter the six-digit code, and tap 'Next'.
  • Page 23 You have successfully connected the Cielo Home app with the thermostat.
  • Page 24 How to lock Cielo Smart Thermostat with a pin code? Locking Your Thermostat Using the Device Step 1: Go to 'Menu' and select 'Device Preferences'.
  • Page 25 Step 2: Select ‘Screen Lock’. Toggle the screenlock button to set your passcode. Step 3: Enter your passcode. Re-enter it. Your thermostat screen will be locked. You can unlock it using this passcode.
  • Page 26 Locking Your Thermostat Using Cielo Home App Step 1: On the Control Screen, tap on the ‘Settings’ icon at the top right corner. Step 2: Tap on ‘Device Preferences’.
  • Page 27 Step 3: Toggle the screenlock button to set your passcode. Step 4: Enter your passcode. Re-enter to confirm the passcode. Your thermostat screen will be locked. You can unlock it using this passcode.
  • Page 28 How to rename your Cielo Smart Thermostat? Changing Device Name Using the Thermostat Step 1: Go to 'Menu' and select 'Device Preferences'.
  • Page 29 Step 2: Select ‘Device Name’. Step 3: Select an existing name from the list or enter your own. Using the Cielo Home App Step 1: On the Home screen, tap on the Thermostat. Step 2: Tap on the ‘Settings’ icon on the top right.
  • Page 30 Step 4: Tap on ‘Change Name’. Step 5: Select the new name from a list of common names or type a custom name. Step 6: Type the device's new name and tap on 'Done'. The device name is now changed.
  • Page 31 2 degrees. 3. Set temperature, e.g. Hey Alexa, set Cielo Thermostat Eco to 72 degrees. 4. Ask the current set temperature of the thermostat, e.g. Hey Alexa, what is Cielo Thermostat set to? 5. Ask the current temperature reading or ambient temperature detected by the device, e.g.
  • Page 32 " Note: This limitation applies only when using the device. You won't face this issue when using the Cielo Home app to connect your thermostat to the Wi-Fi. If you are still unable to connect your thermostat to the Wi-Fi router, please contact Cielo...
  • Page 33 How to configure O/B reversing valve for idle state in Cielo Smart Thermostat? Configuring O/B reversing valve in Cielo Smart Thermostat Step 1: Go to 'Menu' and select 'HVAC Settings'. Step 2: Select 'HVAC System'. Step 3: Tap on ‘Heat Pump’.
  • Page 34 ‘Same’ or ‘Off’. This depends on whether you want the O/B valve to stay energized until the opposite of heating or cooling is called or to be left unenergized whenever there is no heating or cooling. (Tap on the tooltip to learn about these settings.) Configuring O/B reversing valve via Cielo Home App...
  • Page 35 Step 1: On the Control Screen, tap on the ‘Settings’ icon at the top right corner. Step 2: Tap on ‘Device Preferences’. Step 3: Tap on 'HVAC Settings'. Step 4: Tap on ‘HVAC system’, then ‘Heat Pump Preferences.’ Step 5: You can choose whether the O/B reversing valve in the idle state should remain ‘Same’...
  • Page 36 How to change the time format on Cielo Smart Thermostat? Changing Time Format Using the Thermostat To change the time format, follow the steps mentioned below. Step 1: Go to 'Menu' and select 'Date and Time'. Step 2: Toggle the button to choose a 12 or 24-hour time format.
  • Page 37 Changing Time Format Using the Cielo Home App Step 1: Go to settings by tapping the 'Settings' icon on the control screen. Step 2: Tap on ‘Device Preferences’. Step 3: Tap on 'Date & Time'. Step 4: Use the toggle to change the time format between 12 to 24 hours and vice versa.
  • Page 38 How to access HVAC settings on Cielo Smart Thermostat? This gives you information about the equipment you have installed. Accessing HVAC settings on Cielo Smart Thermostat Step 1: Go to 'Menu' and select 'HVAC Settings'.
  • Page 39 Step 2: Select 'HVAC System'. Step 3: Your configured equipment is shown on the screen. For Equipment Configuration: Step 1: Go to 'Menu' and select 'HVAC Settings'.
  • Page 40 The thermostat will auto-detect the connected wires. If the wires are correct, tap 'Next'. Otherwise, tap 'Modify' for manual configuration. Accessing HVAC settings on Cielo Home App Step 1: On the Control Screen, tap on the ‘Settings’ icon at the top right corner.
  • Page 41 Step 3: Tap on 'HVAC Settings'. Step 4: Tap on 'HVAC System'. Step 5: Tap on 'Configured Equipment' You can check your currently configured HVAC equipment.
  • Page 42 Changing Your Equipment's Preferences Step 1: On the Control Screen, tap on the ‘Settings’ icon at the top right corner. Step 2: Tap on ‘Device Preferences’. Step 3: Tap on 'HVAC Settings'.
  • Page 43 Step 4: Tap on 'HVAC System' Step 5: You'll see your configured equipment preferences here. In this case, heat pump & Aux. Select the equipment you want to change the preferences of. Step 6: Make your desired changes and tap on 'Apply'. (Tap on the tooltip to learn about these settings)
  • Page 44 Changing Your Currently Configured HVAC Equipment Step 1: On the Control Screen, tap on the ‘Settings’ icon at the top right corner. Step 2: Tap on ‘Device Preferences’. Step 3: Tap on 'HVAC Settings'. Step 4: Tap on 'Reconfigure Equipment'...
  • Page 45 Step 5: Tap on 'Modify' and select 'Yes'. Step 6: Select the terminals that have wires connected to them. Then tap 'Next'. Step 7: You will see your newly configured HVAC equipment. Tap 'Next'. Step 8: Based on your wire selection, this step requires you to select your heating source and determine how you want your system to work.
  • Page 46 Step 9: Choose your preferred temperature unit and tap 'Next'. Step 10: Personalize your desired comfort settings for Home, Away, or Sleep. Your new HVAC equipment is now configured. How do I check the details of my Cielo Smart Thermostat? Checking Details of Your Thermostat Step 1: Go to 'Menu' and select 'About'.
  • Page 47 Step 2: Tap on ‘About Device You can see the device details here. What is cycle rate and how to adjust it on Cielo Smart Thermostat? The cycle rate refers to how frequently the thermostat turns your heating or cooling system on and off to maintain the desired temperature in your home.
  • Page 48 Cielo Smart Thermostats allow you to adjust the ‘Minimum On Time’ and ‘Minimum Off Time’. Dividing 60 by the sum of these values will give you the cycle rate. Here’s how you can adjust the Minimum On and Off Time on your Cielo Smart Thermostat.
  • Page 49 Step 6: Adjust ‘Minimum On Time’ and ‘Minimum Off Time’. Here’s how you can adjust the Minimum On and Off Time on your Cielo Home App. Step 1: Go to settings by tapping the 'Settings' icon on the control screen.
  • Page 50 Step 4: Tap on 'Threshold Settings'. Step 5: Select 'Advanced' to change threshold settings according to your own preferences.
  • Page 51 Step 6: Tap on ‘Heat Pump’ under ‘Equipment Thresholds’. Step 7: Adjust ‘Minimum On Time’ and ‘Minimum Off Time’. Tap on 'Save'.
  • Page 52 How to switch temperature units between Centigrade and Fahrenheit on Cielo Smart Thermostat? Switching temperature units on Cielo Smart Thermostat Step 1: Go to 'Menu' and select 'Device Preferences'.
  • Page 53 Step 2: Select ‘Temperature Unit’. Step 3: Select your preferred temperature unit. Switching temperature units on Cielo Home App Step 1: Go to settings by tapping the 'Settings' icon on the control screen. Step 2: Tap on ‘Device Preferences’.
  • Page 54 Step 3: Tap on the C to F toggle against 'Temperature Unit'. Step 4: Your device's temperature units are changed successfully from Fahrenheit to Celsius.
  • Page 55 How do I test my HVAC system with Cielo Smart Thermostat? Cielo Smart Thermostat provides a convenient way to test your HVAC system through the Cielo Home app. Note: It's advisable to test your unit before seasonal transitions to ensure it operates efficiently.
  • Page 56 Step 3: Go to ‘HVAC Settings’. Step 4: Tap on ‘Test Equipment’. Step 5: Tap ‘Yes’ to proceed.
  • Page 57 The options shown on the Test Equipment screen will vary based on your configured equipment. For instance, if you only have a heat pump, the available options will differ from when you have both a heat pump and auxiliary heat connected. Next, you will find the system components available for testing (depending on your configured equipment).
  • Page 58 How to reconfigure your equipment using Cielo Smart Thermostat? Equipment Reconfiguration Using Cielo Smart Thermostat Step 1: Go to 'Menu' and select 'HVAC Settings'.
  • Page 59 The thermostat will auto-detect the connected wires. If the wires are correct, tap 'Next'. Otherwise, tap 'Modify' to configure manually. Using Cielo Home App Step 1: On the Control Screen, tap on the ‘Settings’ icon at the top right corner.
  • Page 60 Step 5: Tap on 'Modify' and select 'Yes'. Step 6: Select the terminals that have wires connected to them. Then tap 'Next'. Step 7: You will see your newly configured HVAC equipment. Tap 'Next'. Step 8: Based on your wire selection, this step requires you to select your heating source and determine how you want your system to work.
  • Page 61 Step 10: Personalize your desired comfort settings for Home, Away, or Sleep. Your new HVAC equipment is now configured. How can I create a Zone (group), add & delete a Cielo Smart Thermostat to or from a zone and edit a created zone using Cielo Home App A group will allow you to control all your registered devices together with a simple tap.
  • Page 62 Step 5: Tap on ‘Add’ to create a group. Step 6: Give your group a name (e.g. First Floor, Second Floor, etc.) Step 7: Choose an icon. Step 8: Group is created successfully. 2. Adding a Device to a Group...
  • Page 63 Step 1: On the Home screen, tap on your Cielo Smart Thermostat. Step 2: Tap on the ‘Settings’ icon on the top right. Step 3: Tap on ‘Device Preferences’. Step 4: Tap on ‘Move to Group’. Step 5: On the Group screen, you will see a list of all of your active groups. Tap on the group you wish to move the device to.
  • Page 64 3. Removing a Device from a group Step 1: On the Home Screen, go to the ‘Groups’ section at the bottom and select your created group. Step 2: Tap on the device you want to remove from your group. Step 3: Go to the ‘Settings’ on the top right.
  • Page 65 Step 4: Tap on ‘Device Preferences’. Step 5: Tap on ‘Remove from Group.’ Device removed from the group successfully.
  • Page 66 4. Editing a Group Step 1: Tap on the ‘Settings’ icon of the group you wish to edit. Step 2: In group settings, tap on ‘Edit Group. You can change the icon and name of the group as you desire. Step 3: Tap on 'Done'.
  • Page 67 5. Deleting a Group Note: To delete a group, you have to remove all the devices added to it individually. You may not be allowed to delete a group otherwise. To delete a device from a group, refer to Section Step 1: Tap on the ‘Settings’...
  • Page 68 Threshold settings allow you to optimize the performance of your HVAC system to enhance its energy efficiency. Temperature Difference You can set the minimum temperature difference your Cielo Smart Thermostat takes into account before engaging in heating and cooling. Step 1: Go to 'Menu' and select 'HVAC Settings'.
  • Page 69 Step 2: Select ‘Threshold Settings’. Step 3: Select ‘Temperature Difference’. Step 4: Use the up and down arrows to set the temperature difference for Heat and Cool. Heat Pump Settings Step 1: Go to 'Menu' and select 'HVAC Settings'. Step 2: Select ‘Threshold Settings’. Step 3: Select ‘Heat Pump’.
  • Page 70 In case the compressor is activated but the call is terminated abruptly, the compressor will run for the set duration before shutting down. Changing Threshold Settings on Cielo Home App Step 1: On the Control Screen, tap on the ‘Settings’ icon at the top right corner.
  • Page 71 Step 2: Tap on ‘Device Preferences’. Step 3: Tap on 'HVAC Settings'. Step 4: Tap on 'Threshold Settings'. Step 5: You can choose from the premade threshold templates (energy saver, optimal, or comfort) or select 'Advanced' to change settings according to your own preferences.
  • Page 72 Advanced Threshold Settings...
  • Page 73 Temperature Difference: - Heat Temperature Difference: Minimum difference between the heating setpoint and indoor temperature. - Cool Temperature Difference: Minimum difference between the cooling setpoint and indoor temperature.
  • Page 74 Equipment Thresholds -Temperature Thresholds 1- Temperature Difference Stage 2: This is the difference between your indoor and setpoint temperature before stage 2 is activated to help achieve the setpoint. Setting a higher number will result in more savings because stage 2 may not be activated frequently. In normal weather conditions, HVAC systems can efficiently maintain indoor temperature using stage 1 only and save you energy.
  • Page 75 The maximum runtime for stage 1 before stage 2 is activated to achieve the temperature setpoint. 2- Minimum Off Time: The minimum OFF time of the heating or cooling system before the thermostat turns it ON again. (A minimum value of 5 minutes is recommended to prevent the system from short cycling.
  • Page 76 Equipment Stage Control: Stage Control ON - Stage 2 of your equipment automatically turns off as your home temperature approaches your setpoint, and stage 1 can efficiently reach your setpoint on its own. OFF - Your equipment will keep on running in stage 2 until your setpoint is achieved. Aux to Heat Pump ON - Auxiliary heat is automatically turned off as your home temperature approaches the setpoint, while the heat pump operates to attain your desired temperature.
  • Page 77 Cielo's IFTTT Channel). Tap on the Cielo Home icon and click Connect. Step 2: You will be asked to authorize connecting your Cielo Home account to IFTTT. Click Authorize to continue. Step 3: Enter your Cielo Home credentials and select Sign In.
  • Page 78 How can I change the minimum gap between Heat and Cool setpoints of my Cielo Smart Thermostat? Using the Thermostat You can change the minimum gap between Heat and Cool setpoints on your Cielo Smart Thermostat by following the steps below: Step 1: Go to 'Menu' and select 'Device Preferences'.
  • Page 79 Using the Cielo Home app Step 1: On the Control Screen, tap on the ‘Settings’ icon at the top right corner. Step 2: Tap on ‘Device Preferences’.
  • Page 80 Step 3: Tap on 'Heat/Cool/Delta'. Step 4: Use the + or - sign to adjust your preferred temperature difference. Tap on ‘Save’.
  • Page 81 How Can I Reset My Cielo Smart Thermostat? Resetting Cielo Smart Thermostat A. Resetting Preferences and Schedules Resetting Preferences and Schedules will delete all the current settings and preferences, including schedules, hold settings, and motion detection. Step 1: Go to 'Menu' and select 'Reset'.
  • Page 82 Step 2: Select ‘Reset Preferences and Schedules’. Step 3: Tap "Yes'. B. Factory Reset By selecting Factory Reset, your thermostat will be completely erased, restoring it to its factory settings. Step 1: Go to 'Menu' and select 'Reset'.
  • Page 83 Step 2: Select ‘Factory Reset’. Step 3: Tap "Yes'. Resetting Thermostat Reset Preferences: Step 1: On the Control Screen, tap on the ‘Settings’ icon at the top right corner. Step 2: Tap on ‘Device Preferences’.
  • Page 84 Step 3: Tap on ‘Reset’. Step 4: Tap on ‘Reset’, and then tap on ‘Continue’.
  • Page 85 - Factory Reset Step 1: On the Control Screen, tap on the ‘Settings’ icon at the top right corner. Step 2: Tap on ‘Device Preferences’.
  • Page 86 Step 3: Tap on ‘Reset’. Step 4: Tap on ‘Factory Reset’. Step 5: Tap on ‘Continue’. Note: Factory Reset will delete all your schedules, preferences, HVAC equipment settings, remove the thermostat from your account.
  • Page 87 How Do I Turn on Motion Detection on My Cielo Smart Thermostat? Your thermostat can automatically detect your presence and activate the control screen. You can also set it up to switch from Away to Home settings when motion is detected.
  • Page 88 Step 2: Select ‘Motion Detection’. Step 3: Toggle the button to turn on motion detection. Using the App Step 1: On the Control Screen, tap on the ‘Settings’ icon at the top right corner. Step 2: Tap on ‘Device Preferences’.
  • Page 89 Step 3: Tap on 'Motion Detection'. Step 4: Toggle the button to turn on motion detection.
  • Page 90 How Do I Change the Brightness on My Cielo Smart Thermostat? Adjusting Screen Brightness You can adjust the screen brightness of both the Control and Standby screens. Step 1: Go to 'Menu' and select 'Device Preferences'.
  • Page 91 Step 2: Select ‘Display Brightness’. Step 3: Use the slider to adjust the brightness. Using the App Step 1: Go to settings by tapping the 'Settings' icon on the control screen. Step 2: Tap on ‘Device Preferences’.
  • Page 92 Step 3: Tap on 'Display & Brightness'. Step 4: Use the slider to adjust the brightness.
  • Page 93 What Do the Icons on Cielo Smart Thermostat Mean? Know Your Thermostat...
  • Page 94 Mode Indicates your current thermostat settings (Heat/Cool/Auto/AUX/Off). Tap on the mode icon and select your preferred mode. Humidity Displays humidity levels in your home. Indoor Temperature Displays your current home temperature. Set Point Shows temperature set point. Set your preferred temperature by tapping on it and then use the up &...
  • Page 95 If you're planning to be away for an extended period, the Vacation Mode can help you conserve energy while ensuring that your home will be comfortable when you return. Setting up Vacation Mode in Cielo Smart Thermostat Setting Up Vacation Mode Step 1: Go to 'Menu' and select 'Vacation'.
  • Page 96 Step 2: Enter the start date and time. Step 3: Tap 'Start Settings' and select your preferred temperature and fan settings. Step 4: Tap the back arrow.
  • Page 97 Step 5: Enter the end date and time. Step 6: Tap 'End Settings' and select your preferred temperature and fan settings. Tap back arrow Step 7: Tap 'Save'. Your Vacation Mode is now saved.
  • Page 98 Editing/Deleting Vacation Mode Step 1: Tap on the saved vacation and make your desired changes. Tap 'Save'. Step 2: If you wish to delete the vacation schedule, tap the delete icon on the top right corner of the screen.
  • Page 99 Setting up Vacation Mode Using Cielo Home App Step 1: On the Control screen, Tap on 'e-saver' in the navigation bar. Step 2: Tap on ‘Vacation Mode'. Step 3: Set start and end date/time, and set your preferred temperature settings, Step 4: Tap on 'Done'.
  • Page 100 Editing/Deleting Vacation Mode Step 1: On the Control screen, Tap on 'e-saver' in the navigation bar. Step 2: Tap on ‘Vacation Mode'. Step 3: You have the option to edit or delete the vacation at the bottom of the screen.
  • Page 101 Are there any rebates available on Cielo Smart Thermostat? Where can I find information on eligible rebates in my area? You may be eligible for rebates when you purchase or use Cielo Smart Thermostat. Please visit https://cielowigle.com/rebates to check for available rebates in your area. Select your utility company and follow the rebate application process.
  • Page 102 D. 'Do not Hold' will not hold the current settings. Your schedules or geofencing will work as intended (if any). How to Connect Cielo Smart Thermostat to the Cielo Home App? Step 1: On the thermostat, tap on the 'Menu' icon.
  • Page 103 Step 4: Open the Cielo Home app, tap ‘Add Device' on the home screen, and select Smart Thermostat from the list of devices. Step 5: Tap on 'Start Registration', enter the six-digit code, and tap 'Next'. You have successfully connected the Cielo Home app with the Cielo Smart Thermostat.
  • Page 104 How to set the location on Cielo Smart Thermostat to get weather info? To get weather info on your thermostat, follow the steps mentioned below: Step 1: Go to settings by tapping the 'Settings' icon on the control screen. Step 2: Tap on ‘Device Preferences’.
  • Page 105 Step 4: Tap on 'Begin'. Step 5: Enter your address and tap on 'Next'. Step 6: Add a label to your address and tap on 'Done'.
  • Page 106 How to calibrate temperature and humidity on Cielo Smart Thermostat? Calibrating Temperature & Humidity on Cielo Smart Thermostat Step 1: Go to 'Menu' and select 'Device Preferences'. Step 2: Select ‘Temperature Calibration’. Step 3: Use the up/down arrows to adjust the temperature or humidity as required.
  • Page 107 Calibrate Indoor Temperature Step 1: On the Control Screen, tap on the ‘Settings’ icon at the top right corner. Step 2: Tap on ‘Device Preferences’. Step 3: Tap on 'Calibration'. Step 4: Calibrate temperature by tapping the + or - sign. Tap on ‘Save’.
  • Page 108 Calibrate Indoor Humidity Step 1: On the Control Screen, tap on the ‘Settings’ icon at the top right corner. Step 2: Tap on ‘Device Preferences’.
  • Page 109 Step 3: Tap on 'Calibration'. Step 4: Tap on ‘Humidity’. Step 5: Calibrate humidity by tapping the + or - sign. Tap on ‘Save’.
  • Page 110 How Can I Set Schedules on Cielo Smart Thermostat? Cielo Smart Thermostat lets you set intelligent cooling/heating schedules so you can enjoy a true smart home experience and maximize your energy savings. Setting up schedules using your Cielo Smart Thermostat Step 1: Go to 'Menu' and select 'Schedules'.
  • Page 111 Step 3: Select the time and day(s) on which you want the schedule to run. Step 4: Select the 'Preset' you want to add to your schedule, in this case, 'Home.' You can also add a custom schedule by selecting ‘Custom’ in Presets. Step 5: Tap 'Add'.
  • Page 112 Step 3: Make your desired changes or tap the 'delete' icon if you wish to delete the schedule. Setting up a schedule using the Cielo Home App Setting up Custom Schedules Step 1: On the Control screen, tap on 'Schedule' in the navigation bar.
  • Page 113 Step 4: Select the time and day(s) on which you want the schedule to run. Step 5: Tap on 'Configure' and set your Heat and Cool setpoints as per your preference, then tap 'Done'.
  • Page 114 Step 6: Now tap on 'Save'. Your custom schedule is now set.
  • Page 115 Setting up Preset Schedules Step 1: On the Control screen, tap on 'Schedule' in the navigation bar. Step 2: Tap on the '+ Add Schedule' icon.
  • Page 116 If you already have a schedule added, the '+' icon will appear in the top right corner.
  • Page 117 Step 3: Tap on 'Preset Schedule'. Step 4: Select the time and day(s) on which you want the schedule to run. Step 5: Select the 'Preset' you want to schedule., i.e., Home, Away, Sleep, Pets. Tap 'Done'.
  • Page 118 Step 6: Now tap on 'Save'. Your preset schedule is now set.
  • Page 119 Choose your desired option and proceed. You can also swipe left to right till the edge of the screen to delete the schedule. How Can I Add/Edit a Preset on Cielo Smart Thermostat? You can enjoy a truly tailored experience with predefined comfort settings, including Home, Away, Sleep, and Pets.
  • Page 120 Step 2: Select the 'Preset' you want to apply. Step 3: Tap on the temperature setpoints to change them to your preferred settings. Setting a Preset Using Cielo Home App Step 1: On the Control screen, tap on the 'Presets' icon.
  • Page 121 Editing a Preset Step 1: On the Control Screen, tap on the ‘Settings’ icon at the top right corner. Step 2: Tap on 'Presets'. Step 3: Select the Preset you want to edit.
  • Page 122 Step 4: Adjust the heating and cooling setpoint. Tap on 'Save' once done.
  • Page 123 How to Change Fan Settings on Your Cielo Smart Thermostat? Changing Fan Settings On Cielo Smart Thermostat Step 1: Go to 'Menu' and select 'Fan Settings'. Step 2: You have the option to run the fan on Auto, set a timer, or turn it on continuously.
  • Page 124 Changing Fan Settings Using Cielo Smart Home App Step 1: On the Control screen, tap on the fan icon. Step 2: You have the option to run the fan on Auto, set a timer, or turn it on continuously.
  • Page 125 Step 1: Go to 'Menu' and select 'Wi-Fi'. Step 2: Select 'Change Wi-Fi'. Step 3: You can either change Wi-Fi on the device or use the Cielo Home app. In this case, tap on ‘Change Wi-Fi’ here. It will start scanning, and a list of available Wi-Fi networks will appear.
  • Page 126 Step 6: Tap 'Finish'. Changing the Wi-Fi Network Using Cielo Home App Step 1: Go to 'Menu' on your Cielo Smart Thermostat. Step 2: Tap on 'Wi-Fi'. Step 3: Tap on 'Change Wi-Fi'. Step 4: Select 'Change Wi-Fi using App'. It will start the Wi-Fi configuration.
  • Page 127 Step 5: Now open the Cielo Home app. On the Control Screen, tap on the ‘Settings’ icon at the top right corner. Step 6: Tap on ‘Device Wi-Fi’. Step 7: Please give the required permissions and tap on 'Continue'.
  • Page 128 Step 8: It will start searching for your smart thermostat. It will take a few seconds. Tap ‘Connect’ to proceed. Step 9: Choose your desired internet connection and enter your password to connect the smart thermostat to the internet.
  • Page 129 How to set up geofencing on Cielo Smart Thermostat? Enabling Geofencing or Location-Based Controls (Turn Your HVAC system on Before You Arrive and Turn It off After You Have Left the Pre-set Location) You can configure location-based controls for your HVAC system by performing these steps via the Cielo Home app: Step 1: On the Control screen, Tap on 'e-saver' in the navigation bar.
  • Page 130 Step 4: You will see your current location on the map. Set a geofence range between 1 - 10 Miles using the slider. Entering or exiting this range will trigger the Presets. Tap on 'Next'. Step 5: Select the preset you want to set when you enter or exit the location. Tap on 'Done'. Geofencing has been enabled.
  • Page 131 Check your circuit breaker. If you notice that it has tripped, reset it to power on your thermostat. If you still notice a blank screen, resetting your Cielo Smart Thermostat can help resolve the issue. To reset it, just pull your thermostat off the wall for 1-2 minutes and then put it back in its place.
  • Page 132 Step 3: Tap on 'Unlink'. You have successfully unlinked the app from the device. How To Adjust The Temperature On Your Cielo Smart Thermostat? Tap on the set point/s on the control screen, then use the up & down arrows to adjust the...
