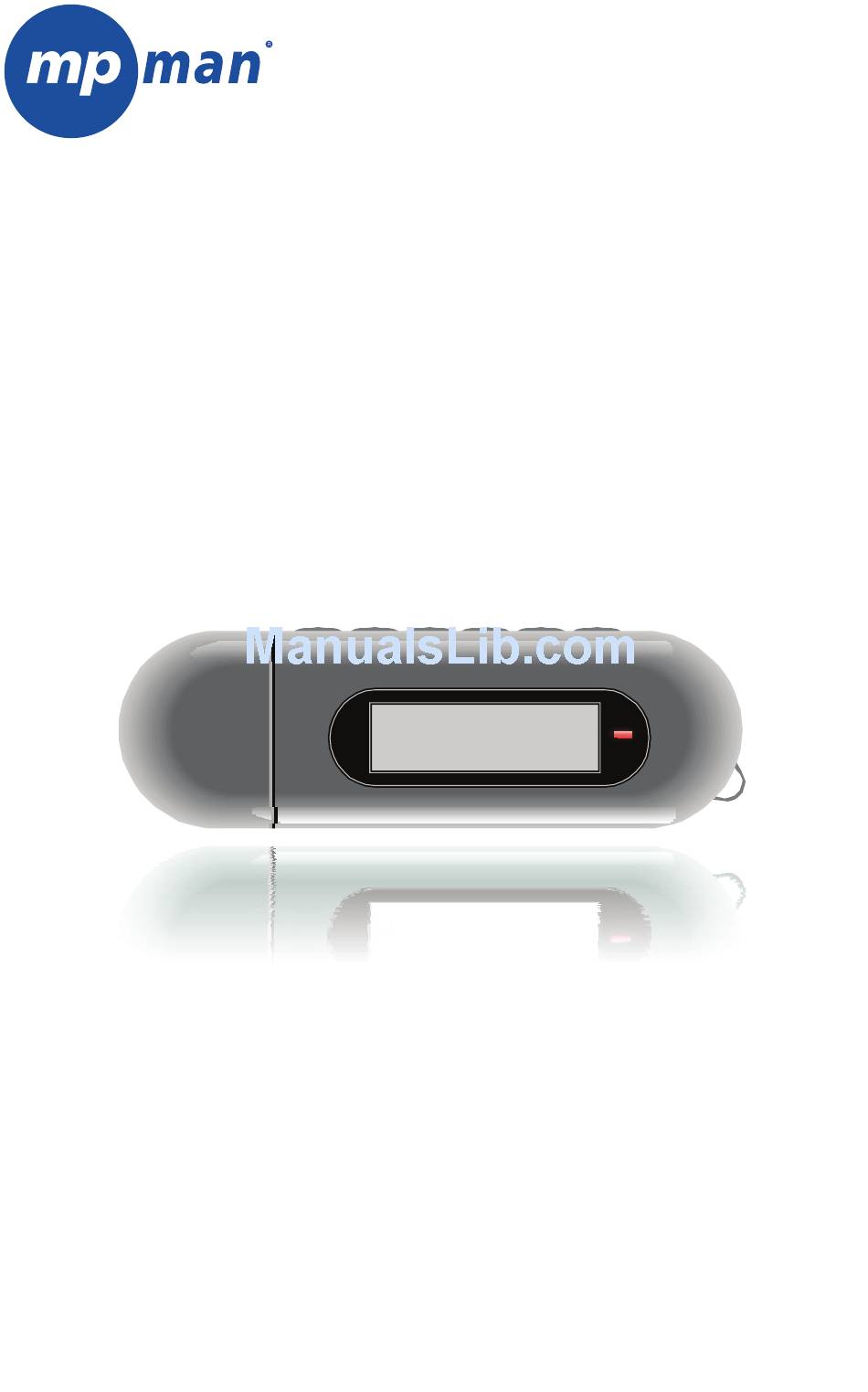

Page 1: Instruction Manual
MPUB330 USB-Stick MP3 Player with LCD Display INSTRUCTION MANUAL Please read this manual carefully before operation. -
Page 2: Table Of Contents
TABLE OF CONTENTS TABLE OF CONTENTS ................2 PACKAGE CONTENTS ................3 FEATURES ....................4 GETTING STARTED ................5 Controls at a Glance ..................5 Connecting Headphones ................7 Connecting Power ...................7 Loading a Battery..................7 USB Power ....................7 Using the Player Controls................8 Power On/Off ..................8 Hold Switch ...................8 Reset Function ..................8... -
Page 3: Package Contents
PACKAGE CONTENTS Please make sure that the items listed below are included in the package. Should an item be missing, please contact the local retailer from which you purchased this product. MPUB330 Stereo Earphones 1 x “AAA” Battery Instruction Booklet Installation CD Page 3... -
Page 4: Features
FEATURES Integrated Flash Memory High-Contrast LCD Display with Backlight Plays MP3 and WMA Digital Music Files ID3 and LRC support for song and synchronized lyric information display Mobile Data Storage Function USB 2.0 for Ultra-Fast File Transfers (up to 40x faster than USB 1.0) Page 4... -
Page 5: Getting Started
GETTING STARTED Controls at a Glance Top View MENU button Volume + Volume - Previous/Reverse Next/Forward Play/Pause/Stop Bottom View HOLD Switch USB Cap Battery Compartment Cover Front View LCD Display Neckstrap Hook Right View Headphone Out Jack Page 5... - Page 6 GETTING STARTED Play Mode Display Current track / Total tracks File Type Song Title / File name Equalizer Indicator Bitrate Play Mode Indicator Volume Level Battery Level Indicator Elapsed Time Page 6...
-
Page 7: Connecting Headphones
GETTING STARTED Connecting Headphones Connect headphones/earphones to the Headphone Out jack for private listening. Lower the volume level before connecting headphones, then gradually increase the volume for comfortable listening. Hearing experts advise against the constant use of personal stereos played at high volume. -
Page 8: Using The Player Controls
GETTING STARTED Using the Player Controls Power On/Off To turn your player on, press . The LCD will light. To turn your player off, hold for at least 3 seconds. The LCD will darken. Hold Switch The Hold feature locks (disables) your player’s controls to prevent accidental key presses when it is in your pocket or bag. -
Page 9: Main Menu
GETTING STARTED Main Menu The Main Menu gives you access to the different function modes of your player. To enter the Main Menu, press and hold . To exit the Main Menu, press and hold To select a function mode in the Main Menu, press to highlight the mode, and then press to confirm. -
Page 10: Play Music
PLAY MUSIC Enter PLAY MUSIC mode from the Main Menu to play digital MP3 or WMA music files. PLAY MUSIC mode will play all compatible audio files on your player, regardless of directory. Play Music Controls Use the following controls during music playback. Function Start/Resume track playback. -
Page 11: Repeat A-B Mode
PLAY MUSIC Repeat A-B Mode Set a segment of a music track to repeat in a continuous loop. During play- back: To set the starting point “A” of the loop, press To set the end point “B” of the loop, press again. -
Page 12: Setting
SETTING Enter SETTING mode from the Main Menu to change your player’s internal option settings. The Setting Menu contains 9 options. To select an option, press . To confirm and enter, press To exit the Setting Menu, press Item Description Set a digital equalizer preset. -
Page 13: Folder
FOLDER Enter FOLDER mode to view, play, or delete files on your player. You can also connect your player to a computer to easily manage your file library. Folder Controls A directory tree will be displayed on-screen upon entering FOLDER mode from the Main Menu. -
Page 14: Usb Connections
USB CONNECTIONS Minimum PC Requirements You can connect the Player to a computer with a USB port to transfer files to your player or to manage the files on your player. The minimum require- ments listed below will allow you to perform basic file management functions; advanced features will require a faster PC and Windows configuration. -
Page 15: Transferring Files
USB CONNECTIONS If you need further assistance with transferring files, please refer to your operating system’s instruction manual or on-screen help. Connect the player to a computer. Double-click the “My Com- puter” icon on your desktop and then double-click the player icon (Re- movable Disk). -
Page 16: Macintosh Os
USB CONNECTIONS Safely Remove Hardware: Select “USB Mass Storage Device” from the list that appears and then click on “Stop”. Stop a Hardware Device: Select “USB Mass Storage Device” from the list that ap- pears and then click on “OK”. Select “USB Mass Storage Device”... -
Page 17: Mpmanager
MPMANAGER For music synchronisation and conversion, please use MPMANAGER soft- ware supplied in the CD ROM. This software can be used also for UPDATE of your player MPMANAGER manual is included in your CDROM Page 17... -
Page 18: Troubleshooting
TROUBLESHOOTING If you have a problem with this device, please read the troubleshooting guide below. The player does not turn on. Ensure that the battery retains a charge. Try replacing the battery with a new one. Try resetting your player (remove and replace the battery). ... - Page 19 TROUBLESHOOTING Ensure that the bit rate of the file is not too low. The higher the bit rate of the file, the better it will sound. The minimum recommended bitrate is 128kbps for MP3s and 96kbps for WMAs. Try lowering the volume of the player. ...
-
Page 20: Specifications
SPECIFICATIONS Display Type 128 x 32 Dot-Matrix LCD with Backlight Memory Integrated Flash Memory Audio Format Support MP3, WMA DRM Support Song Info Support ID3, LRC PC Interface USB 2.0 Hi-Speed Plug and Play Support Windows 98SE/2000/ME/XP or newer Mac OS X Audio Output 3.5mm Stereo (Headphone) Menu Language Support... - Page 21 NOTES Page 21...
- Page 22 For more information please check our website www.mpmaneurope.com...
