Summary of Contents for Garlando Toorx BRX75

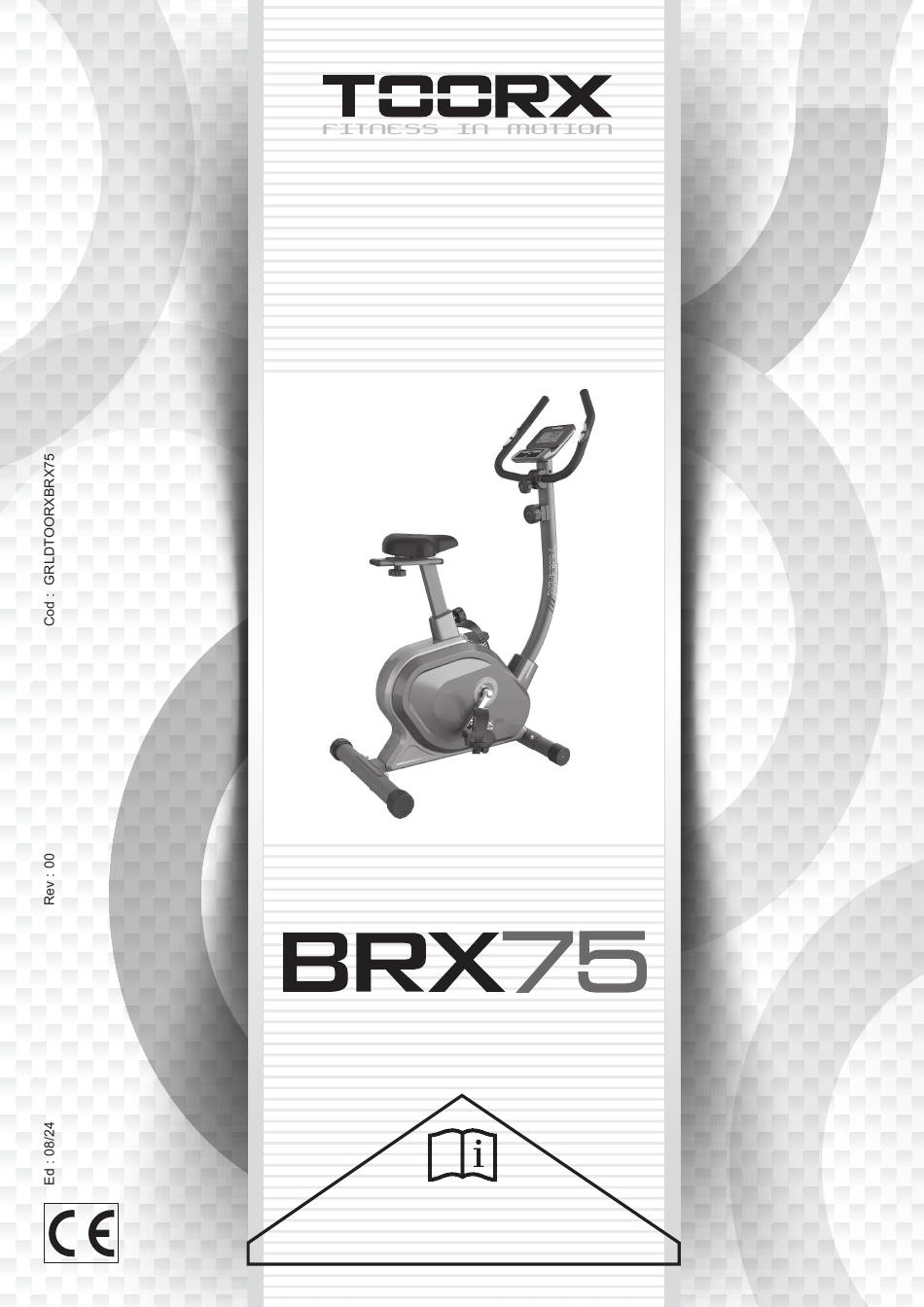

  • Page 1 INSTRUCTION...
  • Page 2: Exploded Diagram

    EXPLODED DIAGRAM 17 18...
  • Page 4 Parts List Description Description Computer Seat Bolt M5*10*φ10 Seat holder Washer d8*Φ20*2 End cap Postbar Nylon nut M8*H7.5*S13 Bolt M5*20*Φ10 End cap Arc washer d5*Φ16*1.5*R30 Seat tube Washer d12*Φ24*2 Tension wire Tension knob Nut knob M12 Knob M16*1.5*22*φ56 Cover Knob Sensor Screw ST4.2*16*Ф8 Middle handlebar...
  • Page 5 Shaft Bolt M6*10*S10 Washer d6*Ф13*1.5 Spring washer d6 Nylon nut M6*H6*S10 Idler Wave washer d12*Ф15.5*0.3 Seat cover Bushing Idler rod Bolt M8*12*Φ10*5.5*S5 Round magnet Nut M10*1*H8*S15 Tension spring Washer d12*Ф17*0.5 Chain bolt Nut M10*1*H5*S17 Flywheel Axle Bearing 6001 Spanner S5 Washer D12*1.0 Wrench S13-14-15 Hardware:...
  • Page 6 Step 1: #17 d8*φ20*2*R30 4PCS #18 d8 4PCS #A S5 1PC #19 M8*20*S5 4PCS 17 18 Remove bolts(19), spring washers(18) and arc washers(17) from front and rear stabilizers(23+24) by spanner(A). b. Secure front and rear stabilizers(23+24) to main frames(39) with bolts(19), spring washers(18) and arc washers(17) by spanner(A).
  • Page 7 Step 2: #17 d8*Φ20*2*R30 4PCS #18 d8 4PCS #19 M8*20*S5 4PCS #A S5 1PC 17 18 ① ② ③ ④ a. Put cover(16) into postbar(4). b. Connect trunk wire 1(20) with sensor wire(35) as shown picture A, then connect the wire of tension knob(8) with tension wire(7) as show picture B. c.
  • Page 8 Step 3: #28 d8*φ20*2 3PCS #33 M12 1PC #29 M8*H7.5*S13 3PCS #34 M16 1PC #32 d12*φ24*2 1PC #B S13-14-15 1PC a.Put cover(54) on the main frame(39), then insert seat tube(31) in the main frame(39), then adjust the suitable height and secure with knob(34). b.Secure seat holder(27) with seat tube(31) with knob(33) and washer(32).
  • Page 9 Step 4: #2 M5*10*φ10 6PCS #10 M8 1PC a. Remove knob(10) from postbar(4), then put the handlebar(11) in the postbar(4), then put the cover(9),finally secure handlebar(11) with the postbar(4) with knob(10). b. Pass pulse wire(15C) through the hole of postbar(4), then put the cover(3) on the hole of postbar(4).
  • Page 10 ADJUSTMENTS GUIDE MOVING THE MACHINE To move the machine, push the handlebar(11) until the end cap of transportation wheels(22) on the front stabilizer touch the ground. With the wheels on the ground, you can transport the bike to the desired location with ease.
  • Page 11 EXERCISE MONITOR INSTRUCTION DISPLAY INFORMATION 1) Main display area:SPEED/RPM; 2) TIME, DISTANCE, CALORIE, PULSE display area; KEY FUNCTION START Status: Changeover display SPEED or RPM; MODE choose set items needs to be set . STOP Status: Enter the setting mode ,and Pressing and hold with 3 seconds to reset all of the value to 0 ;...
  • Page 12 GARLANDO SPA Via Regione Piemonte, 32 - Zona Industriale D1 15068 - Pozzolo Formigaro (AL) - Italy www.toorx.it - info@toorx.it...
