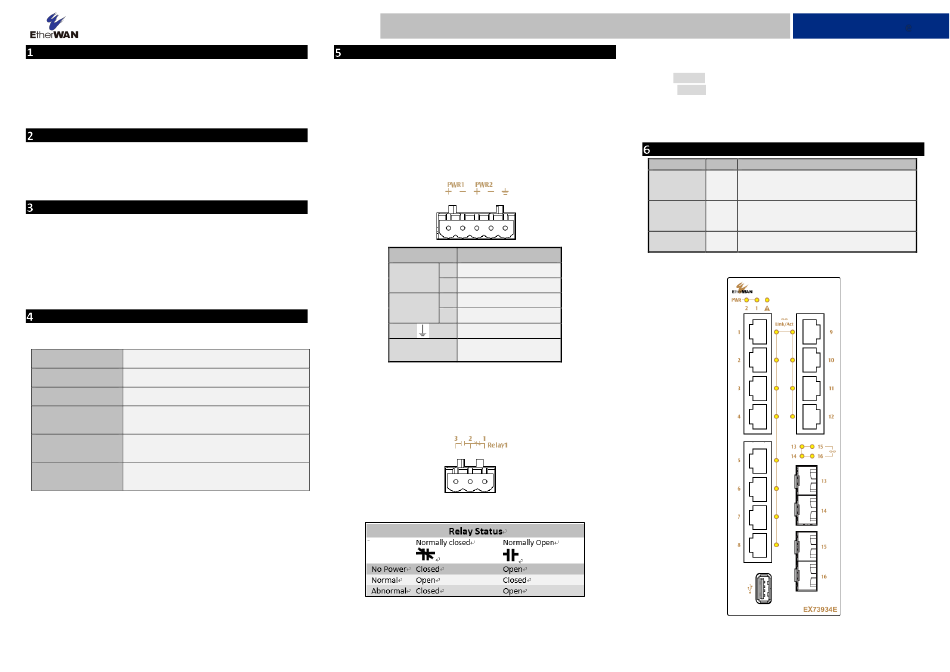

EtherWAN EX73900E Series Installation Manual

Unpacking
Open the carton and unpack the items. Your package should include:
▪
One EX73900E hardened managed switch
▪
One RJ-45 console cable
If any items are missing or damaged, notify your EtherWAN representative. If
possible, save the carton and packing material in case you need to ship or store the
switch in the future.
What Else You Need
▪
Appropriate cables for data ports. To prevent damage to the switch from
electrical surges, it is recommended to use STP (Shielded twisted pair)
cabling.
▪
Personal computer or laptop
▪
Appropriate SFP modules for SFP ports
Select a Location
▪
Installations: DIN-Rail mount.
▪
Select a power source within 6 feet (1.8 meters).
▪
Choose a dry area with ambient temperature between -40 and 75ºC (-40
and 167ºF).
▪
For use at altitudes up to 2000 meters, indoor use only.
▪
Humidity range (Operational): 5% to 95%, non-condensation
▪
For use in Pollution 2 environment.
▪
Do not block the device ventilation holes.
Connect to the Data Ports
Depending on the model, your switch can have the following ports:
8-port 10/100/1000BASE-T + 2-port 100/1000BASE SFP
EX73922E-0VB
Hardened Managed Ethernet Switch
8-port 10/100/1000BASE-T + 4-port 100/1000 BASE SFP
EX73924E-0VB
Hardened Managed Ethernet Switch
12-port 10/100/1000BASE-T + 4-port 100/1000 BASE SFP
EX73934E-0VB
Hardened Managed Ethernet Switch
8-port 10/100/1000BASE-T + 2-port 100/1000BASE SFP
EX73922E-0VB-CC
Hardened Managed Ethernet Switch with conformal
coating
8-port 10/100/1000BASE-T + 4-port 100/1000BASE SFP
EX73924E-0VB-CC
Hardened Managed Ethernet Switch with conformal
coating
12-port 10/100/1000BASE-T + 4-port 100/1000BASE SFP
EX73934E-0VB-CC
Hardened Managed Ethernet Switch with conformal
coating
10/100/1000BASE-TX Ports
To prevent damage to the switch from electrical surges, it is recommended to use
STP (Shielded twisted pair) cabling.
1G/10G SFP Ports
SFP transceivers can be installed directly into SFP slots. Ensure that the same type
of transceiver is used at both ends of the link and that the correct type of fiber
cable is used.
W70G-EX73900EQ2 Page 1
EX73900E | Series Hardened Managed Ethernet Switch
Switch
Connect Power
▪
The switch has two pairs of power inputs.
▪
Only one power input is required to operate the switch. However,
redundant power supply functionality is supported.
▪
The power input specification complies with the requirements of SELV
(Safety Extra Low Voltage), and the power supply should comply with UL
61010-1 and UL 61010-2-201.
Terminal Block
The switch provides two power inputs on a terminal block with nominal power of
24VDC. The terminal block has 5 terminal posts.
Pin Description
+
12-48VDC
Power 1
−
Power Ground
+
12-48VDC
Power 2
- Power Ground
Earth Terminal
Relay Output 0.6A @30VDC
Rating
Relay Output Alarm
The switch provides two relay output contacts. Both Relay 1 and Relay 2 signal
actions from one of the digital inputs. The relay outputs can be connected to an
alarm signaling device. The Current is 0.6A@30VDC at Normal Open or Normal
Close.
3 Normal Open | 2 Ground | 1 Normal Close
Copyright 2022 EtherWAN Systems, Inc. All Rights Reserved 12/26/2022
Installation Guide
Power-Up Sequence
When the switch is powered up:
▪
All Link/ACT LEDs blink momentarily.
▪
The Power 1 LED light goes ON.
▪
LEDs for every port connected to a device will flash, as the switch conducts a
brief Power On Self-Test (POST).
Front Panel LEDs
LED Color Status
On: Power on
Power 1 & 2 Green
Off: Power off
On: Network connection established
Link/Act Green
Flashing: Port sending or receiving data
Link down or power down
Alarm Red
