TracVision A7 Installation Guide
2-2 Mount the Antenna -
Rack Mount Kit
If you are mounting the antenna to the vehicle's roof
rack, follow the steps below. If you are mounting the
antenna directly to the roof, skip to page 2.8. If you
are mounting to a Hummer rack, skip to page 2.12.

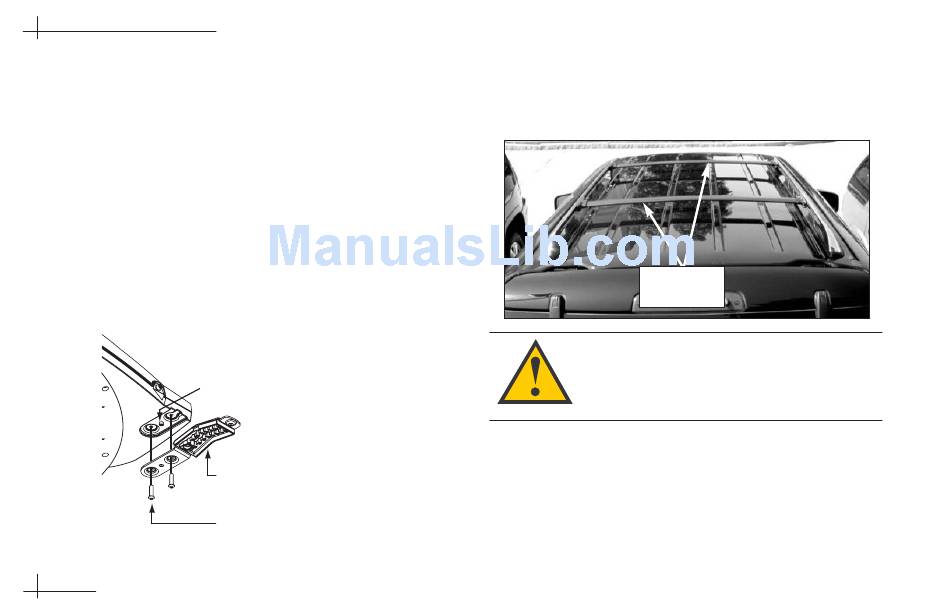

1. Attach each of the four mounting brackets to the
antenna base using two
screws. (A bolt is factory-installed in the base between
the bracket holes.)
Attaching the Mounting Brackets
Factory-installed bolt
Bracket
1/4"-20 x 3/4" Hex Socket
Screws (with Nylok patch)
2.4
1 ⁄ "-20 x 3 ⁄ " hex socket
4 4
2. Position the roof rack crossbars 35
measured center-to-center. Ensure that the
crossbars are securely fastened to the vehicle.
Roof Rack Crossbars
Crossbars
35 ⁄
1
2
Be sure the roof rack's crossbars are
secured in place and are sturdy enough to
support the 48 lb antenna.
1 ⁄ " apart,
2
" apart
54-0350
