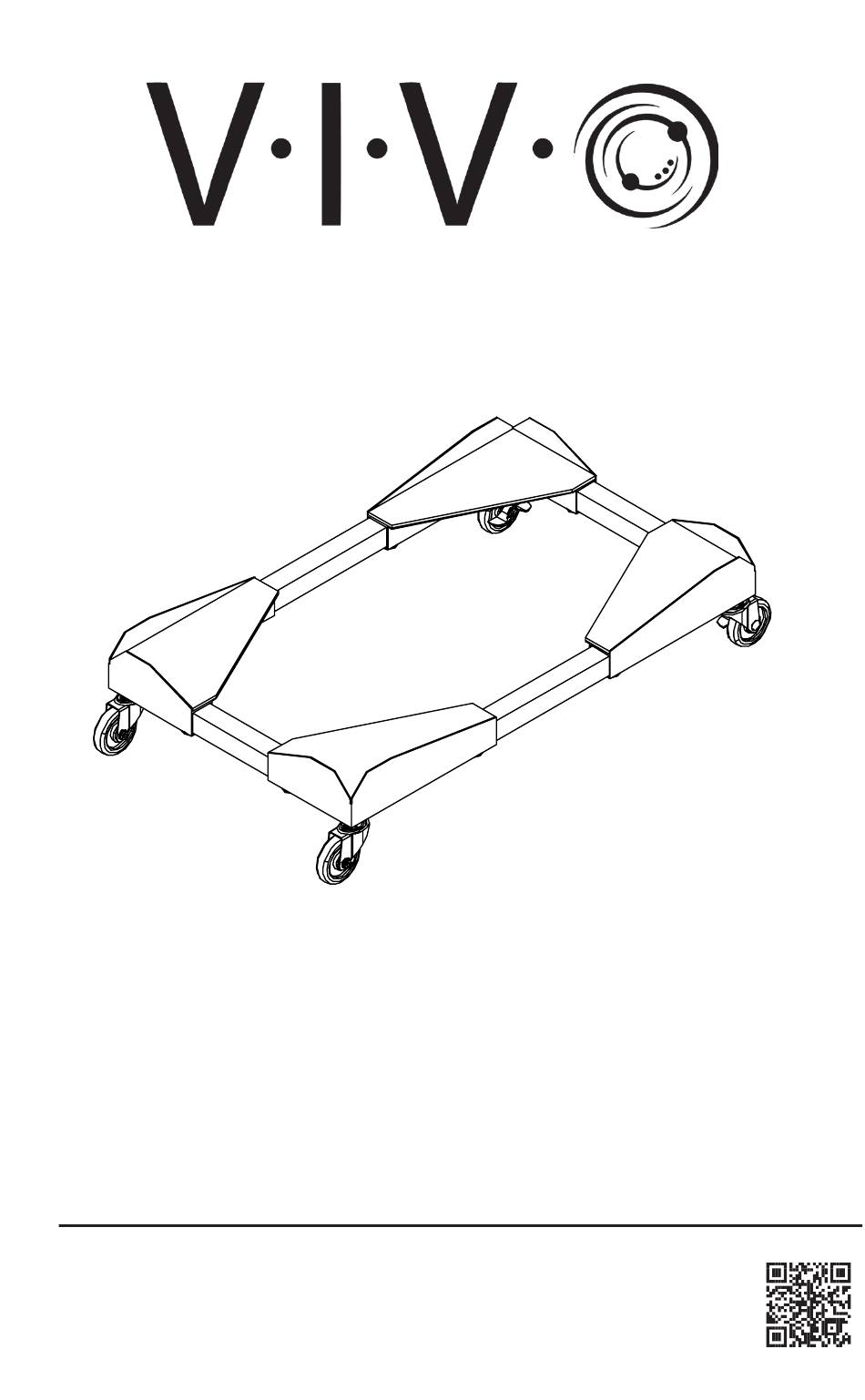

- Page 1 Premium Large CPU Cart SKU: CART-PC03D Instruction Manual Assembly Video & Product Info www.vivo-us.com/products/cart-pc03d...
- Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
-
Page 3: Package Contents
Package Contents A (x2) B (x2) C (x2) Corner Brace Set Short Rail Long Rail E (x2) D (x2) F (x2) Locking Caster Pad Set Caster Included Hardware & Tools T-A (x1) T-B (x1) S-A (x8) 4mm Allen Wrench Wrench M6x30mm Screw Tools Needed: Weight Capacity:... -
Page 4: Pre-Assembly Steps
PRE-ASSEMBLY STEPS Measure the Length (LT) and Width (WD) of your PC. -
Page 5: Assembly Steps
ASSEMBLY STEPS STEP 1 Insert Short and Long Rails (B,C) into the Corner Braces (A) as shown. Make sure all Mounting Holes and Slots are on the same side. Slots Mounting Holes STEP 2 Thread Casters (D) and Locking Casters (E) into Corner Braces (A) and tighten using Wrench (T-B). - Page 6 STEP 3 Using the measurements from PRE-ASSEMBLY, adjust the cart assembly to make the Length (LT) and Width (WD) of your PC. Secure using M6x30mm Screws (S-A) and 4mm Allen Wrench (T-A). STEP 4 Remove adhesive backing from Pads (F) and stick them to the Corner Braces (A) as shown.
- Page 7 STEP 5 Place your PC onto the cart assembly. Lock Locking Casters (E) to prevent the cart from rolling.
- Page 8 LAST UPDATED: 08/14/24 REV1.2 v1.0 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us...
