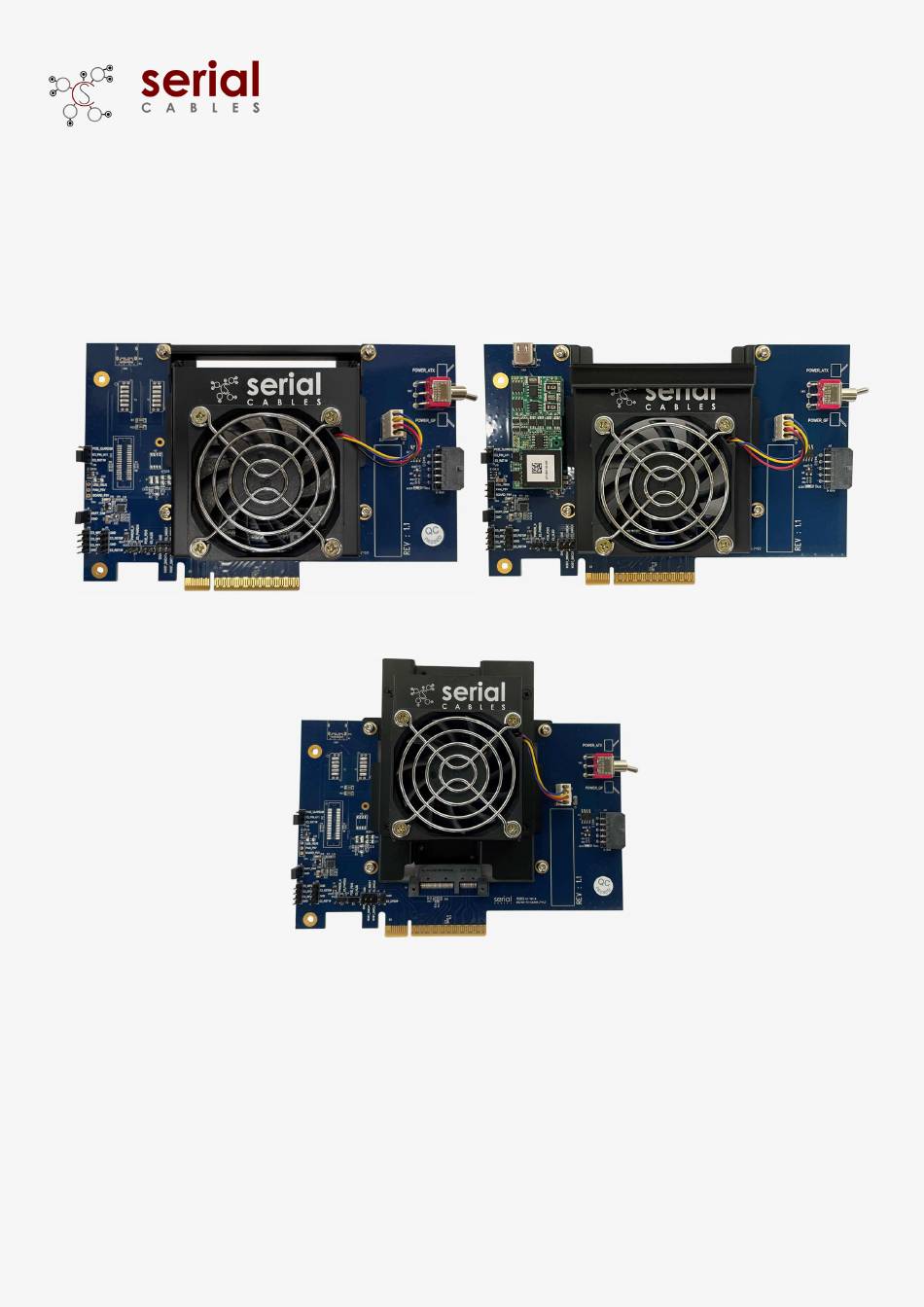

- Page 1 PCI6-AD-x8EDSFF-VE3/VE1/VEQ User’s Manual REV: 1.0 January. 2025...
- Page 2 Change history Change history Date of Release New created Jan. 2025...
- Page 3 PCI6-AD-x8EDSFF-VE3/VE1/VEQ Func#on Descrip#on For Connectors For PCI6-AD-x8EDSFF-VE3 And PCI6-AD-x8EDSFF-VE1 110mm 167mm Connectors Descrip#ons Toggle switch Toward Up, EDSFF drive powered by ATX (Quarch PPM connector in ). Toward Down, EDSFF drive powered by host (Golden finger). Quarch power connector X8 84Pins Right angle EDSFF Connectors...
- Page 4 PCI6-AD-x8EDSFF-VE3/VE1/VEQ Func#on Descrip#on For Connectors For PCI6-AD-x8EDSFF-VEQ 110mm 167mm Connectors Descrip#ons Toggle switch Toward Up, EDSFF drive powered by ATX (Quarch PPM connector in ). Toward Down, EDSFF drive powered by host (Golden finger). Quarch power connector X8 84Pins Right angle EDSFF Connectors...
- Page 5 PCI6-AD-x8EDSFF-VE3/VE1/VEQ Func#on Descrip#on For Headers Headers Descrip#ons Select the Pin11 of EDSFF connected to PCIE_CLKREQ# or PERST#. Pins in EDSFF/ Pins in Signals 1.) Jumper on Pin1&2. support single port in EDSFF also connect the Header Golden finger CLKREQ# signal from host to EDSFF device.
- Page 6 PCI6-AD-x8EDSFF-VE3/VE1/VEQ Func#on Descrip#on For Headers (cont.) Headers Descrip#ons Pins in Signals Pins in EDSFF J16 is used for EDSFF PERST# manual reset. Header EDSFF_PERST0# EDSFF_B10 Note: EDSFF PERST1# support in dual port only. J19 pin2 and pin3 must be short to connect PERST1# to EDSFF Pin A11.
- Page 7 PCI6-AD-x8EDSFF-VE3/VE1/VEQ “VE3” FAN-cage for E3 SSDs Installa#on Hinge down for 7.5mm height E3 SSD Hinge up for 16.8mm height E3 SSD...
- Page 8 PCI6-AD-x8EDSFF-VE3/VE1/VEQ “VE1” FAN-cage for E1.S SSDs Installa#on E1S 5.9mm/8.01mm SSDs Installa#on Step1: screw 4pcs of copper pillar onto E1.S FAN-cage Step2: Install E1.S SSDs. Step3: screw E1.S SSD...
- Page 9 PCI6-AD-x8EDSFF-VE3/VE1/VEQ “VE1” FAN-cage for E1.S SSDs Installa#on E1S 9.5mm/15mm/25mm SSDs Installa#on E1.S 9.5mm SSD E1.S 15mm SSD E1.S 25mm SSD...
