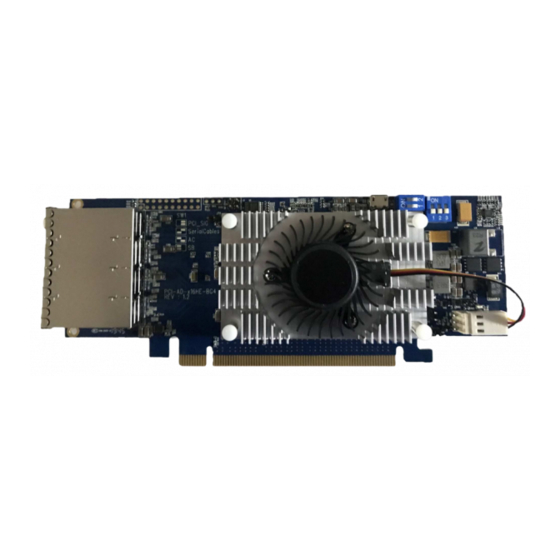

Serial Cables PCI-AD-x16HE-BG4 User Manual

Atlas external host adapter card
Hide thumbs

Advertisement

Quick Links

Download this manual

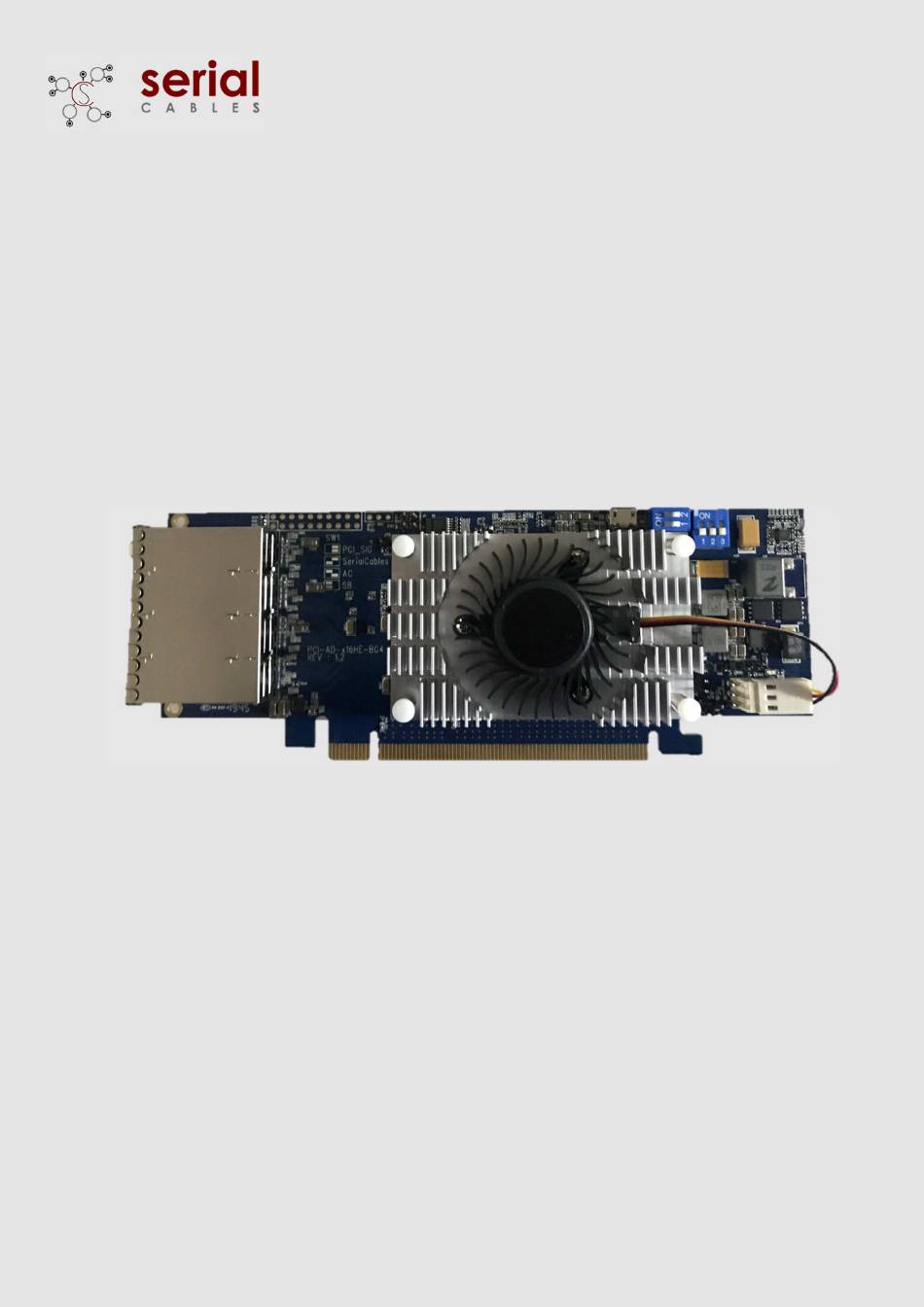

Atlas External Host Adapter Card
User's Manual
REV: 1.4
Oct. 2020
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the PCI-AD-x16HE-BG4 and is the answer not in the manual?

Questions and answers

Related Manuals for Serial Cables PCI-AD-x16HE-BG4

Summary of Contents for Serial Cables PCI-AD-x16HE-BG4

  • Page 1 Atlas External Host Adapter Card User’s Manual REV: 1.4 Oct. 2020...
  • Page 2 Atlas External Host Adapter Card Host Card Descrip on Quad Ports MiniSAS HD Micro USB Port SFF8674 connector CLI commands support Slide Switch Loca on Descrip ons Pinout ON: uP in FW upgrading mode OFF: uP in normal opera,on mode (default) ON: uP without SDB of switch control for debug purpose OFF: uP is able to access switch informa,on via SDB (default) ON: uP in USB boot mode for FW programming...
  • Page 3 Atlas External Host Adapter Card Func on Descrip on For LEDs [In the Bo@om side] LED5\2 LED4\2 LED3\2 LED2\2 LED6 LED7 Loca on Color Descrip on Atlas switch Heartbeat LED LED7 Blinking: Indicates the Atlas switch working in Synthe,c switch mode Blue Solid ON: Indicates the Atlas switch working in base fanout switch mode Atlas switch failure LED...
  • Page 4 Atlas External Host Adapter Card SFF8674 Pin Defini on CONN_0 CONN_1 CONN_2 CONN_3 CLK_0_N CLK_0_P PERP0 PERN0 PERP3 PERN3 CLK_4_N CLK_4_P PERP1 PERN1 PERP2 PERN2 CONN_0 I2C_SCL_1 I2C_SDA_1 PETP0 PETN0 PETP3 PETN3 PERST#_0 PERST#_1 PETP1 PETN1 PETP2 PETN2 CLK_1_N CLK_1_P PERP4 PERN4 PERP7...
  • Page 5 Atlas External Host Adapter Card Side Band Mode Selec on PCI-SIG Host card side-band mode PCI-SIG CADDR CLK_0_N CLK_0_N CLK_0_N CABLE_INT# CLK_0_P CLK_0_P CLK_0_P VCT(NC) CLK_4_N DP_EN#_0 CABLE_PRE# CLK_4_P Drive#_0 PERST#_0 uP_SCL ATLAS_SCL ATLAS_SCL “H” state uP_SDA ATLAS_SDA ATLAS_SDA PERST#_1 VACT PERST#_0 PERST#_0...
  • Page 6 Atlas External Host Adapter Card USB Driver Installa on Download and install the CDC driver for unidentified device(VID_03EB&PID_2018) Available at: https://www.serialcables.com/wp-content/uploads/2018/11/SynergyUSBCDC_20180518.rar Note: No USB driver is required for Windows 10 and Linux...
  • Page 7 Atlas External Host Adapter Card USB Driver Installa on...
  • Page 8 Atlas External Host Adapter Card USB Driver Installa on...

  • Page 9: Cli Setup

    Atlas External Host Adapter Card CLI Setup Step 1. Install and launch Tera Term applica,on (or Hyper Terminal requires version 3.0 or higher). Step 2: To ensure proper communica,ons between Atlas host adapter card controller and the VT100 Terminal emula,on, please configure the VT100 Terminal emula,on seMngs to the values shown below: Step 3: For “Port”, select COM3 in this example.
  • Page 10 Atlas External Host Adapter Card uP Synergy FW Upgrading Step 1: Have jumper J78 ON to force uP enter FW upgrading mode. Connect to PC Step 2: Install Atlas host adapter card into PCIe slot of server, and connect Micro USB port to PC which used for FW upgrading, then power on the PC.
  • Page 11 Atlas External Host Adapter Card Atlas Host Card Commands List...
  • Page 12 Atlas External Host Adapter Card fdl Command Update the configura,on file or firmware for Atlas PCIe switch. Usage: fdl sbr|fw|mfg cfg=update the combined config file into MCU, user can u,lize “setmode” command to select any of config (support in the future) sbr=update the SBR file for Atlas switch.
  • Page 13 Atlas External Host Adapter Card dr Command Dump switch-specific registers. Usage: dr <register<H> [count(H)] register(H) : register shoule be 0x00000000 ~ 0xFFFFFFFC count(H) : count should be 0x00000000 ~ 0xFFFFFFFC dp Command Dump switch port-specific registers. Usage: dp port_number(D) port_number(D) : port_number shoule be 0 ~ 31...
  • Page 14 Atlas External Host Adapter Card df Command Dump switch port-specific flash. Usage: df address(H) [count(H)] address(D) : address shoule be 0x00000000 ~ 0xFFFFFFFC count(H) : count shoule be 0x00000000 ~ 0xFFFFFFFC ssdrst Command Issue PERST# from uP to device -Usage: ssdrst <con(D)|all> [channel(C)] CON4 con(D) : con number should be 1 ~ 4 CON3...
  • Page 15 Atlas External Host Adapter Card showport Command Shows ports link speed and link width informa,on. Usage: showport Physical Loca on Port Port 28 Port 24 Port 20 Port 16 Port 0 Atlas host adapter card support DPR (Dynamic port reconfigura,on) features. The default seMng is set all downstream ports to x1 ports.
  • Page 16 Atlas External Host Adapter Card Scan Command Scan all I2C devices in Atlas host card Usage: scan Spread Command Show spread informa,on or set Atlas switch working in -0.5% SSC frequency. Usage: spread Usage: spread on It requires card power cycle to apply the “spread” seMng. clk Command Show the clock output status or disable the clock output for all downstream ports.
  • Page 17 Atlas External Host Adapter Card iicwr Command iicwr <Addr(H)> <con(D)> <ReadByte(D)> <WriteData(H)> Addr(H) : Device address con(D) : Con should be 1 ~ 4 ReadByte(D) : Max read byte is 32 byte WriteData(D) : Max write byte is 32 byte Ex : iicwr d4 1 8 0 iicw Command iicw <Addr(H)>...

  • Page 18: Ver Command

    Atlas External Host Adapter Card ver Command Shows card informa,on, uP FW and Atlas FW version. Usage: ver reset Command Reset uP FW (not including Atlas FW) Usage: reset...
