PCI5-x8EDSFF-E3V-01

User's Manual

REV: 1.0

Aug. 2022

Table of Contents

Need help?

Do you have a question about the PCI5-x8EDSFF-E3V-01 and is the answer not in the manual?

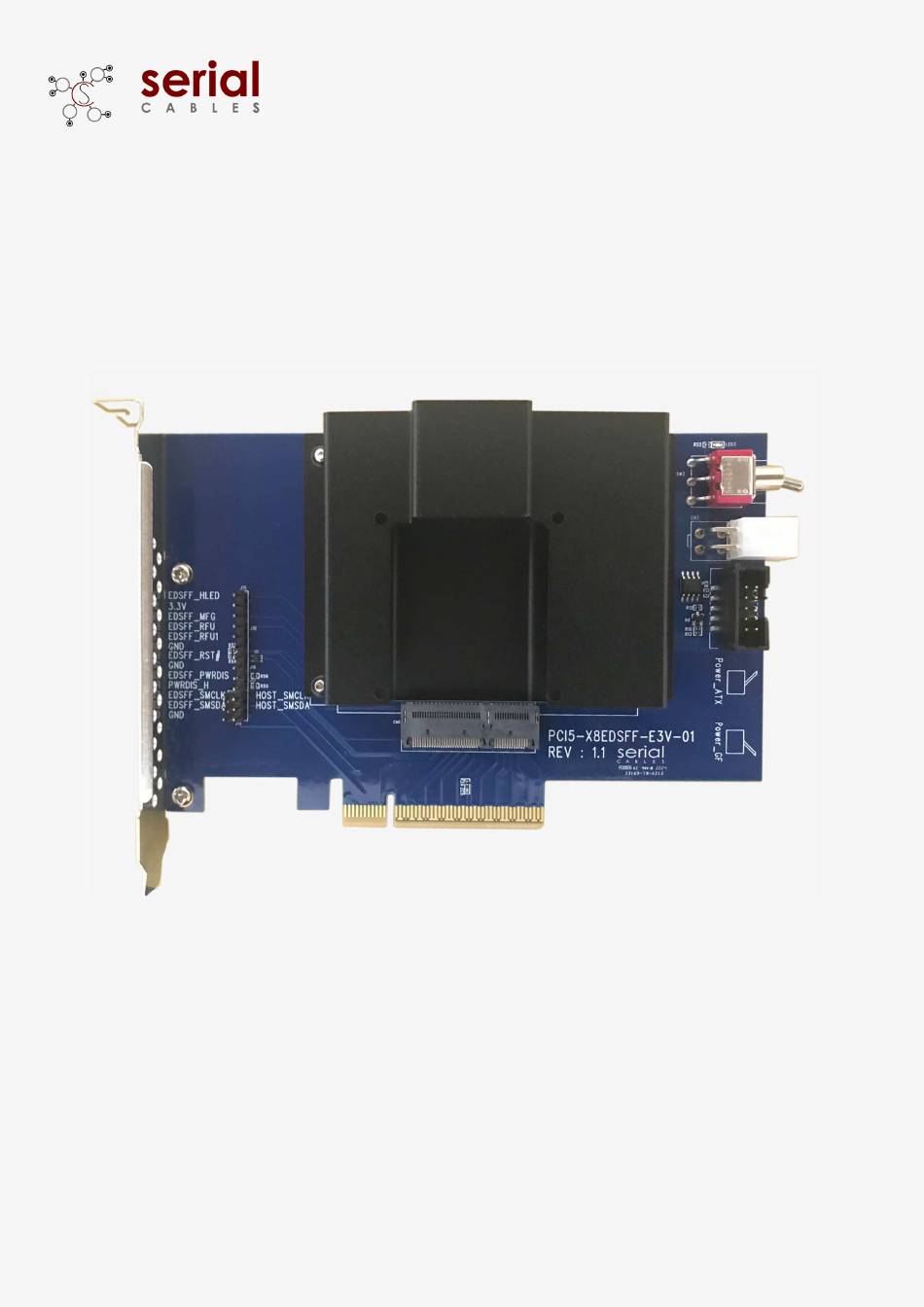

Page 1 PCI5-x8EDSFF-E3V-01 User’s Manual REV: 1.0 Aug. 2022...
Page 2 PCI5-x8EDSFF-E3V-01 Func on Descrip on For Connectors Loca on Descrip ons Toggle switch Toward Up, EDSFF drive powered by AUX (Either ATX12V or Quarch Connector). Toward Down, EDSFF drive powered by host (Golden ﬁnger). ATX 12V Power connector. Quarch power connector...
Page 3 PCI5-x8EDSFF-E3V-01 Func on Descrip on For Connectors Loca on Descrip ons ON: Connects HOST_LED in EDSFF connector Pin A10 to 3.3V. OFF: HOST_LED in EDSFF connector Pin A10 to Floa9ng. Pin1_EDSFF_MFG: To EDSFF connector Pin B7. Pin2_EDSFF_RFU: To EDSFF connector Pin B8.
Page 4 PCI5-x8EDSFF-E3V-01 Mechanical Accessories No1. No2. No3. 10mm No4. No5. No6. Height Height Drives support ME accessories No. No.1 + No.2(secure in bo/om side of PCBA, convex side toward top) E3. S/E3.L + No.3 E3.S.2T/E3.L.2T/ No.1 + No.2(secure in bo/om side of PCBA) E1.S 15mm/E1.S 25mm...
Page 5 PCI5-x8EDSFF-E3V-01 E3.S/ES.L Drives Support No3. The convex side of No.2 toward top Note: No.3 isn’t required for E3.S.2T/ES.L.2T/E1.S 15mm/E1.S 25mm Drives Support...
Page 6 PCI5-x8EDSFF-E3V-01 E1.S 9.5mm/E1.S 8.01mm No.4 + No.2 is secured in boIom side of PCBA E1.S 5.9mm No.6 + No.5 is secured in top side of PCBA...
