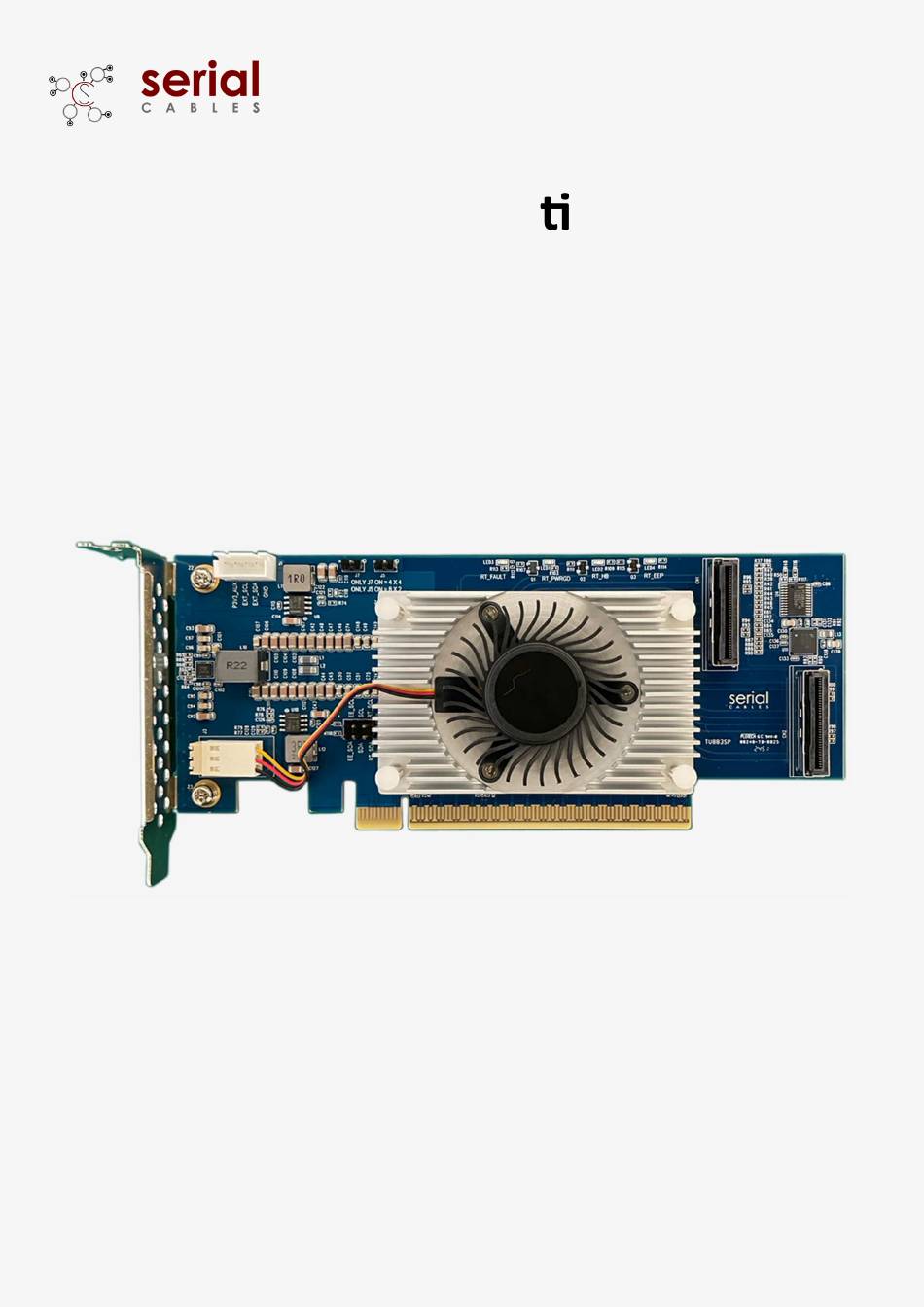

- Page 1 PCIe/CXL MCIO Re mer Based Host Card PCI5-AD-X162X8VR-RT User’s Manual REV: 1.0 Feb. 2025...
- Page 2 PCIe/CXL Re mer Host Card Func on Descrip on For Headers And Connectors Headers Descrip ons Have Jumper ON in J5/J7 J7 only=Re$mer supports 4x4 bifurca$ons in two x8 MCIO connectors. J5 only= Re$mer supports 8x2 bifurca$ons in two x8 MCIO connectors. SMbus accessing selec$on.
- Page 3 PCIe/CXL Re mer Host Card Func on Descrip on For LEDs LED1 LED4 LED3 LED2 Loca on Color Descrip on Re mer fault LED LED3 Lights if any error detected in re$mer IC. Re mer card power good LED LED1 Blue Lights to indicate all of power rails in re$mer host card output correctly.
- Page 4 PCIe/CXL Re mer Host Card MCIO Pin Defini on A_PETN7 A_PETP7 A_PETN6 A_PETP6 MCIO_SCL_A0 MCIO_SDA_A0 B_PERN7 B_PERP7 B_PERN6 B_PERP6 A_PETN5 A_PETP5 A_PETN4 A_PETP4 RT_PERST# B_PERN5 B_PERP5 B_PERN4 B_PERP4 MCIO_CLKA_P0 MCIO_CLKA_N0 A_PETN3 A_PETP3 A_PETN2 A_PETP2 MCIO_SCL_B0 MCIO_SDA_B0 B_PERN3 B_PERP3 B_PERN2 B_PERP2 A_PETN1 A_PETP1 A_PETN0...
