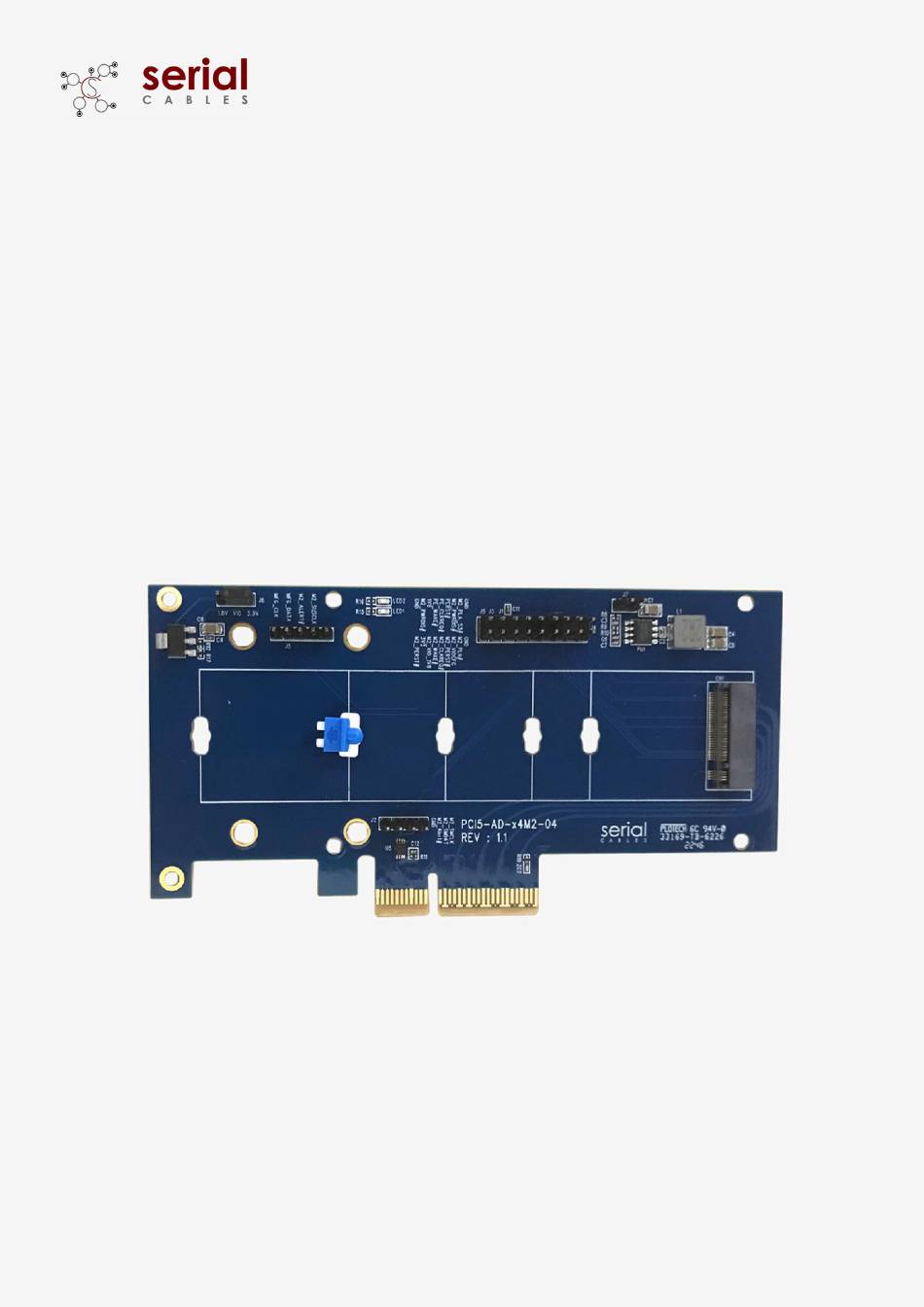

- Page 1 PCIe Gen5 X4 Slot To M.2 Adapter Card Part Number: PCI5-AD-x4M2-04 User’s Manual REV: 1.2 April. 2024...
-
Page 2: Change History
Change history Change history Date of Release New created Dec. 2022 Updated the default jumper se"ng Aug.2023 Added descrip%ons for pin headers Apr. 2024... -
Page 3: Product Brief
Product Brief 126mm LED2 LED1 67mm Hardware Specifica/on Model PCI5-AD-x4M2-04 67mm(H) x 126mm(L). PCBA Physical Dimension PCI Express add-in card standard, Thickness .063" +/- 0.008" (1.6mm +/- 0.2mm) LED1: Blue, Power LED. LEDs LED2: Green, M.2 Ac%vity LED. M.2 support... - Page 4 Func/ons of Headers Headers Descrip/ons Pin1*2 ON: Set the pull up to be 1.8V for M.2 side-band signals. Pins in Signals Header Pin2*3 ON: Set the pull up to be 3.3V for M.2 side-band signals. 1.8V M2_VIO Note: Side-band signals include M2_WAKE# and M2_PERST#. 3.3V For M.2 MFG SMBus accessing.
- Page 5 Headers Descrip/ons Pins in Pins in M.2 Signals ON: Provide 1.8V to M.2 VIO 1.8V Header connector 1.8V OFF: M.2 VIO 1.8V to be floa%ng M2_VIO1V8 Pins in Pins in M.2 Pins in Pins in Golden finger Signals Signals Header connector Header or M.2 connector...
