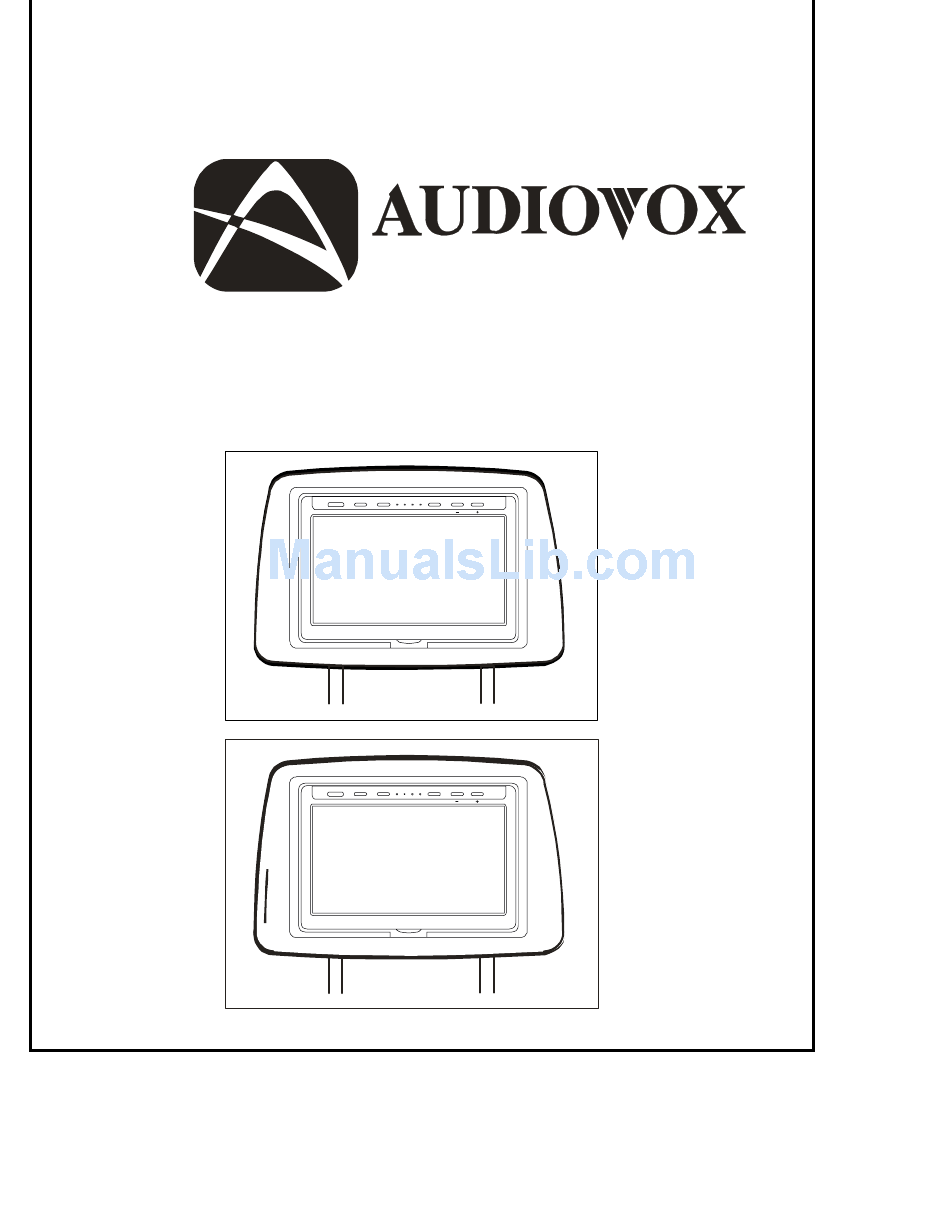

- Page 1 ® ELECTRONICS CORP . LCM7020PKG Two 7" Monitors with Two Audio/Video Input Capability Mounted in Vehicle Specific Headrests PO W ER SO UR CE W I D E M EN U VO LUM E PO W ER SO UR CE...
- Page 2 IMPORTANT An LCD panel and/or video monitor may be installed in a motor vehicle and visible to the driver if the LCD panel or video monitor is used for vehicle informa- tion, system control, rear or side observation or navi- gation.
- Page 3 The Materials included in this package LCM7020PKG System Monitor (One Master-#LCM7020M, One Slave-#LCM7020S) (2pcs) Master Remote Control Unit (MRCU) #136B3439 (1pc) Slave Remote Control Unit (SRCU) #136B3440 (1pc) System Main Cable (SMC) #1123277 (1pc) Dual Frequency IR Headphone set (#IR2CHS)
- Page 4 LCM7020PKG SYSTEM OVERVIEW 1) The LCM7020PKG is a versatile audio/video system which includes two monitors, that can accept two Audio/Video inputs. A separate audio output is provided for connecting the FM Modulator to the vehicle's radio. 2) The Master Monitor is comprised of a 7" TFT LCD monitor that allows the user to select from two A/V sources (Not Supplied).
-
Page 5: Vehicle Preparation
Procedure). The mounting method, and the location will vary from vehicle to vehicle, so this manual will only focus for the installation of the LCM7020PKG Master and Slave Monitors in the supplied configuration. The best location for the LCM7020PKG System components is:... -
Page 6: Cable Terminal Installation
CABLE TERMINAL INSTALLATION Master & Slave Monitor SHRINK SLEEVES... - Page 7 LCM7020PKG SYSTEM WIRING DIAGRAM POWER A UTO S T OP/EJECT RE P EA T SE NSOR PLA Y F FW D 1.) Make sure the Master, and Slave monitor have been installed properly, as described in the proce- dures as stated on page 3.
- Page 8 Remote Control Sensor (IR) Master Remote Control Unit Buttons LCD : Power On / Off Button for Master monitor VCP : Power On / Off Button for Optional Audiovox VCP SOURCE : Button for selection of AV #1 and AV #2 LC D...
- Page 9 Controls on Slave Monitor and Optional Slave Remote Control Unit Slave Monitor Panel Controls POWER SOURCE WIDE PICTURE VOLUME POWER On / Off Button SOURCE Button WIDE Button Infrared Audio Transmitter PICTURE Button VOLUME / Select Down Button VOLUME / Select Up Button Remote Control Sensor (IR) Slave Remote Control Unit Buttons LCD : Power On / Off Button for Slave monitor...
-
Page 10: Operation Instruction
OPERATION INSTRUCTION Button Functions There are six buttons on the front of the monitor: POWER, SOURCE, WIDE, MENU (Master Only) or PICTURE (Slave Only), VOLUME - and VOLUME +. 1) POWER : Pressing this button will turn the unit on/ off. 2) SOURCE : Pressing this button will select between AV1 and AV2. - Page 11 d) Highlight the SOURCE and press MENU button, OSD as below: SOURCE AV 1 AV 2 Then, you can use VOLUME- or VOLUME+ buttons to select from AV1 or AV2. The Master monitor can also operate the AV sources via the remote control sensor. g) If you select PICTURE, OSD below: NOTE: In NTSC format, TINT is included.
- Page 12 BRIGHTNESS BRIGHTNESS IIIIIIIIIIIIIIIIIIIIIII CONTRAST CONTRAST BRIGHTNESS IIIIIIIIIIIIIIIIIIIIIII COLOR COLOR BRIGHTNESS IIIIIIIIIIIIIIIIIIIIIII TINT TINT The OSD will automatically disappear if no buttons are pressed for 4 seconds. -10-...
-
Page 13: Monitor Specifications
CAUTION 1. Do not operate the monitor at temperatures below 32°F (0°C) or above 104°F (40°C). 2. Keep the monitor clean and dry. 3. Always seek qualified personnel to perform repairs. Never attempt your own repairs. 4. Do not drop the monitor or expose to strong impacts. 5. - Page 14 For Customer Service Visit Our Website At . audi ovox. com W W W Product Information, Photos, FAQ’s Owner’s Manuals © Copyright 2003 Audiovox Electronics Corp. 150 Marcus Blvd. Hauppauge, NY 11788 128-6774...
