Summary of Contents for Audiovox LCM7070

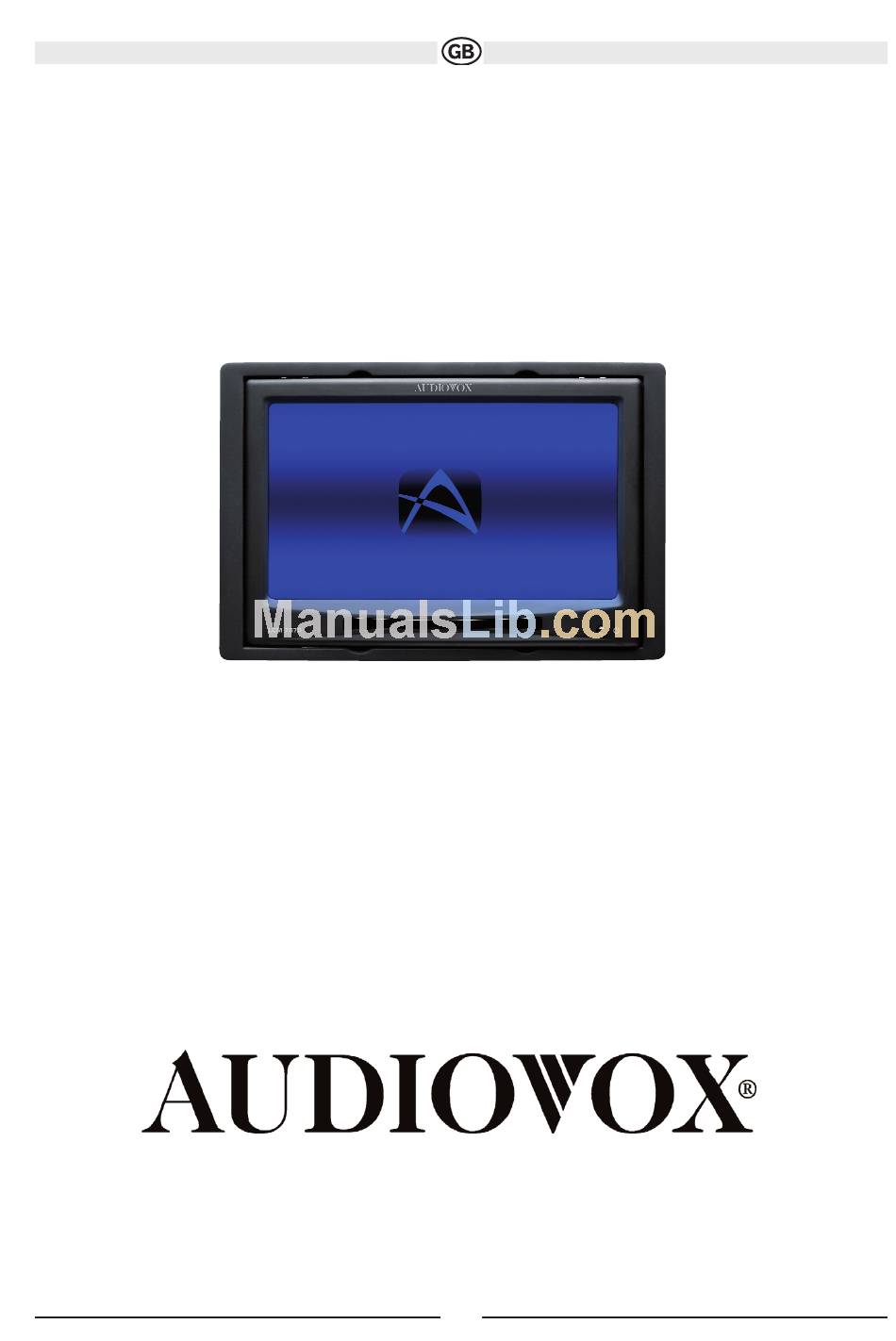

- Page 1 LCM7070 7”Color TFT-LCD Monitor...
- Page 2 Specifications Saftey Advice Wiring Diagram Installation Baisc Functions Electronical Installation and control functions Trouble shooting WARRANTY CARD...
- Page 3 Specifications 7” (17,8cm) FTF/LCd 16:9 Car Monitor Stand-alone or Headrest Installation Resolution: 1400 x 234 pixel Resolution RGB 480 x 234 pixel Contrast Ratio 300:1 Brightness 350cd/m2 Viewing Angle Vertical 160°, Horizontal 160° PAL/NTSC Auto Mode On Screen Display Control V1 &...
- Page 4 Saftey Advice Thank you for choosing a Audiovox product. We hope you will find the instructions in this owner’s manual clear and easy to follow. If you take a few minutes to look through it, you’ll learn how to use all the features of your new Audiovox LCM7070 monitor for maximum enjoyment.
- Page 5 Caution: Please oberserve the right polarity of the cables and the right colours of the RCA-Plugs.
- Page 6 Method 1: Installation with Stand Mount at first the stand at an appropriate postion. F.i. in the dashboard with the supplied screws. Observe by any means, that you don´t damage wires, cables or other preinstalled parts in the vehicle. At first remove carefully the mounting frame of the monitor´s rearside. Then slide the monitor´s mounting slot (A) on the fixing plate (B) from the mounting stand.
- Page 7 Basic Functions Remote Control The Monitor settings can be adjusted only with remote control...
- Page 8 Electronical installation and control functions 1. Please connect the monitor connection cable with the supported „S“ cable. The other side of the „S“ cable you con- nect with the Monitor control box. 2. Connect your DVD player or your headunits Audio / Video output with the Audio / Video input 1 at the monitor con- trol box.
- Page 9 Trouble Shooting Power This product is designed for operation with a 12 Volt DC, negative ground vehicle. Too low voltage or wrong polarity my cause malfunctions. Service Do not try and service these products yourself, seel only a qualified service center or factory service center. Damages Be careful not to drop or apply undue pressure to the frontpanel of your video monitor.
