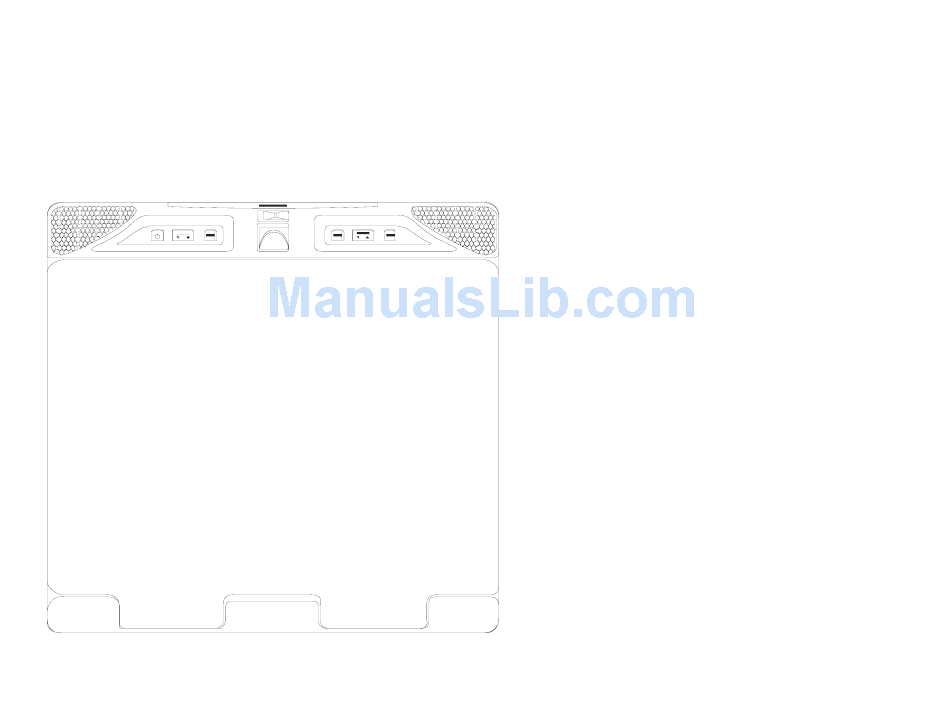

LCM1502TV
Owner's Manual
Audiovox Specialized Applications, LLC
www.asaelectronics.com
US PATENT # D467, 234

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LCM1502TV and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Audiovox LCM1502TV

Summary of Contents for Audiovox LCM1502TV

  • Page 1 LCM1502TV Owner’s Manual Audiovox Specialized Applications, LLC www.asaelectronics.com US PATENT # D467, 234...

  • Page 2: Important Notice

    Television viewing in a vehicle. In the interest of safety, the LCM1502TV should stationary vehicle will result in an improvement, but may never be installed where it will be visible, directly or still be marginal due to strength.

  • Page 3: Safety Precaution

    Congratulations on your purchase of the Flexvision LCM1502TV drop down TV/Video Monitor. • 15” TFT (Thin Film Transistor) Active Matrix LCD LCM1502TV has been designed to give you and your (Liquid Crystal Display) Monitor family many years of video entertainment in the mobile •...
  • Page 4 FRONT PANEL FEATURE Figure 1 1. POWER 2. VOLUME Up and Down 3. TV/AV 4. SENSOR EYE 5. THREE POSITION DOME LIGHT SWITCH 6. SCREEN RELEASE 7. MENU 8. CHANNEL Up and Down 9. ENTER 10. DOME LIGHT...

  • Page 5: Front Panel Features

    4. Sensor Eye – Allows the remote control to 8. Channel Up/Down – Changes the TV channel. operate the LCM1502TV’s OSD system (On Screen Display), volume to Wired Headphone 9. ENTER Button – Use this button to end the choice Jacks (and optional external speakers), and for on the menu.

  • Page 6: Remote Control Operation

    VOL . + 3) Slide the cover back until it clicks into position. CH τ VCP POWER P LAY The Remote Control will operate the LCM1502TV, Flexvision Televisions and Video Media Players. It RE W F .FWD REPLAY S T OP is not a universal remote control and will not control equipment from other manufacturers.
  • Page 7 REMOTE CONTROL OPERATION 1. TV Controls: 1. TV POWER Press this button to turn on the set. Press the button again to turn the set off. 2. Direct Access (0-9,1--) Number Buttons Use these buttons to select a channel. The channel number chosen will be displayed on the screen for about four seconds.

  • Page 8: Tv/Video Button

    6. TV/VIDEO Button Press this button to access the AUDIO/VIDEO input jacks, on the front and rear of the TV. As the button is pressed, the on screen display will cycle as follows: 7. MUTE Button Press this button to turn the TV sound off. Press again to restore sound to the previously set level. MUTE may also be released by pressing the VOLUME +/–.
  • Page 9 9. AUTO PROGRAM Button Select the regular channel broadcast TV or CABLE TV for AUTO PROGRAM. All the channel numbers for TV or CABLE TV will be scanned. The broadcasting signals will be detected and automatically stored. 10. ENTER Button Use this button to end the choice on the menu.
  • Page 10 2. VCR Controls: 12. VCP POWER Button This button is used to turn the unit on and off. 13. ”REW” REWIND Button If this button is pushed while the tape is stopped, the tape will rewind. If this button is pushed while the tape is playing, the VCP will go into rewind search mode.

  • Page 11: Adjusting The Picture

    ADJUSTING THE PICTURE When watching TV programs, the quality of the picture can be adjusted to suit your taste. Press MENU. The main menu appears. MENU MAIN MENU SELECT VIDEO CLOSED CAPTION SET PICTURE AUTO-PROGRAM ANTENNA INPUT V-CHIP PROTECT SET PASSWORD Press SELECT VIDEO.
  • Page 12 3. Select CLOSED CAPTION and then press ENTER. Closed captioning lets you display the audio portion of a program as text on the TV screen. This is useful to the hearing impaired or anyone who wants to watch a program without the sound. There are two types of closed captioning available: C1 (Caption 1) and C2 (Caption 2).
  • Page 13 6. Select the item to adjust. For example: To adjust brightness, press CHANNEL up or down buttons to select BRIGHTNESS and press ENTER. C HANNEL PICTURE COLOR CONTRAST BRIGHTNESS SHARPNESS 32 BRIGHTNESS ENTER TINT – RESET 6. Adjust the level: Press VOLUME VOLUM E –...
  • Page 14 7. To adjust other items, repeat all above. Notes: The menu or display disappears from the screen if you do not press + or – within a few seconds. Whenever a menu or display disappears from the screen, the + and – buttons on the front of the TV become the volume adjustment buttons.
  • Page 15 8. Press either CHANNEL up or down to select the function. Make sure the highlight bar is AUTO PROGRAM and then press ENTER. CHANNEL PROGRAM MAIN MENU SELECT VIDEO ADD CHANNEL ERASE CHANNEL CLOSED CAPTION AUTO PROGRAM SET PICTURE AUTO-PROGRAM ENTER ANTENNA INPUT V-CHIP PROTECT...
  • Page 16 CABLE TV (CATV) OPERATION In addition to normal broadcast reception of VHF and UHF channels, if you are a cable TV subscriber, your new TV is capable of receiving many unscrambled cable channels without the use of a converter box. When set to broadcast TV it receives channels 2~69.
  • Page 17 3. You can now select CATV programs by using the CHANNEL up and down buttons or the number buttons on the remote control. The chart below lists the total channel and cable count. Channels Off Air Cable Low VHF (Channel 01) VHF (Channels 2 ~ 13) * UHF (Channels 14 ~ 69) * Low Midband A-5 ~ A-1 (Channels 95 ~ 99)

  • Page 18: Parental Control Settings

    PARENTAL CONTROL SETTINGS This item helps parents set the standard for the programs their children are going to watch. 1. With the TV on, press the MENU button until special menu will appear. 2. Use the Channel up and down buttons to select the V-Chip Control item. 3.

  • Page 19: Setting The V-Chip

    SETTING THE V-CHIP An age limitation can be set to forbid children to see and hear violent scenes or pictures for adults, etc. The TV/VCR responds to “TV RATING” and “MOVIE RATING”. To use the V-CHIP function, you must register a password. 1.
  • Page 20 3. Enter the OLD password (4 digits) using the Direct channel selection buttons (0-9). 4. Enter the NEW password (4 digits) using the Direct channel selection buttons (0-9). NOTES: The initial PASSWORD is 1111 If you forget the password, you cannot set the V-CHIP. To avoid forgetting the password, write it down and Keep in a Safe place.
  • Page 21 2. Press either CHANNEL up or down buttons to select the function. Make sure the highlight bar is V-CHIP PROTECT and then press ENTER. C HANNEL MAIN MENU σ SELECT VIDEO CLOSED PASSWORD_ _ _ _ SET PICTURE V-CH IP AUTO-PROGRAM TV CH ANNEL BLOCKING ANTENNA INPUT...
  • Page 22 TV–Y No n e Al l TV–Y7 No n e Al l Al l TV–G No n e TV–PG No n e Al l DL S DLSV TV–1 4 No n e DL S DLSV Al l TV–M A No n e Al l When you select TV-Y7, TV-PG, TV-14 or TV-MA, press either CHANNEL up or down buttons to select the contained rating.
  • Page 23 7. MOVIE RATINGS CHART: M OVIE B L O CKIN G MP G BLOCK SHOW MP PG BLOCK SHOW MP PG- 13 BLOCK SHOW MP R BLOCK SHOW MP NC -17 BLOCK SHOW MP X BLOCK SHOW MP NR BLOCK SHOW MP G : ALL ages MP PG : Parental guidance...

  • Page 24: Operation

    A three-position slide switch controls the Dome relays the signals from the Remote Control to allow the Lights on the LCM1502TV. Sliding the switch to the LCM1502TV to be controlled simply by pointing it’s ON position will turn the Dome Lights ON. The OFF Remote Control at the remote sensor.

  • Page 25: Video Output

    AUX IN-L (WHT) AUX I N-R (RED) VIDEO OUTPUT AUX I N-V (YLW) The LCM1502TV provides a video output for an optional Video monitor(s). This output will provide a video signal that duplicates the signal displayed by the LCM1502TV to an additional Monitor or Video display.

  • Page 26: Optional Accessories

    OPTIONAL ACCESSORIES WIRELESS HEADPHONES WIRED FM MODULATOR (P/N FMT100) The LCM1502TV includes a 49MHz RFTransmitter for Your video system may be equipped with an optional use with Flexvision Wireless Headphones (P/N RF modulator, that allows you to listen to the WHPRF01).

  • Page 27: Typical System Connections

    TYPICAL SYSTEM CONNECTIONS 49 Mhz FM Transmi tter -26-...
  • Page 28 18 PIN MAIN HARNESS DETAIL LINE AUDIO GROUND AUDIO GROUND (SHIELD) POWER GROUND LINE AUDIO (R) OUT VIDEO OUT SPEAKER OUT GROUND LINE AUDIO (L) OUT DOME LIGHT SEE OWNER MANUAL POWER GROUND AUDIO (R) OUT AUDIO (L) OUT +12V POWER VIDEO GROUND SPEAKER OUT LEFT SPEAKER OUT-RIGHT...

  • Page 29: Troubleshooting

    Troubleshooting PROBLEM SOLUTION • Poor TV Reception Perform auto programming of the tuner • Verify antenna condition. • NOTE: Due to the nature of TV signals, vehicle motion, direction the vehicle is facing, Specifications distance from the transmitter, nearby surroundings and weather may adversely affect LCD Brightness 450 nits (min)
  • Page 30 90 DAY/ 12 MONTH LIMITED WARRANTY AUDIOVOX SPECIALIZED APPLICATION, LLC (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 90 days from the date of original purchase, such defect(s) will be repaired or replaced (at the Company's option) without charge for parts and repair labor.
  • Page 31 UDIOVOX PECIALIZED PPLICATIONS, L.L.C. www.asaelectronics.com 10/2002...
