Summary of Contents for Audiovox LCM0701TV

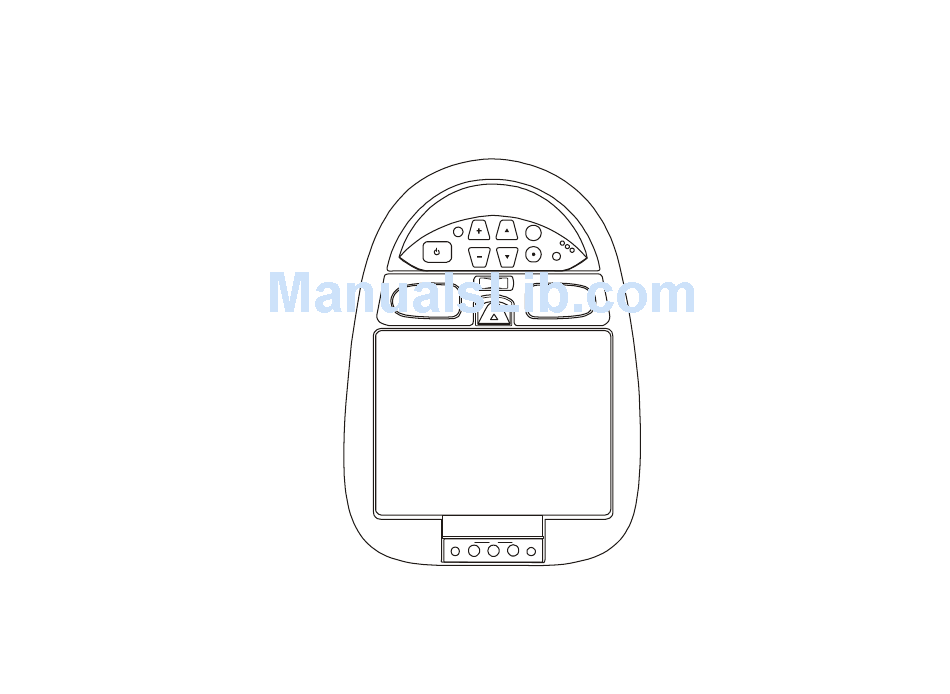

- Page 1 LCM0701TV Owner’s Manual SCREEN MODE V O L U M E C H A N N E L SELECT SENSOR AUTO POWER O F F A U T O Headphone Audio R Audio L Video Headphone...
-
Page 2: Important Notice
In the interest of safety, the LCM0701TV should never be installed where it will be visible, directly or indirectly, by the operator of the motor vehicle. - Page 3 FEATURES 7” TFT (Thin Film Transistor) Active Matrix LCD (Liquid Crystal Display) Monitor OSD (On Screen Display) for control of Picture Quality and Functions Screen Mode 16:9 or 4:3 Full Function Remote Control Television Tuner Plug in RF Transmitter for wireless RF Headphones Remote Sensor eye Four Audio / Video Sources Headphone / Speaker Amplifier...
- Page 4 FRONT PANEL FEATURE Figure 1 SCREEN MODE VOLUME CHANNEL SELECT SENSOR POWER AUTO AUTO A u x Headphone Audio R Audio L Video Headphone...
- Page 5 RCA jacks on the rear of the unit. V2 must be selected once something is plugged into the external jacks it over rides the previous source on V2. 7. Sensor Eye- Allows the remote control to operate the LCM0701TV’s OSD system (On Screen Display), volume to wired headphone jacks (and optional external speakers), and for control of Video Cassette Player and other accessories.
-
Page 6: Battery Installation
The remote control will operate the LCM0701TV, Flexvision Televisions and Video Cassette Players. It is not a universal remote control and will not control equipment from other manufacturers. If a universal remote control is used with the LCM0701TV, choose the remote control encoding scheme for Action Televisions when programming the remote. - Page 8 Remote Controlled TV Functions 1. POWER ON/OFF Press this button to turn the LCM0701TV on. The channel number or current video source will be displayed on screen, and the picture will appear in a few seconds. Press the button again to turn the LCM0701TV off.
- Page 9 When tuned to a channel press this button to store or erase the channel from memory. The stored channel numbers are displayed in “GREEN” on the screen, and the non-stored channels are in “RED”. When skip mode is on, the LCM0701TV will tune to only the stored channels when using the CHANNEL UP/DOWN buttons.
- Page 10 REMOTE CONTROLLED VCP FUNCTIONS These features can only be used with an Audiovox Video Cassette Player, if this option was installed with your video package. 11. POWER BUTTON This button is used to turn the VCP on and off. 12. “REW” REWIND BUTTON If this button is pushed while the tape is stopped, the tape will rewind.
-
Page 11: Channel Tuning Setup
Note: Please refer to page 2 for more information on TV reception. TURNING THE LCM0701TV ON OR OFF Sliding the screen release lock forward will unlock the LCD screen and it will drop down slightly. (Pivot the screen downward until a comfortable viewing angle is reached). -
Page 12: Operation
Overhead Dome Lights The lights integrated into the LCM0701TV are controlled by a three position slide switch. Sliding the switch to the on position will turn the lights on. The off position will prevent the lights from turning on at all times, and the auto position will allow the lights to turn on and off with the vehicle’s interior lighting. -
Page 13: Remote Sensor
AUX inputs, the AUX INPUT 2 will be temporarily bypassed. Once the connections have been made, turn the LCM0701TV on and press the source button on the LCM0701TV or the TV / Video button on the remote control until “Video 2” is displayed on the screen. The unit will now play the... -
Page 14: Optional Accessories
LCM0701TV Jack Panel OPTIONAL ACCESSORIES Wired Headphones There are two 1/8” headphone jacks on the LCM0701TV that can be used with any standard stereo headphones. These jacks are controlled by the volume up/down buttons on the LCM0701TV or the remote control. - Page 15 Wired FM Modulator (P/N 0190730) Your video system may be equipped with an RF modulator, that allows you to listen to the LCM0701TV’s audio signal by tuning your vehicle’s radio to the selected frequency, (88.7 or 89.1- check with your installer) and tuning on the remote mounted RF modulator switch.
- Page 16 TYPICAL SYSTEM CONNECTIONS Antenna To RF Transmitter Headphone To RF Transmitter Yellow (Video In) PIN 1- Power / Red White (Audio In Left) PIN 2- Power GND / Black Negative Switching / GM Type Red (Audio In Right) Gray- Entry Switch / Negative Headphone Black / Constant +12VDC / Dome Circuit Red- Chassis Ground...
-
Page 17: Optional Product List
Optional Product List Televisions AVT-988 9” Color Television with Remote (12V) AVT988 AVT-1498 13” Color Television with Remote (12V) AVT1498 VCP and DVD Players for use with TV’s and LCD AVP-7000 Video Cassette Player (12V) AVP7000 AVP-7285 Video Cassette Player (12V) AVP7285 Single Disc DVD Player DVD2101... - Page 18 -15-...
-
Page 19: Troubleshooting
Troubleshooting Specifications LCD Brightness 300 nits (min) PROBLEM SOLUTION Poor TV Reception Perform auto programming of Resolution 1440 x 234 the tuner Verify antenna condition. NOTE: Due to the nature of TV Pixels 336,960 signals, vehicle motion, direction the vehicle is facing, distance from the transmitter, Operation Temperature -10 ~ 65º... - Page 20 UDIOVOX PECIALIZED PPLICATIONS, L.L.C. 23319 Cooper Dr. Elkhart, IN 46514 800-688-3135 www.asaelectronics.com Revision B 3/2001...
