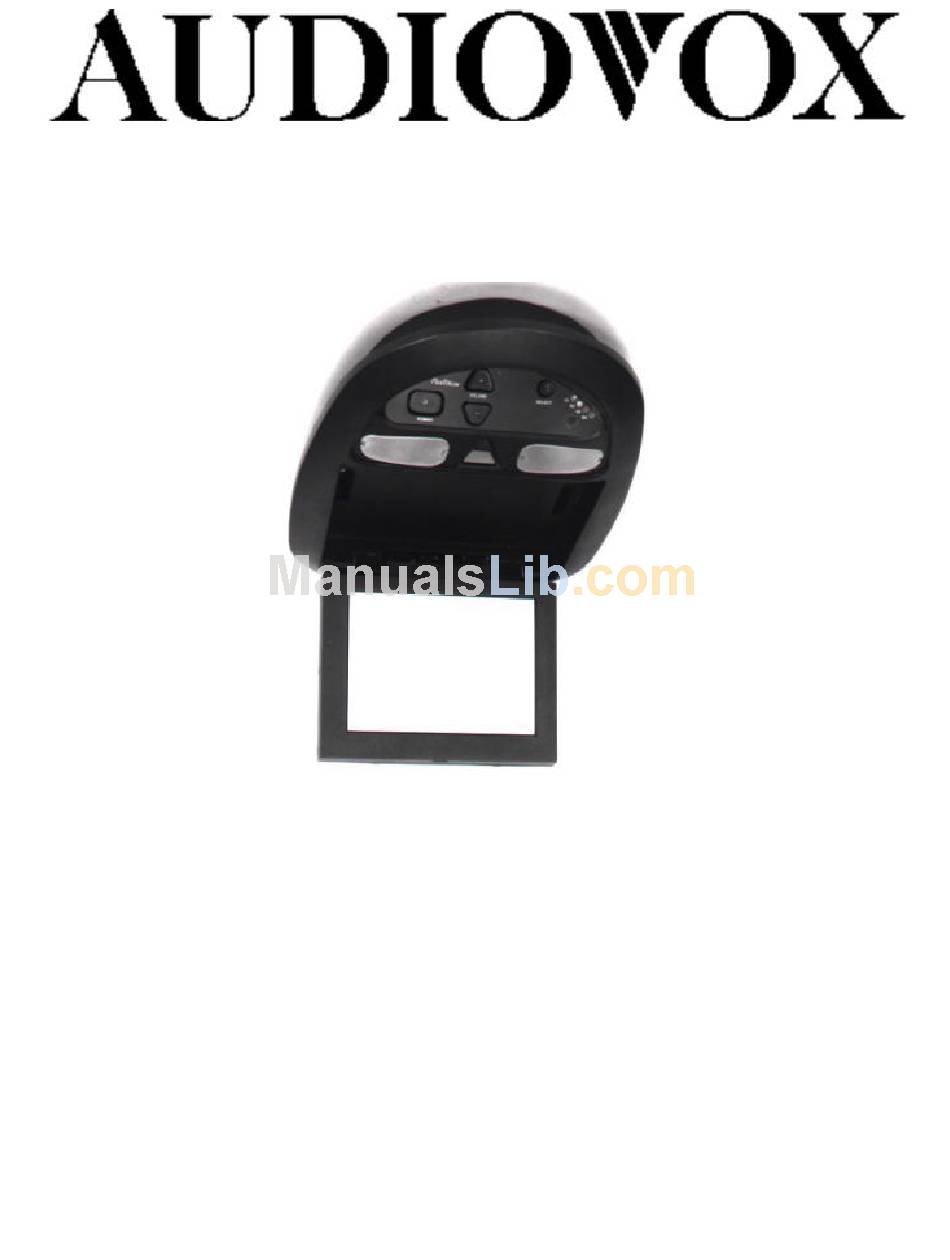

- Page 1 LCM640TV OWNER’S MANUAL Flip down LCD In-Vehicle Television Entertainment System US Patent # D 413,856 Audiovox Corporation 150 Marcus Blvd. Hauppauge, NY 11788 800-225-6074...
-
Page 2: Specifications
Features TFT Active Matrix Color LCD 4 Channel A/V Switching Built In (RCA Jacks Interrupt Source #3) Audio Amplifier, Volume Control, and Headphone Jacks Built In VCP, Game, DVD, A/V Input Jacks Back lit Controls for Easy Night Time Operation “Hide-Away”... -
Page 3: Front Panel Features
Front Panel Features A) Power Button: (dimly lit when in stand-by mode) B) Volume Up/Down: Controls volume to headphone jacks C) Channel Up/Down: Controls tuner channels D) Source Select: Each press of this button selects the next source (1-3). Note that some sources may not produce an image, depending upon whether components are connected to all sources. - Page 4 Antenna Information The following are a few points to consider in regards to TV reception in a mobile application. Generally in a mobile application, the lower channels are the most difficult to receive due to the size of the antenna required to receive the signal.
- Page 5 Remote Control Functionality 1) TV Power: Turns the unit on/off 2) TV/Video: Toggles between 3 available sources; Tuner/VCP/DVD (VCP 2). 3) Mute: Mutes headphone audio 4) 0-9: Numbers for channel select CH: Channel Up CH: Channel Down Vol: Volume Up Vol: Volume Down 9) Skip/Search: Toggles On/Off.
- Page 6 Notes All systems have a built in Audio/Video input. When the unit is on source #3 and another external source is plugged into the RCA Audio/Video input jacks, source #3 is interrupted and the external source (considered source #4) will be the current source. For audio output, there are a few scenarios that may apply to your system.
-
Page 7: Troubleshooting
System Picture scrolls or is fuzzy Poor reception Not receiving certain channels Unit will not respond to remote control No power to unit Troubleshooting Cause Antenna type or location Vehicle is moving Connections Sensor is blocked Batteries in remote control are weak Power connection Fuse blown at fuse panel... - Page 8 Rev. C Feb.00 P/N 8010838...
